center console MAZDA MODEL MX-5 MIATA 2018 Owners Manual

NOTE
The engine may not start if the key is
placed in the following areas:
ï‚·Around the dashboard
ï‚·In the storage compartments or the
center console
â–¼Key Suspend Function
If a key is left in the v
ehicle, the functions
of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.
Before Driving
Keys
3-8
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

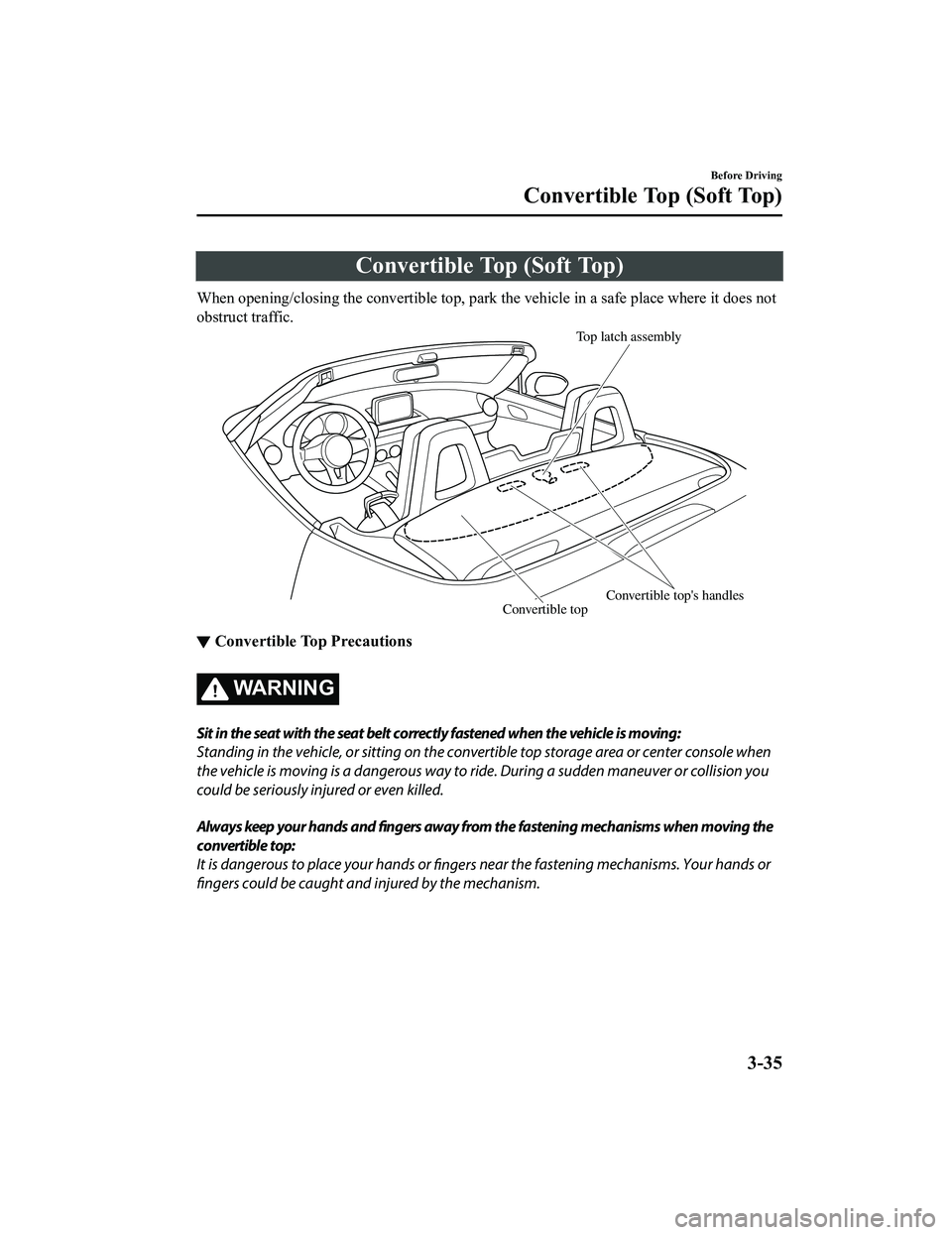

Convertible Top (Soft Top)
When opening/closing the convertible top, park the vehicle in a safe place where it does not
obstruct traffic.
Top latch assembly
Convertible top's handles
Convertible top
â–¼ Convertible Top Precautions
WA R N I N G
Sit in the seat with the seat belt correctly fastened when the vehicle is moving:
Standing in the vehicle, or sitting on the conv
ertible top storage area or center console when
the vehicle is moving is a dangerous way to ri de. During a sudden maneuver or collision you
could be seriously injured or even killed.
Always keep your hands and fingers away from the fastening mechanisms when moving the
convertible top:
It is dangerous to place your hands or fingers near the fastening mechanisms. Your hands or
fingers could be caught and injured by the mechanism.
Before Driving
Convertible Top (Soft Top)
3-35
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Convertible Top (Hardtop)
The retractable hardtop opens/closes electrically by operating switches in the vehicle. When
opening/closing the roof and windo w glass operate together. The front roof is stored in the
storage area under rear roof.
To help prevent burglary or vanda lism and to ensure that the passenger compartment stays
dry, close the roof and both windows securely and lock both doo rs when leaving the vehicle.
Front roof
Rear roofMiddle roof
â–¼Convertible Top Precautions
WA R N I N G
Always
confirm that there are no people around the vehicle before operating the roof:
If the roof were to operate unexpectedly, it coul d result in an accident and serious injury from
someone getting caught in the mechanism.
Sit in the seat with the seat belt correctly fastened when the vehicle is moving:
Standing in the vehicle, or sitting on the rear roof or center console when the vehicle is
moving is a dangerous way to ride. During a sudden maneuver or collision you could be
seriously injured or even killed.
Always keep your hands and fingers away from the fastening mechanisms when moving the
roof:
It is dangerous to place your hands or fingers near the fastening mechanisms. Your hands or
fingers could be caught and injured by the mechanism.
CAUTION
 When getting in or out of the vehicle with the roof open, be careful not to hit your head or
body on the corner of the windshie ld glass. It may cause an injury.
 Do not drive with the roof partially opened ; this could damage the roof or cause an
unexpected accident.
Before Driving
Convertible Top (Hardtop)
3-40
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

NOTE
ï‚·A natural driving posture can be
realized by lightly gripping the shift
lever from the side without having to
rest your elbow on the center console
box.

ï‚·If shifting to R is difficult, shift back into
neutral, release the clutch pedal, and try
again.
â–¼Gear Shift Indicator (GSI)
The GSI supports you to obtain optimum
fuel economy and smooth driving. It
displays the selected gear position in the
instrument cluster as well as notifies the
driver to change to the most suitable gear
position corresponding to the actual
driving condition.

Selected gear position Suitable gear position
Indication
Condition
Numeral The selected gear position is dis-
played.
and numeral Shift up or down to the indicated
gear position is recommended.
CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traffic conditions
have to be judged correctly by the driver
before shifting.
NOTE
The GSI turns off wh
en the following
operations are performed.
ï‚·The vehicle is stopped.
ï‚·The vehicle is put in neutral.
ï‚·The vehicle is driven in reverse.
ï‚·The clutch is not fully engaged when
accelerating from a stop.
ï‚·The clutch pedal remains depressed for
2 seconds or longer while driving.
When Driving
Manual Transmission Operation
4-32
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
