engine coolant MAZDA MODEL MX-5 MIATA 2020 Owner's Guide

SignalWarning
(Red)
High Engine Coolant
Temperature Warning
Indication/Warning
Light The light flashes when the engine coolant temperature is extrem
ely high, and illumi‐
nates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine l oad until you can find a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place immedi‐
ately and stop the engine.
Refer to Overheating on page 7-27.
CAUTION
Do not drive the vehicle with the high engi ne coolant temperature warning light illumi‐
nated. Otherwise, it could resu lt in damage to the engine.
Power Steering Mal‐
function Indication*
The message is displayed if the electric power steering has a m alfunction.
If the message is displayed, stop the vehicle in a safe place a nd do not operate the
steering wheel. There is no probl em if the message in the display turns off after a
while. Contact an Authorized Mazda Dealer if the message is dis played continuously.
NOTE
If the message is displayed, the power steering will not operate normally. In this
case, the steering wheel can still be op erated, however, the operation may feel
heavy compared to normal, or the steer ing wheel could vibrate when turning.
Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the power steering system to go into protective
mode which will make the steerin g feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.
Power Steering Mal‐ function Indicator
Light
*
The light illuminates/flashes if the electric power steering ha s a malfunction.
If the light illuminates/flashes, stop the vehicle in a safe pl ace and do not operate the
steering wheel. There is no problem if the light turns off afte r a while. Contact an Au‐
thorized Mazda Dealer if the lig ht illuminates/flashes continuously.
NOTE
If the indicator light illuminates/flashes, the power steering will not operate nor‐
mally. If this happens, the steering wheel can still be operated, however, the opera‐
tion may feel heavy compared to normal , or the steering wheel could vibrate when
turning.
Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the power steering system to go into protective
mode which will make the steerin g feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-35
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

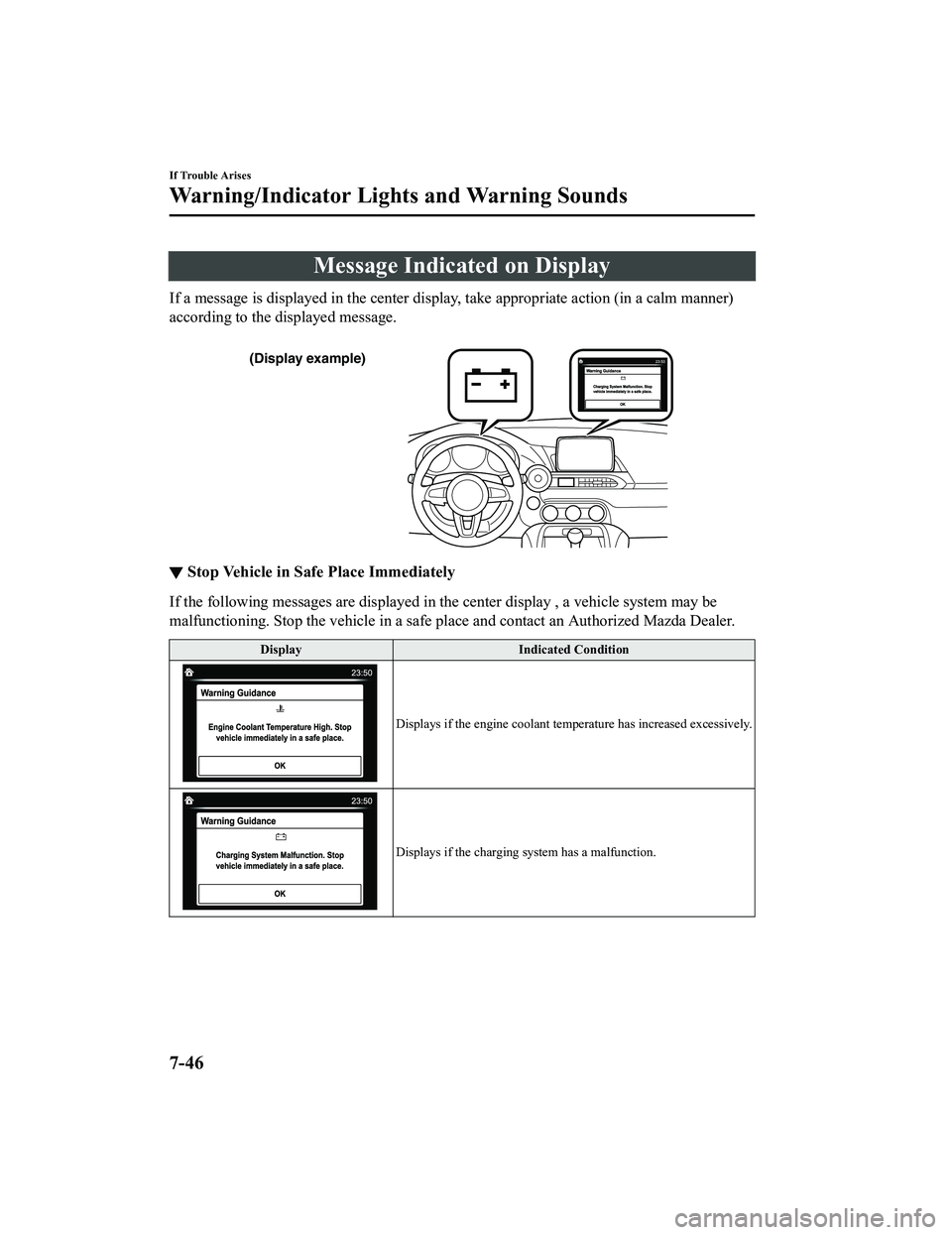

Message Indicated on Display
If a message is displayed in the center display, take appropriate action (in a calm manner)
according to the displayed message.

(Display example)
▼ Stop Vehicle in Safe Place Immediately
If the following messages are dis
played in the center display , a vehicle system may be
malfunctioning. Stop the vehicle in a safe place and contact an Authorized Mazda Dealer.
Display Indicated Condition
Displays if the engine coolant temperature has increased excess ively.
Displays if the charging system has a malfunction.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-46
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Specifications
▼Engine
Item
Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0
▼Electrical System
Item
Classification
Battery 12V-45Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKY ACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-23.
Coolant FL-22 type
Manual transmission oil Mazda Original Long Life Gear Oil IS
*1
Automatic transmission fluid Mazda Genuine JWS3309
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Mazda Original Long Life Gear Oil IS is superior oil for optim um shift-feel. Using Mazda Original Long Life
Gear Oil IS is recommended.
If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE
75W-90)). However, shifting in very low temperatures may become difficult.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
Specifications
Specifications
9-4
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil With oil filter replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter replacement 4.1 L (4.3 US qt, 3.6 Imp qt)
Coolant Manual transmission
6.0 L (6.3 US qt, 5.3 Imp qt)
Automatic transmission U.S.A. and Canada 5.7 L (6.0 US qt, 5.0 Imp qt)
Mexico
5.8 L (6.1 US qt, 5.1 Imp qt)
Manual transmission oil 2.0 L (2.1 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.2 L (7.6 US qt, 6.3 Imp qt)
Rear differential oil 0.6 L (0.6 US qt, 0.5 Imp qt)
Fuel tank 45.0 L (11.9 US gal, 9.90 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
U.S.A. and Canada
Item Vehicle specification
Soft top model Hardtop model
Overall length 3,915 mm (154.1 in) 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in) 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle 1,235 mm (48.6 in)
―
17 inch wheel vehicle 1,240 mm (48.8 in) 1,245 mm (49.0 in)
Front tread 1,496 mm (58.9 in) 1,496 mm (58.9 in)
Rear tread 1,503 mm (59.2 in) 1,503 mm (59.2 in)
Wheelbase 2,310 mm (90.9 in) 2,310 mm (90.9 in)

Mexico
ItemVehicle specification
Soft top model Hardtop model
Overall length 3,915 mm (154.1 in) 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in) 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle 1,225 mm (48.2 in)
―
17 inch wheel vehicle 1,230 mm (48.4 in) 1,235 mm (48.6 in)
Front tread 1,496 mm (58.9 in) 1,496 mm (58.9 in)
Rear tread 1,503 mm (59.2 in) 1,503 mm (59.2 in)
Wheelbase 2,310 mm (90.9 in) 2,310 mm (90.9 in)
Specifications
Specifications
9-5
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06
