window MAZDA MODEL MX-5 MIATA 2020 Service Manual

Fully Automatic Type
Rear window defogger switch
Air intake selector switch Fan control dial
Temperature control dial
A/C switch Rear window defogger switch
Air intake selector switch
A/C switch
Mode selector dial
Fan control dial
Temperature control dial Mode selector dial
Type A
Type B
Interior Features
Climate Control System
5-10
MX-5_8JA4-EA-19K_Edition1_old
2019-8-29 16:18:06

Outside air position (indicator light
turned off)
Outside air is allowed to enter the cabin.
Use this mode for ventilation or
windshield defrosting.
WA R N I N G
Do not use the position in cold or rainy
weather:
Using the
position in cold or rainy
weather is dangerous as it will cause the
windows to fog up. Your vision will be
hampered, which could lead to a serious
accident.
Rear window defogger switch
Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Windo w Defogger on page
4-55.
▼ Operation of Automatic Air
Conditioner
1. Set the mode selector dial to the
AUTO position.
2. Set the air intake s elector to the outside
air position (indicato r light turned off).
NOTE
If the recirculated air position is used
for long periods in cold weather or
high humidity, the wi ndshield may fog
up more easily.
3. Set the fan control dial to the AUTO
position.
4. Press the A/C switch to operate the air
conditioner (turn i ndicator light on).
5. Set the temperature control dial to the desired position.
6. To turn off the system, set the fan
control dial to the 0 position.
NOTE
Setting the temperature to maximum hot
or cold will not provide the desired
temperature at a faster rate.
When selecting heat, the system will
restrict airflow until it has warmed to
prevent cold air from blowing out of the
vents.
▼Windshield Defrosting and
Defogging
Set the mode selec
tor dial to the
position and turn the f an control dial to the
desired speed.
In this position, the outside air position is
automatically selected, and when the fan
control dial is ON, the air conditioner
automatically turns on. The air conditioner
will directly dehumidify the air to the front
windshield and side windows (page 5-4).
Airflow amount will be increased.
WA R N I N G
Set the temperature control to the hot or
warm position when defogging (
position):
Using the
position with the temperature
control set to the cold position is
dangerous as it will cause the outside of the
windshield to fog up. Your vision will be
hampered, which could lead to a serious
accident.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
Interior Features
Climate Control System
5-12
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Voice Recognition
▼Basic Operation Method
Activating Voice Recognition
Press the talk button.
Ending Voice Recognition
Use one of the following methods:
Press the hang-up button.
Say, “Cancel”.
Operate the commander switch or the
center display (only when vehicle is
stopped).
Skipping Voice Guidance (for faster
operation)
Press and release the talk button.
Troubleshooting for Voice Recognition
If you do not understand an operation
method while in the voice recognition
mode, say “Tutorial” or “Help”.
Commands useable anytime during
voice recognition
“Go Back” and “Cancel” are commands
which can be used at anytime during voice
recognition.
Returning to previous operation
To return to the previous operation, say,
“Go Back” while in voice recognition
mode.
Cancel
To put the Bluetooth
® Hands-Free system
in standby mode, say, “Cancel” while in
voice recognition mode.
To prevent a deterioration in the voice
recognition rate and voice quality, the
following points should be observed:
The voice recogn ition cannot be
performed while voice guidance or the
beep sound is operating. Wait until the
voice guidance or the beep sound is
finished before saying your commands.
Phone related commands are available
only when your phone is connected via
Bluetooth
®. Make sure your phone is
connected via Bluetooth
® before you
operate phone related voice commands.
Music play commands, such as Play
Artist and Play Album can be used only
in USB audio mode.
Do not speak too sl owly or loudly (no
loud voice).
Speak clearly, without pausing between
words or numbers.
Dialects or different wording other than
hands-free prompts cannot be recognized
by voice recognition. Sp eak in the wording
specified by the voice commands.
It is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
Close the windows and/or the convertible
top to reduce loud noises from outside the
vehicle, or turn down the airflow of the
climate control syst em while Bluetooth
®
Hands-Free is being used.
Make sure the vents are not directing air
up towards the microphone.
NOTE
If the voice recognition performance is not
satisfactory.
Refer to Troubleshooting on page 5-79.
Interior Features
Audio Set
5-74
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

NOTE
Supply of this product only conveys a
license for private, non-commercial use
and does not convey a license nor imply
any right to use this product in any
commercial (i.e. revenue-generating) real
time broadcasting (terrestrial, satellite,
cable and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in other
electronic content distribution systems,
such as pay-audio or audio-on-demand
applications. An independent license for
such use is required. For details, please
visit http://www.mp3licensing.com.
When naming an MP3 file, be sure to
add an MP3 file extension (.mp3) after
the file name.
The number of characters which can be
displayed is restricted.
▼Operating Tips for WMA
WMA is short for Windows Media*1
Audio and is the audio compression
format used by Microsoft
*1.
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays files with the extension
(.wma) as WMA files.
*1 Windows Media and Microsoft are registered tradema rks of Microsoft
Corporation U.S. in the United States
and other countries.

CAUTION
Do not use an audio file extension on files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognize the file correctly
resulting in noise or a malfunction.
WMA files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.
The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the file extension “.wma”
to the end of the f ile name, and then
write it to the memory.
Interior Features
Appendix
5-88
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should be
lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.

Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Wiper Blades
CAUTION
Hot waxes applied by automatic car
washers have been known to
affect the
wiper's ability to clean windows.
 To prevent damage to the wiper blades,
do not use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
 When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain sensor
is touched.
 If the windshield above the rain sensor
is wiped with a cloth.
 If the windshield is struck with a hand
or other object.
 If the rain sensor is struck with a hand
or other object from inside the vehicle.
Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.
Contamination of either the windshield or
the blades with forei gn matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.

If the blades are not w iping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Maintenance and Care
Owner Maintenance
6-28
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
17 AUDIO1 25 A Audio system
18 A/C MAG 7.5 A Air conditioner
19 AT P U M P
H/L HI 20 A
Transmission control system
*
20 AT 15 A
Transmission control system*
21 D LOCK 25 A Power door locks
22 H/L RH 20 A Headlight (RH)
23 ENG
B2 7.5 A Engine control system
24 TAIL 20 A Taillights, License p late lights, Parking lights
25 DRL 15 A ―
26 ROOM 25 A Overhead light
27 FOG 15 A ―
28 H/CLEAN 20 A ―
29 STOP 10 A Brake lights
30 HORN 15 A Horn
31 H/L LH 20 A Headlight (LH)
32 ABS/DSC S 30 A ABS, Dynamic stability control system
33 HAZARD 15 A Hazard warning flashers, Turn signal lights
34 FUEL PUMP 15 A Fuel system
35 ENG
B3 5 A ―
36 WIPER 20 A Windshield wipers
37 CABIN
B 50 A For protection of various circuits
38 ― ― ―
39 ENG SUB 30 A Engine control system
40 ABS/DSC M 50 A ABS, Dynamic stability control system
41 EVVT
A/R PUMP 20 A Engine control system
42 EVPS 30 A Brake control system
43 FAN1 30 A Cooling fan
44 FAN2 40 A ―
45 ENG.MAIN 40 A Engine control system
46 EPS 60 A Power steering system
47 DEFOG 30 A Rear window defogger
48 IG2 30 A For protectio n of various circuits
49 INJECTOR 30 A ―
50 HEATER 40 A Air conditioner
Maintenance and Care
Owner Maintenance
*Some models.6-55
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
51 ― ― ―
52 ENGINE4 20 A Engine control system
Fuse block (Left side)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 RHT R 30 A
Retractable hardtop (RH)
*
2 RHT L 30 A
Retractable hardtop (LH)*
3― ― ―
4 ENGINE6 10 A Engine control system
5 F.OUTLET 15 A Accessory sockets
6― ― ―
7 AT IND 7.5 A
AT shift indicator
*
8 MIRROR 7.5 A Power control mirror
9 R_DECK R 30 A Retractable hardtop (RH)
*
10 R_DECK L 30 A Retractable hardtop (LH)*
11 F.WASHER 15 A Windshield washer
12 P.WINDOW 30 A Power windows
13 ― ― ―
14 SRS2/ESCL 15 A Electronic steering lock
15 SEAT WARM 20 A Seat warmer
*
16M.DEF 7.5 A
Mirror defogger*
Maintenance and Care
Owner Maintenance
6-56*Some models.
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

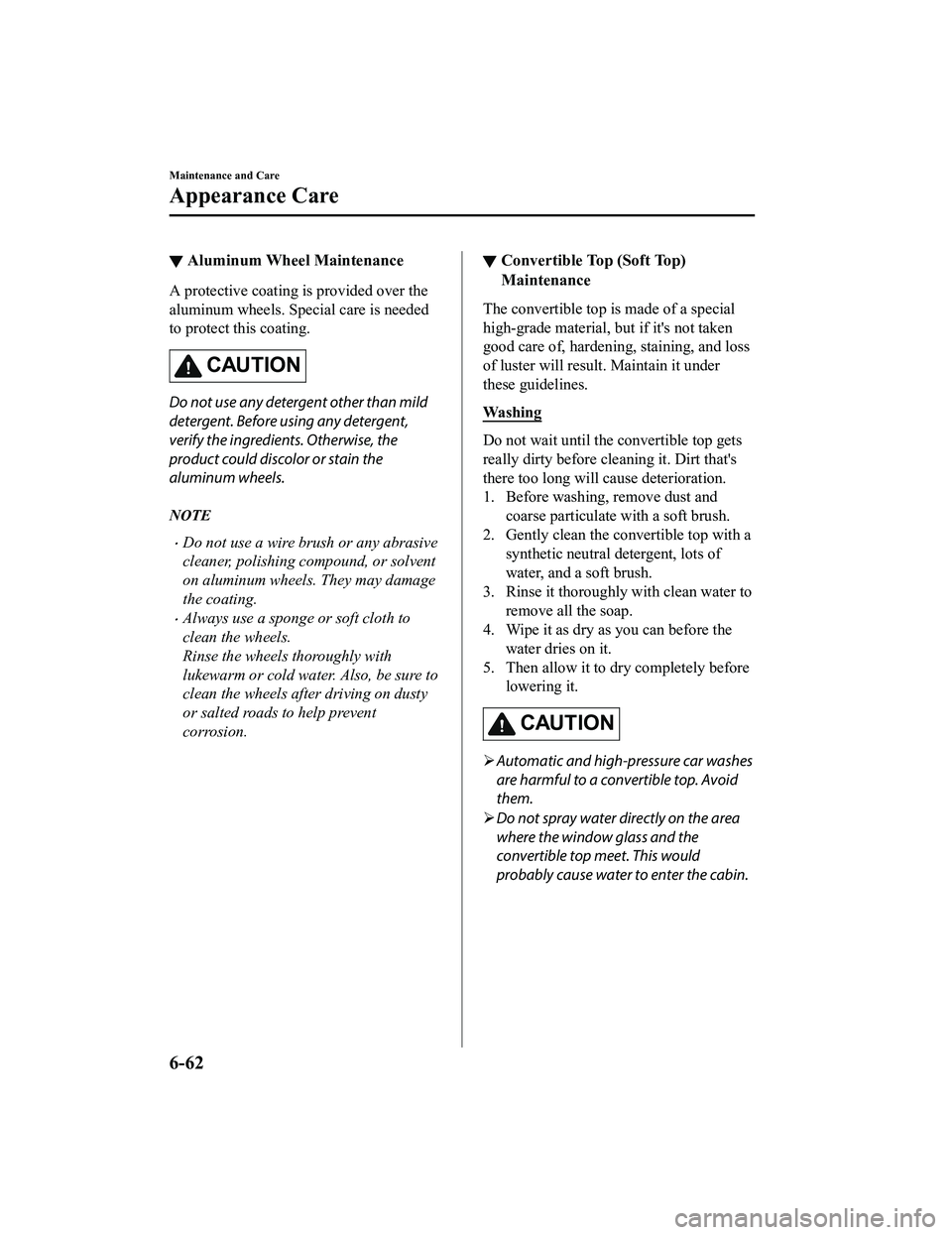

▼Aluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect t
his coating.
CAUTION
Do not use any detergent other than mild
detergent. Before using any detergent,
verify the ingredients. Otherwise, the
product could discolor or stain the
aluminum wheels.
NOTE
Do not use a wire brush or any abrasive
cleaner, polishing compound, or solvent
on aluminum wheels. They may damage
the coating.
Always use a sponge or soft cloth to
clean the wheels.
Rinse the wheels thoroughly with
lukewarm or cold wate r. Also, be sure to
clean the wheels after driving on dusty
or salted roads to help prevent
corrosion.
▼ Convertible Top (Soft Top)
Maintenance
The convertible top is made of a special
high-grade material, but if it's not taken
good care of, hardening
, staining, and loss
of luster will result. Maintain it under
these guidelines.
Wa s h i n g
Do not wait until the convertible top gets
really dirty before cl eaning it. Dirt that's
there too long will cause deterioration.
1. Before washing, remove dust and coarse particulate with a soft brush.
2. Gently clean the convertible top with a
synthetic neutral detergent, lots of
water, and a soft brush.
3. Rinse it thoroughly with clean water to
remove all the soap.
4. Wipe it as dry as you can before the
water dries on it.
5. Then allow it to dry completely before lowering it.
CAUTION
Automatic and high-pressure car washes
are harmful to a convertible top. Avoid
them.
 Do not spray water directly on the area
where the window glass and the
convertible top meet. This would
probably cause water to enter the cabin.
Maintenance and Care
Appearance Care
6-62
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

2. Remove the drain filter A whilepressing the tab.
3. Remove drain filter B out of theopening after removing drain filter A.
4. Remove foreign matter such as leavesaccumulated in drain filter A and drain
filter B.
5. Install in the reverse order of removal.
CAUTION
When installing the drain filter, make sure
that the drain filter is securely attached to
its designated position by pushing it until
the tab locks. Water may enter the vehicle if
the drain filter is not secured to its
designated position.
▼ Convertible Top (Retractable
Hardtop) Maintenance
Wa s h i n g
To help protect the retractable hardtop's
finish, use a soft cloth or sponge to wash
it.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if they are not removed
immediately. When prompt washing with
plain water is ineffective use a mild soap
made for use on vehicles.
CAUTION

Do not use an automatic car wash.
 Do not spray water directly on the area
where the window glass and the
retractable hardtop meet. This would
probably cause water to enter the cabin.
 Do not use strong soap, chemical
detergents, or hot water, and do not
wash the retractable hardtop in direct
sunlight or when the surface is warm.
Thoroughly rinse with lukewarm or cold
water. Do not allow soap to dry on the
finish.
Wa x i n g
Wax the retractable hardtop when water no
longer beads on the paint. Always wash
and dry it before waxing.
CAUTION
 Wiping off dust or dirt with a dry cloth
will scratch the
finish.
 Do not use abrasive wax. This may
damage the protective coating and
discolor or deteriorate the paint.
Maintenance and Care
Appearance Care
6-64
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take off
the wax. Rewax these areas.
Drainage outlet cleaning procedure
There are drainage outlets on the left and
right of the lower side of the rear window.
Rear roofDrainage
outlet
Rear window
NOTE
If leaves or other fore
ign matter block the
drainage outlets, water may enter the
cabin. Clean the drainage outlets at least
once every 6 months.
1. Continue pressing the retractable hardtop switch in the open direction
until the rear roof is raised up from the
fully closed position.
Refer to Opening the Roof on page
3-44.
2. Remove your finger from theretractable hardtop switch after the rear
roof is raised up.
3. Make sure the drainage outlets are visible.

Drainage
outlet
Rear roof links
4. Switch the ignition OFF.
WA R N I N G
Verify that the ignition is switched off:
Closing the roof with the ignition not
switched off is dangerous as the motors
could turn on suddenly and cause
injury resulting from hands or fingers
being pinched in the mechanism.
5. Remove leaves and other foreign matter accumulated in the drainage
outlet.
Maintenance and Care
Appearance Care
6-65
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06
