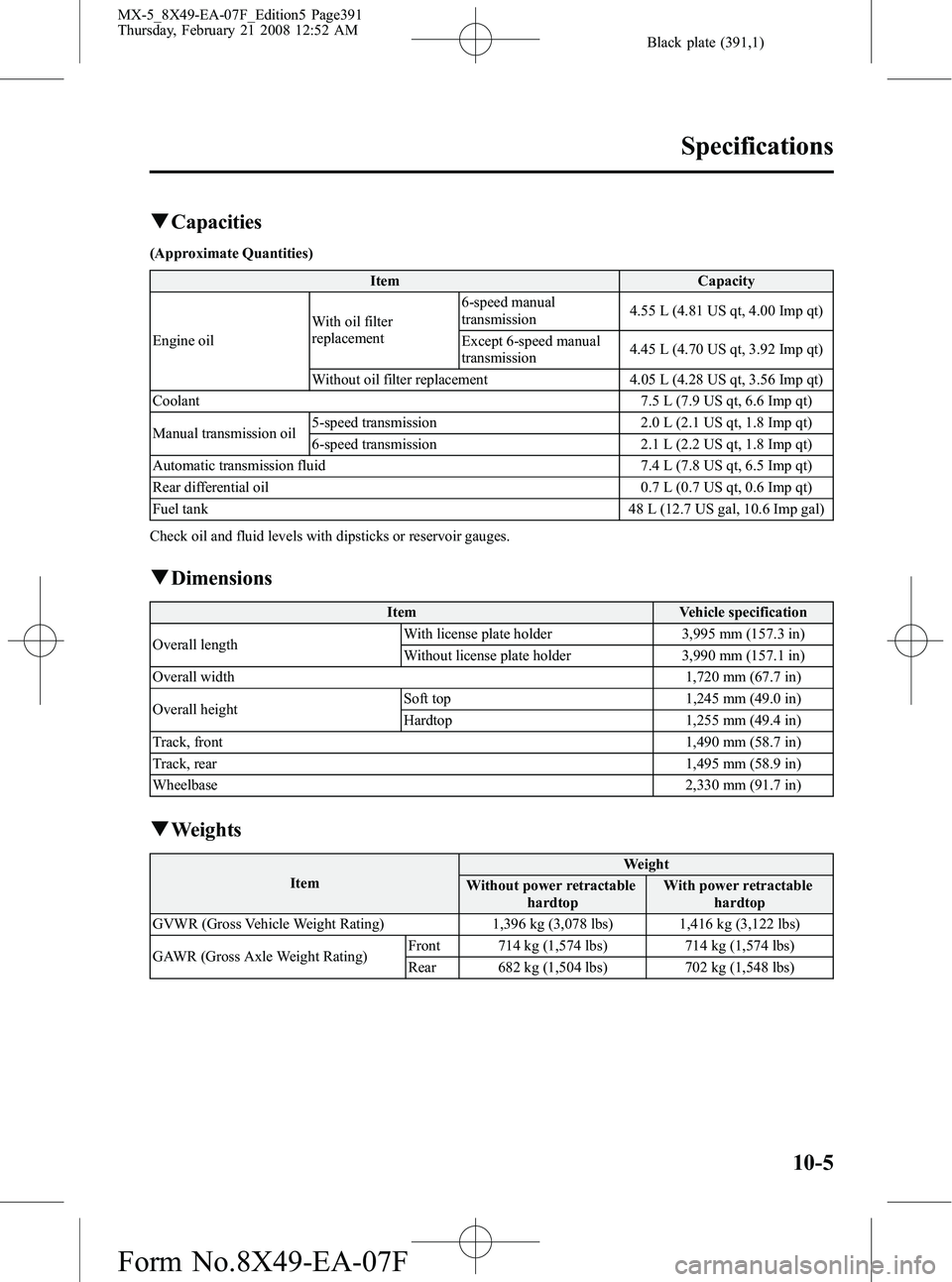

qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter
replacement6-speed manual
transmission
4.55 L (4.81 US qt, 4.00 Imp qt)
Except 6-speed manual
transmission 4.45 L (4.70 US qt, 3.92 Imp qt)
Without oil filter replacement 4.05 L (4.28 US qt, 3.56 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transmission oil 5-speed transmission
2.0 L (2.1 US qt, 1.8 Imp qt)
6-speed transmission 2.1 L (2.2 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.4 L (7.8 US qt, 6.5 Imp qt)
Rear differential oil 0.7 L (0.7 US qt, 0.6 Imp qt)
Fuel tank 48 L (12.7 US gal, 10.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length With license plate holder
3,995 mm (157.3 in)
Without license plate holder 3,990 mm (157.1 in)
Overall width 1,720 mm (67.7 in)
Overall height Soft top
1,245 mm (49.0 in)
Hardtop 1,255 mm (49.4 in)
Track, front 1,490 mm (58.7 in)
Track, rear 1,495 mm (58.9 in)
Wheelbase 2,330 mm (91.7 in)
qWeights
Item Weight
Without power retractable hardtop With power retractable
hardtop
GVWR (Gross Vehicle Weight Rating) 1,396 kg (3,078 lbs) 1,416 kg (3,122 lbs)
GAWR (Gross Axle Weight Rating) Front 714 kg (1,574 lbs) 714 kg (1,574 lbs)
Rear 682 kg (1,504 lbs) 702 kg (1,548 lbs)
Specifications
10-5
MX-5_8X49-EA-07F_Edition5 Page391
Thursday, February 21 2008 12:52 AM
Form No.8X49-EA-07F

Black plate (392,1)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 65 H9 (
―)
Low beam Halogen 55 H7 (
―)
Xenon fusion 35 D2S ( ―)
Front turn signal lights 21 WY21W ( ―)
Parking lights 5 W5W ( ―)
Fog lights
í55 H11 (―)
Side-marker lights 5―(― )
High-mount brake light
*11 ―(― )
Rear turn signal lights 21 WY21W ( ―)
Brake lights/Taillights (Rear side-marker lights) 21/5 W21/5W (#7443)
Reverse lights 18.4 W16W (#921)
License plate lights 5 W5W ( ―)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
Interior light Light bulb Wattage
Overhead light 10
Trunk light 8
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-33.
Standard tire
Tire size Inflation pressure
205/50R16 87V 200 kPa (29 psi)
205/45R17 84W 200 kPa (29 psi)
10-6íSome models.
Specifications
MX-5_8X49-EA-07F_Edition5 Page392
Thursday, February 21 2008 12:52 AM
Form No.8X49-EA-07F

Black plate (393,1)
qFuses
Refer to the fuse rating on page 8-45.
Specifications
10-7
MX-5_8X49-EA-07F_Edition5 Page393
Thursday, February 21 2008 12:52 AM
Form No.8X49-EA-07F

Black plate (394,1)
10-8
MX-5_8X49-EA-07F_Edition5 Page394
Thursday, February 21 2008 12:52 AM
Form No.8X49-EA-07F

Black plate (395,1)
11Index
