Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete
customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this manual
carefully and follow its recommendations.
An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is
necessary, that's the place to go.
Our nationwide network of Mazda professionals is dedicated to providing you with the best
possible service.
We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure
and in your full satisfaction with your Mazda product.Mazda Motor CorporationHIROSHIMA, JAPAN
Important Notes About This Manual
Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you
resell the vehicle, leave this manual with it for the next owner.
All specifications and descriptions are accurate at the time of printing. Because improvement is a constant goal at
Mazda, we reserve the right to make changes in specifications at any time without notice and without obligation.
Event Data Recorder
This vehicle is equipped with an event data recorder. In the event of a crash, this device records data related to
vehicle dynamics and safety systems for a short period of time. These data can help provide a better
understanding of the circumstances in which crashes and injuries occur and lead to the designing of safer
vehicles.
Air Conditioning and the Environment
Your Mazda's genuine air conditioner is filled with HFC134a (R134a), a refrigerant that has been found not to
damage the earth's ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda
Dealer.
Perchlorate
Certain components of this vehicle such as [air bag modules, seat belt pretensioners, lithium batteries, ...] may
contain Perchlorate Material –Special handling may apply for service or vehicle end of life disposal. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Please be aware that this manual applies to all models, equipment and options. As a result, you may find
some explanations for equipment not installed on your vehicle.
©2008 Mazda Motor Corporation
Printed in Japan Nov. 2008(Print1)
A Word to Mazda Owners
MX-5_8Z78-EA-08K_Edition1 Page3
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K
Page 18 of 444
Black plate (18,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and passenger always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the passenger's seat lap/shoulder belt retractors operate in two modes: emergency
locking mode, and for child-restraint systems, automatic locking mode.
Your vehicle is equipped with LATCH lower anchors for securing the LATCH child-
restraint system in the passenger seat but there is no child-restraint tether available. As
there is no rear seat on this vehicle, the preferred location for children, following the
manufacturer's instructions on the LATCH child restraint-system and this owner's manual is
important (page 2-25).
2-6
Essential Safety Equipment
Seat Belt Systems
MX-5_8Z78-EA-08K_Edition1 Page18
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K
Page 20 of 444
Black plate (20,1)
CAUTION
Belt retraction may become difficult if the belts and seat belt guides are soiled, so try
to keep them clean. For more details about cleaning the seat belts, refer to“Cleaning
the Lap/Shoulder Belt Webbing ”(page 8-55).
Seat belt guide
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
2-8
Essential Safety Equipment
Seat Belt Systems
MX-5_8Z78-EA-08K_Edition1 Page20
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K
Page 24 of 444
Black plate (24,1)
Seat Belt Pretensioner and
Load Limiting Systems
For optimum protection, the driver and
passenger seat belts are equipped with
pretensioner and load limiting systems.
For both these systems to work properly
you must wear the seat belt properly.
Pretensioners:
In moderate or severe frontal or near-
frontal accidents, the air bag and
pretensioner systems deploy
simultaneously. The seat belt retractors
remove slack quickly as the air bags are
expanding.
In addition, the pretensioner system for
the passenger, like the passenger air bag,
is designed to only deploy in accordance
with the total seated weight on the
passenger seat (page 2-43) or when the
passenger air bag deactivation switch
turned to the ON position (page 2-39).
Any time the air bags and seat belt
pretensioners have fired they must be
replaced.
Load limiter:
The load limiting system releases belt
webbing in a controlled manner to reduce
belt force on the occupant's chest. While
the most severe load on a seat belt occurs
in frontal collisions, the load limiter has
an automatic mechanical function and can
activate in any accident mode with
sufficient occupant movement.
Even if the pretensioners have not fired,
the load limiting function must be
checked by an Authorized Mazda Dealer
after any collision.
WARNING
Wear seat belts only as recommended
in this owner's manual:Incorrect positioning of the driver and
passenger seat belts is dangerous.
Without proper positioning, the
pretensioner and load limiting
systems cannot provide adequate
protection in an accident and this
could result in serious injury. For
more details about wearing seat
belts, refer to “Fastening the seat
belts ”(page 2-10).
Have your seat belts changed
immediately if the pretensioner or load
limiter has been expended: If the air bags deploy the
corresponding pretensioner(s) may
also deploy at the same time. Like
the air bags, the seat belt
pretensioners will only function once.
While it is safer to use a crash-used
seat belt that was used in an
accident than no seat belt at all,
using a seat belt with an expended
pretensioner or load limiter loaded
reduces the safety available to you. If
the seat belt pretensioners are not
replaced, the risk of injury in a
collision will increase. Expended seat
belt pretensioners and air bags must
be replaced after any collision which
caused them to deploy. Additionally,
the load limiter will only limit loads
on the chest once in a collision and
this is another reason to have the
seat belts inspected. Always have an
Authorized Mazda Dealer inspect the
seat belt pretensioners and air bags
after any collision.
2-12
Essential Safety Equipment
Seat Belt Systems
MX-5_8Z78-EA-08K_Edition1 Page24
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K
Page 25 of 444
Black plate (25,1)
Do not modify the components or
wiring, or use electronic testing devices
on the pretensioner system:Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable
which would prevent it from
activating in an accident. The
occupants or repairers could be
seriously injured.
Properly dispose of the pretensioner
system: Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap
a pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will activate in a
moderate or greater frontal or near-frontal
collision. The pretensioner system for the
passenger is designed to only deploy in
accordance with the total seated weight on
the passenger seat. It will not activate in
most rollovers, side or rear impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not indicate
a fire. This gas normally has no effect on
occupants, however, those with sensitive
skin may experience light skin irritation. If
residue from the deployment of the air bags
or the pretensioner system gets on the skin
or in the eyes, wash it off as soon as
possible.
q Air Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is working properly, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
Essential Safety Equipment
Seat Belt Systems
2-13
MX-5_8Z78-EA-08K_Edition1 Page25
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K
Page 105 of 444
Black plate (105,1)
Convertible Top (Soft Top)í
Windshield headerTop latch assembly
Top storage area
Convertible
top's handlesLabel (The label indicates the position where convertible
top is to be held when lowering or raising it.)
qConvertible Top Precautions
WARNING
Sit in the seat with the seat belt
correctly fastened when the vehicle is
moving:
Standing in the vehicle, or sitting on
the convertible top storage area or
center console when the vehicle is
moving is a dangerous way to ride.
During a sudden maneuver or
collision you could be seriously
injured or even killed. Always keep your hands and fingers
away from the fastening mechanisms
when moving the convertible top:
It is dangerous to place your hands
or fingers near the fastening
mechanisms. Your hands or fingers
could be caught and injured by the
mechanism.
CAUTION
Remove leaves or other matter that
may accumulate on and around the
soft top. Otherwise, the water
drainage outlets could become
blocked, resulting in water leakage.
For detailed maintenance of the
water draining outlets, consult an
Authorized Mazda Dealer.
Knowing Your Mazda
Doors and Locks
3-43íSome models.
MX-5_8Z78-EA-08K_Edition1 Page105
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K
Page 133 of 444
Black plate (133,1)
Theft-Deterrent Systemí
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-71.
NOTE
lThe theft-deterrent system operates with the
key or the keyless entry system transmitter.
l(With advanced key)
The theft-deterrent system can also be
operated using the advanced keyless
function.
The system operates only when the driver is
in the vehicle or within operational range
while the advanced key is being carried.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure both windows
are completely closed and both doors and
the trunk lid are locked before leaving the
vehicle. Remember to take your key and
transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 25
seconds when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid.
lUnlocking a door with the door lock
switch.
lOpening a door by operating an inside
door-lock knob.
lOpening the hood by operating the
hood release handle.
lOpening the trunk lid by operating the
trunk lid release button.
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request
switch.
NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights will
flash when the battery is charged or replaced.
q How to Arm the System
1. Remove the key from the ignition
switch.
(With advanced key)
Turn the start knob to the LOCK
position.
2. Make sure the hood and the trunk lid are closed. Close and lock both doors
from the outside using the key. If you
have the keyless entry system, press
the lock button on the transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
(With advanced key)
Press a request switch on the doors or
the lock button on the transmitter.
(Without advanced key)
The following method will also arm the
theft-deterrent system:
Close the hood and the trunk lid . Press
the area on the door-lock switch
marked “LOCK ”once. Close both
doors.
Knowing Your Mazda
Security System
3-71íSome models.
MX-5_8Z78-EA-08K_Edition1 Page133
Thursday, October 23 2008 1:53 PM
Form No.8Z78-EA-08K
Page 169 of 444
Black plate (169,1)

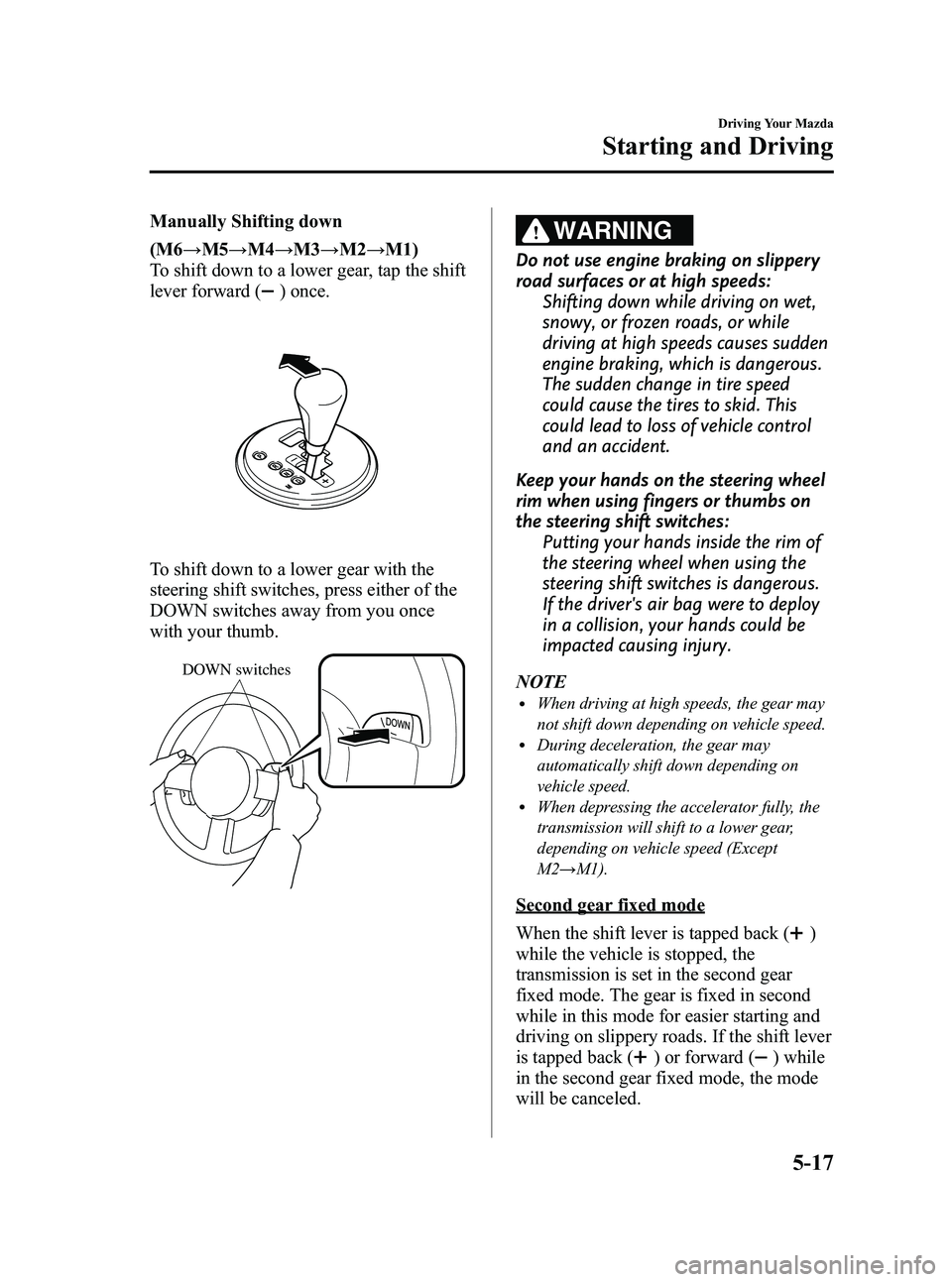

Manually Shifting down
(M6→M5 →M4 →M3 →M2 →M1)
To shift down to a lower gear, tap the shift
lever forward (
) once.
To shift down to a lower gear with the
steering shift switches, press either of the
DOWN switches away from you once
with your thumb.
DOWN switches
WARNING
Do not use engine braking on slippery
road surfaces or at high speeds: Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed
could cause the tires to skid. This
could lead to loss of vehicle control
and an accident.
Keep your hands on the steering wheel
rim when using fingers or thumbs on
the steering shift switches: Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous.
If the driver's air bag were to deploy
in a collision, your hands could be
impacted causing injury.
NOTE
lWhen driving at high speeds, the gear may
not shift down depending on vehicle speed.
lDuring deceleration, the gear may
automatically shift down depending on
vehicle speed.
lWhen depressing the accelerator fully, the
transmission will shift to a lower gear,
depending on vehicle speed (Except
M2 →M1).
Second gear fixed mode
When the shift lever is tapped back (
)
while the vehicle is stopped, the
transmission is set in the second gear
fixed mode. The gear is fixed in second
while in this mode for easier starting and
driving on slippery roads. If the shift lever
is tapped back (
) or forward () while
in the second gear fixed mode, the mode
will be canceled.
Driving Your Mazda
Starting and Driving
5-17
MX-5_8Z78-EA-08K_Edition1 Page169
Thursday, October 23 2008 1:53 PM
Form No.8Z78-EA-08K
Page 170 of 444
Black plate (170,1)
Shifting specification
Shifting up
If the vehicle speed is lower than the
speed specified for each gear, the gear
cannot be shifted up to a higher gear.
GearVehicle speed
M1 →M2 Between 0 and 18 km/h
(0 and 11 mph), depending on how
much the accelerator pedal is
depressed.
M2 →M3
M3 →M4 Between 22 and 32 km/h
(13 and 19 mph), depending on how
much the accelerator pedal is
depressed.
M4 →M5 Between 40 and 48 km/h
(25 and 29 mph), depending on how
much the accelerator pedal is
depressed.
M5 →M6 Between 50 and 68 km/h
(31 and 42 mph), depending on how
much the accelerator pedal is
depressed.
Shifting down
If the vehicle speed is higher than the
speed specified for each gear, the gear
cannot be shifted to a lower gear so as to
protect the transmission.
Gear
Vehicle speed
M5 →M4 164 km/h (102 mph)
M4 →M3 117 km/h (72 mph)
M3 →M2 80 km/h (49 mph)
M2 →M1 35 km/h (21 mph)
During deceleration, the gears shift down
automatically when speed is reduced to
the following:
Gear Vehicle speed
M6 →M5 47 km/h (29 mph)
M5 →M4 38 km/h (23 mph)
M4 →M3 20 km/h (12 mph)
M3 →M2 15 km/h (9 mph)
M2 →M1 12 km/h (7 mph)
NOTE
The gear does not shift down to M1
automatically while in the second gear fixed
mode.
If the vehicle is kicked down at the
following speeds or lower, the gears shift
down automatically:
Gear Vehicle speed
M6 →M5 190 km/h (118 mph)
M6 →M4 125 km/h (77 mph)
M5 →M4 125 km/h (77 mph)
M5 →M3 78 km/h (48 mph)
M4 →M3 78 km/h (48 mph)
M4 →M2 50 km/h (31 mph)
M3 →M2 50 km/h (31 mph)
Recommendations for shifting
Upshifting
For normal acceleration, we recommend these shift
points.
Gear Vehicle speed
M1 to M2 24 km/h (15 mph)
M2 to M3 40 km/h (25 mph)
M3 to M4 53 km/h (33 mph)
M4 to M5 59 km/h (37 mph)
M5 to M6 78 km/h (49 mph)
For cruising
Gear Vehicle speed
M1 to M2 22 km/h (14 mph)
M2 to M3 27 km/h (17 mph)
M3 to M4 41 km/h (26 mph)
M4 to M5 56 km/h (35 mph)
M5 to M6 64 km/h (40 mph)
Downshifting
When you must slow down in heavy
traffic or on a steep upgrade, downshift
before the engine starts to overwork. This
gives better acceleration when you need
more speed.
5-18
Driving Your Mazda
Starting and Driving
MX-5_8Z78-EA-08K_Edition1 Page170
Thursday, October 23 2008 1:53 PM
Form No.8Z78-EA-08K
Page 171 of 444
Black plate (171,1)

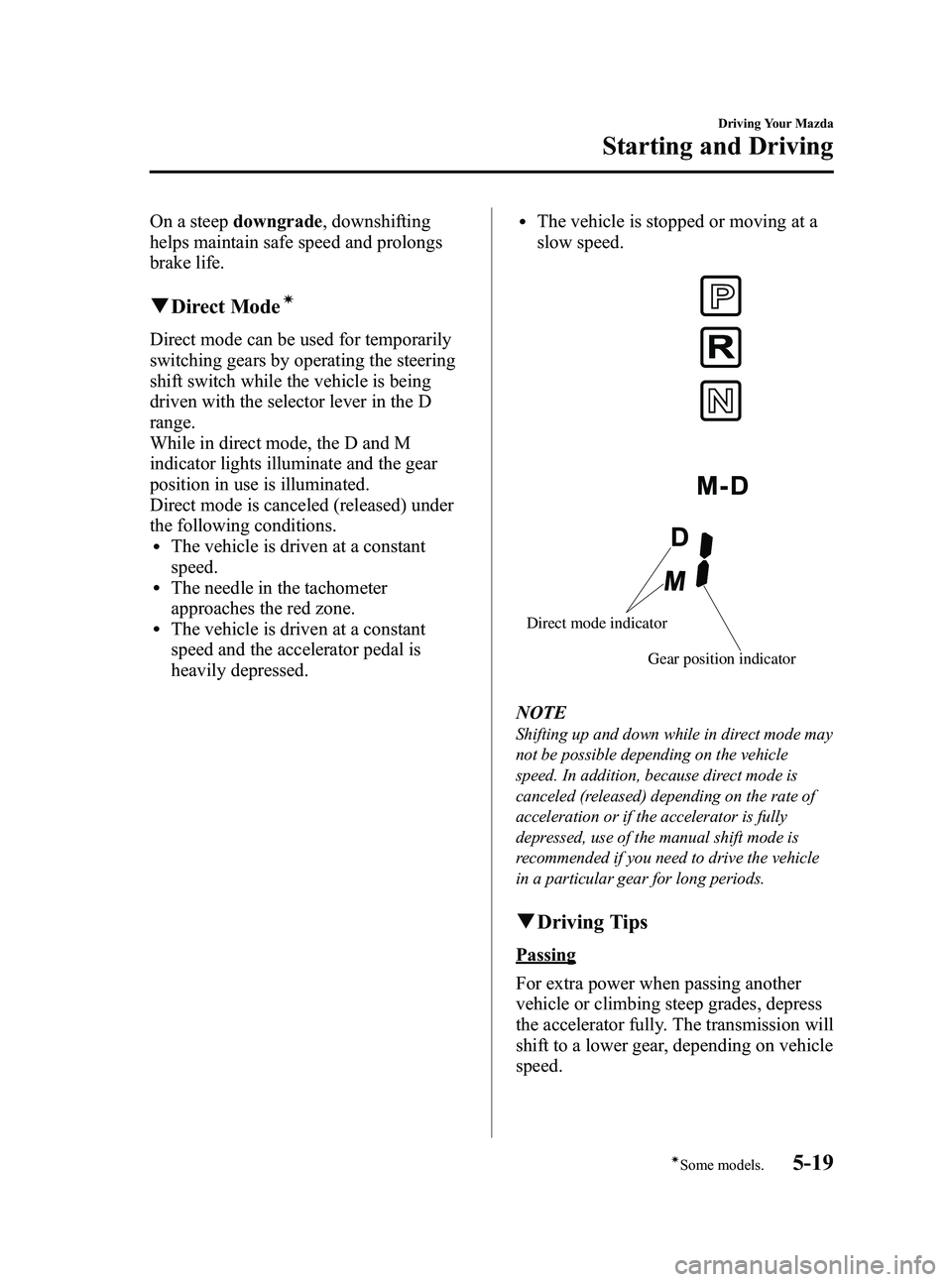

On a steepdowngrade , downshifting
helps maintain safe speed and prolongs
brake life.
q Direct Modeí
Direct mode can be used for temporarily
switching gears by operating the steering
shift switch while the vehicle is being
driven with the selector lever in the D
range.
While in direct mode, the D and M
indicator lights illuminate and the gear
position in use is illuminated.
Direct mode is canceled (released) under
the following conditions.
lThe vehicle is driven at a constant
speed.
lThe needle in the tachometer
approaches the red zone.
lThe vehicle is driven at a constant
speed and the accelerator pedal is
heavily depressed.
lThe vehicle is stopped or moving at a
slow speed.
Gear position indicator
Direct mode indicator
NOTE
Shifting up and down while in direct mode may
not be possible depending on the vehicle
speed. In addition, because direct mode is
canceled (released) depending on the rate of
acceleration or if the accelerator is fully
depressed, use of the manual shift mode is
recommended if you need to drive the vehicle
in a particular gear for long periods.
q
Driving Tips
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transmission will
shift to a lower gear, depending on vehicle
speed.
Driving Your Mazda
Starting and Driving
5-19íSome models.
MX-5_8Z78-EA-08K_Edition1 Page171
Thursday, October 23 2008 1:53 PM
Form No.8Z78-EA-08K
