MAZDA MODEL MX-5 MIATA POWER RETRACTABLE HARDTOP 2010 Owners Manual

Black plate (121,1)
2. Grasp the hardtop along the side andrear surfaces and lift it up enough to
create a clearance behind the rear glass.
3. Grasp the hardtop along its side surfaceand the rear area of the rear glass, pull
the hardtop towards the front of the
vehicle, and completely close it.
4. Lock the top latch.Refer to Closing the Power Retractable
Hardtop on page 3-52. Closing the deck
1. Loop the center of the rope through the
pin on the link twice so that it does not
loosen.
Pin
Rope
Link
NOTE
Before closing the deck, two small ropes need
to be installed and tied into the trunk so that
the deck does not pop up while driving, and so
that the deck can be raised for servicing by an
Authorized Mazda Dealer.
2. Route one end of the rope to the insideof the vehicle passing it through the
gap in the trim. Route the other end to
the outside of the vehicle passing it
through the links.
To the inside of the vehicle
Trim
Rope
Knowing Your Mazda
Doors and Locks
3-59
MX-5_8AV1-EA-09F_Edition5 Page121
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (122,1)
To the outside of the vehicle
Rope
Links
NOTE
Always route the one end of the rope to inside
of the vehicle. If it is not inside the vehicle, it
will be difficult to service the hardtop at an
Authorized Mazda Dealer.
3. Do the same procedure on the other
side.
4. Close the deck uniformly on both sides using two adults, one on each side of
the vehicle.
CAUTION
Close the deck using two adults.
Doing it alone could result in injury
or the deck lid mechanism being
twisted which could damage it. 5. Lightly pushing the deck downward,
pull the ropes to the rear along both
sides of the trunk to hold the deck
down.
NOTE
Pull the ropes horizontally to the vehicle rear.
Rope
6. Lightly move the deck and verify that it is secured completely.
7. Open the trunk using the key, and tie the rope to the bracket and knot it twice
so that it does not loosen.
Rope
Bracket
CAUTION
Tie the ropes securely so that the
deck does not open while the vehicle
is being driven.
3-60
Knowing Your Mazda
Doors and Locks
MX-5_8AV1-EA-09F_Edition5 Page122
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (123,1)
NOTE
Open the trunk using the key. The remote
release button, advanced keyless entry
function, and the keyless entry system do not
operate when this emergency procedure is
done.
8. Tie off the other side rope the sameway.
9. Close the trunk lid.
After finishing the procedure
After finishing the procedure, have the
hardtop checked at an Authorized Mazda
Dealer as soon as possible.
WARNING
Drive the vehicle at a speed of 40 km/h
(25 mph) or lower before having the
hardtop checked at an Authorized
Mazda Dealer: The hardtop may open while the
vehicle is being driven and cause an
accident.
NOTE
The trunk cannot be opened with the remote
release button, advanced keyless entry
function, and the keyless entry system as they
are disabled when this emergency procedure is
done.
q Power Retractable Hardtop
Appearance Care
Refer to Hardtop Maintenance (page
8-54) for information on retractable
hardtop appearance care.
Knowing Your Mazda
Doors and Locks
3-61
MX-5_8AV1-EA-09F_Edition5 Page123
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (124,1)

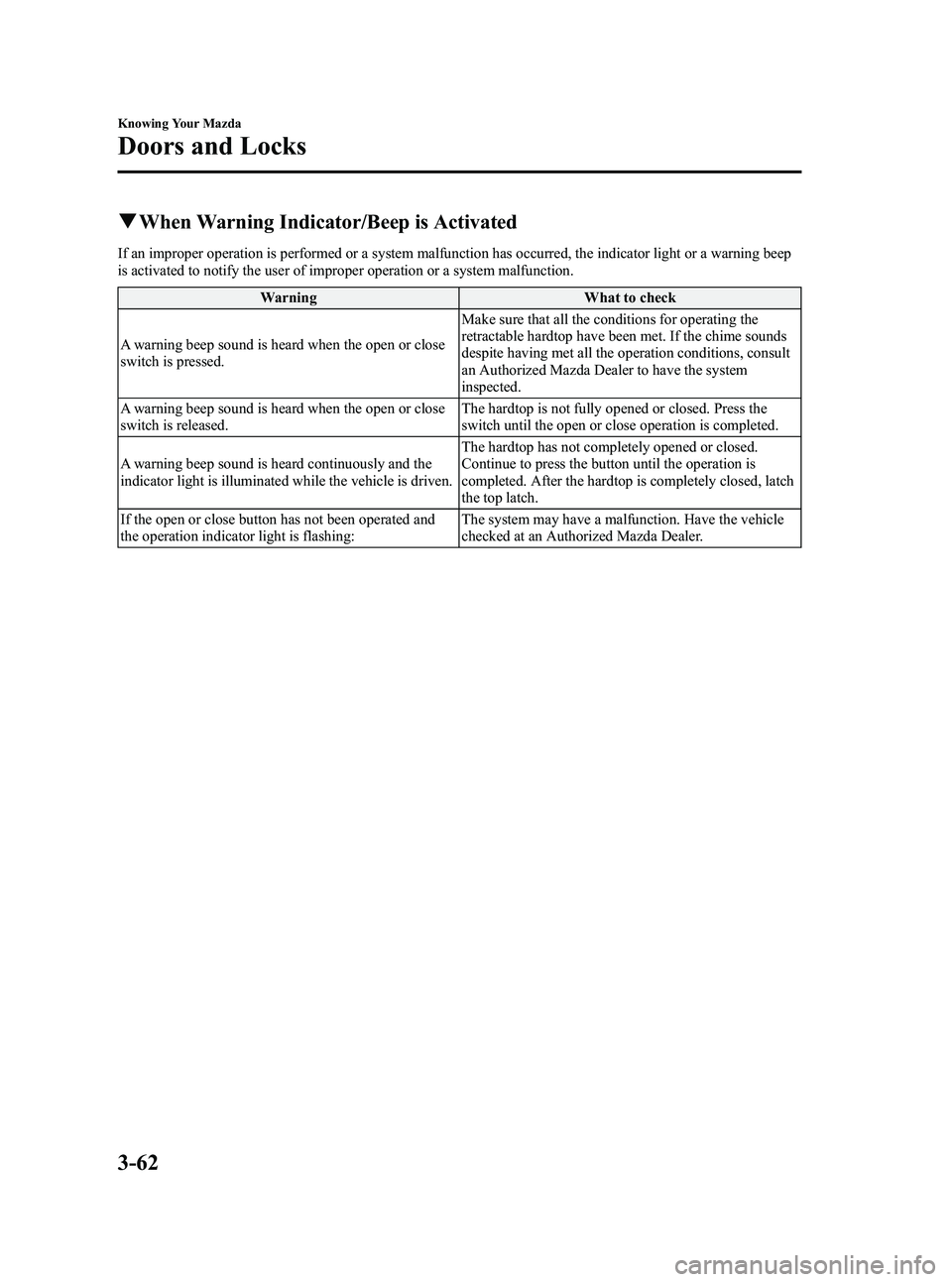

qWhen Warning Indicator/Beep is Activated
If an improper operation is performed or a system malfunction has occurred, the indicator light or a warning beep
is activated to notify the user of improper operation or a system malfunction.
Warning What to check
A warning beep sound is heard when the open or close
switch is pressed. Make sure that all the conditions for operating the
retractable hardtop have been met. If the chime sounds
despite having met all the operation conditions, consult
an Authorized Mazda Dealer to have the system
inspected.
A warning beep sound is heard when the open or close
switch is released. The hardtop is not fully opened or closed. Press the
switch until the open or close operation is completed.
A warning beep sound is heard continuously and the
indicator light is illuminated while the vehicle is driven. The hardtop has not completely opened or closed.
Continue to press the button until the operation is
completed. After the hardtop is completely closed, latch
the top latch.
If the open or close button has not been operated and
the operation indicator light is flashing: The system may have a malfunction. Have the vehicle
checked at an Authorized Mazda Dealer.
3-62
Knowing Your Mazda
Doors and Locks
MX-5_8AV1-EA-09F_Edition5 Page124
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (125,1)
Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the auxiliary key
grip.
ØSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
ØDevices for electronic purchases, or
security passage which touch or
come near the auxiliary key.
Knowing Your Mazda
Security System
3-63
MX-5_8AV1-EA-09F_Edition5 Page125
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (126,1)
NOTElThe advanced keys (including auxiliary key)
carry a unique electronic code. For this
reason, and to assure your safety, obtaining
a replacement advanced key (including
auxiliary key) requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare advanced key in case
one is lost. If an advanced key is lost,
consult an Authorized Mazda Dealer as
soon as possible.
lIf you lose an advanced key (including
auxiliary key), an Authorized Mazda Dealer
will reset the electronic codes of your
remaining advanced keys (including
auxiliary keys) and immobilizer system.
Bring all the remaining advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
3-64
Knowing Your Mazda
Security System
MX-5_8AV1-EA-09F_Edition5 Page126
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (127,1)
Declaration of Conformity
Knowing Your Mazda
Security System
3-65
MX-5_8AV1-EA-09F_Edition5 Page127
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (128,1)
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON position to
the ACC or LOCK position. The security
indicator light in the instrument cluster
flashes every 2 seconds until the system is
disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the registered advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer. NOTE
lThe engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove box. Move the advanced key to
another place, turn the ignition switch to
the LOCK position, and then restart the
engine.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, turn the ignition switch to the
ACC or LOCK position and wait for a
while, then restart the engine. If it does not
start after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.
3-66
Knowing Your Mazda
Security System
MX-5_8AV1-EA-09F_Edition5 Page128
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (129,1)
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Immobilizer System
(without Advanced Key)
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
Ø Radio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
Knowing Your Mazda
Security System
3-67
MX-5_8AV1-EA-09F_Edition5 Page129
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (130,1)
CAUTION
When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
ØDevices for electronic purchases, or
security passage which touch or
come near the key. NOTE
lThe keys carry a unique electronic code.
For this reason, and to assure your safety,
obtaining a replacement key requires some
waiting time. They are only available
through an Authorized Mazda Dealer.
lAlways keep a spare key, in case one is lost.
If a key is lost, contact an Authorized
Mazda Dealer as soon as possible.
lIf you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
3-68
Knowing Your Mazda
Security System
MX-5_8AV1-EA-09F_Edition5 Page130
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F
