high beam MAZDA MODEL MX-5 MIATA POWER RETRACTABLE HARDTOP 2010 Owners Manual

Black plate (194,1)
SignalWarning/Indicator Lights Page
Door-Ajar Warning Light 5-47
Automatic Transmission Warning Light5-47
Tire Pressure Monitoring System Warning Light5-48
Flat Tire Warning Light5-50
KEY Warning Light (Red)/KEY Indicator Light (Green)5-50
Security Indicator Light5-52
Headlight High-Beam Indicator Light5-52
Shift Position Indicator Light5-52
TCS/DSC Indicator Light5-53
DSC OFF Indicator Light5-53
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 5-53
Turn Signal/Hazard Warning Indicator Lights5-54
5-42
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
MX-5_8AV1-EA-09F_Edition5 Page194
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (204,1)
NOTE
The advanced key can be set so that the KEY
indicator light (green) does not flash even if
the battery power is low.
Refer to Setting Change (Function
Customization)(page 3-21).
qSecurity Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then turns off.
If the engine does not start with the
correct ignition key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:lThe high-beam headlights are on.lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
(Automatic Transmission)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
5-52
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
MX-5_8AV1-EA-09F_Edition5 Page204
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (208,1)
Lighting Control
qHeadlights
To turn on the lights, turn the headlight
switch on the end of the control lever.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard
illumination Off On On
NOTE
To prevent discharging the battery, don't leave
the lights on while the engine is off unless
safety requires them.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
NOTE
If the headlights flicker, or the brightness
weakens, the bulb-life may be depleted and a
replacement is necessary. Consult an
Authorized Mazda Dealer.
q Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
NOTE
When the advanced keyless function is used
and the start knob is in the ACC position, the
Start Knob Not in Lock Warning Beep (page
3-19) overrides the lights-on reminder.
5-56
Driving Your Mazda
íSome models.
Switches and Controls
MX-5_8AV1-EA-09F_Edition5 Page208
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (209,1)
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull back to original position for low
beam.
High beam
Low beam
q Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch does
not need to be on, and the lever will return
to the normal position when released.
OFF
Flashing
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
Driving Your Mazda
Switches and Controls
5-57
MX-5_8AV1-EA-09F_Edition5 Page209
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (210,1)
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn
Right lane change
Left lane change OFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change
―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without flashing
or if it flashes abnormally, one of the turn
signal bulbs may be burned out.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position to turn on the fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
The fog lights will turn off when the headlights
are set at high beam.
5-58
Driving Your Mazda
íSome models.
Switches and Controls
MX-5_8AV1-EA-09F_Edition5 Page210
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (234,1)

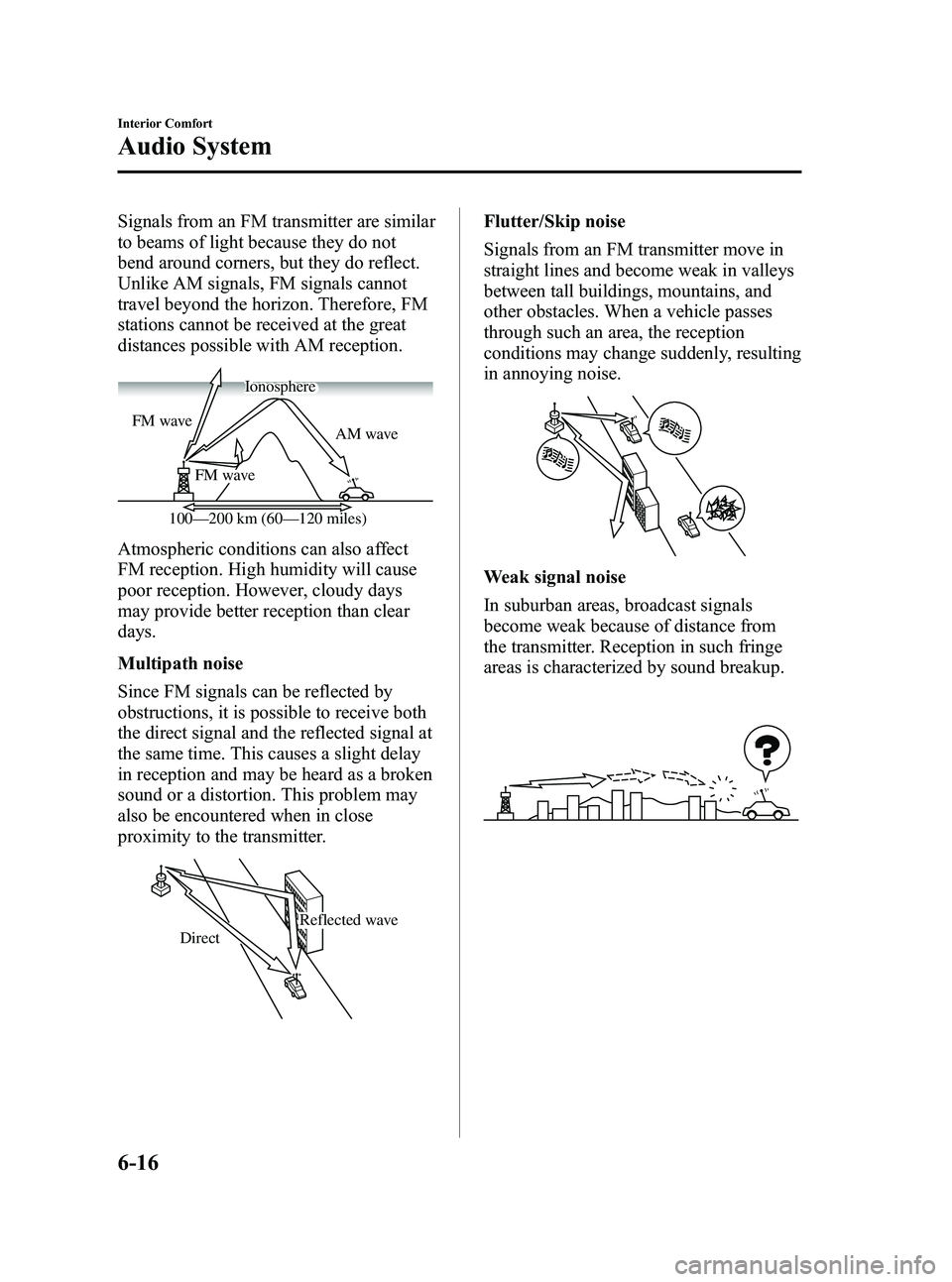

Signals from an FM transmitter are similar
to beams of light because they do not
bend around corners, but they do reflect.
Unlike AM signals, FM signals cannot
travel beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.
AM wave
FM wave
FM wave
100—200 km (60—120 miles) Ionosphere
Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days
may provide better reception than clear
days.
Multipath noise
Since FM signals can be reflected by
obstructions, it is possible to receive both
the direct signal and the reflected signal at
the same time. This causes a slight delay
in reception and may be heard as a broken
sound or a distortion. This problem may
also be encountered when in close
proximity to the transmitter.
Reflected wave
Direct
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from
the transmitter. Reception in such fringe
areas is characterized by sound breakup.
6-16
Interior Comfort
Audio System
MX-5_8AV1-EA-09F_Edition5 Page234
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (364,1)
Light Bulbs
High-mount brake light
License plate lights
Trunk light
Reverse lights
Rear turn signal lights
Brake lights/Taillights
Rear side-marker lights
Overhead light
Headlights (Low beam) Headlights (High beam)Some models.
Fog lights
Front turn signal lights/Parking lights
Front side-marker lights
8-34
Maintenance and Care
Owner Maintenance
MX-5_8AV1-EA-09F_Edition5 Page364
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (365,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs: When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
NOTElTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Replacing a headlight bulbs
High-beam bulbs
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the electrical connector from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
4. Turn the socket and bulb assembly toremove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
5. Install the new bulb in the reverse orderof the removal procedure.
Maintenance and Care
Owner Maintenance
8-35
MX-5_8AV1-EA-09F_Edition5 Page365
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (376,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
17 BTN 30 A For protection of various circuits
18 MAIN 120 A For protection of all circuits
19 EGI INJ 10 A Injector
20 EGI COMP1 10 A Engine control system
21 EGI COMP2 10 A Engine control system
22 HEAD LOW L 15 A Headlight low beam (LH)
23 HEAD LOW R 15 A Headlight low beam (RH)
24 HEAD 15 A Headlight high beams
25 P.WIND 20 A Power windows
26 ENGINE 15 A Engine control system
27 WIPER 20 A Windshield wipers and washer
28 DRL 15 A DRL
í
29HORN 15 A Horn
30 STOP 10 A Brake lights
31 ETV 10 A Electric throttle valve
32 FUEL PUMP 15 A Fuel Pump
33 HAZARD 10 A Turn signals, Hazard warning flashers
34 P.WIND2 20 A Power windows
í
35 IG KEY140 A For protection of various circuits
8-46
Maintenance and Care
íSome models.
Owner Maintenance
MX-5_8AV1-EA-09F_Edition5 Page376
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (436,1)
(Automatic transmission)Item Weight
Without power retractable hardtop With power retractable
hardtop
GVWR (Gross Vehicle Weight Rating) 1,396 kg (3,078 lbs) 1,416 kg (3,122 lbs)
GAWR (Gross Axle Weight Rating) Front 714 kg (1,574 lbs) 714 kg (1,574 lbs)
Rear 693 kg (1,528 lbs) 702 kg (1,548 lbs)
q
Air Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 65
―(H9)
Low beam Halogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Parking lights 28/8 ―(#7444NA)
Fog lights
í55 H11 (H11)
Front side-marker lights 5―(― )
High-mount brake light LED
*1―(― )
Rear turn signal lights 21 WY21W ( ―)
Brake lights/Taillights 21/5 W21/5W (#7443)
Reverse lights 18 W16W (#921)
License plate lights 5 W5W (4CP)
Rear side-marker lights LED
*1― (― )
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Wattage
Overhead light 10
Trunk light 8
10-6íSome models.
Specifications
MX-5_8AV1-EA-09F_Edition5 Page436
Friday, May 7 2010 9:18 AM
Form No.8AV1-EA-09F
