GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certific ation Label located on the driver's door
frame or door pillar. The GVW must never exceed the GVWR.

SAMPLE

WA R N I N G
Never Exceed Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage , serious damage to the vehicle, or loss of
control.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-40
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Always keep the vehicle within the axle weight rating limits.

GCW
GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW).

GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage. The GCW must never exceed the GCWR.

WARNING
Never Exceed GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the
certification label is dangerous. Exceeding
any vehicle rating limitation could result in a serious accident, injury, or damage to the
vehicle.
Do not use replacement tires with lower load carrying capacities than the originals because
they may lower the vehicle's GVWR and GAWR limitations. Replacement tires with a higher
limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-41
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Steps for Determining the Correct Load Limit
Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined weight of occupants and cargo should never
exceed XXX kg or XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your
vehicle.
(3) Subtract the combined weig ht of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available am ount of cargo and luggage load capacity. For
example, if the “XXX” amount equals 1400 lbs. and there will be five 150 lb passengers
in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400 － 750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That
weight may not safely exceed the available cargo and luggage load capacity calculated
in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your
vehicle. Consult this manual to determine how this reduces the available cargo and
luggage load capacity of your vehicle.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-42
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Declaration of Conformity
▼Keyless Entry System/Immobilizer System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-43
MX-5_8KH8-EA-21K_Edition3_old
2021-11-10 13:10:56

▼Blind Spot Monitori
ng (BSM) System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-44
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Customer Information and Reporting Safety Defects
Declaration of Conformity
8-45
MX-5_8KH8-EA-21K_Edition3_old2021-11-10 13:10:56

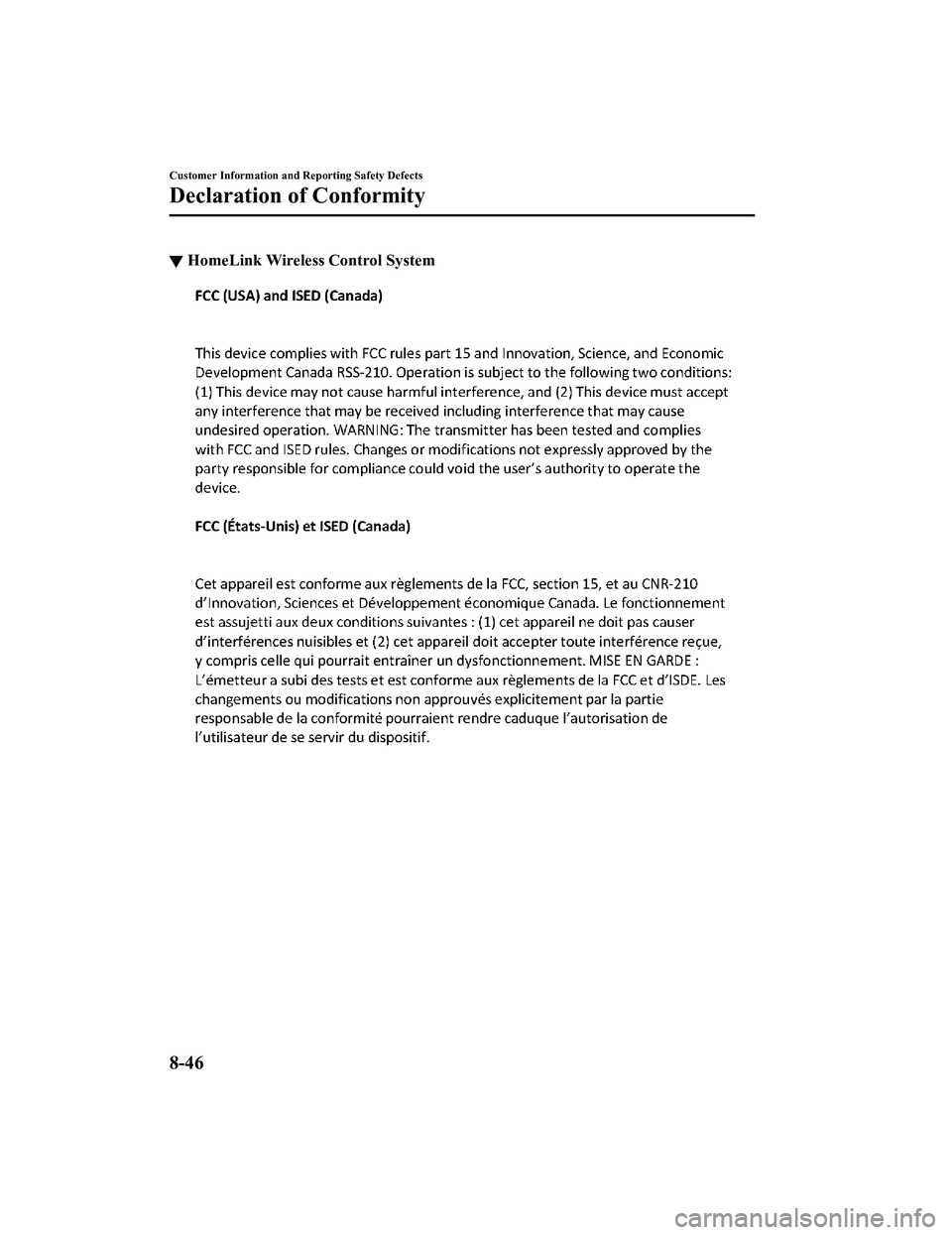

▼HomeLink Wireless Control System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-46
MX-5_8KH8-EA-21K_Edition3_old
2021-11-10 13:10:56

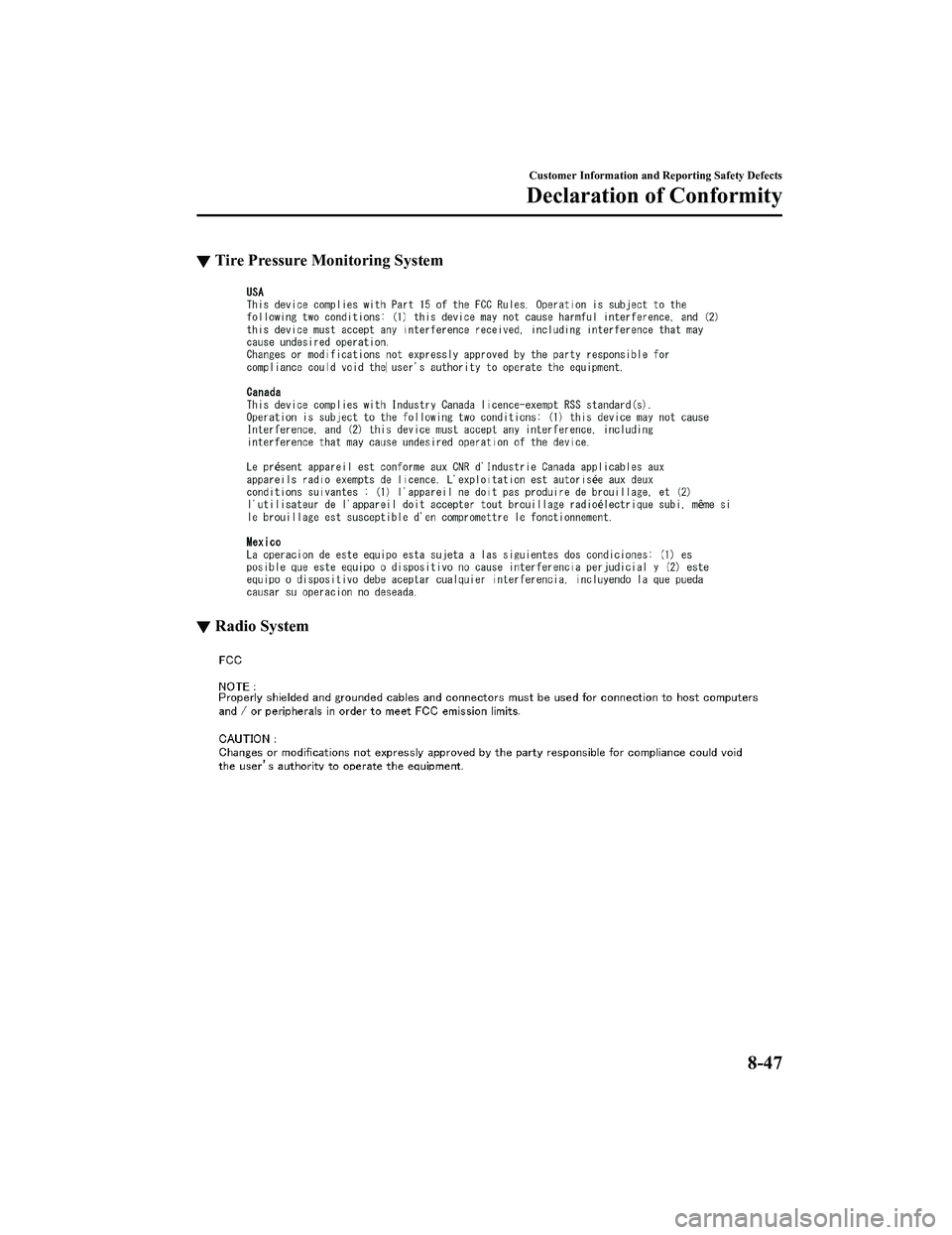

▼Tire Pressure Monitoring System
▼Radio System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-47
MX-5_8KH8-EA-21K_Edition3_old
2021-11-10 13:10:56

▼Audio System
Audio Set
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-48
MX-5_8KH8-EA-21K_Edition3_old
2021-11-10 13:10:56

Name and address of the importer: Refer to "MEXICO" (page 8-13) in Importer/
Distributor section.
Brand name of the product: Visteon Corporation
Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-13) in Importer/Distributor section.
Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-13) in Importer/Distributor section.
Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet fo r detailed warranty information.
Warranty procedure:
Centre of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
Brief description: Bluetooth Telematics Device
Model name of the product: MAZ
Homologation ID: RTIJOMA08-1043
Electrical specifications:
Voltage: 9-16V, Frequency: 2.4GHz, Current: 270mA(Typ)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-49
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56
