NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
A personalized function is available to
change the turn indicator sound volume.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Lane-Change Signals
Move the lever halfway toward the
direction of the lane change
―until the
indicator flashes ― and hold it there. It
will return to the off position when
released.
▼ Three-Flash Turn Signal
After releasing the turn
signal lever, the
turn signal indicator flashes 3 times. The
operation can be canceled by moving the
lever in the direction opposite to which it
was operated.
NOTE
The three-flash turn signal function can be
switched to operable/inoperable using the
personalization function.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
Windshield Wipers and Wa s h e r
The ignition must be switched ON to use
the wipers.
WA R N I N G
Use only windshield washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer fluid is
dangerous. If sprayed on the windshield, it
will dirty the windshield, affect your
visibility, and could result in an accident.
Only use windshield washer fluid mixed
with anti-freeze protection in freezing
weather conditions:
Using windshield washer fluid without
anti-freeze protection in freezing weather
conditions is dangerous as it could freeze
on the windshield and block your vision
which could cause an accident. In addition,
make sure the windshield is sufficiently
warmed using the defroster before
spraying the washer fluid.
CAUTION
 When the wipers are not used during
freezing temperatures or for a long time,
the wiper rubber may adhere to the
glass. If the wipers are operated while
adhered to the glass, it could damage
the wiper rubber and motor.
 If the wipers are operated while the glass
is dry, the glass could be scratched and
the wiper rubber damaged. When the
glass is dry, spray washer fluid before
operating the wipers.
When Driving
Switches and Controls
4-52
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information........................6-2 Introduction.................................. 6-2
Scheduled Maintenance.................... 6-4 Scheduled Maintenance (U.S.A.,
Canada, and Puerto Rico)............. 6-4
Scheduled Maintenance
(Mexico)..................................... 6-10
Owner Maintenance........................ 6-15 Owner Maintenance
Precautions................................. 6-15
Hood........................................... 6-17
Engine Compartment
Overview.................................... 6-19
Engine Oil...................................6-20
Engine Coolant........................... 6-22
Brake/Clutch Fluid. .................... 6-23
Washer Fluid............................... 6-24
Body Lubrication...... .................. 6-25
Wiper Blades.............................. 6-25
Battery........................................ 6-29
Key Battery Replacement........... 6-31
Tires............................................ 6-34
Light Bulbs................................. 6-38
Fuses........................................... 6-47
Appearance Care............................. 6-53 Exterior Care.............................. 6-53
Interior Care................................6-63
6-1
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Light Bulbs
Overhead lightSide turn signal lights
High-mount brake light
Trunk light
Front side-marker lights
Front turn signal lights
Headlights (Low/High beam)
Parking lights
Daytime running lights
License plate lights
Brake lights
Taillights
Rear side-marker lights
Reverse lights
Rear turn signal lights
Maintenance and Care
Owner Maintenance
6-38
MX-5_8KH8-EA-21K_Edition3_old
2021-11-10 13:10:56

CAUTION
When removing the lens or lamp unit using a flathead screwdriver, make sure that the
flathead screwdriver does not contact the int erior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may occur.
NOTE
To replace the bulb, contact an Authorized Mazda Dealer.
Use the protective cover and carton for the re placement bulb to dispose of the old bulb
promptly and out of the reach of children.

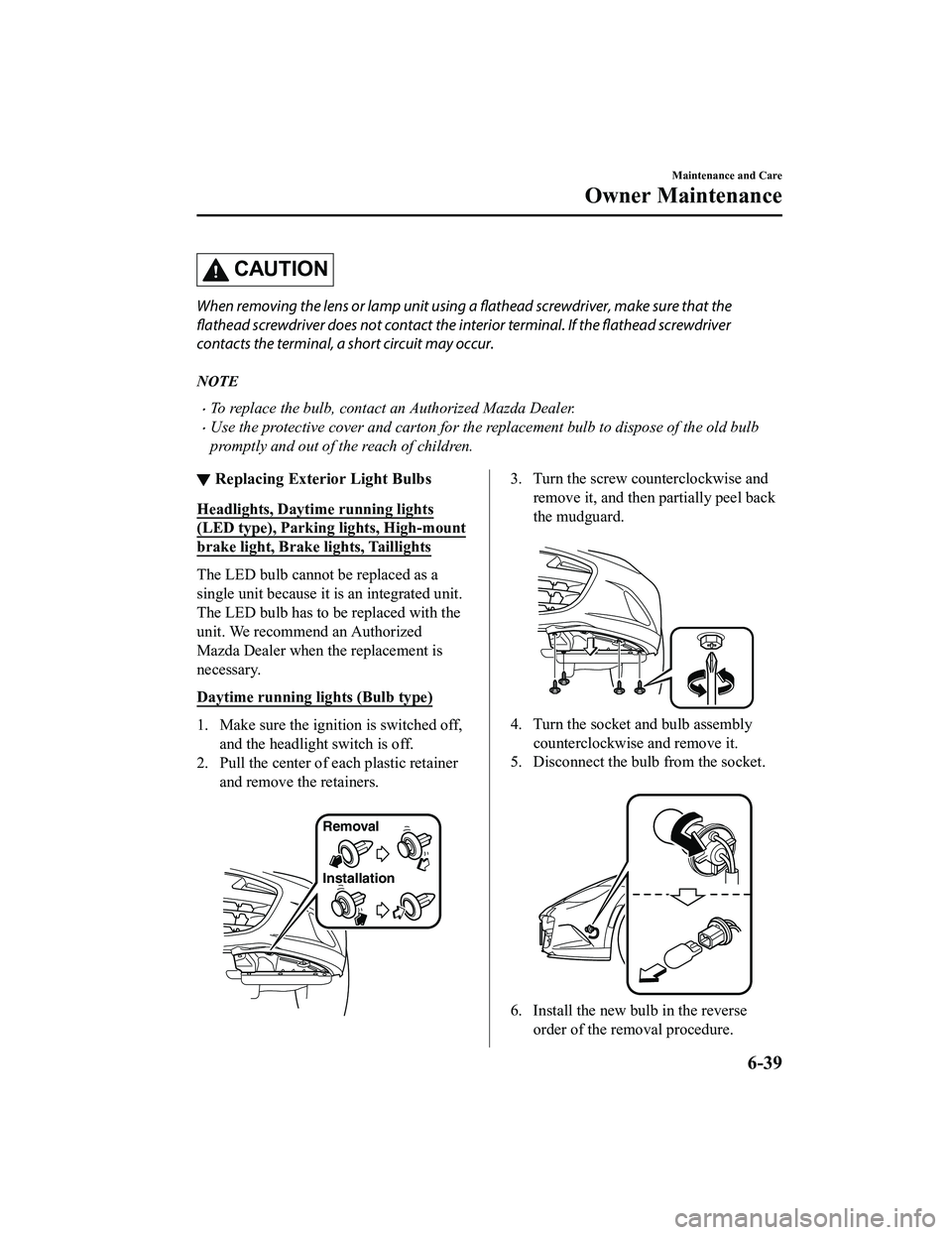

▼ Replacing Exterior Light Bulbs
Headlights, Daytime running lights
(LED type), Parkin
g lights, High-mount
brake light, Brake lights, Taillights
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized
Mazda Dealer when the replacement is
necessary.
Daytime running lights (Bulb type)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Pull the center of each plastic retainer
and remove the retainers.

Removal
Installation
3. Turn the screw counterclockwise andremove it, and then partially peel back
the mudguard.

4. Turn the socket and bulb assemblycounterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverseorder of the removal procedure.
Maintenance and Care
Owner Maintenance
6-39
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Front side-marker lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. If you are changing the right bulb, start the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer and remove the retainers, and then
partially peel back the mudguard.

Removal
Installation
4. Turn the socket and bulb assemblycounterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverseorder of the removal procedure.
Front turn signal lights
1. Make sure the igniti on is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer and remove the retainers, and then
partially peel back the mudguard.

Removal
Installation
4. Disconnect the connector from the unitby pressing the tab on the connector
with your finger and pulling the
connector rearward.

Maintenance and Care
Owner Maintenance
6-40
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

5. Turn the socket and bulb assemblycounterclockwise and remove it.
6. Disconnect the bulb from the socket.

7. Install the new bulb in the reverseorder of the removal procedure.
Side turn signal lights
1. Make sure the ignition is switched off, and the headlight switch is off.
2. If you are changing the right bulb, start the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the mudguard.

Removal
Installation
4. Remove the unit by pressing the tab onthe unit with your finger and pulling
the unit forward.

5. Detach the electrical connector from
the unit by pulling it to the rear.

Maintenance and Care
Owner Maintenance
6-41
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

7. Remove the screw and nut.
8. To remove the rear combination lampunit, insert your finger from inside the
trunk and into the hole from which the
grommet was removed in Step 5, and
while holding the lamp lens (round
part) of the rear combination lamp with
your hand, press the rear combination
lamp unit until the hook detaches from
the clip.

Rear combination lamp unit
Hook
Grommet installation
hole
9. After the hook is detached, pull out the
rear combination lamp unit in the
direction of the arrow and remove it.

Grommet installation hole
Clip
Hook Rear combination
lamp unit
CAUTION
Carefully pull out the rear combination
lamp unit when removing it from the
body.
The wiring may become damaged if the
rear combination lamp unit is forcefully
pulled out.
10. Turn the socket and bulb assembly counterclockwise and remove it.
11. Disconnect the bulb from the socket.
12. Install the new bulb in the reverse
order of the removal procedure.
Maintenance and Care
Owner Maintenance
6-44
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Rear side-marker lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverseorder of the removal procedure.
Reverse lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverseorder of the removal procedure.
Maintenance and Care
Owner Maintenance
6-45
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

License plate lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Remove the unit by pressing the tab on the unit with your finger and pulling
the unit downward.

3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse
order of the removal procedure.
▼Replacing Interior Light Bulbs
Overhead light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverseorder of the removal procedure.
Maintenance and Care
Owner Maintenance
6-46
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Trunk light
1. Wrap a small flathead screwdriver witha soft cloth to prev ent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.

2. Disconnect the co nnector from the
unit.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverseorder of the removal procedure.
Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
▼Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.

1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
Maintenance and Care
Owner Maintenance
6-47
