dashboard warning lights MAZDA MODEL MX-5 MIATA RF 2022 Owners Manual

Turning off the power saving function
After you have turned off the power
saving function according to the following
procedure, the hazard warning lights and
sound operate
*1 one time.
1. Press any of the buttons on the
transmitter to make sure that the
operation indicator light does not turn
on/flash.
2. Press the lock button on the transmitter 4 times within 3 seconds to turn on the
operation indicator light.
3. Press the lock button continuously for 1.5 seconds or longer while the
operation indicator light turns on (for 5
seconds).
*1 With the advanced keyless function
▼Operational Range
The system operates on
ly when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
Starting the engine may be possible even
if the key is outside of the vehicle and
extremely close to a door and window,
however, always start the engine from
the driver's seat.
If the vehicle is started and the key is not
in the vehicle, the vehicle will not restart
after it is shut off and the ignition is
switched to off.
The trunk is out of the assured
operational range, however, if the key
(transmitter) is operable the engine will
start.
With the advanced keyless function

Interior antenna
Operational range
Without the advanced keyless function

Operational range
Interior antenna
NOTE
The engine may not start if the key is
placed in the following areas:
Around the dashboard
In the storage compartments or the
center console
▼
Key Suspend Function
If a key is left in the vehicle, the functions
of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.
Before Driving
Keys
3-9
MX-5_8KH8-EA-21K_Edition3_old
2021-11-10 13:10:56

Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Center of DashboardWarning/Indicator lights will appear in any of the highlighted areas
Type A
(With Multi-information Display)
Type B
(Without Multi-information Display)
Instrument Cluster
▼
Warning Indication/Warning Lights
These lights turn on or flash to notify the us
er of the system operation status or a system
malfunction.
Signal Warning Lights Page
Brake System Warning Light*1*27-33
Charging System Warning Indication/Warning Light*17-33
Engine Oil Warning Light*17-33
(Red)High Engine Coolant Temperature Warning Indication/Warning
Light*17-33
Power Steering Malfunction In
dication/Malfunction Indicator
Light*17-33
*Master Warning Indication/Warning Light*17-36
Electric Vacuum Pump Warning Light*17-36
When Driving
Instrument Cluster and Display
*Some models.4-27
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

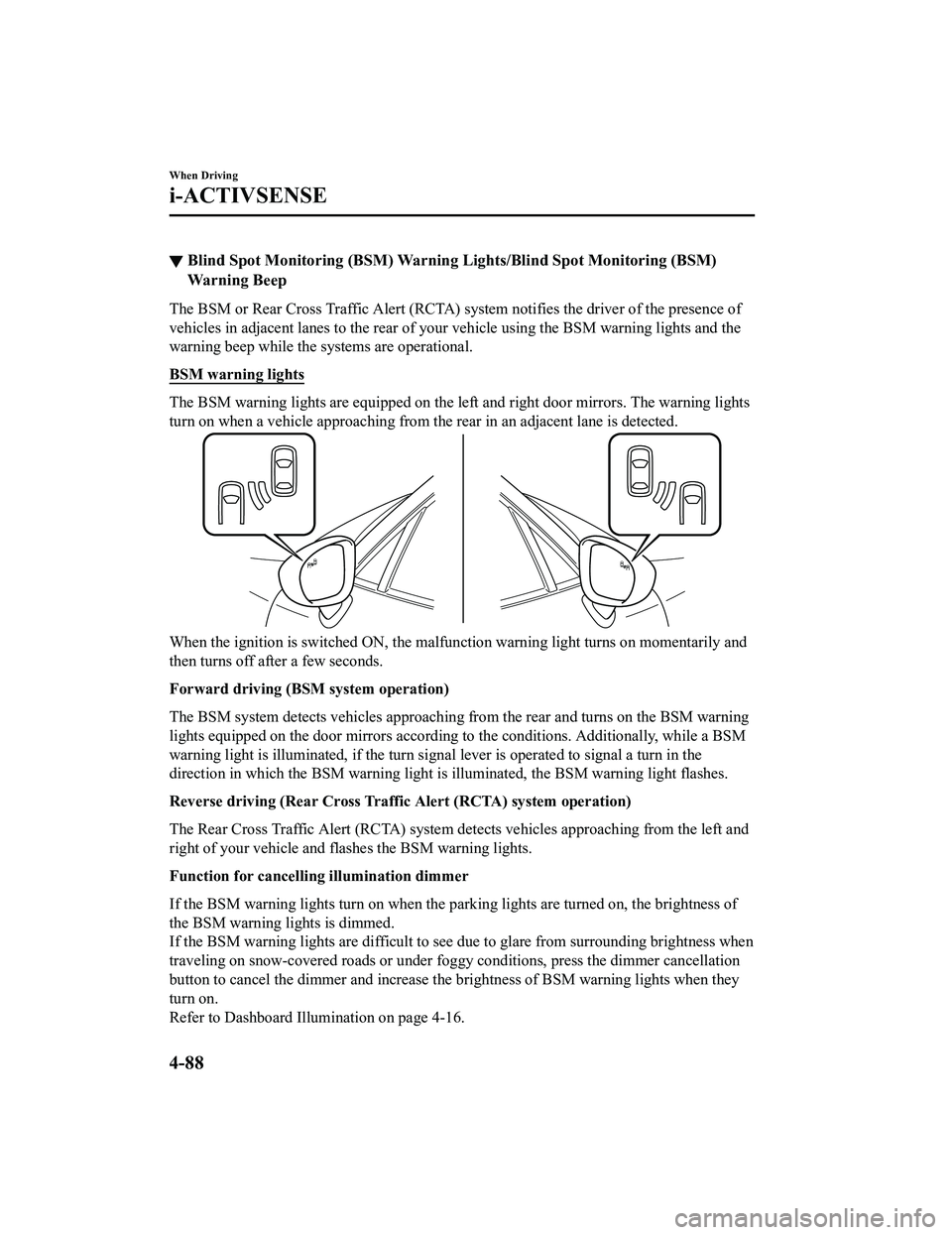

▼Blind Spot Monitoring (BSM) Warning Li
ghts/Blind Spot Monitoring (BSM)
Warning Beep
The BSM or Rear Cross Traffic Alert (RCTA) system notifies the driver of the presence of
vehicles in adjacent lanes to the rear of your vehicle using the BSM warning lights and the
warning beep while the systems are operational.
BSM warning lights
The BSM warning lights are equipped on the left and right door mirrors. The warning lights
turn on when a vehicle approaching from the rear in an adjacent lane is detected.
When the ignition is sw itched ON, the malfunction warning light turns on momentarily and
then turns off after a few seconds.
Forward driving (BSM system operation)
The BSM system detects vehicles approaching from the rear and turns on the BSM warning
lights equipped on the door mirrors according to the conditions. Additionally, while a BSM
warning light is illuminated, if the turn sign al lever is operated to signal a turn in the
direction in which the BSM wa rning light is illuminated, the BSM warning light flashes.
Reverse driving (Rear Cross Traffic Alert (RCTA) system operation)
The Rear Cross Traffic Alert (RCTA) system detects vehicles approaching from the left and
right of your vehicle and flashes the BSM warning lights.
Function for cancelling illumination dimmer
If the BSM warning lights turn on when the parking lights are turned on, the brightness of
the BSM warning lights is dimmed.
If the BSM warning lights are difficult to see due to glare from surrounding brightness when
traveling on snow-covered roads or under foggy conditions, press the dimmer cancellation
button to cancel the dimmer and increase the brightness of BSM warning lights when they
turn on.
Refer to Dashboard Illumination on page 4-16.
When Driving
i-ACTIVSENSE
4-88
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56

Index
Cup Holder........................................ 5-38
Customer Assistance........................... 8-2
D
Dashboard Illumination............ .........4-16
Daytime Running Lights................... 4-51
Defogger Mirror...........................................4-57
Rear window........... .................... 4-56
Dimensions.......................................... 9-6
Door Locks........................................3-12
Drive Selection..................................4-70
Driving In Flooded Ar ea...................3-52
Driving on Uneven Road.................. 3-54
Driving Tips Automatic transmission............... 4-44
Break-in period............................ 3-48
Driving in flooded area............... 3-52
Driving on uneven road...............3-54
Floor mat..................................... 3-49
Hazardous driving.. ..................... 3-49
Overloading............. .................... 3-53
Rocking the vehicle. .................... 3-50
Saving fuel and protection of the
environment................................. 3-48
Winter driving............................. 3-50
Dynamic Stability Control (DSC)..... 4-68 DSC OFF indicator light............. 4-69
DSC OFF switch......................... 4-69
TCS/DSC indicator light............. 4-68
E
Emergency StartingPush-starting................................ 7-26
Starting a flooded engine............ 7-26
Emergency Towing Tiedown hooks........ .................... 7-31
Towing description...................... 7-30
Emission Control System..................3-23
Engine
Coolant.........................................6-22
Engine compartment overview.... 6-19
Exhaust gas..................................3-24
Hood release................................ 6-17
Oil................................................ 6-20
Starting...........................................4-5
Engine Coolant Temperature
Gauge................................................ 4-15
Essential Information.......................... 6-2
Event Data Recorder......................... 8-21
Excessive Speed Warning................. 7-51
Exhaust Gas...................................... 3-24
Exterior Care..................................... 6-53
Aluminum wheel maintenance.... 6-58
Bright-metal maintenance........... 6-57
Convertible Top (Retractable
Hardtop) Maintenance................. 6-60
Convertible Top (Soft Top)
Maintenance.................................6-58
Maintaining the fini sh................. 6-54
Plastic part maintenance.............. 6-63
F
Flasher Hazard warning........................... 4-58
Headlights.................................... 4-45
Flat Tire............................................... 7-3 Mounting the tire......................... 7-21
Removing a tire........................... 7-17
Floor Mat.......................................... 3-49
Fluid Brake/Clutch................................ 6-23
Washer......................................... 6-24
Fluids Classification................................. 9-5
Foot Brake.........................................4-62
Forward Sensing Camera (FSC)..... 4-103
Fuel Filler lid and cap......................... 3-25
Gauge........................................... 4-15
10-3
MX-5_8KH8-EA-21K_Edition3_old 2021-11-10 13:10:56
