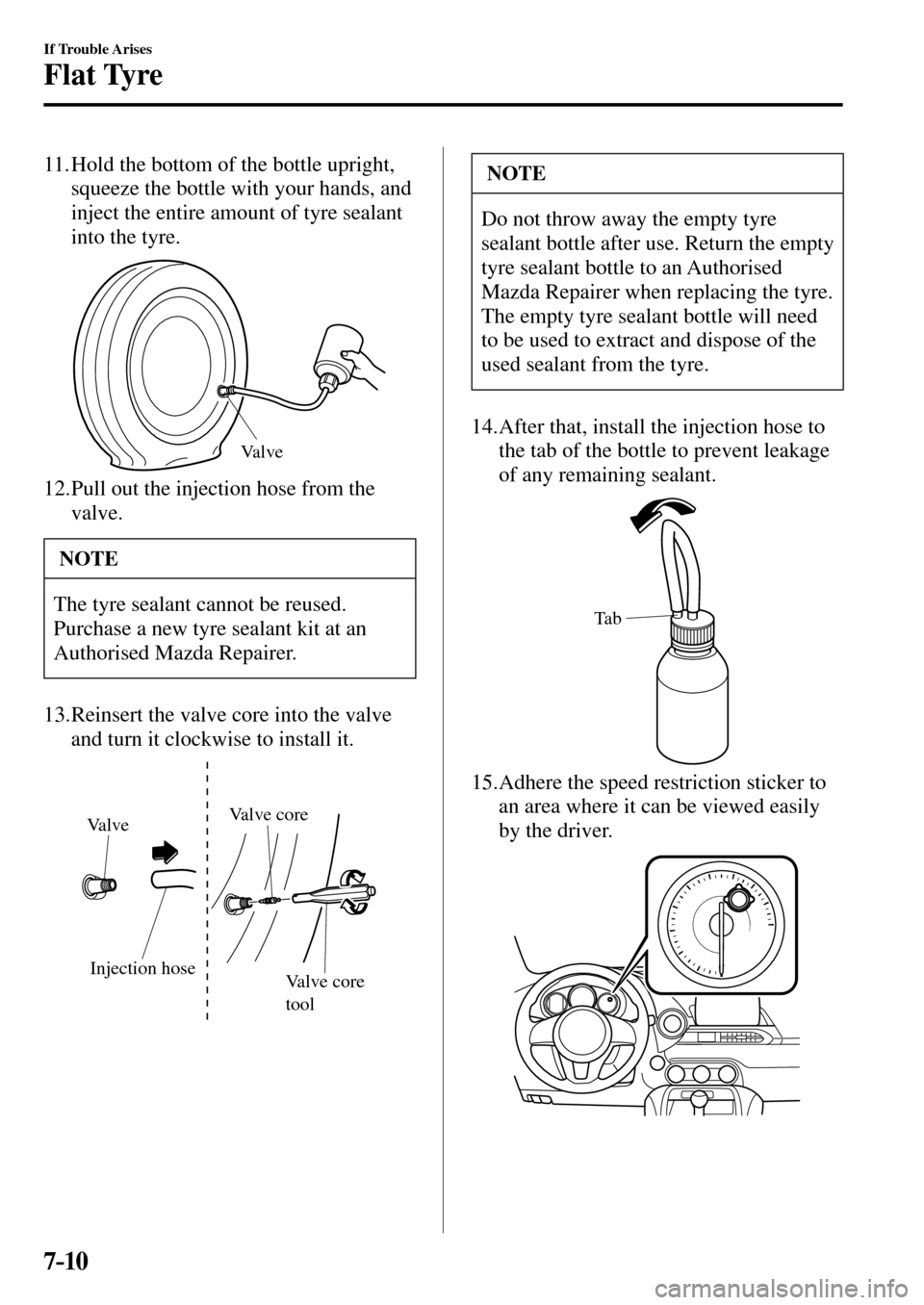

If Trouble Arises
Flat Tyre
11. Hold the bottom of the bottle upright,
squeeze the bottle with your hands, and
inject the entire amount of tyre sealant
into the tyre.
Valve
12. Pull out the injection hose from the
valve.
NOTE
The tyre sealant cannot be reused.
Purchase a new tyre sealant kit at an
Authorised Mazda Repairer.
13. Reinsert the valve core into the valve
and turn it clockwise to install it.
Injection hose
Valve core
tool Valve
Valve core
NOTE
Do not throw away the empty tyre
sealant bottle after use. Return the empty
tyre sealant bottle to an Authorised
Mazda Repairer when replacing the tyre.
The empty tyre sealant bottle will need
to be used to extract and dispose of the
used sealant from the tyre.
14. After that, install the injection hose to
the tab of the bottle to prevent leakage
of any remaining sealant.
Ta b
15. Adhere the speed restriction sticker to
an area where it can be viewed easily
by the driver.
/:A(.'',A'FKVKQPKPFD

7–14
If Trouble Arises
Flat Tyre
Changing a Tyre
WARNING
Be sure to follow the directions for
changing a tyre:
Changing a tyre is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a hard, level surface off the
right-of-way and ¿ rmly set the parking
brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning À asher.
4. Have everyone get out of the vehicle
and away from the vehicle and traf¿ c.
5. Remove the jack and tool (page
7-5 ). 6. Block the wheel diagonally opposite
the tyre to be changed. When blocking
a wheel, place a tyre block both in front
and behind the tyre.
NOTE
When blocking a tyre, use rocks or
wood blocks of suf¿ cient size if possible
to hold the tyre in place.
Removing a Tyre
1. Loosen the wheel nuts by turning them
anticlockwise one turn each, but do not
remove any wheel nuts until the tyre
has been raised off the ground.
2. Place the jack on the ground.
/:A(.'',A'FKVKQPKPFD

7–16
If Trouble Arises
Flat Tyre
WARNING
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle
in positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended in
this manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it could
deform the vehicle body or the vehicle
could fall off the jack resulting in an
accident.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The
jack could slip and someone could be
seriously injured by the jack or the
falling vehicle. 6. Insert the jack lever and attach the
wheel brace to tyre jack.
7. Turn the jack handle clockwise and
raise the vehicle high enough so that
the tyre is raised off the ground and
can be removed. Before removing the
wheel nuts, make sure your Mazda is
¿ rmly in position and that it cannot slip
or move.
/:A(.'',A'FKVKQPKPFD

7–17
If Trouble Arises
Flat Tyre
WARNING
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
8. Remove the wheel nuts by turning
them anticlockwise; then remove the
wheel.
Mounting the Tyre
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and wheel nuts are
clean before changing or replacing
tyres:
When changing or replacing a tyre,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The wheel
nuts could loosen while driving and
cause the tyre to come off, resulting in
an accident.
2. Mount the tyre.
/:A(.'',A'FKVKQPKPFD

7–18
If Trouble Arises
Flat Tyre
3. Install the wheel nuts with the bevelled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to wheel
nuts and bolts and do not tighten the
wheel nuts beyond the recommended
tightening torque:
Applying oil or grease to wheel nuts
and bolts is dangerous. The wheel nuts
could loosen while driving and cause
the tyre to come off, resulting in an
accident. In addition, wheel nuts and
bolts could be damaged if tightened
more than necessary. 4. Turn the wheel brace anticlockwise and
lower the vehicle. Use the wheel brace
to tighten the nuts in the order shown.
If you are unsure of how tight the nuts
should be, have them inspected at an
expert repairer, we recommend an
Authorised Mazda Repairer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)
/:A(.'',A'FKVKQPKPFD

7–63
If Trouble Arises
When the Roof Cannot be Closed
NOTE
If it is dif¿ cult to see the bolt, remove
the windblocker and identify the bolt
from the centre of the vehicle.
Windblocker
3. Turn the L-shaped hexagonal wrench
(Large) anticlockwise to loosen the bolt
slightly.
4. Remove the L-shaped hexagonal
wrench (Large) once from the bolt,
then insert the long end of the wrench
into the bolt.
NOTE
The tip of the long end of the L-shaped
hexagonal wrench can be used at an
angle. Moving the wrench upward
slightly will increase the clearance
between the rear roof and the stored
front roof and facilitate the procedure.
5. Turn the L-shaped hexagonal wrench
(Large) anticlockwise 13 times or more
while pressing the wrench against the
bolt.
NOTE
  The bolt cannot be removed
completely.
  If it is hard to turn the bolt, repeat
Step 3 a few times.
6. Hook the wire to the link pin shown in
the¿ gure.
/:A(.'',A'FKVKQPKPFD

7–67
If Trouble Arises
When the Roof Cannot be Closed
11. Turn the hexagonal wrench (Small)
and gear (tool kit) anticlockwise and
engage the hook with the vehicle body
side.
NOTE
The top lock lever completely engages
with the vehicle body (locked condition)
at the position where the teeth of the
gear (tool kit) contact the bracket.
Gear (tool kit)
Bracket
12. Lift the rear end of the headliner with it
hinged on the opening of the headliner.
13. Install the headliner to the front roof
using the fasteners at two locations.
NOTE
The fasteners in the ¿ ve locations at the
front of the headliner are not fastened.
Do not lose the fasteners because they
are needed for the required servicing at
the Authorised Mazda Repairer.
/:A(.'',A'FKVKQPKPFD
