Page 90 of 609
3–14
Before Driving
Doors and Locks
NOTE
You can also activate the system
by pressing the lock button on the
transmitter twice within 3 seconds.
(With the advanced keyless
function)
You can also activate the system by
pressing the request switch twice
within 3 seconds.
5. The indicator light illuminates for
about 3 seconds to indicate that the
system has been activated.
NOTE
The system cannot be activated when
any door is open.
How to Deactivate the System
Unlock the driver's door or switch the
ignition ON.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the system can only be deactivated by
unlocking a door with the auxiliary key.
Locking, Unlocking with Request
Switch (With the advanced keyless
function)
Both doors and the boot lid, fuel- ¿ ller
À ap can be locked/unlocked by pressing
the request switch while the key is being
carried.
Request switch
To lock
To lock the doors and the boot lid, fuel-
¿ ller À ap, press the request switch and the
hazard warning lights will À ash once.
(Except European models)
A beep sound will be heard once.
To unlock
To unlock the doors and the boot lid, fuel-
¿ ller À ap, press the request switch and the
hazard warning lights will À ash twice.
(Except European models)
A beep sound will be heard twice.
NOTE
Con ¿ rm that both doors and the
boot lid, fuel- ¿ ller À ap are securely
locked.
Both doors and the boot lid, fuel-
¿ ller À ap cannot be locked when any
door is open.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 91 of 609
3–15
Before Driving
Doors and Locks
NOTE
It may require a few seconds for
the doors to unlock after the request
switch is pressed.
(European models) The setting can be changed so that a
beep sound is heard for con ¿ rmation
when the doors and the boot lid, fuel-
¿ ller À ap are locked/unlocked using
a request switch.
(Except European models) A beep sound is heard for
con ¿ rmation when the doors and the
boot lid, fuel- ¿ ller À apare locked/
unlocked using the request switch.
If you prefer, the beep sound can be
turned off.
The volume of the beep sound
can also be changed. Refer to
Personalisation Features on page
9-10 .
NOTE
Use the following procedure to
change the setting.
1. Switch the ignition off and close
both of the doors and the boot lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
Both of the doors and the boot lid,
fuel- ¿ ller À ap lock and the beep
sound activates at the currently
set volume. The setting changes
each time the LOCK button on the
key is pressed and the beep sound
activates at the set volume. (If the
beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed
by doing any one of the following:
Switching the ignition to ACC
or ON.
Closing the driver's door.
Opening the boot lid.
Not operating the key for 10
seconds.
Pressing any button except the
LOCK button on the key.
Pressing a request switch.
(With theft-deterrent system) The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on
page 3-55 .
(With double locking system) Pressing the request switch twice
within 3 seconds will activate the
double locking system.
Refer to Double Locking System on
page 3-13 .
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 92 of 609
3–16
Before Driving
Doors and Locks
NOTE
The setting can be changed so that
the doors and the boot lid, fuel- ¿ ller
À ap are locked automatically without
pressing the request switch.
Refer to Personalisation Features on
page 9-10 .
(Auto-lock function) A beep sound is heard when both
doors are closed while the advanced
key is being carried. Both doors
and the boot lid, fuel- ¿ ller À ap are
locked automatically after about
three seconds when the advanced
key is out of the operational range.
Also, the hazard warning lights
À ash once. (Even if the driver is in
the operational range, both doors
and the boot lid, fuel- ¿ ller À ap are
locked automatically after about
30 seconds.) If you are out of the
operational range before the doors
and the boot lid are completely
closed or another key is left in the
vehicle, the auto-lock function
will not work. Always make sure
that both doors and the boot lid are
closed and locked before leaving the
vehicle. The auto-lock function does
not close the power windows.
NOTE
Auto re-lock function After unlocking with the request
switch, both doors and the boot lid,
fuel- ¿ ller À ap will automatically lock
if any of the following operations
are not performed within about 30
seconds. If your vehicle has a theft-
deterrent system, the hazard warning
lights will À ash for con ¿ rmation.
The time required for the doors and
the boot lid, fuel- ¿ ller À ap to lock
automatically can be changed.
Refer to Personalisation Features on
page 9-10 .
Opening a door or the boot lid.
Switching the ignition to any
position other than off.
Locking, Unlocking with
Transmitter
Both doors and the boot lid, fuel- ¿ ller À ap
can be locked/unlocked by operating the
keyless entry system transmitter, refer to
Keyless Entry System (page 3-3 ).
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 96 of 609
3–20
Before Driving
Doors and Locks

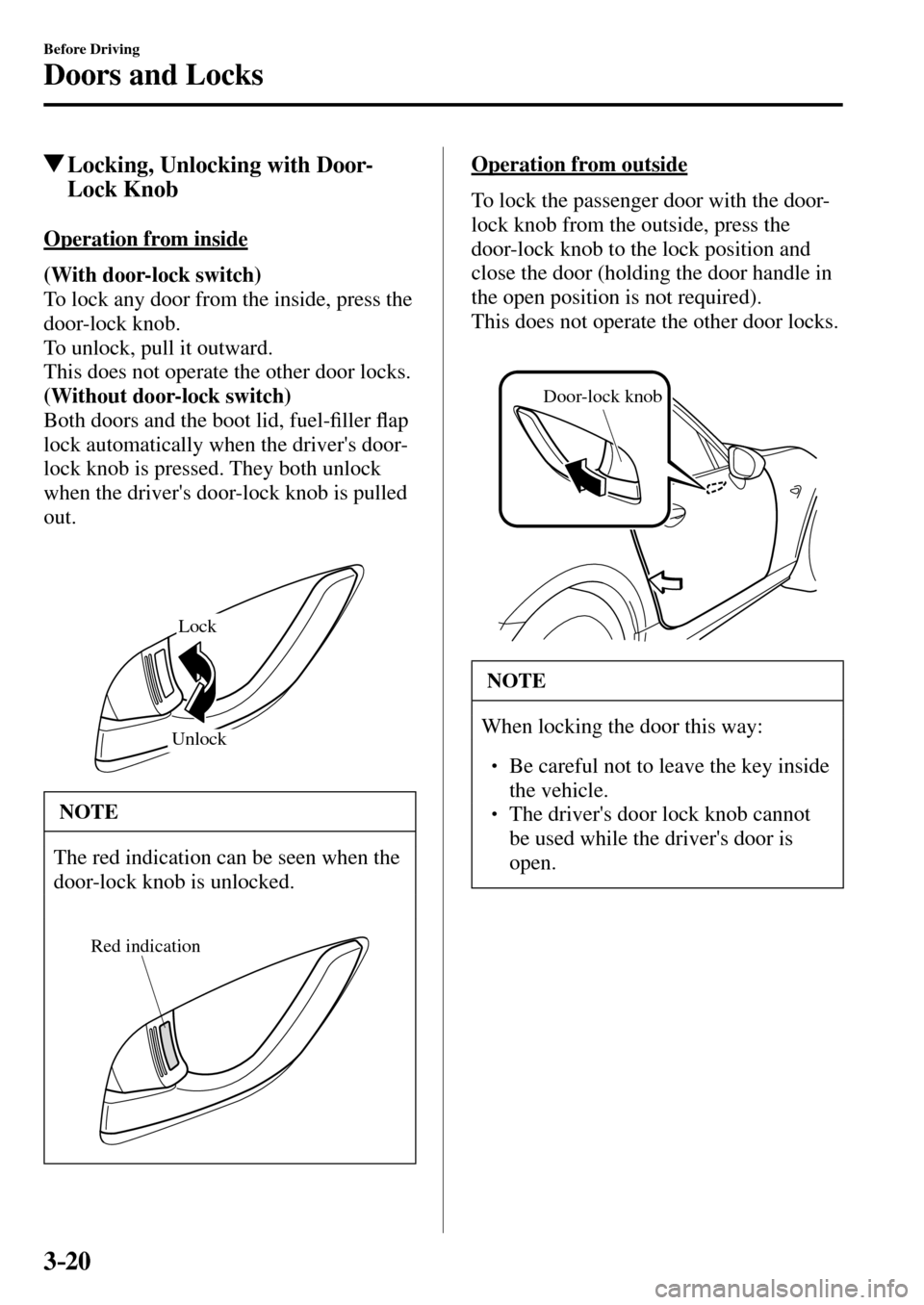

Locking, Unlocking with Door-
Lock Knob
Operation from inside
(With door-lock switch)
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate the other door locks.
(Without door-lock switch)
Both doors and the boot lid, fuel- ¿ ller À ap
lock automatically when the driver's door-
lock knob is pressed. They both unlock
when the driver's door-lock knob is pulled
out.
Lock
Unlock
NOTE
The red indication can be seen when the
door-lock knob is unlocked.
Red indication
Operation from outside
To lock the passenger door with the door-
lock knob from the outside, press the
door-lock knob to the lock position and
close the door (holding the door handle in
the open position is not required).
This does not operate the other door locks.
Door-lock knob
NOTE
When locking the door this way:
Be careful not to leave the key inside
the vehicle.
The driver's door lock knob cannot
be used while the driver's door is
open.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 98 of 609
3–22
Before Driving
Doors and Locks
*Some models.
Opening and Closing the Boot Lid
Opening the boot lid
Using the remote release button
*
Push the release button.
The remote release button function can
be disabled by locking the doors using
the transmitter, auxiliary key, or a request
switch to prevent an intruder in the vehicle
from opening the boot.
To enable the remote release button
operation, unlock the doors by using the
transmitter, auxiliary key, or a request
switch, or switch the ignition ON.
NOTE
The remote release button cannot be
disabled by locking the doors using the
door-lock switch/door-lock knob.
Refer to Locking, Unlocking with Door-
Lock Switch on page 3-17 .
Refer to Locking, Unlocking with Door-
Lock Knob on page 3-20 . Using the electric boot lid opener
(With the remote release button)
A boot lid can also be opened while the
key is being carried.
Press the electric boot lid opener and raise
the boot lid when the latch releases.
(Without the remote release button)
Unlock the doors and boot lid, then press
the electric boot lid opener and raise it
when the latch releases.
NOTE
(With the advanced keyless function)
A locked boot lid can also be opened
while the key is being carried.
Electric boot lid
opener
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 99 of 609
3–23
Before Driving
Doors and Locks
NOTE
When opening the boot lid with
the doors locked, it may require a
few seconds for the boot lid latch
to release after the electric boot lid
opener is pressed.
The boot lid can be closed when the
doors are locked with the key left
in the vehicle. However, to prevent
locking the key in the vehicle, the
boot lid can be opened by pressing
the electric boot lid opener. If the
boot lid cannot be opened despite
doing this procedure, ¿ rst push the
boot lid completely closed, then
press the electric boot lid opener to
fully open the boot lid.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the boot lid cannot be
unlocked, the boot lid can be opened
by performing the emergency
procedure.
Refer to When Boot Lid Cannot be
Opened on page 7-55 .
Closing the boot lid
Use both hands to push the boot lid down
until the lock snaps shut. Do not slam it.
Pull up on the boot lid to make sure it is
secure.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 100 of 609
3–24
Before Driving
Fuel and Emission
Fuel and Engine Exhaust Precautions
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
The vehicle will perform best with fuel listed in the table.
Fuel Research Octane
Number Country
Premium unleaded fuel
(Conforming to EN 228
and within E10)
*1 95 or above New Caledonia, Turkey, Canary Islands, Reunion,
Morocco, Austria, Greece, Italy, Switzerland, Belgium,
Denmark, Finland, Norway, Portugal, Spain, Sweden,
Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia,
Luxembourg, Slovakia, Latvia, Lithuania, France, Czech,
Estonia, Romania, The Netherlands, Macedonia, Bosnia and
Herzegovina, Serbia, Montenegro, Guadeloupe, Martinique,
Singapore, Hong Kong, Malaysia, Thailand, Brunei, Macau,
Sri Lanka, South Africa, Jamaica, Surinam, Trinidad and
Tobago, Commonwealth of Dominica, Myanmar, Taiwan,
The Philippines, Cambodia, Laos, Tahiti, Kuwait, Oman,
Qatar, Saudi Arabia, UAE, Bahrain, Lebanon, Israel,
Tunisia, Egypt, Chile, El Salvador, Guatemala, Costa Rica,
Ecuador, Bolivia, Colombia, Dominican Republic (LHD),
Panama, Uruguay, Honduras, Peru, Cyprus, Malta, Ireland,
UK
Regular unleaded fuel 90 or above Fiji
*1 Europe
Fuel with a lower rating will negatively affect the emission control system performance and
could also cause engine knocking and serious engine damage.
CAUTION
USE ONLY UNLEADED FUEL. Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead to
deterioration of the emission control system and or failures.
The use of E10 fuel with 10 % ethanol in Europe is safe for your vehicle. Damage to
your vehicle may occur when ethanol exceeds this recommendation.
Never add fuel system additives, otherwise the emission control system could be
damaged. Consult an expert repairer, we recommend an Authorised Mazda Repairer
for details.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 129 of 609
3–53
Before Driving
Security System
M o d i ¿ cation and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modi ¿ ed or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognises.
If someone attempts to start the engine
with an unrecognised key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorised Mazda Repairer.
CAUTION
Changes or modi ¿ cations not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic ¿ eld.
Expose the key to high
temperatures on places such as the
instrument panel or bonnet, under
direct sunlight.
If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or À ashing,
the system may have a malfunction.
Consult an Authorised Mazda
Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 130 of 609
3–54
Before Driving
Security System
NOTE
The keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining a replacement
key requires some waiting time.
They are only available through an
Authorised Mazda Repairer.
Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorised Mazda Repairer as soon
as possible.
If you lose a key, an Authorised
Mazda Repairer will reset the
electronic codes of your remaining
keys and immobilizer system.
Bring all the remaining keys to an
Authorised Mazda Repairer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
Operation
NOTE
The engine may not start and security
indicator light may illuminate or
À ash if the key is placed in an area
where it is dif ¿ cult for the system
to detect the signal, such as on the
instrument panel. Move the key to
a location within the signal range,
switch the ignition off, and then
restart the engine.
Signals from a TV or radio station,
or from a transceiver or mobile
telephone could interfere with your
immobilizer system. If you are using
the proper key and the engine fails
to start, check the security indicator
light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster À ashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
À ashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart
the engine. If the engine does not start
after 3 or more tries, contact an Authorised
Mazda Repairer.
NOTE
If the security indicator light À ashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorised Mazda Repairer and have
it checked. If the engine is shut off
while the indicator light is À ashing,
you will not be able to restart it.
Because the electronic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorised Mazda Repairer so that
they can be programmed.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 132 of 609
3–56
Before Driving
Security System
Operation
Siren/Horn triggering conditions
The siren/horn sounds intermittently and
the hazard warning lights À ash for about
30 seconds when the system is triggered
by any one of the following:
Unlocking a door with an inside door-
lock knob.
Forcing open a door, the bonnet or the
boot lid.
Opening the bonnet by operating the
bonnet release handle.
Switching the ignition ON without using
the push button start.
(With the intrusion sensor)
The intrusion sensor detects a movement
in the vehicle.
The system will be triggered again (up to
10 times) if one of the above conditions
remains.
(With the intrusion sensor)
Disconnecting the battery terminal (the
hazard warning lights do not À ash).
The system will be triggered about 10
times.
NOTE
The boot lid does not open while the
theft-deterrent system is operating.
If the battery goes dead while the
theft-deterrent system is armed,
the siren/horn will activate and the
hazard warning lights will À ash when
the battery is charged or replaced.
How to Arm the System
1. Close the windows and the convertible
top securely.
NOTE
(With the intrusion sensor)
The intrusion sensor function can be
armed only when the convertible top is
closed.
Even with a window open, the system
can be armed, however, leaving the
windows even partially open can invite
theft, and wind blowing into the vehicle
could trigger the alarm.
The intrusion sensor function can also
be cancelled.
Refer to Cancelling the Intrusion Sensor
(With Intrusion Sensor) on page 3-57 .
2. Switch the ignition OFF.
3. Make sure the bonnet, convertible top,
the doors, and the boot lid are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will À ash
once.
(With the advanced keyless function)
Press a request switch.
The security indicator light in the
instrument cluster À ashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
/ : A ( . ' ' , A ' F K V K Q P K P F D
