When Driving
Start/Stop Engine
Automatic transmission
1. Engine idling stops when the brake pedal is depressed while the vehicle is driven (except
for driving in the R or M position second gear ¿ xed mode) and the vehicle is stopped.
2. The engine restarts automatically when the brake pedal is released with the selector lever
in the D or M position (not in second gear ¿ xed mode).
3. If the selector lever is in the N or P position, the engine does not restart when the brake
pedal is released. The engine restarts when the brake pedal is depressed again or the
selector lever is shifted to the D, M (not in second gear ¿ xed mode) or the R position.
(For the purposes of safety, always keep the brake pedal depressed when shifting the
selector lever while engine idling is stopped.)
Operation conditions
When the system is operable
Under the following conditions, engine idling stops and the i-stop indicator light (green)
turns on.



 The engine is warmed up.



 The engine has been started and the vehicle is driven for a certain period.



 The engine is started with the bonnet closed.



 The battery is in good condition.



 All doors, boot lid, and bonnet are closed.



 The driver's seat belt is fastened.



(Manual Air-Conditioning)



 The airÀ ow mode dial of the air conditioner is in a position other than ( ).



 The airÀ ow amount is other than the maximum airÀ ow amount.




(Fully Automatic Air-Conditioning)



 The airÀ ow mode dial of the air conditioner is in a position other than ( ).



 The temperature setting dial of the air conditioner is in a position other than maximum
heating or maximum cooling (A/C ON) position.



 The vehicle's interior temperature and the set temperature for the air conditioner are
nearly the same.



 The i-stop warning light (amber) is not turned on/À ashing.



 The keyless entry & push button start system functions are normal.



 The brake vacuum is suf¿ ciently high.



 The steering wheel is not being operated.



(Manual transmission)




 The vehicle speed is 3 km/h (1.8 mph) or less.



 The shift lever is in the neutral position.



 The clutch pedal is not depressed.
/:A(.'',A'FKVKQPKPFD

4–44
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Lights Page
(Amber)
* High Beam Control System (HBC) Warning Indication/
Warning Light *1 7-34
* Blind Spot Monitoring (BSM) Warning Indication 7-34
* Retractable Fastback Warning Indication 7-34
LED Headlight Warning Light *1 7-34
Seat Belt Warning Light 7-41
* Door-Ajar Warning Light 7-41
* Door-Ajar Warning Indication 7-41
* Boot lid-Ajar Warning Indication 7-41
* Low Fuel Warning Indication/Warning Light 7-41
* 120 km/h Warning Light *1 7-41
* Low Washer Fluid Level Warning Indication/Warning Light 7-41
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.
*2 The light turns on continuously when the parking brake is applied.
/:A(.'',A'FKVKQPKPFD

5–124
Interior Features
Interior Equipment
Boot Light
The boot light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the boot open
for a long period when the engine is not
running.
Illuminated Entry System
When the illuminated entry system
operates, the overhead lights turn on in the
following conditions:


 The driver's door is unlocked after the
ignition is switched OFF.


 The ignition is switched OFF with all
doors closed.
NOTE
  The illuminated entry system
operates when the overhead light
switch is in the DOOR position.
  The illumination time differs
depending on the operation.
 Battery saver If an interior light is left on with
the ignition switched OFF, the light
is turned off automatically after
about 30 minutes to prevent battery
depletion.
  The operation of the illuminated
entry system can be changed.
 Refer to Personalisation Features on
page 9-10 .
/:A(.'',A'FKVKQPKPFD

6–4
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometres (miles), whichever comes ¿ rst.
Months 12 24 36 48 60 72 84 96 108
×1000 km 20 40 60 80 100 120 140 160 180
×1000 miles 12.5 25 37.5 50 62.5 75 87.5 100
112.5
Driveshaft dust boots I I I I
Exhaust system and heat shields Inspect every 80,000 km (50,000 miles) or 5 years.
Bolts and nuts on chassis and body T T T T
Body condition (for rust, corrosion and
perforation) Inspect annually.
Tyres (including spare tyre) (with inÀ ation
pressure adjustment)
*10*11 I I I I I I I I I
Emergency À at tyre repair kit (if installed)
*12 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
C : Clean
T : Tighten
D : Drain

Remarks:
*1 In the countries below, inspect the spark plugs at every 10,000 km (6,250 miles) or 12 months before replacing
them at the said interval.
Albania, Bosnia and Herzegovina, Bulgaria, Croatia, Latvia, Macedonia, Moldova, Montenegro, Romania,
Serbia, Ukraine
*2 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*3 Also inspect the air conditioner drive belts, if installed.
If the vehicle is operated primarily under any of the following conditions, inspect the drive belts at every
20,000 km (12,500 miles) or 12 months.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation
c) Driving for long period in cold temperatures or driving regularly at short distance only
d) Driving in extremely hot conditions
e) Driving in mountainous conditions continually
*4 SKYACTIV-G 1.5 and SKYACTIV-G 2.0 vehicles can select À exible setting only some countries in Europe.
Consult an Authorised Mazda Repairer for details. Flexible setting can be set if the vehicle is operated mainly
where none of the following conditions apply.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
Once the À exible maintenance is selected, the vehicle calculates the remaining oil life based on engine
operating conditions and lets you know when an oil change is due by illuminating the wrench indicator light in
the instrument cluster.
Replace the engine oil and ¿ lter when message/wrench indicator light is ON. And they must be changed at least
once a year or within 20,000 km (12,500 miles) since last engine oil and ¿ lter change.
The system must be reset whenever replacing the engine oil regardless of the message/wrench indicator light
display.
/:A(.'',A'FKVKQPKPFD

6–6
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometres, whichever comes ¿ rst
Months 12 24 36 48 60 72 84 96 108 120 132 144
×1000 km 15 30 45 60 75 90 105 120 135 150 165 180
Steering operation and linkages I I I I I I
Manual transmission oil R R
Rear differential oil
*7
Front and rear suspension, ball joints and wheel
bearing axial play I I I I I I I I I I I I
Driveshaft dust boots I I I I
Exhaust system and heat shields Inspect every 75,000 km.
Bolts and nuts on chassis and body T T T T T T T T T T T T
Body condition (for rust, corrosion and
perforation) Inspect annually.
Tyres (including spare tyre) (with inÀ ation
pressure adjustment)
*8 I I I I I I I I I I I I
Emergency À at tyre repair kit (if installed)
*9 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
C : Clean
T : Tighten
D : Drain
Remarks:
*1 Also inspect the air conditioner drive belts, if installed.
If the vehicle is operated primarily under any of the following conditions, inspect the drive belts at every
10,000 km or shorter.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation
c) Driving for long period in cold temperatures or driving regularly at short distance only
d) Driving in extremely hot conditions
e) Driving in mountainous conditions continually
*2 If the vehicle is operated primarily under any of the following conditions, replace the engine oil and oil ¿ lter at
every 10,000 km or shorter.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
d) Driving for long period in cold temperatures or driving regularly at short distance only
e) Driving in extremely hot conditions
f) Driving in mountainous conditions continually
*3 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*4 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*5 Inspect the battery electrolyte level, speci¿ c gravity and outer appearance. The sealed battery only requires an
outer appearance inspection.
/:A(.'',A'FKVKQPKPFD

6–8
Maintenance and Care
Scheduled Maintenance
Maintenance
Interval Number of months or kilometres (miles), whichever comes ¿ rst.
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90
100 110 120 130 140 150 160
×1000 miles 6.25 12.5 18.75 25 31.25 37.5 43.75 50 56.25 62.5 68.75 75 81.25 87.5 93.75 100
Disc brakes I I I I I I I I I I I I I I I I
Steering operation and linkages I I I I I I I I
Manual transmission oil R
Rear differential oil
*8
Front and rear suspension, ball
joints and wheel bearing axial play I I I I I I I I
Driveshaft dust boots I I I I
Exhaust system and heat shields Inspect every 80,000 km (50,000 miles).
Bolts and nuts on chassis and body T T T T T T T T
Body condition (for rust, corrosion
and perforation) Inspect annually.
Tyres (including spare tyre) (with
inÀ ation pressure adjustment)
*9 I I I I I I I I I I I I I I I I
Tyre rotation
*9 Rotate every 10,000 km (6,250 miles).
Emergency À at tyre repair kit (if
installed)
*10 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
C : Clean
T : Tighten
D : Drain
Remarks:
*1 In the countries below, inspect the spark plugs at every 10,000 km (6,250 miles) or 12 months before replacing
them at the said interval.
Armenia, Angola, Bolivia, Burundi, B.Virgin, Cambodia, Cameroon, Chile, Costa Rica, Curacao, El
Salvador, Gabon, Ghana, Georgia, Guatemala, Haiti, Honduras, Hong Kong, Iran, Jordan, Macau, Mongolia,
Mozambique, Myanmar, Nigeria, Nicaragua, Papua New Guinea, Peru, Philippines, Seychelles, Syria,
Tanzania, United Arab Emirates, Vietnam, Zaire, Zimbabwe
*2 Also inspect the air conditioner drive belts, if installed.
If the vehicle is operated primarily under any of the following conditions, inspect the drive belts more often
than the recommended intervals.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation
c) Driving for long period in cold temperatures or driving regularly at short distance only
d) Driving in extremely hot conditions
e) Driving in mountainous conditions continually
/:A(.'',A'FKVKQPKPFD

6–39
Maintenance and Care
Owner Maintenance
*Some models.
Headlights (Low beam)
Headlights (High beam)
Running lights
Position lights
Front direction indicator lights
Side direction indicator lights
Brake lights
Rear direction indicator lights
Tail lights
Reverse lights
Rear fog light (Left-hand drive model) *
Rear fog light (Right-hand drive model) *
High-mount brake light
Number plate lights
Overhead light
Boot light
/:A(.'',A'FKVKQPKPFD

6–42
Maintenance and Care
Owner Maintenance
3. Pull the centre of each plastic retainer
and remove the retainers, and then
partially peel back the mudguard.
Removal
Installation
4. Remove the unit by pressing the tab on
the unit with your ¿ nger and pulling the
unit forward.
5. Detach the electrical connector from
the unit by pulling it to the rear.
6. Install the new side direction indicator
unit in the reverse order of the removal
procedure.
Rear direction indicator lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Pull the centre of each plastic retainer
and remove the retainers and the boot
end trim.
Removal
Installation
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector downward.
/:A(.'',A'FKVKQPKPFD

6–43
Maintenance and Care
Owner Maintenance

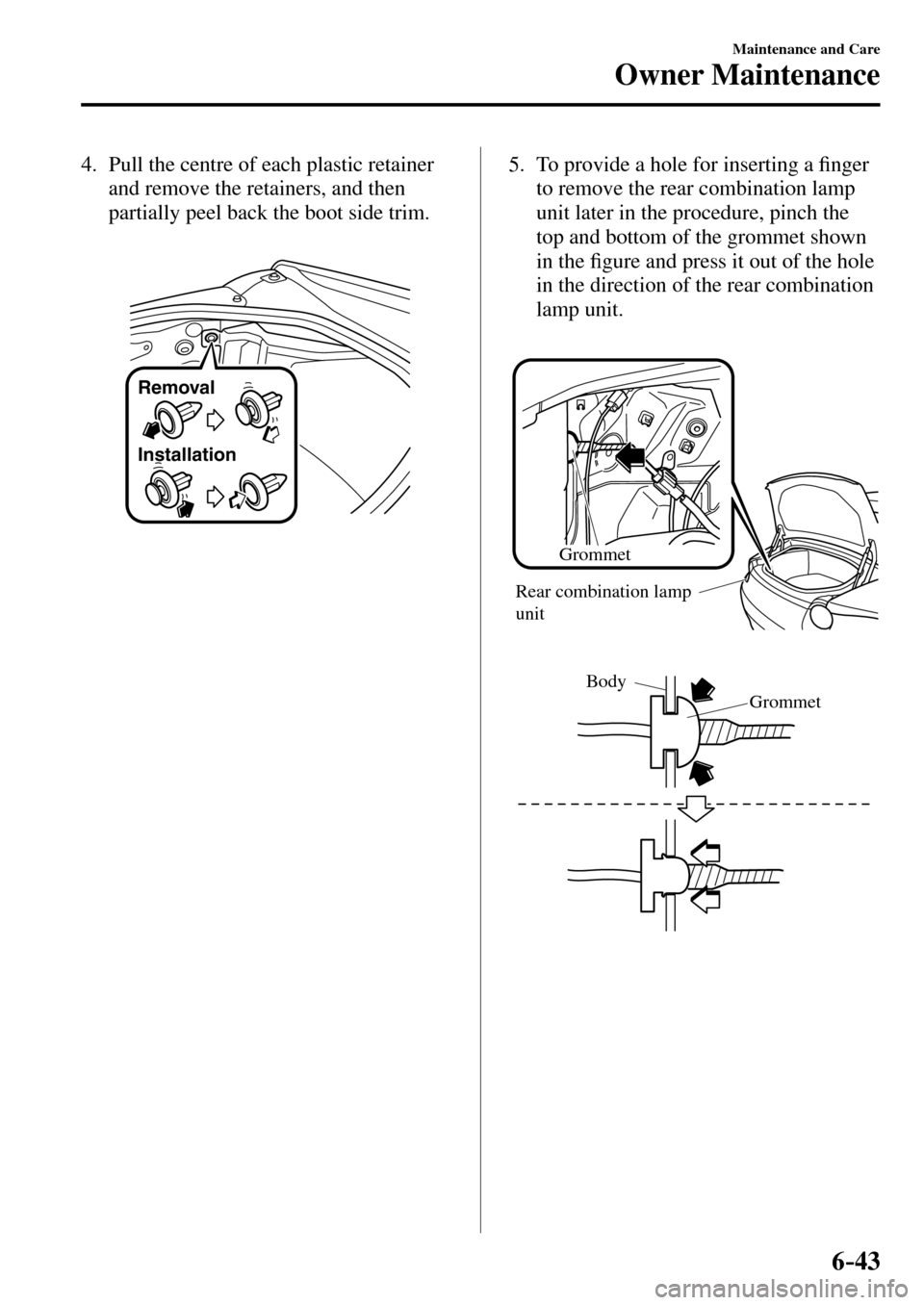

4. Pull the centre of each plastic retainer
and remove the retainers, and then
partially peel back the boot side trim.
Removal
Installation
5. To provide a hole for inserting a ¿ nger
to remove the rear combination lamp
unit later in the procedure, pinch the
top and bottom of the grommet shown
in the ¿ gure and press it out of the hole
in the direction of the rear combination
lamp unit.
Grommet
Rear combination lamp
unit
Grommet Body
/:A(.'',A'FKVKQPKPFD

6–44
Maintenance and Care
Owner Maintenance

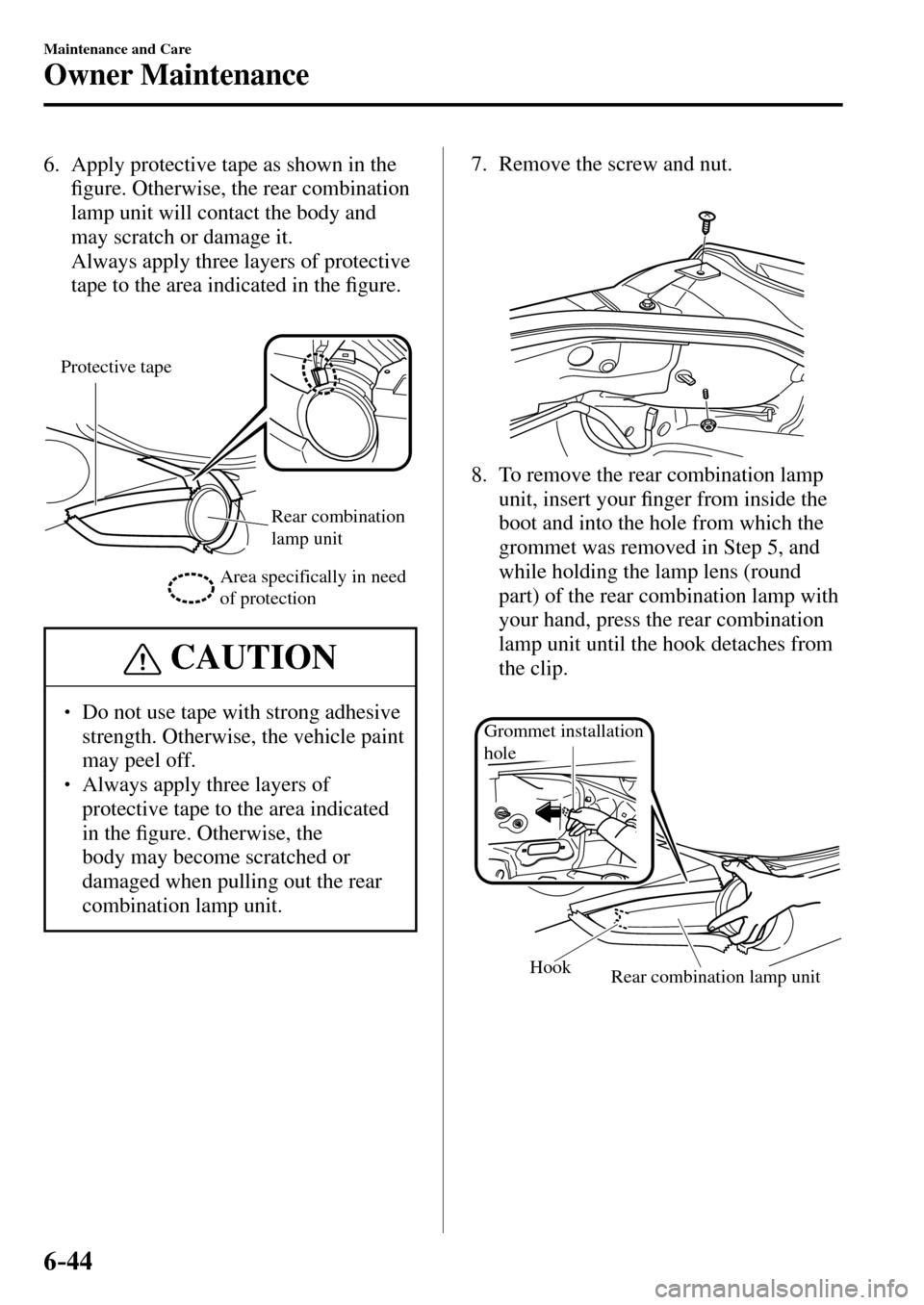

6. Apply protective tape as shown in the
¿ gure. Otherwise, the rear combination
lamp unit will contact the body and
may scratch or damage it.
Always apply three layers of protective
tape to the area indicated in the ¿ gure.
Protective tape
Rear combination
lamp unit
Area specifically in need
of protection
CAUTION
  Do not use tape with strong adhesive
strength. Otherwise, the vehicle paint
may peel off.
  Always apply three layers of
protective tape to the area indicated
in the ¿ gure. Otherwise, the
body may become scratched or
damaged when pulling out the rear
combination lamp unit. 7. Remove the screw and nut.
8. To remove the rear combination lamp
unit, insert your ¿ nger from inside the
boot and into the hole from which the
grommet was removed in Step 5, and
while holding the lamp lens (round
part) of the rear combination lamp with
your hand, press the rear combination
lamp unit until the hook detaches from
the clip.
Rear combination lamp unit Hook
Grommet installation
hole
/:A(.'',A'FKVKQPKPFD
