Page 188 of 609

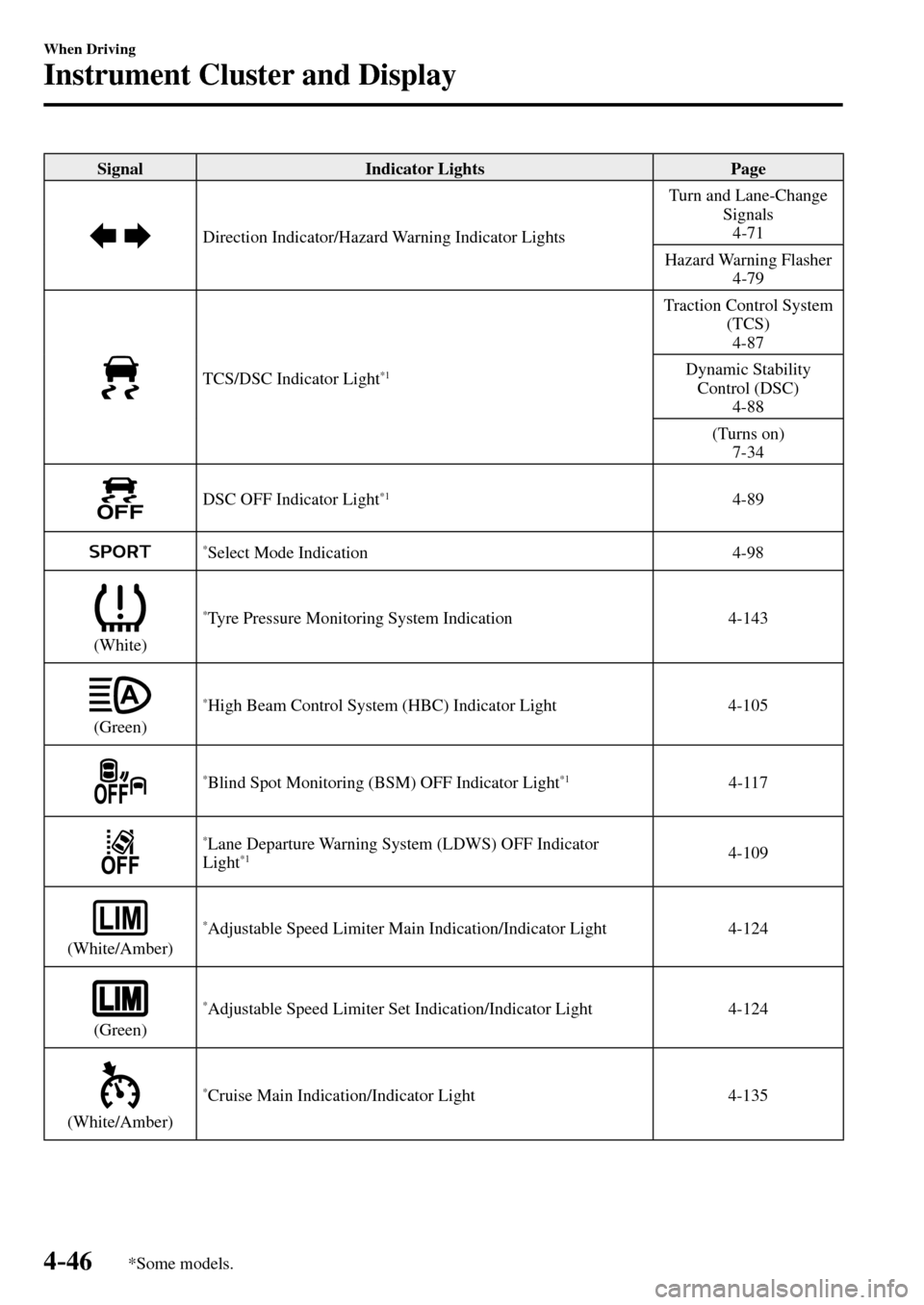

4–46
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Lights Page
Direction Indicator/Hazard Warning Indicator Lights Turn and Lane-Change
Signals
4-71
Hazard Warning Flasher
4-79
TCS/DSC Indicator Light *1
Traction Control System
(TCS)
4-87
Dynamic Stability
Control (DSC)
4-88
(Turns on)
7-34
DSC OFF Indicator Light *1 4-89
* Select Mode Indication 4-98
(White)
* Tyre Pressure Monitoring System Indication 4-143
(Green)
* High Beam Control System (HBC) Indicator Light 4-105
* Blind Spot Monitoring (BSM) OFF Indicator Light *1 4-117
* Lane Departure Warning System (LDWS) OFF Indicator
Light*1 4-109
(White/Amber)
* Adjustable Speed Limiter Main Indication/Indicator Light 4-124
(Green)
* Adjustable Speed Limiter Set Indication/Indicator Light 4-124
(White/Amber)
* Cruise Main Indication/Indicator Light 4-135
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 189 of 609
4–47
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Lights Page
(Green)
* Cruise Set Indication/Indicator Light 4-135
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.
Wrench Indication/Indicator
Lights*
Type A instrument cluster
Perform maintenance in accordance with
the message.
Type B instrument cluster
When the ignition is switched ON, the
wrench indicator light is illuminated and
then turns off after a few seconds.
The wrench indicator light is illuminated
when the preset maintenance period
arrives. Verify the content and perform
maintenance.
Refer to Maintenance Monitor on page
6-10 .
Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suf ¿ ciently warmed
up, the temperature sensor could have a
malfunction. Consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 191 of 609
4–49
When Driving
Transmission
NOTE
A natural driving posture can be
realized by lightly gripping the shift
lever from the side without having to
rest your elbow on the centre console
box.
If shifting to R is dif ¿ cult, shift back
into neutral, release the clutch pedal,
and try again.
(With i-stop function) If the engine has stopped due to
stalling, it can be restarted by
depressing the clutch pedal within 3
seconds of the engine stopping.
The engine cannot be restarted even
if the clutch pedal is depressed under
the following conditions:
The driver's door is open.
The driver's seat belt is unfastened.
The clutch pedal is not released
completely after the engine stalled.
The clutch pedal is depressed with
the engine not stopped completely.
NOTE
(With parking sensor system) When the shift lever is shifted to the
R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.
Refer to Parking Sensor System on
page 4-148 .
Gear Shift Indicator
The gear shift indicator supports you to
obtain optimum fuel economy and smooth
driving. It displays the selected gear
position in the instrument cluster as well
as noti ¿ es the driver to change to the most
suitable gear position corresponding to the
actual driving condition.
Selected gear position Suitable gear position
Indication Condition
Numeral The selected gear position is
displayed.
and numeral Shift up or down to the indicated
gear position is recommended.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 194 of 609
4–52
When Driving
Transmission
Shift Position Indication
The selector position is indicated when the
ignition is switched ON.
NOTE
If one of the following actions is
performed, the selector position is
displayed for 5 minutes even if the
ignition switch is in a position other than
ON.
The ignition is switched OFF.
The driver's door is opened.
Gear position indication
In manual shift mode, the “M” of the shift
position indication illuminates and the
numeral for the selected gear is displayed.
Warning Light
The warning light turns on when the
system has a malfunction.
Refer to Warning Indication/Warning
Lights on page 4-42 .
Transmission Ranges
The shift position indicator light in the
instrument cluster illuminates. Refer
to Warning/Indicator Lights on page
4-42 .
The selector lever must be in P or N to
operate the starter.
P (Park)
P locks the transmission and prevents the
rear wheels from rotating.
WARNING
Always set the selector lever to P and
set the parking brake:
Only setting the selector lever to the
P position without using the parking
brake to hold the vehicle is dangerous.
If P fails to hold, the vehicle could
move and cause an accident.
CAUTION
Shifting into P, N or R while the
vehicle is moving can damage your
transmission.
Shifting into a driving gear or
reverse when the engine is running
faster than idle can damage the
transmission.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete
stop before shifting to or from R, except
under rare circumstances as explained in
Rocking the Vehicle (page 3-62 ).
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 198 of 609
4–56
When Driving
Transmission
*Some models.
Gear Shift Indicator *
The gear shift indicator supports you to
obtain optimum fuel economy and smooth
driving. It displays the selected gear
position in the instrument cluster as well
as noti ¿ es the driver to change to the most
suitable gear position corresponding to the
actual driving condition.
Selected gear position Suitable gear position
Indication Condition
Numeral The selected gear position is
displayed.
and numeral Shift up or down to the indicated
gear position is recommended.
CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traf ¿ c conditions
have to be judged correctly by the driver
before shifting.
NOTE
The gear shift indicator turns off when
the following operations are performed.
The vehicle is stopped.
Manual shift mode is cancelled.
Manually shifting up
You can shift gears up by operating
the selector lever or the steering shift
switches
* .
M 1 : M2 : M3 : M4 : M5 : M6
Using selector lever
To shift up to a higher gear, tap the
selector lever back
once.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 234 of 609
4–92
When Driving
i-ELOOP
i-ELOOP Indicator Light/Control
Status Display
T h e d r i v e r i s n o t i ¿ ed of the i-ELOOP
power generating status and the vehicle
conditions by the i-ELOOP indicator light
(green) and the control status display.
i-ELOOP indicator light (green)
(vehicles with Type B instrument
cluster)
The light turns on during power
generation.
Control status display (vehicles with
type B/type C audio)
The i-ELOOP power generating status is
displayed in the centre display.
Refer to Control Status Display on page
4-94 .
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 235 of 609
4–93
When Driving
Fuel Economy Monitor
*Some models.
Fuel Economy Monitor *
For vehicles with type B/type C audio, the Control Status, Fuel Consumption, and
Effectiveness *1 are switched and displayed by operating each icon in the display.
In addition, after completing a trip, the total energy ef ¿ ciency to date is displayed in the
ending display when the ending display is turned on.
1. Select the
icon on the home screen to display the applications screen.
2. Select the “Fuel Economy Monitor”.
3. Operate the commander switch or touch the screen and display the menu.
NOTE
When the menu is displayed by touching the screen, the display is hidden automatically
after 6 seconds.
4. Select the icon in the menu and perform the operation. Each icon operates as follows:
Indication on display Control status
Hides the menu display.
Displays the application screen.
Switches the Fuel Economy Monitor in the order of
Control Status, Fuel Consumption, and
Effectiveness
*1 .
Resets the fuel economy data.
Displays the following setting screen.
Ending display on/off switching On/off switching for function which synchronizes
reset fuel economy data to trip meter (Trip A)
*1 With i-stop function.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 236 of 609
4–94
When Driving
Fuel Economy Monitor
Fuel Consumption Display
Information regarding the fuel economy is displayed.
Indication on display Control status
Displays the fuel economy for the past 60 minutes.
Displays the fuel economy every minute for the
past 1 to 10 minutes.
Displays the fuel economy every 10 minutes for
the past 10 to 60 minutes.
Displays the average fuel economy over the past 5
resets and after the current reset.
Calculates the average fuel economy every minute
after vehicle travel begins, and displays it.
NOTE
The fuel economy data can be reset by doing the following operation:
Press the reset switch from the menu screen.
When the function which synchronizes the fuel economy monitor and the trip meter
is on, reset trip A of the trip meter.
Delete the average fuel economy information displayed in the trip computer.
After resetting the fuel economy data, “-- -” is displayed while the average fuel
economy is calculated.
Control Status Display (With i-stop Function)
The i-stop operation status and the i-ELOOP power generating status are displayed.
Indication on display Control status
Displays the level of electricity generated by
regenerative braking.
Displays the amount of the electricity stored in the
rechargeable battery.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 237 of 609
4–95
When Driving
Fuel Economy Monitor
Indication on display Control status
Displays the status of the electricity stored in the
rechargeable battery and being supplied to the
electrical devices (whole vehicle in display is
illuminated simultaneously).
Displays the accumulated fuel economy.
Displays the readiness status as to whether operation
of the i-stop function is available.
Displays the operation readiness status of the i-stop
function on the vehicle side (engine, battery, and
A/C) using icon colouring. The blue colour indicates
that the i-stop function is ready to operate, and the
grey colour indicates that it is not ready for
operation.
Displays the i-stop function status while the vehicle
is stopped.
Indicates the operations required by the driver to
operate the i-stop function while it is not operating.
Displays the current amount of time that the i-stop
function has been operating and the accumulated
amount of time that it has been operating.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 238 of 609
4–96
When Driving
Fuel Economy Monitor
Effectiveness Display (With i-stop Function)
The actual performance of the energy ef ¿ ciency is displayed.
Indication on display Control status
The leaf graphic grows according to the amount of
CO
2 emissions reduced by the system effects. The
cumulative total amount of leaf growth is indicated
in terms of the number of tree graphics.
Displays the total driving distance which could be
extended by the operation of the i-stop function.
Displays the percentage of time that the vehicle was
stopped by the i-stop function operation out of the
total amount of time that the vehicle was stopped.
Displays the amount of time that the i-stop function
has operated.
Displays the total amount of time that the vehicle
was stopped.
Ending Screen Display
If the ending display on the fuel economy monitor is on when the ignition is switched from
ON to OFF, the actual energy ef ¿ ciency (with i-stop function) or the information regarding
the fuel economy (without i-stop function) is displayed.
/ : A ( . ' ' , A ' F K V K Q P K P F D
