Keys
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.
If your key (auxiliary key) is lost, consult
your Authorised Mazda Repairer and have
your code number ready.
NOTE
The driver must carry the key to ensure
the system functions properly.
Auxiliary key Transmitter
Key code number plate
To use the auxiliary key, pull out the
auxiliary key from the transmitter while
pressing the knob.
Knob
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the boot lid, fuel-¿ ller À ap, and opens the
boot lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an expert repairer,
we recommend an Authorised Mazda
Repairer, according to the indication.



 KEY Warning Light (Red)
 Refer to Warning/Indicator Lights on
page 4-42 .




 Ignition Not Switched Off (STOP)
Warning Beep
  Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-51 .



 Key Removed from Vehicle Warning
Beep
  Refer to Key Removed from Vehicle
Warning Beep on page 7-51 .
If you have a problem with the key,
consult an expert repairer, we recommend
an Authorised Mazda Repairer.
If your key is lost or stolen, consult an
Authorised Mazda Repairer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
/:A(.'',A'FKVKQPKPFD

3–54
Before Driving

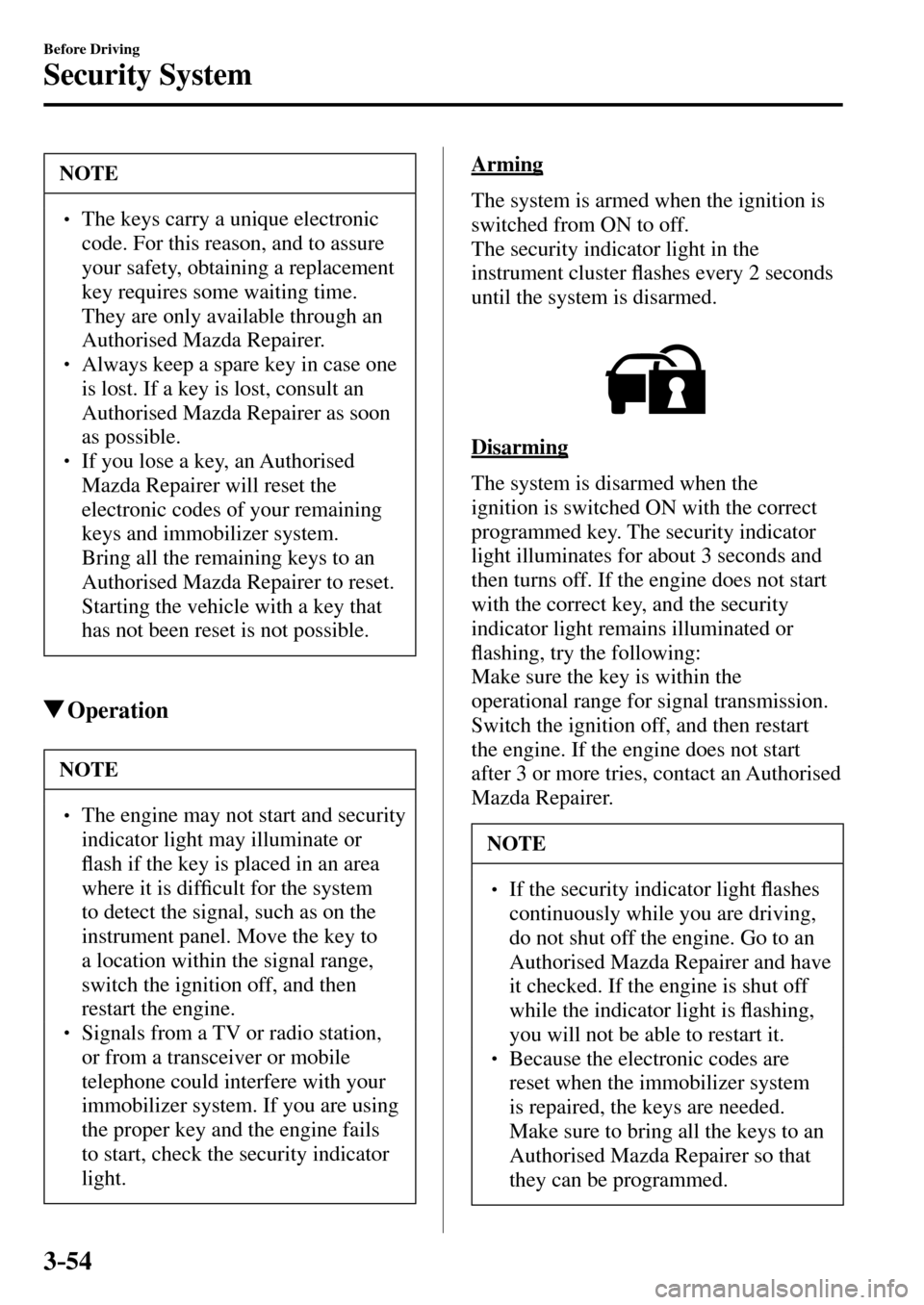

Security System
NOTE
  The keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining a replacement
key requires some waiting time.
They are only available through an
Authorised Mazda Repairer.
  Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorised Mazda Repairer as soon
as possible.
  If you lose a key, an Authorised
Mazda Repairer will reset the
electronic codes of your remaining
keys and immobilizer system.
Bring all the remaining keys to an
Authorised Mazda Repairer to reset.
 Starting the vehicle with a key that
has not been reset is not possible.
Operation
NOTE
  The engine may not start and security
indicator light may illuminate or
À ash if the key is placed in an area
where it is dif¿ cult for the system
to detect the signal, such as on the
instrument panel. Move the key to
a location within the signal range,
switch the ignition off, and then
restart the engine.
  Signals from a TV or radio station,
or from a transceiver or mobile
telephone could interfere with your
immobilizer system. If you are using
the proper key and the engine fails
to start, check the security indicator
light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster À ashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
À ashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart
the engine. If the engine does not start
after 3 or more tries, contact an Authorised
Mazda Repairer.
NOTE
  If the security indicator light À ashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorised Mazda Repairer and have
it checked. If the engine is shut off
while the indicator light is À ashing,
you will not be able to restart it.
  Because the electronic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorised Mazda Repairer so that
they can be programmed.
/:A(.'',A'FKVKQPKPFD

3–62
Before Driving
Driving Tips
Rocking the Vehicle
WARNING
Do not spin the wheels at high speed,
and do not allow anyone to stand
behind a wheel when pushing the
vehicle:
When the vehicle is stuck, spinning
the wheels at high speed is dangerous.
The spinning tyre could overheat and
explode. This could cause serious
injuries.
CAUTION
Too much rocking may cause engine
overheating, transmission failure, and
tyre damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever
from 1 (D) to R.
Winter Driving
Carry emergency gear, including tyre
chains, window scraper, À ares, a small
shovel, jumper leads, and a small bag of
sand or salt.
Ask an expert repairer, we recommend an
Authorised Mazda Repairer to check the
following:



 Have the proper ratio of antifreeze in the
radiator.
  Refer to Engine Coolant on page
6-20 .



 Inspect the battery and its leads. Cold
reduces battery capacity.



 Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-17 ).



 Inspect the ignition system for damage
and loose connections.



 Use washer À uid made with antifreeze—
but do not use engine coolant antifreeze
for washer À uid (page 6-23 ).
/:A(.'',A'FKVKQPKPFD

4–10
When Driving
Start/Stop Engine
If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:
1. Continue to depress the brake pedal
¿ rmly until the engine has completely
started.
2. (Manual transmission)
Continue to depress the clutch pedal
¿ rmly until the engine has completely
started.
3. Verify that the push button start
indication light (green) À ashes.
4. Touch the push button start using the
backside of the key (as shown) while
the push button start indicator light
(green)À ashes.
Transmitter
NOTE
When touching the push button start
using the backside of the key as shown
in the illustration, touch the push button
start with the lock switch side of the key
facing up.
5. Verify that the push button start
indicator light (green) turns on. 6. Press the push button start to start the
engine.
NOTE
  The engine cannot be started unless
the clutch pedal is fully depressed
(manual transmission) or the brake
pedal is fully depressed (automatic
transmission).
  If there is a malfunction with the
push button start function, the push
button start indicator light (amber)
À ashes. In this case, the engine may
start, however, have the vehicle
checked at an expert repairer, we
recommend an Authorised Mazda
Repairer as soon as possible.
  If the push button start indicator light
(green) does not illuminate, perform
the operation from the beginning
again. If it does not illuminate,
have the vehicle checked at an
expert repairer, we recommend an
Authorised Mazda Repairer.
  To switch the ignition position
without starting the engine, perform
the following operations after the
push button start indicator light
(green) turns on.
1. Release the clutch pedal (manual
transmission) or brake pedal
(automatic transmission).
2. Press the push button start to
switch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
switch the ignition position again,
perform the operation from the
beginning.
/:A(.'',A'FKVKQPKPFD

4–43
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Lights Page
(Amber) Electric Vacuum Pump Warning Light
*1 7-34
ABS Warning Light *1
Electronic Brake Force
Distribution System
Warning
7-31
ABS warning
7-34
Check Engine Light *1 7-34
(Amber)
* i-stop Warning Light *1 7-34
(Amber) * i-ELOOP Warning Indication/Warning Light *1 7-34
* Automatic Transmission Warning Indication/Warning Light *1 7-34
Air Bag/Seat Belt Pretensioner System Warning Light *1 7-34
* Active Bonnet Warning Light *1 7-34
* Tyre Pressure Monitoring System Warning Light *1
Flashing
7-34
Illuminate
7-41
* Flat Tyre Warning Light *1 7-34
(Red)
* KEY Warning Indication/Warning Light *1
Malfunction

7-34
Except malfunction

7-41
(Amber)
* KEY Warning Indication
7-34
* Lane Departure Warning System (LDWS) Warning Indication/
Warning Light *1
Illuminated

7-34
Flashing
4-111
/:A(.'',A'FKVKQPKPFD

4–44
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Lights Page
(Amber)
* High Beam Control System (HBC) Warning Indication/
Warning Light *1 7-34
* Blind Spot Monitoring (BSM) Warning Indication 7-34
* Retractable Fastback Warning Indication 7-34
LED Headlight Warning Light *1 7-34
Seat Belt Warning Light 7-41
* Door-Ajar Warning Light 7-41
* Door-Ajar Warning Indication 7-41
* Boot lid-Ajar Warning Indication 7-41
* Low Fuel Warning Indication/Warning Light 7-41
* 120 km/h Warning Light *1 7-41
* Low Washer Fluid Level Warning Indication/Warning Light 7-41
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.
*2 The light turns on continuously when the parking brake is applied.
/:A(.'',A'FKVKQPKPFD

4–47
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Lights Page
(Green)
* Cruise Set Indication/Indicator Light 4-135
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.
Wrench Indication/Indicator
Lights*
Type A instrument cluster
Perform maintenance in accordance with
the message.
Type B instrument cluster
When the ignition is switched ON, the
wrench indicator light is illuminated and
then turns off after a few seconds.
The wrench indicator light is illuminated
when the preset maintenance period
arrives. Verify the content and perform
maintenance.
Refer to Maintenance Monitor on page
6-10 .
Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suf¿ ciently warmed
up, the temperature sensor could have a
malfunction. Consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
/:A(.'',A'FKVKQPKPFD

5–2
Interior Features
Air-Conditioning System
O p e r a t i n g T i p s













 Operate the air-conditioning system with
the engine running.



 To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.



(With i-stop)
 The airÀ ow amount may decrease
slightly while the i-stop function is
operating.



 Clear all obstructions such as leaves,
snow and ice from the bonnet and the
air inlet in the cowl grille to improve the
system ef¿ ciency.




 Use the air-conditioning system to defog
the windows and dehumidify the air.



 The recirculate mode should be used
when driving through tunnels or while in
a traf¿ c jam, or when you would like to
shut off outside air for quick cooling of
the interior.



 Use the outside air position for
ventilation or windscreen defrosting.



 If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the air-conditioning system.



 Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.



 Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
ef¿ cient.

 The refrigerant speci¿ cations are
indicated on a label attached to the
inside of the engine compartment. Check
the label before re¿ lling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
  For details, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
Label
/:A(.'',A'FKVKQPKPFD

7–24
If Trouble Arises
Overheating
O v e r h e a t i n g
If the high engine coolant temperature
warning light turns on, the vehicle loses
power, or you hear a loud knocking or
pinging noise, the engine is probably too
hot.
WARNING
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan could
continue running inde¿ nitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.
Open the bonnet ONLY after steam is
no longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the high engine coolant temperature
warning light turns on:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic
transmission in park (P), a manual
transmission in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the bonnet and start the engine.
If neither coolant nor steam is
escaping:
Open the bonnet and idle the engine
until it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an expert repairer,
we recommend an Authorised Mazda
Repairer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.
/:A(.'',A'FKVKQPKPFD

7–33
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
Engine Oil Warning
Light This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in
extensive engine damage.
If the light illuminates or the warning indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the sump.
3. Inspect the engine oil level 6-20 . If it's low, add the appropriate amount of engine
oil while being careful not to over¿ ll.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.
If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an expert repairer, we
recommend an Authorised Mazda Repairer.
(Red)
High Engine Coolant
Temperature Warning
Indication/Warning
Light
The light À ashes when the engine coolant temperature is extremely high, and
illuminates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until you can ¿ nd a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place
immediately and stop the engine.
Refer to Overheating 7-24 .
CAUTION
Do not drive the vehicle with the high engine coolant temperature warning light
illuminated. Otherwise, it could result in damage to the engine.
/:A(.'',A'FKVKQPKPFD
