parking sensors MAZDA MODEL MX-5 RF 2017 Owners Manual (in English)

4–2*Some models.
i-ACTIVSENSE............................... 4-100
i-ACTIVSENSE *........................ 4-100
Adaptive Front Lighting System
(AFS)
* ........................................ 4-102
High Beam Control System
(HBC)
*........................................ 4-103
Lane Departure Warning System
(LDWS)
* .................................... 4-106
Blind Spot Monitoring (BSM)
System
* ....................................... 4-112
Rear Cross Traf¿ c Alert
(RCTA)
* ..................................... 4-119
Adjustable Speed Limiter * ......... 4-122
Forward Sensing Camera
(FSC)
* ......................................... 4-129
Radar Sensors (Rear) * ................ 4-132
Cruise Control ................................. 4-134
Cruise Control
* ........................... 4-134
Tyre Pressure Monitoring
System .............................................. 4-140
Tyre Pressure Monitoring System
(Vehicle with Conventional
Tyres)
* ........................................ 4-140
Tyre Pressure Monitoring System
(Vehicle with Run-À at Tyres)
* .... 4-144
Parking Sensor System ................... 4-148
Parking Sensor System
* ............. 4-148
/:A(.'',A'FKVKQPKPFD

4–10 0
When Driving
i-ACTIVSENSE
*Some models.
i-ACTIVSENSE *
i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sensors.
Because each system has its limitations, always drive carefully and do not rely solely on the
systems.
Driver awareness support systems
Nighttime visibility
Adaptive Front Lighting System (AFS) ............................................................................ 4-102
High Beam Control System (HBC) .................................................................................. 4-103
Left/right side and rear side detection
Lane Departure Warning System (LDWS) ....................................................................... 4-106
Blind Spot Monitoring (BSM) System ............................................................................. 4-112
Rear obstruction detection when leaving a parking space
Rear Cross Traf¿ c Alert (RCTA) ...................................................................................... 4-119
Driver support system
Speed control
Adjustable Speed Limiter ................................................................................................. 4-122
Camera and Sensors
F o r w a r d s e n s i n g c a m e r a ( F S C )
The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
travelling at night and detects traf¿ c lanes. The following systems also use the Forward
Sensing Camera (FSC).



 High Beam Control system (HBC)



 Lane Departure Warning System (LDWS)
The Forward Sensing Camera (FSC) is installed at the top of the windscreen near the
rearview mirror.
Refer to Forward Sensing Camera (FSC) on page 4-129 .
/:A(.'',A'FKVKQPKPFD

4–14 8
When Driving
Parking Sensor System
*Some models.
Parking Sensor System *
The parking sensor system uses ultrasonic sensors to detect obstructions around the vehicle
while parking the vehicle in a garage or during parallel parking when the shift lever (manual
transmission)/selector lever (automatic transmission) is in reverse (R). The system is
equipped with an assist device to notify the driver of the approximate distance from the
vehicle to the surrounding obstruction using a beep sound.
Rear corner sensorRear sensor
WARNING
Do not rely completely on the parking sensor system and be sure to con¿ rm the safety
around your vehicle visually when driving.
This system can assist the driver in operating the vehicle in the backward directions
while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always con¿ rm the
safety around your vehicle visually when driving.
/:A(.'',A'FKVKQPKPFD

4–149
When Driving
Parking Sensor System
NOTE
  Do not install any accessories within the detection ranges of the sensors. It may affect
the system operation.
  Depending on the type of obstruction and the surrounding conditions, the detection
range of a sensor may narrow, or the sensors may not be able to detect obstructions.
  The system may not operate normally under the following conditions:




 Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).



 The sensor area is frozen (Returns to normal operation when the ice is thawed).



 The sensor is covered by a hand.



 The sensor is excessively shocked.



 The vehicle is excessively tilted.



 Under extremely hot or cold weather conditions.



 The vehicle is driven on bumps, inclines, gravel, or grass covered roads.



 Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle,
or another vehicle's sensors.



 The vehicle is driven in heavy rain or in road conditions causing water-splash.



 A commercially-available wing pole or an aerial for a radio transmitter is installed to
the vehicle.



 The vehicle is moving towards a tall or square curbstone.



 An obstruction is too close to the sensor.

 Obstructions under the bumper may not be detected. Obstructions that are lower than
the bumper or thin which may have been initially detected but are no longer detected
as the vehicle approaches more closely.
  The following types of obstructions may not be detected:




 Thin objects such as wire or rope



 Things which absorb sonic waves easily such as cotton or snow



 Angular shaped objects



 Very tall objects, and those which are wide at the top



 Small, short objects

 Always have the system inspected at an expert repairer, we recommend an Authorised
Mazda Repairer if any shock is applied to the bumpers, even in a minor accident. If the
sensors are deviated, they cannot detect obstructions.
  The system may have a malfunction if the beep does not operate. Consult an expert
repairer, we recommend an Authorised Mazda Repairer.
  The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area.
Remove any foreign material from the sensor area.
  When installing a trailer hitch, consult an expert repairer, we recommend an
Authorised Mazda Repairer.
/:A(.'',A'FKVKQPKPFD

4–150
When Driving
Parking Sensor System

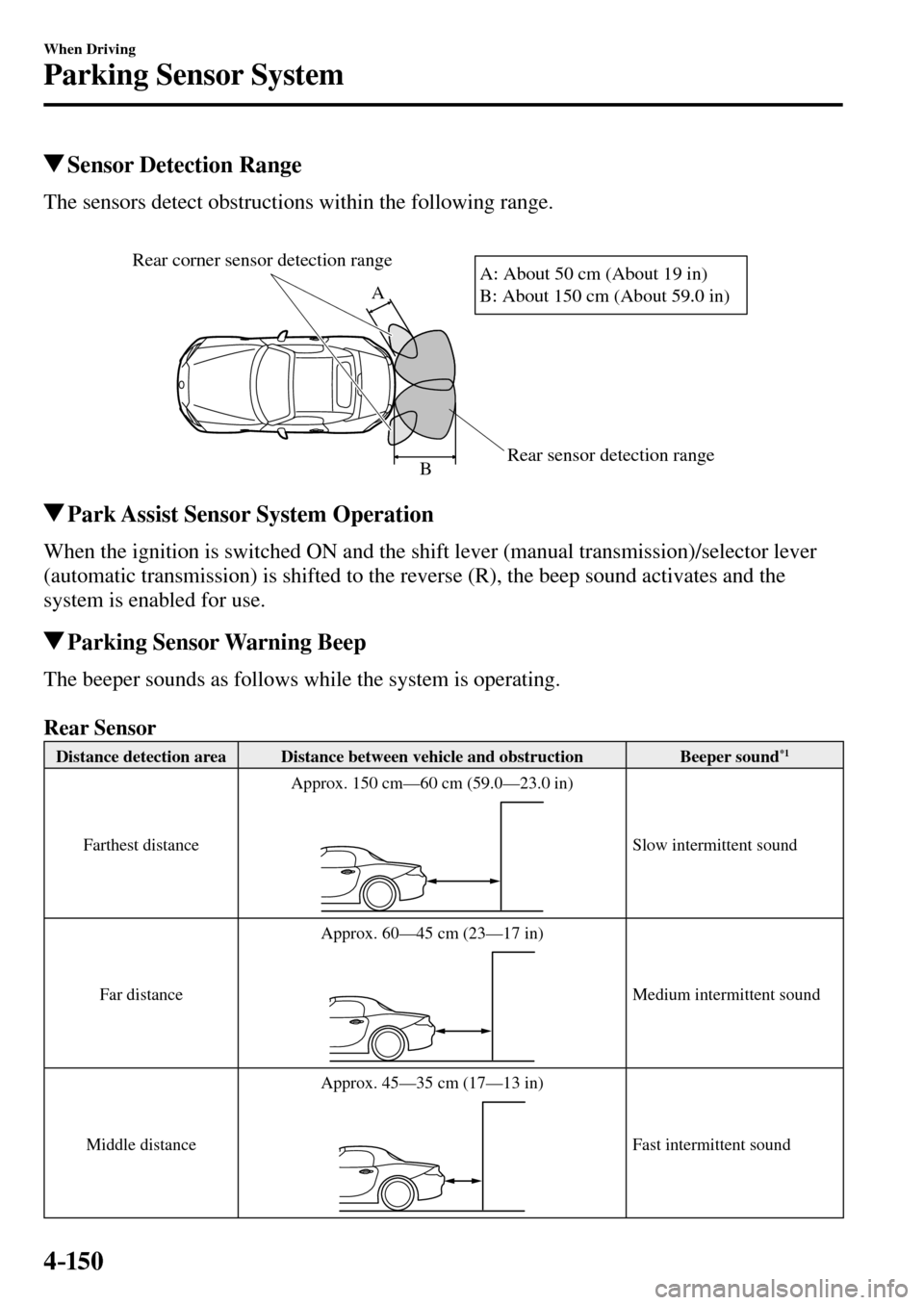

Sensor Detection Range
The sensors detect obstructions within the following range.
Rear sensor detection range Rear corner sensor detection rangeB AA: About 50 cm (About 19 in)
B: About 150 cm (About 59.0 in)
Park Assist Sensor System Operation
When the ignition is switched ON and the shift lever (manual transmission)/selector lever
(automatic transmission) is shifted to the reverse (R), the beep sound activates and the
system is enabled for use.
Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Rear Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Farthest distance Approx. 150 cm—60 cm (59.0—23.0 in) Slow intermittent sound
Far distance Approx. 60—45 cm (23—17 in)
Medium intermittent sound
Middle distance Approx. 45—35 cm (17—13 in)
Fast intermittent sound
/:A(.'',A'FKVKQPKPFD

10–7
Index
P
Parking Brake ...................................... 4-82
Parking Sensor System ..................... 4-148
Park assist sensor system
operation ...................................... 4-150
Sensor detection range ................ 4-150
Personalisation Features ...................... 9-10
Power Steering .................................... 4-99
Power Steering Warning Buzzer ......... 7-53
Power Windows .................................. 3-34
R
Radar Sensors (Rear) ........................ 4-132
Rear Cross Traf¿ c Alert (RCTA) ...... 4-119
Rear Fog Light .................................... 4-70
Rear Window Defogger ...................... 4-77
Rearview Mirror .................................. 3-32
Recommended Oil .............................. 6-17
Recording of Vehicle Data .................... 8-5
Registering Your Vehicle in A Foreign
Country ................................................. 8-2
Replacement
Fuse ............................................... 6-47
Key battery .................................... 6-31
Light bulbs .................................... 6-38
Tyres .............................................. 6-35
Wheel ............................................ 6-36
Wiper ............................................. 6-24
Request Switch Inoperable Warning Beep
(With the advanced keyless function)
... 7-52
Retractable Fastback ........................... 3-45
When the roof cannot be closed .... 7-60
Retractable fastback warning beep ..... 7-51
Roadside Emergency Triangle Retaining
Strap ...................................................... 7-2
Rocking the Vehicle ............................ 3-62
Running-In .......................................... 3-59
S
SRS Air Bags
How the SRS air bags work .......... 2-41
Limitations to SRS air bag ............ 2-45
Monitoring..................................... 2-52
Passenger occupant classi¿ cation
system ............................................ 2-47
SRS air bag deployment criteria ... 2-44
Supplementary restraint system
components ................................... 2-39
Saving Fuel and Protection of the
Environment ........................................ 3-59
Scheduled Maintenance ........................ 6-3
Seat ........................................................ 2-5
Seat Belt System ................................. 2-12
Emergency locking ........................ 2-11
Pregnant women ............................ 2-11
Seat belt precautions ....................... 2-9
Seat Side Box .................................... 5-131
Seat belt warning beep ........................ 7-50
Seats
Head restraint .................................. 2-8
Seat warmer ..................................... 2-6
Security System
Immobilizer system ....................... 3-53
Theft-deterrent system .................. 3-55
Soft top ................................................ 3-37
Speci¿ cations ........................................ 9-4
Speed Limiter Warning Beep .............. 7-54
Speedometer ........................................ 4-25
Starting the Engine ................................ 4-5
Steering Wheel .................................... 3-29
Horn............................................... 4-79
Storage Compartments ...................... 5-131
Back trim storage box ................. 5-132
Console box ................................. 5-131
Seat side box ............................... 5-131
Sunvisors ........................................... 5-123
