Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C

Automatic Transmission
Wa r n i n g L i g h t
This warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
The light illuminates when the
transmission has a problem.

Tire Pressure Monitoring System
Warning Light*
This warning light illuminates for a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the warning light illuminates
when tire pressure is too low or too high
in one or more tires, and flashes when
there is a system malfunction.Warning light illuminates/Warning
beep sounds
When the warning light illuminates, and
the warning beep sounds (about 3
seconds), tire pressure is too low or too
high in one or more tires.
Adjust the tire pressure to the correct tire
pressure at an Authorized Mazda Dealer
or the nearest service station. Refer to the
specification charts (page 10-7). If the automatic transmission warning
light illuminates, the transmission has
an electrical problem. Continuing to
drive your Mazda in this condition
could cause damage to your
transmission. Consult an Authorized
Mazda Dealer as soon as possible.
CAUTION
Vehicle Handling When Tire Pressure
Monitoring System Warning Light
Illuminates/Flashes:
When the tire pressure monitoring
system warning light illuminates or
flashes, or the tire pressure warning
beep sounds, it is dangerous to drive
the vehicle at high speeds, or perform
sudden maneuvering or braking.
Vehicle drivability could worsen and
result in an accident.
When the tire pressure monitoring
system warning light illuminates or
flashes, or the tire pressure warning
beep sounds, decrease vehicle speed
immediately and avoid sudden
maneuvering and braking. Have the
system and tires checked or perform
the appropriate repair as soon as
possible.
Ignoring the Warning Light:
Ignoring the warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken
care of as soon as possible before it
develops into a more serious situation
that could lead to tire failure and a
dangerous accident.
WARNING
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 42 Saturday, April 26, 2003 1:48 PM

5-44
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C

Shift Position Indicator Light
(Automatic Transmission)
This indicates the selected shift position
when the ignition switch is in the ON
position.
In manual mode, the "M" of the shift
position indicator illuminates and the
numeral for the selected gear illuminates
in the gear position indicator.

TCS/DSC Indicator Light*
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.

DSC OFF Indicator Light*
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also comes on when the DSC OFF
switch is pressed and TCS/DSC is
switched off.
If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.
Gear position indicator
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 44 Saturday, April 26, 2003 1:48 PM

5-46
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C

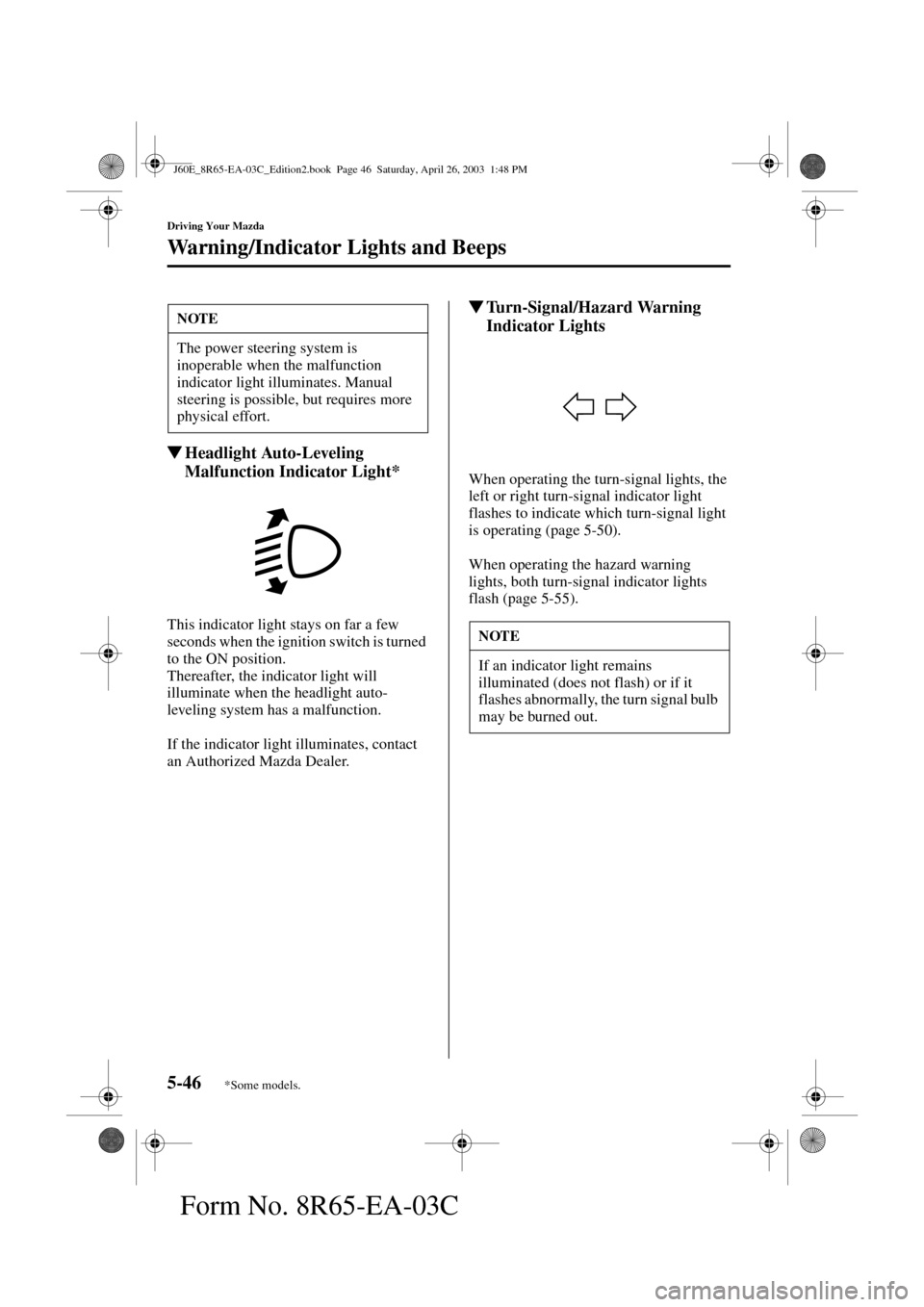

Headlight Auto-Leveling
Malfunction Indicator Light*
This indicator light stays on far a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the indicator light will
illuminate when the headlight auto-
leveling system has a malfunction.
If the indicator light illuminates, contact
an Authorized Mazda Dealer.

Turn-Signal/Hazard Warning
Indicator Lights
When operating the turn-signal lights, the
left or right turn-signal indicator light
flashes to indicate which turn-signal light
is operating (page 5-50).
When operating the hazard warning
lights, both turn-signal indicator lights
flash (page 5-55).
NOTE
The power steering system is
inoperable when the malfunction
indicator light illuminates. Manual
steering is possible, but requires more
physical effort.
NOTE
If an indicator light remains
illuminated (does not flash) or if it
flashes abnormally, the turn signal bulb
may be burned out.
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 46 Saturday, April 26, 2003 1:48 PM

5-47
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C

Seat Belt Warning Beep
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds.

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when the
driver’s door is opened.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when the driver’s door is opened.

Engine Overrev Warning Beep
The beep sounds to indicate engine
overrev when the tachometer needle
enters the striped zone (page 5-31).

Tire Inflation Pressure Warning
Beep*
The warning beep sounds for about 3
seconds when there is any abnormality in
tire inflation pressures.
(page 5-24)
Beeps
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 47 Saturday, April 26, 2003 1:48 PM

5-49
Driving Your Mazda
Switches and Controls
Form No. 8R65-EA-03C

Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.

Headlight Leveling*
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The angle of the headlights will be
automatically adjusted when turning on
the headlights.Headlight auto-leveling malfunction
indicator light
This indicator light stays on far a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the indicator light will
illuminate when the headlight auto-
leveling system has a malfunction.
If the indicator light illuminates, contact
an Authorized Mazda Dealer.

Daytime Running Lights
(Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The running lights go off when the
parking brake is applied.
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 49 Saturday, April 26, 2003 1:48 PM

6-6
Interior Comfort
Climate Control System
Form No. 8R65-EA-03C
Mode selector switch
Press the mode selector switch to select
airflow mode (page 6-4).
A/C switch
Push the switch to turn the air conditioner
on. The indicator light on the switch will
illuminate when the fan control dial is set
at position 1, 2, 3, or 4.
Push the switch once again to turn the air
conditioner off.Air intake selector
This switch controls the source of air
entering the vehicle.
Press the switch to alternate between the
and positions. The indicator
light for the selected mode will
illuminate.
It is recommended that under normal
conditions the switch be kept in the
outside air position.
Outside air position ( )
Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.
Recirculated air position ( )
Outside air is shut off. Air within the
vehicle is recirculated.
This position can be used when driving on
a dusty road or in similar conditions. It
also helps to provide quicker cooling of
the interior.
NOTE
To set the air vent to , press the
windshield defroster switch.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0
°C (32
°F).
J60E_8R65-EA-03C_Edition2.book Page 6 Saturday, April 26, 2003 1:48 PM

6-14
Interior Comfort
Au di o S ys t em
Form No. 8R65-EA-03C
•The MD player can also play MDLPs
that have been recorded in MDLP
mode. (MDLPs bearing the
identification logo as shown below).
•When inserting the MD, make sure the
MD label is facing up, and the MD is
oriented to the insertion slot in the
direction of the arrow. If not inserted
correctly, the MD will be ejected, or
may remain stuck in the MD deck.
•Do not touch the internal part of the
MD. If the MD shutter is slid open for
no reason, it may be broken.
•Store MDs in their cases and away
from direct sunlight.
Operating Tips for CD Player/In-
Dash CD Changer
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or optical
components (prism and lens) in the CD
player/changer may become clouded with
condensation. At this time, the CD will
eject immediately when placed in the unit.
A clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded
optical components will clear naturally in
about an hour. Wait for normal operation
to return before attempting to use the unit.
Handling the CD player/In-dash CD
changer
The following precautions should be
observed.
•Do not spill any liquid on the audio
system.
J60E_8R65-EA-03C_Edition2.book Page 14 Saturday, April 26, 2003 1:48 PM

6-20
Interior Comfort
Au di o S ys t em
Form No. 8R65-EA-03C
Automatic Level Control (ALC)
(Standard audio-equipped model)
The automatic level control is a feature
that automatically adjusts audio volume
and sound quality according to the vehicle
speed.
The volume increases in accordance with
the increase in vehicle speed, and
decreases as vehicle speed decreases.
The following four modes are available.
Select the desired mode.
Turn the audio control dial to select the
ALC OFF, ALC LEVEL1~3 mode. The
selected mode will be indicated.
NOTE
About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
mid-range, treble, fade, and balance,
press the audio control dial for 2 seconds.
The unit will beep and "CLEAR" will be
displayed.
Mode Volume change
No change
Minimum
Medium
Maximum
J60E_8R65-EA-03C_Edition2.book Page 20 Saturday, April 26, 2003 1:48 PM

6-22
Interior Comfort
Au di o S ys t em
Form No. 8R65-EA-03C

Operating the Radio
Radio ON
Press a band selector button ( , )
to turn the radio on.
Band selection
Choose AM by pressing the AM button
( ) and FM by pressing the FM1/2
button ( ).
The selected mode will be indicated. If
FM stereo is being received, "ST" will be
displayed.Tu n i n g
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning dial/
Auto memory buttonChannel preset buttons
Scan button Band selector buttons
Seek
tuning
button
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the "ST" indicator will go
out.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
J60E_8R65-EA-03C_Edition2.book Page 22 Saturday, April 26, 2003 1:48 PM

6-30
Interior Comfort
Au di o S ys t em
Form No. 8R65-EA-03C

Operating the In-Dash CD Changer*
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number and the track number
will be displayed.Normal insertion
1. Press the load button ( ).
2. When "IN" is displayed, insert the CD.
Inserting CDs into desired tray number
1. Press and hold the load button ( )
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired tray number within 5 seconds
after the beep is heard.
3. When "IN" is displayed, insert the CD.
Scan
button Display button
Track up
button
Track down
button
Reverse button
Fast-forward
button
Random button Repeat button CD slot CD play button CD eject button
Load button
Disc down
button
Disc up buttonChannel preset buttons
NOTE
A CD cannot be inserted while the
display reads "WAIT". A beeping
sound can be heard during this waiting
time. Simultaneously pressing the
power/volume dial and the load button
( ) for about 2 seconds will turn
this beeping sound ON or OFF.
NOTE
The CD cannot be inserted to the
desired tray number if the number is
already occupied.
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 30 Saturday, April 26, 2003 1:48 PM
