MAZDA MODEL RX 8 2004 Owners Manual (in English)

10-2
Form No. 8R65-EA-03C
Identification Numbers

Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.

Motor Vehicle Safety Standard
Label
Chassis Number

Vehicle Emission Control
Information Label

Tire Pressure Label
Vehicle Information Labels
J60E_8R65-EA-03C_Edition2.book Page 2 Saturday, April 26, 2003 1:48 PM

10-3
Identification Numbers
Form No. 8R65-EA-03C

Engine Number
Front
J60E_8R65-EA-03C_Edition2.book Page 3 Saturday, April 26, 2003 1:48 PM

10-4
Form No. 8R65-EA-03C
Specifications

Engine

Electrical System
*1Cold areas*2Standard
Specifications
Item Model
Type Rotary engine
Displacement 654 ml × 2 (654 cc × 2, 40.0 cu in × 2)
Compression ratio 10.0
Item Model
BatteryManual transmission12V-40AH/5HR,
12V-52AH/5HR
*1
Automatic transmission12V-48AH/5HR,
12V-52AH/5HR*1
Alternator12 V - 100 A
StarterManual transmission 12 V - 1.4 kW
Automatic transmission 12 V - 1.8 kW
Spark-plug number NGKTrailing side
RE9B-T
*2
Leading side
RE6A-L, RE7A-L*2
Spark-plug gap1.15—1.25mm
(0.045—0.049 in)
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating
on the iridium alloy and platinum tips could be damaged.
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 4 Saturday, April 26, 2003 1:48 PM

10-5
Specifications
Form No. 8R65-EA-03C


Lubricant Quality
*Refer to the recommended SAE viscosity numbers on page 8-9.


Capacities
(Approximate Quantities)
Check oil and fluid levels with dipsticks or reservoir gauges.


Dimensions
*With license plate holder
LubricantClassification
API Service ILSAC
Engine oil
*SL GF-III
Lubricant Classification
Manual transmission oil API Service GL-4 or GL-5 (SAE 75W-90)
Automatic transmission fluid ATF M-III or equivalent (e.g. Dexron® III)
Rear differential oil API Service GL-5 (SAE 90)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
ItemUnit
L US qt Imp qt
Engine oilWith oil filter replacement 3.5 3.7 3.1
Without oil filter replacement 3.3 3.5 2.9
Coolant 9.8 10.4 8.6
Manual transmission oil 1.75 1.8 1.5
Automatic transmission fluid 8.7 9.2 7.7
Rear differential oil 1.3 1.4 1.1
Fuel tank 60 15.9 (US gal) 13.2 (Imp gal)
Item Model
Overall length
4,425 mm (174.2 in), 4,430 mm
*(174.4 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,340 mm (52.8 in)
Front tread 1,500 mm (59.1 in)
Rear tread 1,505 mm (59.3 in)
Wheelbase 2,700 mm (106.3 in)
10.fm Page 5 Friday, July 4, 2003 11:46 AM

10-6
Specifications
Form No. 8R65-EA-03C

We i g h t s

Air Conditioner

Light Bulbs
Exterior light
The rear side-marker light bulbs cannot be replaced because they are an LED-type bulb.
The rear combination component must be replaced.
Interior light
ItemWe i g h t
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight Rating) 1,728 kg (3,809 lb) 1,748 kg (3,854 lb)
GAWR (Gross Axle Weight Rating)Front 827 kg (1,823 lb) 841 kg (1,854 lb)
Rear 901 kg (1,986 lb) 907 kg (2,000 lb)
CW (Curb Weight)USA 1,374 kg (3,029 lb) 1,385 kg (3,053 lb)
Canada 1,384 kg (3,051 lb) 1,394 kg (3,073 lb)
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.42 kg (14.8 oz)
Light bulb WattageCategory
ECE R SAE
HeadlightsHigh beam 65 H9—
Low beamHalogen 55 H7—
Xenon fusion 35 D2S—
Front turn signal lights 21 WY21W—
Parking lights 5 W5W—
Fog lights
*55 H11—
Front side-marker lights 3.8—#194
High-mount brake light 21 W21W #7440
Rear turn signal lights 21 WY21W—
Brake lights/Taillights 21/5 W21/5W #7443
Reverse lights 21 W21W #7440
License plate light 5 W5W—
Rear side-marker lights 0.57——
Light bulb WattageCategory
ECE R
Trunk light 5 W5W
Overhead light/Map lights (Front) 5 W5W
Overhead light (Rear) 10—
Courtesy lights 5 W5W
Vanity mirror lights 1.8—
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 6 Saturday, April 26, 2003 1:48 PM

10-7
Specifications
Form No. 8R65-EA-03C

Tires
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-23.
Vehicle capacity weight:308 kg (680 lb)

Fuses
Refer to the fuse rating on page 8-33.
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Tire sizeInflation pressure
Front Rear
225/55R16 94V
220 kPa (2.2 kgf/cm
2, 32 psi or lb/po2) 220 kPa (2.2 kgf/cm2, 32 psi or lb/po2)
225/45R18 91W
J60E_8R65-EA-03C_Edition2.book Page 7 Saturday, April 26, 2003 1:48 PM

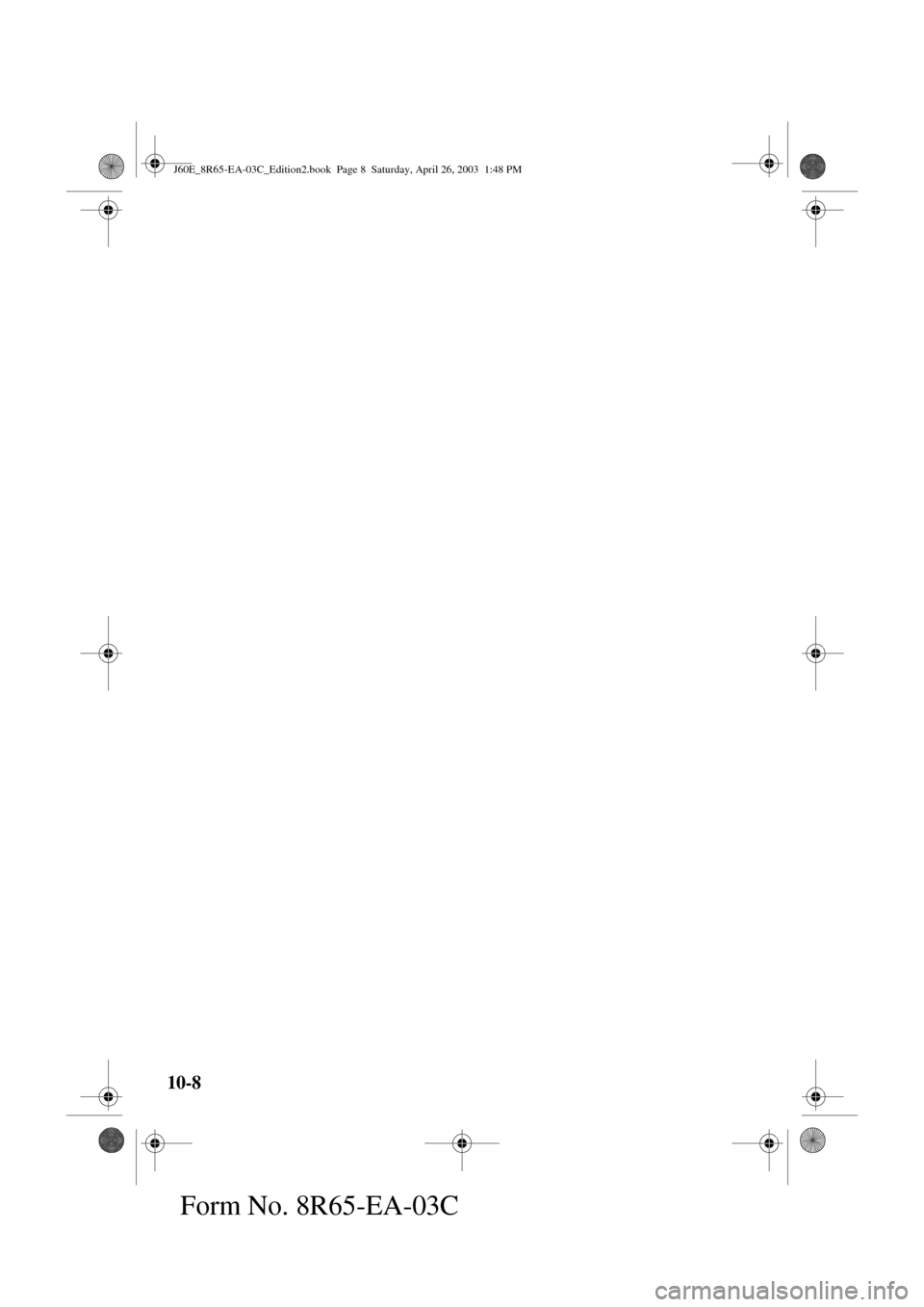

10-8
Form No. 8R65-EA-03C
J60E_8R65-EA-03C_Edition2.book Page 8 Saturday, April 26, 2003 1:48 PM

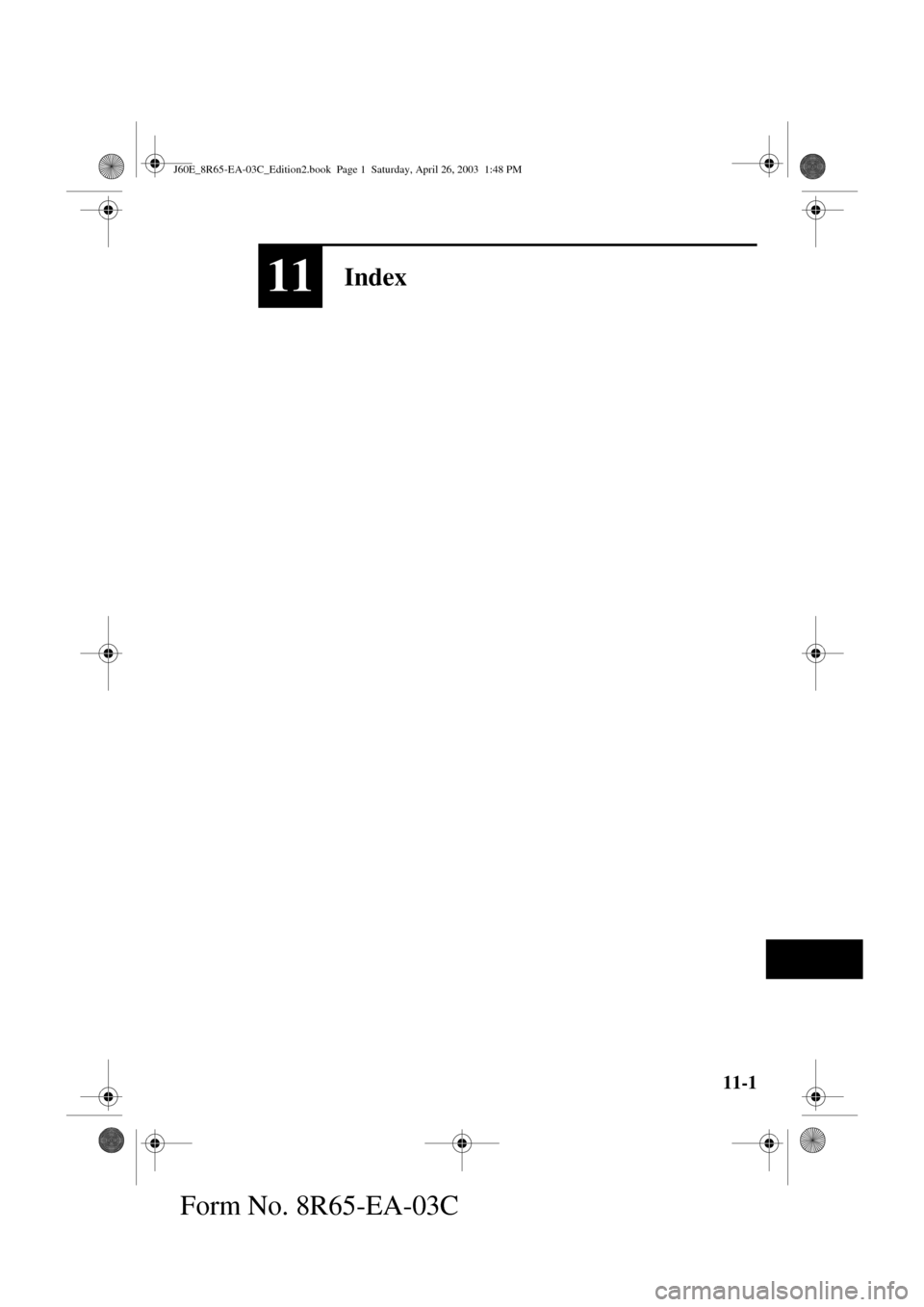

11-1
Form No. 8R65-EA-03C
11Index
J60E_8R65-EA-03C_Edition2.book Page 1 Saturday, April 26, 2003 1:48 PM

11-2
Form No. 8R65-EA-03C
Index
A
Accessory Socket ............................. 6-48
Add-On Non-Genuine Parts and
Accessories
...................................... 9-12
Air Bag Systems
.............................. 2-27
Air Filter
.......................................... 8-18
Ambient Temperature Display
........ 6-41
Antenna
............................................ 6-10
Anti-Lock Brake System (ABS)
........ 5-7
Warning light
.............................. 5-7
Appearance Care
.............................. 8-39
Ashtray
............................................. 6-43
Audio System
................................... 6-10
Audio control switch
................ 6-34
Audio set
................................... 6-17
Operating tips for audio
system
....................................... 6-10
Safety certification
.................... 6-36
Automatic Transmission
Driving tips
............................... 5-15
Fluid
.......................................... 8-15
Manual shift mode
.................... 5-11
Shift-lock system
...................... 5-11
Transmission ranges
................. 5-10
B
Battery
Emergency starting
................... 7-20
Maintenance
............................. 8-21
Specifications
........................... 10-4
Beeps
Engine overrev warning
beep
........................................... 5-47
Ignition key reminder
............... 5-47
Lights-on reminder
................... 5-47
Seat belt warning beep
.............. 5-47
Tire inflation pressure warning
beep
........................................... 5-47
B
Before Starting the Engine ................. 4-6
After getting in
............................ 4-6
Before getting in
......................... 4-6
Body Lubrication
............................. 8-18
Brake/Clutch
Fluid
.......................................... 8-14
Brakes
Anti-lock brake system (ABS)
....5-7
Foot brake
................................... 5-4
Pad wear indicator
...................... 5-8
Parking brake
.............................. 5-5
Warning light
.............................. 5-5
Break-In Period
.................................. 4-7
Bulb Replacement
............................ 8-27
C
Capacities ......................................... 10-5
Carbon Monoxide
.............................. 4-5
Catalytic Converter
............................ 4-3
Cell Phones
...................................... 9-13
Center Console
................................. 6-46
Child Restraint
Child restraint precautions
........ 2-17
Installing child-restraint
systems
...................................... 2-20
LATCH child-restraint
systems
...................................... 2-25
Cigarette Lighter
.............................. 6-42
Climate Control System
.....................6-2
Gas specifications
..................... 10-6
Clock
................................................ 6-41
Coin Box
.......................................... 6-45
Courtesy Lights
................................ 6-39
Cruise Control
.................................. 5-17
Cup Holder
....................................... 6-44
Customer Assistance
.......................... 9-2
J60E_8R65-EA-03C_Edition2.book Page 2 Saturday, April 26, 2003 1:48 PM

11-3
Index
Form No. 8R65-EA-03C
D
Dashboard Illumination ................... 5-34
Daytime Running Lights
.................. 5-49
Defroster
Rear window
............................. 5-53
Dimensions
...................................... 10-5
Door Locks
......................................... 3-7
Driving In Flooded Area
.................. 4-10
Driving Tips
....................................... 4-7
Automatic transmission
............ 5-15
Break-in period
........................... 4-7
Driving in flooded area
............. 4-10
Hazardous driving
....................... 4-8
Money-saving suggestions
.......... 4-7
Rocking the vehicle
.................... 4-8
Winter driving
............................. 4-9
Dynamic Stability Control (DSC)
.... 5-21
DSC OFF indicator light
........... 5-22
DSC OFF switch
....................... 5-23
TCS/DSC Indicator light
.......... 5-22
E
Emergency Starting .......................... 7-20
Flooded engine
.......................... 7-20
Jump-starting
............................ 7-20
Push-starting
............................. 7-22
Emergency Towing
.......................... 7-23
Emission Control System
................... 4-3
Engine
Coolant
...................................... 8-12
Exhaust gas
................................. 4-5
Hood release
............................. 3-18
Oil
............................................... 8-9
Overheating
............................... 7-18
Starting
........................................ 5-3
Engine Compartment Overview
........ 8-8
Engine Coolant
Overheating
............................... 7-18
E
Engine Coolant Temperature
Gauge
...............................................5-32
Exhaust Gas
........................................4-5
Exterior Care
....................................8-41
F
Flasher
Hazard warning
.........................5-55
Headlights
.................................5-48
Flat Tire
..............................................7-3
Changing
...................................7-13
Instant Mobility System (IMS)
Emergency Flat Tire Repair
Kit
................................................7-5
Spare tire and tool storage
...........7-3
Fluids
Classification
.............................10-5
Owner maintenance
.....................8-6
Fog Lights
........................................5-50
Foot Brake
..........................................5-4
Front seats
..........................................2-2
Fuel
Filler lid and cap
.......................3-16
Gauge
........................................5-33
Requirements
..............................4-2
Tank capacity
............................10-5
Fuses
.................................................8-33
Panel description
.......................8-36
Replacement
..............................8-33
G
Gauges ..............................................5-29
Glove Box
........................................6-45
J60E_8R65-EA-03C_Edition2.book Page 3 Saturday, April 26, 2003 1:48 PM
