Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C
Closing the freestyle doors
1. Close the rear door first, and then close
the front door.2. Make sure the freestyle doors are
securely closed.
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger’s head
or hands are away from the rear door.
If the front door is closed while a
passenger is operating the rear door
handle, a hand or fingers could be
injured if the handle is forced back.
Also, a rear passenger could hit their
head against the door during access to
the rear seat.
NOTE
The front door cannot latch or lock
while the rear door is opened.
Front door
Rear door
CAUTION
Driving with Doors Not Secured:
Driving with the doors not securely
closed is dangerous. If the rear door
is not completely closed, the front
door will not be securely closed. This
could cause the front door to open
unexpectedly while driving and may
result in an accident. Make sure the
rear door is closed securely before
closing the front door.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 10 Saturday, April 26, 2003 1:48 PM

3-11
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C

Opening and Closing the Trunk
Opening the trunk lid with the key
Insert the master key into the slot and turn
it clockwise.
The valet key will not operate this lock
(page 3-2).
Opening the trunk lid with the
transmitter
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
Trunk Lid
Open Trunk and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
Because exhaust gas can get into the
cabin through an open trunk, keep
the trunk closed when driving.
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid and do
not allow children to play inside the
vehicle.
WARNING
WARNING
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don’t leave your children
or pets alone in a car at any time.
Don’t leave the car or the trunk
unlocked. Always keep the car from
being a tempting place to play by
locking doors and the trunk, and
keeping the keys where children won’t
play with them.
WARNING
Open
J60E_8R65-EA-03C_Edition2.book Page 11 Saturday, April 26, 2003 1:48 PM

3-12
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C
Opening the trunk lid with the remote
release button
Push the release button.
Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not slam
it. Pull up on the trunk lid to make sure it
is secured.

Remote Trunk Lid Release Lock-
Out
As an added security feature, the remote
release may be canceled to prevent
anyone from opening the trunk without
the master key.With the switch in the OFF position, the
remote trunk lid release cannot be
operated.
With the switch in the ON position, the
remote trunk lid release can be operated.

Trunk Light
The trunk light is on when the lid is open
and off when it’s closed.
Handle
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is
not running.
OFF position
ON position
J60E_8R65-EA-03C_Edition2.book Page 12 Saturday, April 26, 2003 1:48 PM

3-13
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C
Your vehicle is equipped with a trunk
release slide lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the trunk release slide lever so
that all children can be told about it in an
appropriate way, keeping in mind that
most vehicles don’t have such levers.

Opening the Trunk Lid from the
Inside
Slide the illuminated trunk release slide
lever in the direction of the arrow. The
lever is made of material that will glow
for hours in the darkness of the trunk
following a brief exposure to ambient
light.
The trunk release slide lever is located on
the inside of the trunk end trim.
Trunk Release Slide Lever
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid and do
not allow children to play inside the
vehicle.
WARNING
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don’t leave your children
or pets alone in a car at any time.
Don’t leave the car or the trunk
unlocked. Always keep the car from
being a tempting place to play by
locking doors and the trunk, and
keeping the keys where children won’t
play with them.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 13 Saturday, April 26, 2003 1:48 PM

3-14
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C
The ignition switch must be in the ON
position for the power windows to
operate.

Operating the Driver’s Side
Power Window
Opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Auto-opening
To fully open the window automatically,
push the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
Power Windows
Closing Power Windows:
Closing power windows are
dangerous. A person’s hands, head,
or even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Children and Power Windows:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child’s
hands, head or neck becomes caught
by the window. Always lock all
passenger power windows with the
power window lock switch on the
driver’s side while children are in the
vehicle, and never allow children to
play with power window switches.
WARNING
Open
Close
Left front window
J60E_8R65-EA-03C_Edition2.book Page 14 Saturday, April 26, 2003 1:48 PM

3-15
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C

Operating the Passenger Power
Windows
The power window may be operated when
the power window lock switch on the
driver’s door is in the unlocked position.
The passenger window may be opened or
closed by the power window master
control switches on the driver’s door.
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.

Power Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver’s side power
window can be operated.
Right front window
Open
Close
Unintentional Window Operation:
Unintentional window operation is
dangerous. A person’s hands, head,
or neck could be caught by the
window and result in serious injury.
Unless a passenger needs to operate a
window, keep the power window lock
switch in the locked position.
Locked position
Unlocked position
WARNING
J60E_8R65-EA-03C_Edition2.book Page 15 Saturday, April 26, 2003 1:48 PM

3-16
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C
Open or close a swing-out rear quarter
window by releasing the latch and moving
the window.

Opening a Window
Pull the latch inward and then push the
window outward.

Closing a Window
Pull the latch inward and then push it
backward until it snaps shut. Make sure
the window is securely closed.
Rear Quarter Windows
NOTE
When parked in public areas, it is best
to keep the rear quarter windows
closed for security.
Fuel-Filler Lid and Cap
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
when ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly. When removing the fuel cap,
loosen the cap slightly and wait for
any hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at Authorized Mazda
Dealers. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
WARNING
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 16 Saturday, April 26, 2003 1:48 PM

3-17
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C

Fuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.

Fuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Remote fuel-filler
lid release
Close Open
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate on when the cap
isn’t tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven, and
restarted the engine several times), it
may indicate a different problem.
Contact an Authorized Mazda Dealer
as soon as possible.
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 17 Saturday, April 26, 2003 1:48 PM

3-18
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C

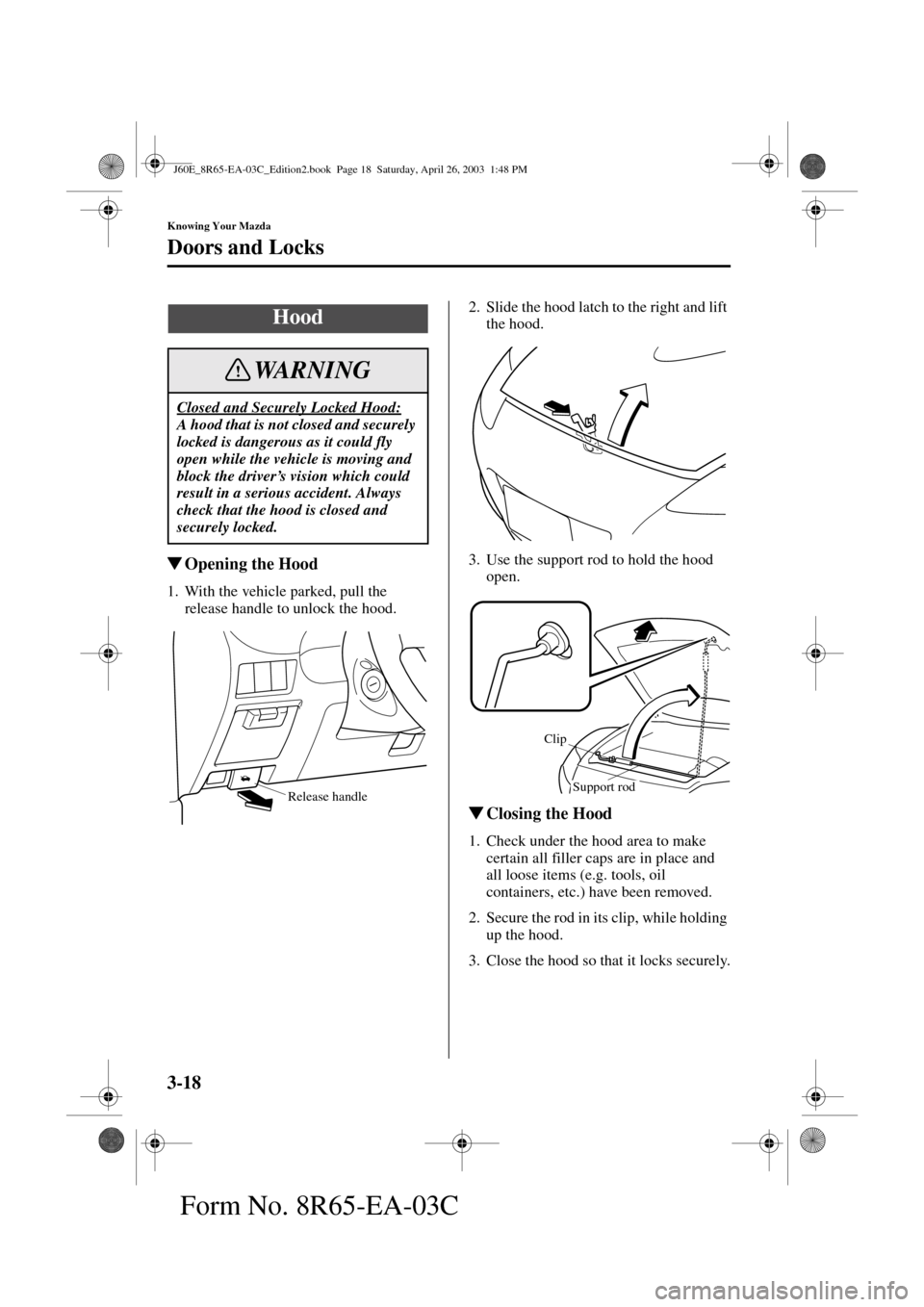

Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.2. Slide the hood latch to the right and lift
the hood.
3. Use the support rod to hold the hood
open.

Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Secure the rod in its clip, while holding
up the hood.
3. Close the hood so that it locks securely.
Hood
Closed and Securely Locked Hood:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver’s vision which could
result in a serious accident. Always
check that the hood is closed and
securely locked.
WARNING
Release handle
Clip
Support rod
J60E_8R65-EA-03C_Edition2.book Page 18 Saturday, April 26, 2003 1:48 PM

3-19
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C
The sunroof can be opened or closed
electrically only when the ignition switch
is in the ON position.

Tilt Operation
The rear of the sunroof can be tilted open
to provide more ventilation.
To fully tilt automatically, push the rear of
the tilt switch.
To stop tilting partway, push any part of
the tilt or slide switch.
To close to the desired position, push the
front of the tilt or slide switch.
Sunroof*
Extending the Head or Arms
Through the Sunroof:
Extending the head, arms, or other
parts of the body through the sunroof
is dangerous. The head or arms could
hit something while the vehicle is
moving. This could cause death or
serious injury. Don’t let passengers
stand up or extend anything through
the open sunroof while the vehicle is
moving.
Closing the Sunroof:
A closing sunroof is dangerous. The
hands, head, or even neck of a person
—especially a child— could be
caught in it as it closes, causing
serious injury or even death. Make
sure the opening is clear before
closing the sunroof.
Tilt switch Slide switch
WARNING
NOTE
After washing your Mazda or after a
rain, wipe the water off the sunroof
before operating it.
CloseTilt up
Close
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 19 Saturday, April 26, 2003 1:48 PM
