Opening and Closing the Trunk
Opening the trunk lid with the key
Insert the master key into the slot and turn
it clockwise.
The valet key will not operate this lock
(page 3-2).
Opening the trunk lid with the
transmitter
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
Trunk Lid
Open Trunk and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
Because exhaust gas can get into the
cabin through an open trunk, keep
the trunk closed when driving.
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid and do
not allow children to play inside the
vehicle.
WARNING
WARNING
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don’t leave your children
or pets alone in a car at any time.
Don’t leave the car or the trunk
unlocked. Always keep the car from
being a tempting place to play by
locking doors and the trunk, and
keeping the keys where children won’t
play with them.
WARNING
Open
J60E_8R65-EA-03C_Edition2.book Page 11 Saturday, April 26, 2003 1:48 PM

3-17
Knowing Your Mazda
Doors and Locks
Form No. 8R65-EA-03C

Fuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.

Fuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Remote fuel-filler
lid release
Close Open
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate on when the cap
isn’t tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven, and
restarted the engine several times), it
may indicate a different problem.
Contact an Authorized Mazda Dealer
as soon as possible.
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 17 Saturday, April 26, 2003 1:48 PM

5-22
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C

TCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.

DSC OFF Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also comes on when the DSC OFF switch
is pressed and TCS/DSC is switched off.
If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction. •The DSC may not operate correctly
unless the following are observed:
Use tires of the correct size
specified for your Mazda on all
four wheels.
Use tires of the same
manufacturer, brand and tread
pattern on all four wheels.
Do not mix worn tires.
•The DSC may not operate correctly
when using tire chains or the
temporary spare tire.
•If repair or replacement of the
steering or other surrounding
equipment is necessary, have it done
at an Authorized Mazda Dealer. If
the center position of the steering
deviates, the DSC may not operate
correctly because there is a sensor
in the steering which detects driving
conditions.
CAUTION
NOTE
If the battery is disconnected, the DSC
will be inoperable. In this case, the DSC
OFF indicator light flashes and the
TCS/DSC indicator light illuminates.
To make the DSC operable, do the
following procedure.
1. Turn the ignition switch to the ON
position.
2. Turn the steering clockwise fully,
then turn it counterclockwise fully.
3. Make sure the DSC OFF indicator
goes off.
4. Turn the ignition switch to the OFF
position, then turn it to the ON
position again.
5. Make sure the TCS/DSC indicator
light goes off.
If the TCS/DSC indicator light and the
DSC OFF indicator light remain
illuminated even after turning the
ignition switch to the ON position,
consult an Authorized Mazda Dealer.
J60E_8R65-EA-03C_Edition2.book Page 22 Saturday, April 26, 2003 1:48 PM

5-45
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C

Cruise Main Indicator Light
This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.

Cruise Set Indicator Light
This light comes on when a cruising speed
is set.

Light-On Indicator Light
This indicator light comes on when the
exterior lights are on.

Power Steering Malfunction
Indicator Light
This indicator light illuminates when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If this light illuminates while driving, it
indicates a malfunction of the power
steering system. Consult an Authorized
Mazda Dealer.
NOTE
If the battery is disconnected, the DSC
will be inoperable. In this case, the
DSC OFF indicator light flashes and
the TCS/DSC indicator light
illuminates.
To make the DSC operable, do the
following procedure.
1. Turn the ignition switch to the ON
position.
2. Turn the steering clockwise fully,
then turn it counterclockwise fully.
3. Make sure the DSC OFF indicator
goes off.
4. Turn the ignition switch to the OFF
position, then turn it to the ON
position again.
5. Make sure the TCS/DSC indicator
light goes off.
If the TCS/DSC indicator light and the
DSC OFF indicator light remain
illuminated even after turning the
ignition switch to the ON position,
consult an Authorized Mazda Dealer.
J60E_8R65-EA-03C_Edition2.book Page 45 Saturday, April 26, 2003 1:48 PM

6-5
Interior Comfort
Climate Control System
Form No. 8R65-EA-03C
Climate control information is displayed on the information display.

Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.Fan control dial
This dial allows variable fan speeds.
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed
Control Panel
Temperature control dial Fan control dial
Mode selector switch Air intake selectorA/C SwitchRear window defroster switch
Windshield defroster switch(page 5-53)
Hot Cold
J60E_8R65-EA-03C_Edition2.book Page 5 Saturday, April 26, 2003 1:48 PM

6-40
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C

Information Display Functions
The information display has the following functions:
•Clock
•Ambient Temperature Display (Outside Temperature Display)
•Climate Control Display
•Audio Display
Information Display
J60E_8R65-EA-03C_Edition2.book Page 40 Saturday, April 26, 2003 1:48 PM

6-41
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C

Clock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLK button until a beep
sounds, and "12Hr" and "24Hr" will be
displayed.
2. Press the SET button to switch between
"12Hr" and "24Hr" displays. The
selected display will flash.
To select the desired clock setting,
press the CLK button again while the
preferred setting is flashing.
3. "Hr. ADJUST" will be displayed next,
and the hour portion of the display will
flash. Press the SET button to set the
hour, then press the CLK button.
4. "Min. ADJUST" will be displayed
next, and the minutes portion of the
display will flash. Press the SET button
to set the minutes, then press the CLK
button.Time resetting
While the clock is displayed, press the
SET button 1.5 seconds or more. When
the button is released, a beep will sound
and the clock will be reset as follows:
(Example)
12:01—12:29
→12:00
12:30—12:59
→1:00

Ambient Temperature Display
When the ignition switch is in the ON
position, press the AMB button to display
the ambient temperature.
NOTE
When the SET button is released, the
seconds are reset to "00".
NOTE
•The displayed ambient temperature
may vary from the actual ambient
temperature depending on the
surrounding area and vehicle
conditions.
•Press the AMB button 2 seconds or
more to switch the display from
Fahrenheit to Centigrade or vice
versa.
J60E_8R65-EA-03C_Edition2.book Page 41 Saturday, April 26, 2003 1:48 PM

6-45
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C

Overhead Console
This console box is designed to store
accessories. Push and release to open.

Coin Box
To open, press the release catch down and
pull the lid downward.

Glove Box
To open the glove box, pull the latch
toward you.
Insert the master key and turn it clockwise
to lock, counterclockwise to unlock.
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
In hot weather, don’t leave
combustible materials such as lighters
or objects which will deform in
extreme heat such as eye glasses in the
vehicle.
WARNING
CAUTION
Don’t leave eyeglasses or lighters in
the overhead console while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
CAUTION
Unlock
Lock
J60E_8R65-EA-03C_Edition2.book Page 45 Saturday, April 26, 2003 1:48 PM

6-47
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C
To open, squeeze the latch and pull the lid
down.
When closing the storage box, put the
storage box back in its original position
until you hear a click sound.
Insert the master key and turn it clockwise
to lock, counterclockwise to unlock.Loading long objects with storage box
removed
The storage box can be removed for
convenient loading of long objects such as
skis placed through the trunk.
NOTE
When using the storage box to store
heavy accessories, remove the storage
box before placing or removing the
accessories.
Lock Unlock
Loading Long Objects Through
Removed Storage Box Area:
Sudden braking or maneuvering
while long objects are loaded through
the removed storage box area and into
the trunk is dangerous. Operation of
the shift/selector lever could be
obstructed resulting in a serious
accident. Secure long objects in the
trunk so that they cannot be thrown
forward in the cabin and avoid
sudden braking or maneuvering.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 47 Saturday, April 26, 2003 1:48 PM

7-4
In Case of an Emergency

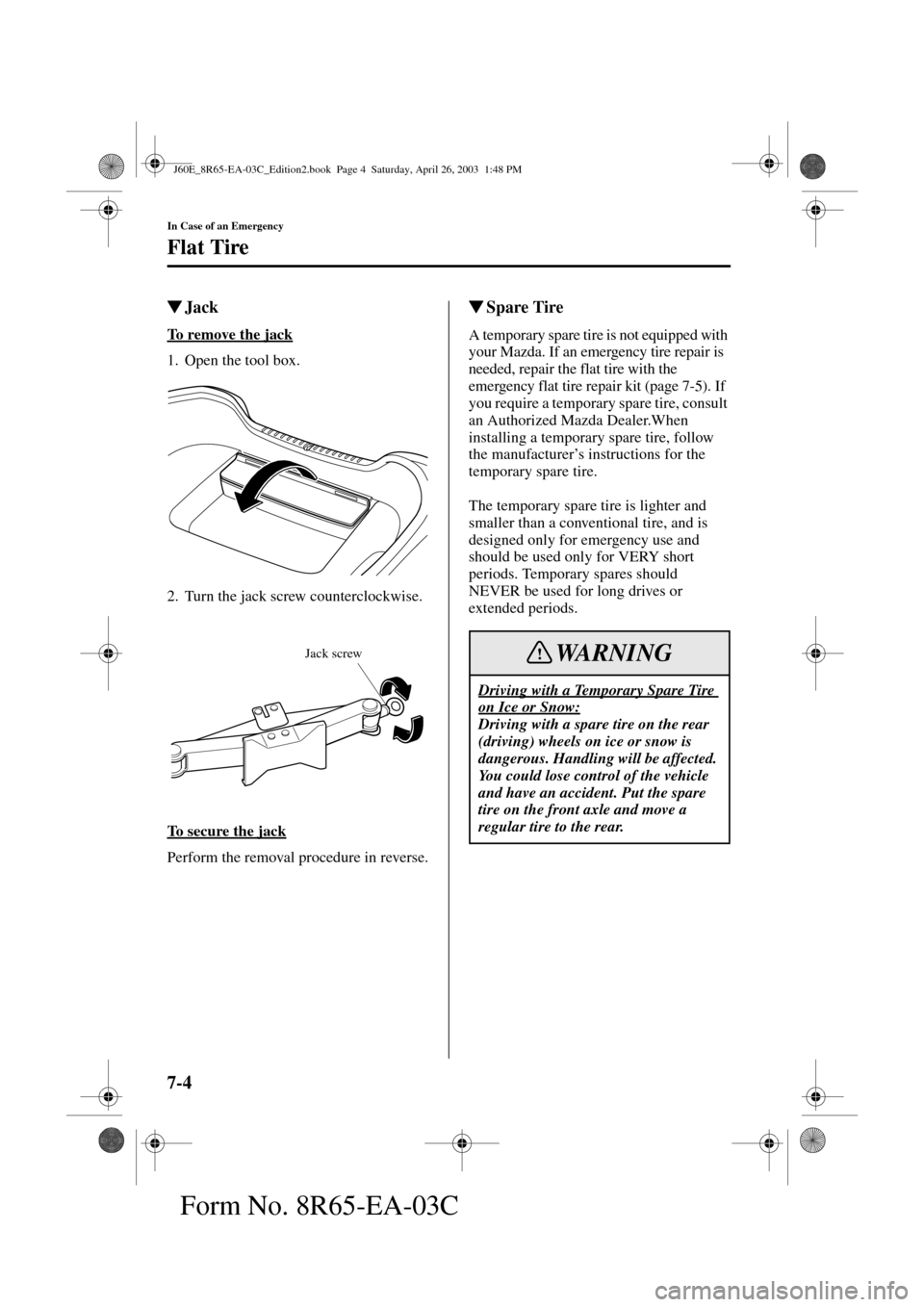

Flat Tire
Form No. 8R65-EA-03C

Jack
To remove the jack
1. Open the tool box.
2. Turn the jack screw counterclockwise.
To secure the jack
Perform the removal procedure in reverse.

Spare Tire
A temporary spare tire is not equipped with
your Mazda. If an emergency tire repair is
needed, repair the flat tire with the
emergency flat tire repair kit (page 7-5). If
you require a temporary spare tire, consult
an Authorized Mazda Dealer.When
installing a temporary spare tire, follow
the manufacturer’s instructions for the
temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
Jack screw
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the rear
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the front axle and move a
regular tire to the rear.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 4 Saturday, April 26, 2003 1:48 PM
