3-23
Knowing Your Mazda
Security System
Form No. 8R65-EA-03C

Modification and Add-On
Equipment
Mazda cannot guarantee the system’s
operation if the system has been modified
or if any add-on equipment has been
installed to it.The optional theft-deterrent system is
designed to prevent your vehicle or its
contents from being stolen when all the
doors, hood, and trunk lid are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
The system won’t function unless it’s
properly armed. So when you leave the
vehicle, lock all the doors, close all the
windows, take your key, your transmitter.

Operation
What turns it on:
•Forcing open a door, the hood or the
trunk lid.
•Opening a door, the hood or the trunk
lid by operating an inside door-lock
knob, the hood release handle or the
trunk lid release button.
What it does:
•The horn sounds intermittently and the
hazard warning lights flash.
•The alarm continues for about 3 minutes,
then stops.
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
NOTE
•The keys carry a unique electronic
code. For this reason, and to assure
your safety, replacement keys
require some waiting time to obtain.
They are only available through an
Authorized Mazda Dealer.
•Always keep a replacement key, in
case one is lost. If a key is lost,
contact an Authorized Mazda
Dealer as soon as possible.
•If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system.
Starting the vehicle with a key that
has not been reset is not possible.
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
CAUTION
Theft-Deterrent System*
NOTE
The theft-deterrent system operates
with the key or the keyless entry
system transmitter.
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 23 Saturday, April 26, 2003 1:48 PM

4-5
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8R65-EA-03C
Engine Exhaust (Carbon Monoxide)
Carbon Monoxide:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Exhaust Gas in Enclosed Area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss of
consciousness or even death could occur. Don’t run the engine when inside an
enclosed area.
Idling with the Windows Closed:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed and
the engine running for a long time in an open area, exhaust gas, which contains
poisonous carbon monoxide, could enter the cabin. Loss of consciousness or even
death could occur. Open the windows or adjust the heating or cooling system to draw
fresh air.
Snow Blocking the Exhaust Gas:
Running the engine when a vehicle is stopped in deep snow is dangerous. The exhaust
pipe could be blocked by the snow, allowing exhaust gas to enter the cabin. Because
exhaust gas contains poisonous carbon monoxide, anyone in the cabin could be
injured or killed. Clear the snow from underneath and around your vehicle,
particularly the tail pipe, before starting the engine.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 5 Saturday, April 26, 2003 1:48 PM

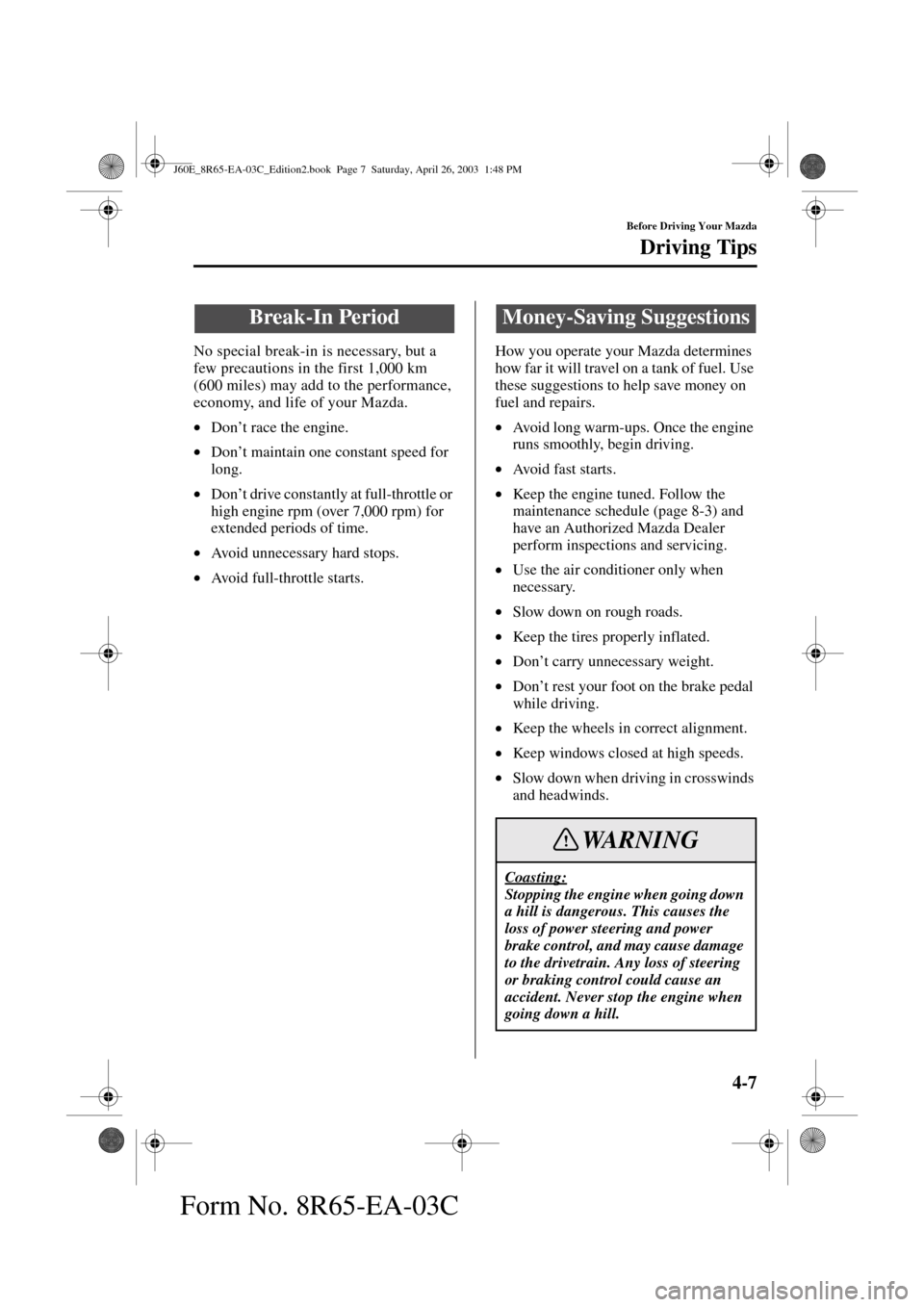

4-7
Before Driving Your Mazda
Form No. 8R65-EA-03C
Driving Tips
No special break-in is necessary, but a
few precautions in the first 1,000 km
(600 miles) may add to the performance,
economy, and life of your Mazda.
•Don’t race the engine.
•Don’t maintain one constant speed for
long.
•Don’t drive constantly at full-throttle or
high engine rpm (over 7,000 rpm) for
extended periods of time.
•Avoid unnecessary hard stops.
•Avoid full-throttle starts.How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
•Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
•Avoid fast starts.
•Keep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
•Use the air conditioner only when
necessary.
•Slow down on rough roads.
•Keep the tires properly inflated.
•Don’t carry unnecessary weight.
•Don’t rest your foot on the brake pedal
while driving.
•Keep the wheels in correct alignment.
•Keep windows closed at high speeds.
•Slow down when driving in crosswinds
and headwinds.
Break-In PeriodMoney-Saving Suggestions
Coasting:
Stopping the engine when going down
a hill is dangerous. This causes the
loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident. Never stop the engine when
going down a hill.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 7 Saturday, April 26, 2003 1:48 PM

5-4
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C
5. Turn the ignition switch to the START
position and hold (up to 10 seconds at a
time) until the engine starts.
6. After starting the engine, let it idle for
about 10 seconds.

Foot Brake
Your Mazda has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual. Don’t try the starter for more than
10 seconds at a time. If the engine
stalls or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain the
battery.
NOTE
•In extremely cold weather, below
–18
°C (0
°F), or after the vehicle has
stood idle several days, let the
engine warm up without operating
the accelerator.
•Whether cold or warm, the engine
should be started without use of the
accelerator.
•To protect the engine, when the
engine coolant temperature is low,
the engine does not run at high
speeds. The fuel supply will be cut
at an rpm lower than the red zone.
CAUTION
Brake System
Driving with the Engine Off:
Continuing to drive when the engine
is stalled or turned off is dangerous.
Braking will require more effort, and
the brake’s power-assist could be
depleted if you pump the brake. This
will cause longer stopping distances
or even an accident. Don’t continue
driving when the engine is stalled or
turned off, find a safe place to stop.
Riding the Brakes:
Driving with your foot continuously
on the brake pedal or steadily
applying the brakes for long distances
is dangerous. This causes overheated
brakes, resulting in longer stopping
distances or even total brake failure.
This could cause loss of vehicle
control and a serious accident. Avoid
continuous application of the brakes.
Shift to a lower gear when going
down steep hills.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 4 Saturday, April 26, 2003 1:48 PM

5-5
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C

Parking Brake
Setting the parking brake
Depress the brake pedal, then pull the
brake handle fully upward.Releasing the parking brake
Depress the brake pedal, then pull the
handle up and press the button. Lower the
handle to the release position while
holding in the button.

Brake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
Driving with the parking brake on will
cause excessive wear of the brake
linings or pads.
NOTE
For parking in snow, refer to Winter
Driving (page 4-9) regarding parking
brake use.
WARNING
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 5 Saturday, April 26, 2003 1:48 PM

5-6
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-14).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-40).Brake Warning Light:
Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, after checking that
the parking brake is released, have
the brakes inspected immediately.
Don’t drive with this light on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 6 Saturday, April 26, 2003 1:48 PM

5-7
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C

Anti-Lock Brake System (ABS)
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel’s brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don’t
pump the brakes, continue to press down
on the brake pedal.

ABS Warning Light
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you’re driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function
normally as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
ABS:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident. So don’t rely on ABS as a
substitute for safe driving.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 7 Saturday, April 26, 2003 1:48 PM

5-9
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C

Recommendations for Shifting
Upshifting
For normal acceleration, we recommend
these shift points.
For cruising
Downshifting
When you must slow down in heavy
traffic or on a steep upgrade
, downshift
before the engine starts to overwork. This
reduces the chance of stalling and gives
better acceleration when you need more
speed.
On a steep downgrade
, downshifting
helps maintain safe speed and prolongs
brake life.
Sudden Engine-Braking:
Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed
could cause the tires to skid. This
could lead to loss of vehicle control
and an accident. Do not use sudden
engine braking on slippery road
surfaces or at high speeds.
•Keep your foot off the clutch pedal
except when shifting gears. Also,
don’t use the clutch to hold the
vehicle on an upgrade. Riding the
clutch will cause needless clutch
wear and damage.
•Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is
still moving may damage the
transmission.
NOTE
If shifting to R is difficult, shift into
neutral, release the clutch pedal, and
try again.
WARNING
CAUTION
1 to 2 23 km/h (14 mph)
2 to 3 35 km/h (22 mph)
3 to 4 47 km/h (29 mph)
4 to 5 58 km/h (36 mph)
5 to 6 74 km/h (46 mph)
1 to 2 23 km/h (14 mph)
2 to 3 34 km/h (21 mph)
3 to 4 45 km/h (28 mph)
4 to 5 56 km/h (35 mph)
5 to 6 68 km/h (42 mph)
J60E_8R65-EA-03C_Edition2.book Page 9 Saturday, April 26, 2003 1:48 PM

5-10
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C
Various Lockouts:

Transmission Ranges
The shift lever must be in P or N to
operate the starter.
P (Park)
P locks the transmission and prevents the
rear wheels from rotating.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
Rocking the Vehicle (page 4-8).
N (Neutral)
In N, the wheels and transmission are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
Automatic Transmission
Controls
Indicates that you must depress the
brake pedal to shift (The ignition
switch must be in the ACC or ON
position).
Indicates the shift lever can be
shifted freely into any position.
Holding the Vehicle with P:
Setting the shift lever to the P position
without using the parking brake to
hold the vehicle is dangerous. If P
fails to hold, the vehicle could move
and cause an accident. To hold the
vehicle, set the shift lever to P AND
set the parking brake.
•Shifting into P, N or R while the
vehicle is moving can damage your
transmission.
•Shifting into a driving gear or
reverse when the engine is running
faster than idle can damage the
transmission.
WARNING
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 10 Saturday, April 26, 2003 1:48 PM

5-11
Driving Your Mazda
Starting and Driving
Form No. 8R65-EA-03C
D (Drive)
D is the normal driving position. From a
stop, the transmission will automatically
shift through a 4-gear sequence.
M (Manual)
M is the manual shift mode position.
Gears can be shifted up or down by
operating the shift lever or steering shift
switches.
Refer to Manual Shift Mode (page 5-11).

Shift-Lock System
The shift-lock system prevents shifting
out of P unless the brake pedal is
depressed.

To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Move the shift lever.

Manual Shift Mode
This mode gives you the feel of driving a
manual transmission vehicle by operating
the shift lever or steering shift switches
and allows you to control engine rpm and
torque to the rear wheels much like a
manual transmission when more control is
desired.
To change to manual shift mode, shift the
lever from D to M.
To return to automatic shift mode, shift
the lever from M to D.
Shifting from N or P:
It’s dangerous to shift from N or P
into a driving gear when the engine is
running faster than idle. If this is
done, the vehicle could move
suddenly, causing an accident or
serious injury. If the engine is
running faster than idle, don’t shift
from N or P into a driving gear.
Shifting into N while Driving:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which
could lead to an accident or serious
injury. Do not shift into N when
driving the vehicle.
Do not shift into N when driving the
vehicle. Doing so can cause
transmission damage.
WARNING
CAUTION
NOTE
•When the ignition switch is in the
LOCK position, the transaxle
cannot be shifted from P.
•To be sure the vehicle is in park,
the ignition key cannot be
removed unless the shift lever is in
P.
J60E_8R65-EA-03C_Edition2.book Page 11 Saturday, April 26, 2003 1:48 PM
