qReplacing a Bulb (Interior)
Overhead light/Map lights (Front)
1. Remove the screws with a Phillips
screwdriver.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Overhead light (Rear), Courtesy lights,
Vanity mirror lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
Overhead light (Rear)
Courtesy lights
Edge
Maintenance and Care
Owner Maintenance
8-37
RX-8_8T69-EA-04G_Edition1 Page271
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (272,1)
Vanity mirror lights
Edge
3. Install the new bulb in the reverse order
of removal.
Trunk light
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing a Bulb (Rear)
Rear turn signal lights, Brake lights/
Taillights, Reverse lights
1. Pull the center section of the plastic
retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Brake lights/Taillights Rear turn signal lights
Reverse lights
4. Install the new bulb in the reverse order
of removal.
Rear side-marker lights
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
8-38
Maintenance and Care
Owner Maintenance
RX-8_8T69-EA-04G_Edition1 Page272
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (273,1)
High-mount brake light
1. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and trunk rear trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
License plate light
1. Press the front of the lens to detach the
front tabs.2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
3. Disconnect the bulb by pulling it out.
Edge
4. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-39
RX-8_8T69-EA-04G_Edition1 Page273
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (274,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's side
If the electrical system doesn't work, first
inspect fuses on the driver's side.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. Inspect it and replace if it's blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
8-40
Maintenance and Care
Owner Maintenance
RX-8_8T69-EA-04G_Edition1 Page274
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (275,1)
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
Next to air filter
Engine cover
Near battery
Batter
y cover
NOTE
Remove the engine and battery covers
before removing the fuse block cover
near the battery.3. If a fuse is blown, replace it with a new
oneof the same amperage rating.
Normal
Blown
NOTE
lTo replace the MAIN fuse, contact
an Authorized Mazda Dealer (page
8-42).
lVerify that the engine cover is
securely installed.
Maintenance and Care
Owner Maintenance
8-41
RX-8_8T69-EA-04G_Edition1 Page275
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (276,1)
qFuse Panel Description
Fuse block (Engine compartment)
(Next to air filter)
(Near battery)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 120A For protection of all circuits
2 HEATER 40A Heater
3 AIR PUMP 60A Air pump
4 BTN 30APower windows, Power door locks, Illuminated entry system,
Moonroof
í
5 DEFOG 50A Rear window defroster
6 FAN 40A Electric fan
7 ABS/DSC 60A ABS, DSC
í
8 ACC 30A Lighter, Power control mirror, Accessory socket, Audio system
9 HEAD 15A Headlight high beamsí, Headlight cleanerí
10 HEAD LOW R 15A Headlight low beam (RH)
11 HEAD LOW L 15A Headlight low beam (LH)
12 DRL 15A DRL
í(Headlight high beams)
13 DSC 30A DSCí
14 SEAT WARM 20A Seat warmerí
15 H/CLEAN 20A Headlight cleanerí
16 R.FOG 10A―
8-42
Maintenance and Care
íSome models.
Owner Maintenance
RX-8_8T69-EA-04G_Edition1 Page276
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (277,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT

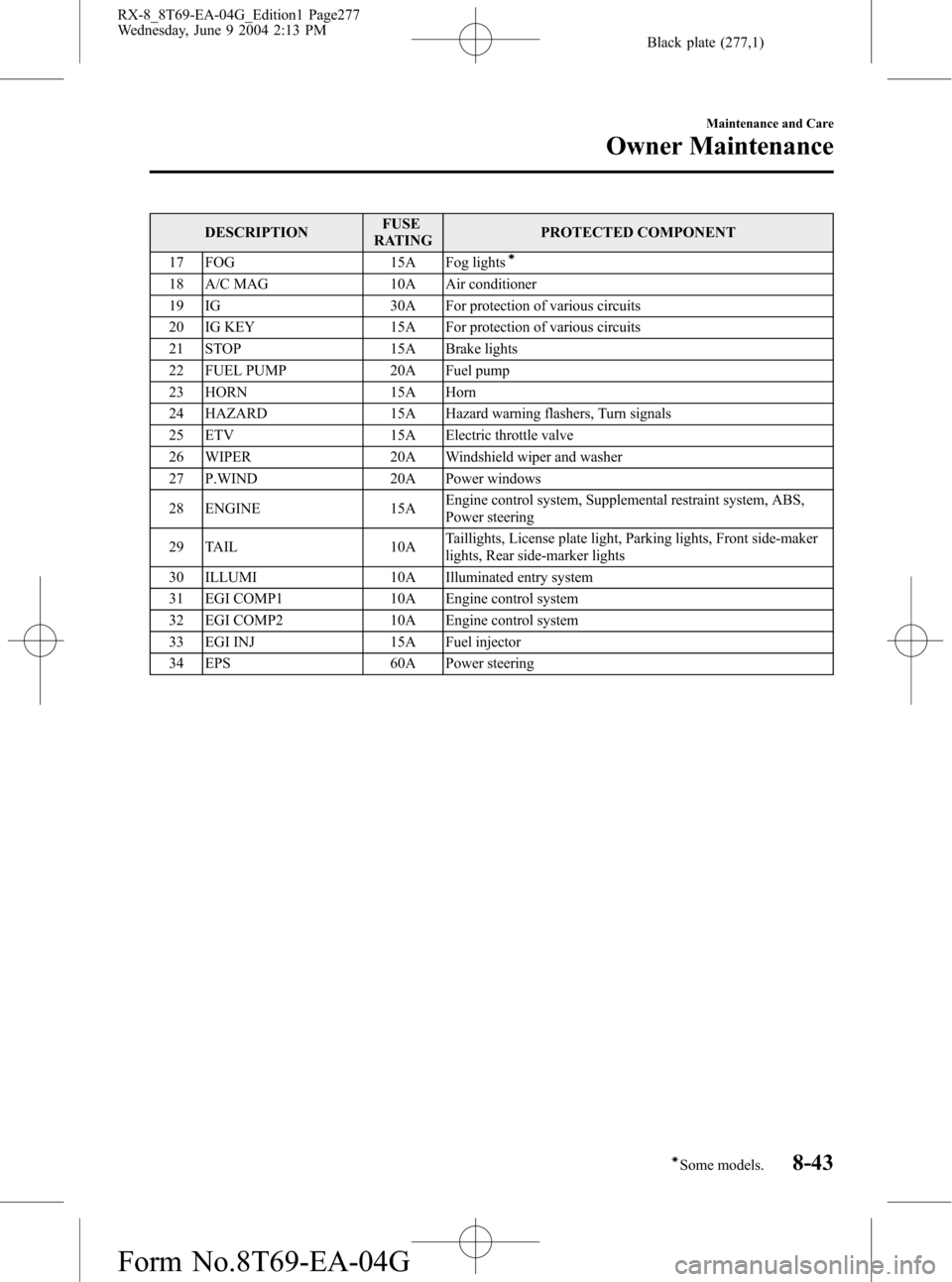

17 FOG 15A Fog lights
í
18 A/C MAG 10A Air conditioner
19 IG 30A For protection of various circuits
20 IG KEY 15A For protection of various circuits
21 STOP 15A Brake lights
22 FUEL PUMP 20A Fuel pump
23 HORN 15A Horn
24 HAZARD 15A Hazard warning flashers, Turn signals
25 ETV 15A Electric throttle valve
26 WIPER 20A Windshield wiper and washer
27 P.WIND 20A Power windows
28 ENGINE 15AEngine control system, Supplemental restraint system, ABS,
Power steering
29 TAIL 10ATaillights, License plate light, Parking lights, Front side-maker
lights, Rear side-marker lights
30 ILLUMI 10A Illuminated entry system
31 EGI COMP1 10A Engine control system
32 EGI COMP2 10A Engine control system
33 EGI INJ 15A Fuel injector
34 EPS 60A Power steering
Maintenance and Care
Owner Maintenance
8-43íSome models. RX-8_8T69-EA-04G_Edition1 Page277
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (278,1)
Fuse panel (Driver's side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 CIGAR 15A Lighter
2 ACC 7.5A Audio system, Power control mirror
3 AUX PWR 20A Accessory socket
4 A/C 7.5A Air conditioner
5―― ―
6―― ―
7 SPARE 7.5A―
8 SPARE 20A―
9 M.DEF 10A Mirror defroster
í
10 DSC 7.5A DSCí
11 AUDIO 20A Audio systemí
12 D.LOCK 30A Power door locks, Moonroofí
13 P.WIND 30A Power windows
14 ROOM 15A Interior lights
15 SPARE 15A―
16 SPARE 10A―
8-44
Maintenance and Care
íSome models.
Owner Maintenance
RX-8_8T69-EA-04G_Edition1 Page278
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (279,1)
How to Minimize
Environmental Paint
Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
Maintenance and Care
Appearance Care
8-45
RX-8_8T69-EA-04G_Edition1 Page279
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (280,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
lThe paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
lChipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.
8-46
Maintenance and Care
Appearance Care
RX-8_8T69-EA-04G_Edition1 Page280
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G
