Black plate (231,1)
qChanging the Source
Press the mode switch () to change
the audio source (FM1 radio> FM2 radio>
AM radio> CD player or CD changer>
SIRIUS1> SIRIUS2> SIRIUS3> Cassette
tape player or MD player> cyclical).
NOTE
Cassette tape, MD, CD, CD changer,
and SIRIUS digital satellite radio
modes cannot be selected in the
following cases:
lA cassette deck, MD, CD, CD
changer, or SIRIUS digital satellite
radio unit is not equipped on the
audio system.
lA cassette tape, MD, or CD has not
been inserted.
qSeek Switch
When listening to the radio
Press the seek switch (
,), the radio
switches to the next/previous stored
station in the order that it was stored
(1―6).
Press the seek switch (
,) for about 2
seconds until a beep sound is heard to
seek all usable stations at a higher or
lower frequency whether programmed or
not.
When playing a cassette tape
Press the seek switch (
), release, and it
will advance to the next selection.
Press the seek switch (
), release, and it
will repeat the selection being played.
When playing a CD or MD
Press the seek switch (
) to skip to the
next track.
Press the seek switch (
) to repeat the
current track.
Interior Comfort
Audio System
6-35
RX-8_8U58-EA-05J_Edition1 Page231
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (232,1)
qMute Switch
Press the mute switch () once to mute
audio, press it again to resume audio
output.
6-36
Interior Comfort
Audio System
RX-8_8U58-EA-05J_Edition1 Page232
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (233,1)
Safety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
CAUTION
lThis CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
lUse of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
lChanges or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
Interior Comfort
Audio System
6-37
RX-8_8U58-EA-05J_Edition1 Page233
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (234,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
The vanity mirror light will illuminate
when you open the cover.
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) and the courtesy
lights turn on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition key is
removed.
lAbout 15 seconds after all doors are
closed (If your vehicle is equipped with
the advanced key, the overhead light
turns on for about 5 seconds when the
advanced key is outside of the vehicle).
lAbout 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light goes
out after about 30 minutes to save the
battery.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
6-38
Interior Comfort
Interior Equipment
RX-8_8U58-EA-05J_Edition1 Page234
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (235,1)

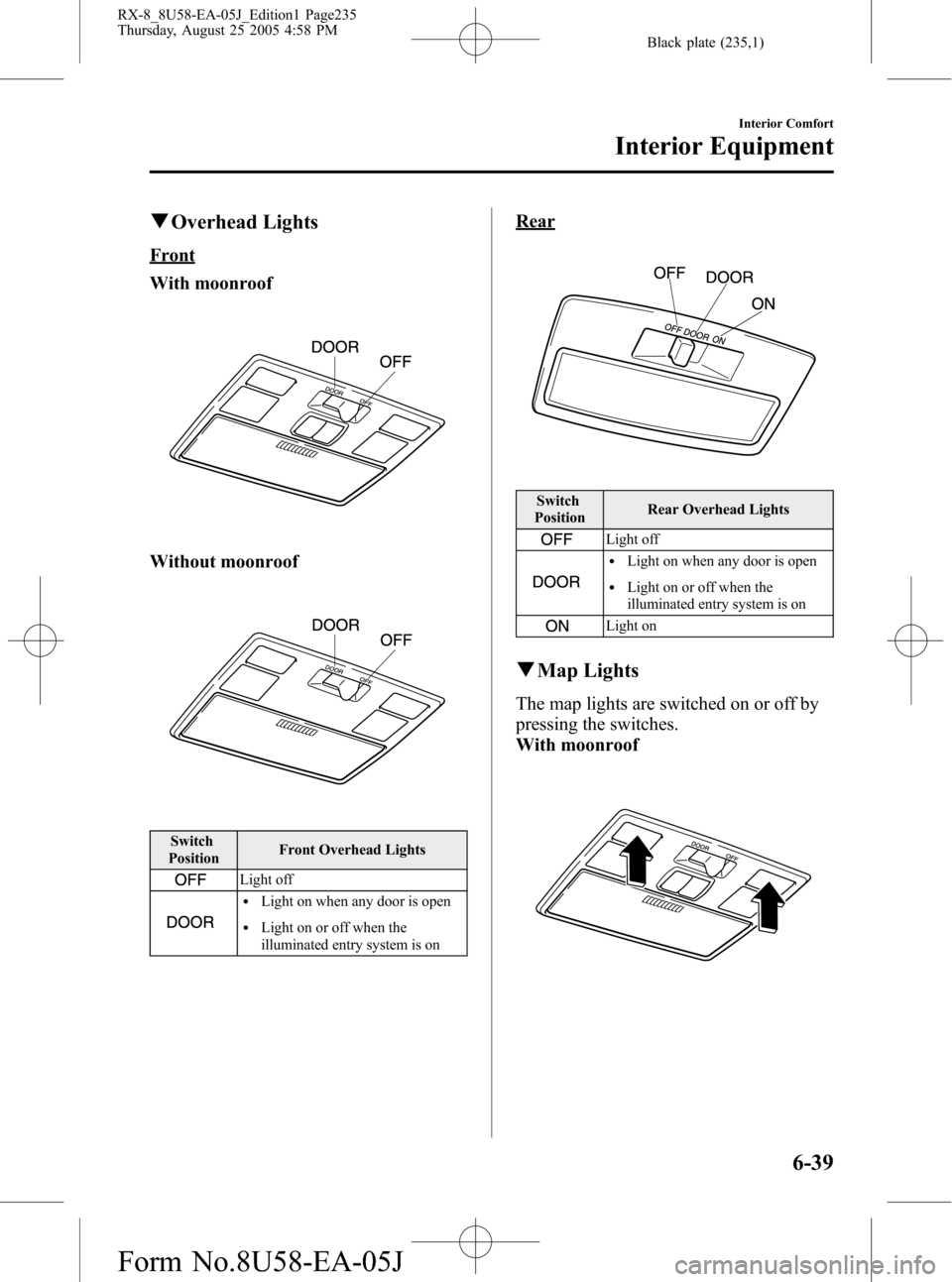

qOverhead Lights
Front
With moonroof
Without moonroof
Switch
PositionFront Overhead Lights
Light off
lLight on when any door is open
lLight on or off when the
illuminated entry system is on
Rear
Switch
PositionRear Overhead Lights
Light off
lLight on when any door is open
lLight on or off when the
illuminated entry system is on
Light on
qMap Lights
The map lights are switched on or off by
pressing the switches.
With moonroof
Interior Comfort
Interior Equipment
6-39
RX-8_8U58-EA-05J_Edition1 Page235
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (236,1)

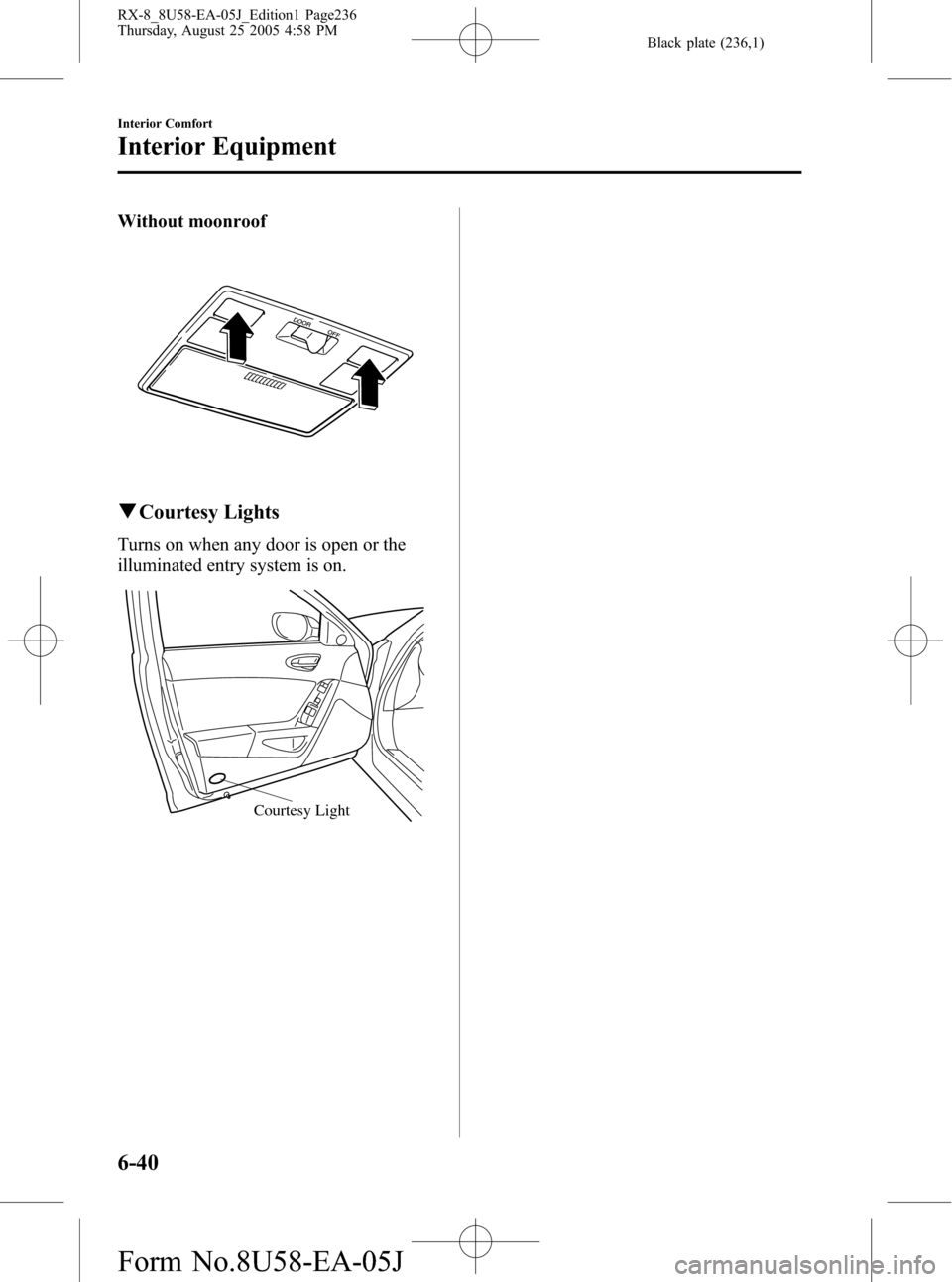

Without moonroof
qCourtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
Courtesy Light
6-40
Interior Comfort
Interior Equipment
RX-8_8U58-EA-05J_Edition1 Page236
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (237,1)
Information Display
qInformation Display Functions
The information display has the following functions:
lClock
lAmbient Temperature Display (Outside Temperature Display)
lClimate Control Display
lAudio Display
Interior Comfort
Interior Equipment
6-41
RX-8_8U58-EA-05J_Edition1 Page237
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (238,1)
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLK button until a beep
sounds, and“12Hr”and“24Hr”will be
displayed.
2. Press the SET button to switch between
“12Hr”and“24Hr”displays. The
selected display will flash.
To select the desired clock setting,
press the CLK button again while the
preferred setting is flashing.
3.“Hr. ADJUST”will be displayed next,
and the hour portion of the display will
flash. Press the SET button to set the
hour, then press the CLK button.
4.“Min. ADJUST”will be displayed
next, and the minutes portion of the
display will flash. Press the SET button
to set the minutes, then press the CLK
button.
Time resetting
While the clock is displayed, press the
SET button 1.5 seconds or more. When
the button is released, a beep will sound
and the clock will be reset as follows:
(Example)12:01―12:29→12:00
12:30―12:59→1:00
NOTE
When the SET button is released, the
seconds are reset to“00”.
qAmbient Temperature Display
When the ignition switch is in the ON
position, press the AMB button to display
the ambient temperature.
NOTE
lThe displayed ambient temperature
may vary from the actual ambient
temperature depending on the
surrounding area and vehicle
conditions.
lPress the AMB button 2 seconds or
more to switch the display from
Fahrenheit to Centigrade or vice
versa.
6-42
Interior Comfort
Interior Equipment
RX-8_8U58-EA-05J_Edition1 Page238
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (239,1)
qClimate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to“Climate Control System”
(page 6-2).
qAudio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System”(page 6-10).
Lighter
The ignition switch must be in the ACC
or ON position.
1. Open the cover.
2. Press the lighter in and release it. When
ready for use, it automatically pops out.
Interior Comfort
Interior Equipment
6-43
RX-8_8U58-EA-05J_Edition1 Page239
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (240,1)

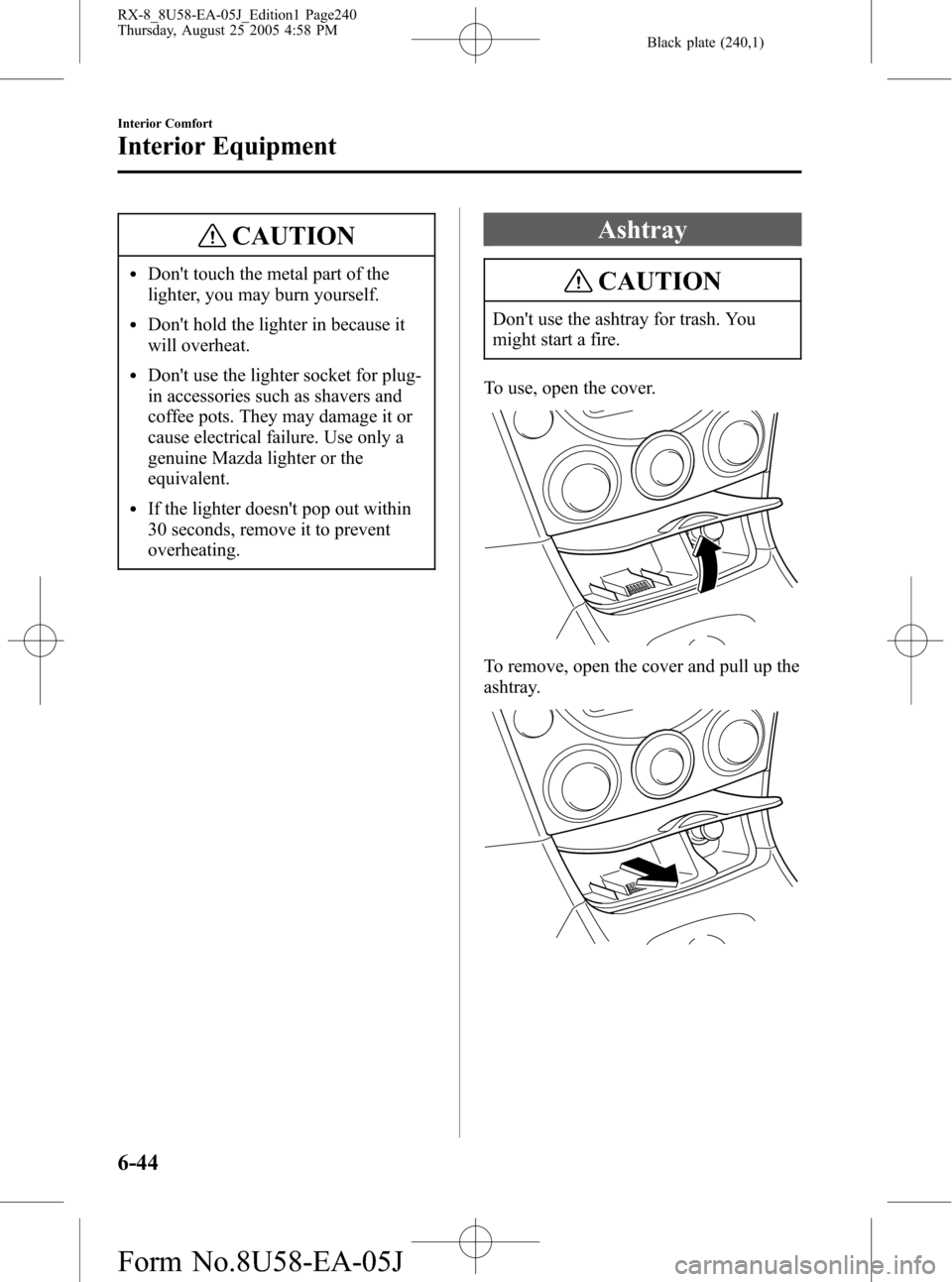

CAUTION
lDon't touch the metal part of the
lighter, you may burn yourself.
lDon't hold the lighter in because it
will overheat.
lDon't use the lighter socket for plug-
in accessories such as shavers and
coffee pots. They may damage it or
cause electrical failure. Use only a
genuine Mazda lighter or the
equivalent.
lIf the lighter doesn't pop out within
30 seconds, remove it to prevent
overheating.
Ashtray
CAUTION
Don't use the ashtray for trash. You
might start a fire.
To use, open the cover.
To remove, open the cover and pull up the
ashtray.
6-44
Interior Comfort
Interior Equipment
RX-8_8U58-EA-05J_Edition1 Page240
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J
