Black plate (321,1)
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle doesn't need it.
qRepairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Don't use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on chrome-
plated or anodized aluminum parts.
This may result in damage to the
protective coating and cause
discoloration or paint deterioration.
Maintenance and Care
Appearance Care
8-47
RX-8_8U58-EA-05J_Edition1 Page321
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (322,1)
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt.It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
lOnly use a mild soap or neutral
detergent and always use a sponge or
soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean the
wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
lAvoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
lIf your aluminum wheels lose luster,
wax the wheels.
8-48
Maintenance and Care
Appearance Care
RX-8_8U58-EA-05J_Edition1 Page322
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (323,1)
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
If the leather gets wet from rain, remove
the moisture as soon as possible and dry
in a shaded area.
If the seats get wet, promptly remove
moisture with a dry cloth and allow it to
further dry in a shaded area.
If moisture is not removed, it will cause
hardening and shrinkage of the leather.
Do not leave vinyl products on the seats
for long periods as they may affect the
leather quality and coloring.
Fabricí
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Suede-like materialí
Stains which are not treated immediately
will be difficult to remove later, and may
cause fading or discoloration.
Remove stains as soon as possible.
To clean,wipe with a soft, damp cloth.
Then buff with a soft, dry cloth.
If stains cannot be removed, using plain
water, try wiping with soapy water or a
mild detergent.
CAUTION
Don't clean the suede with leather
cleaner, a detergent, or soap. It will
cause discoloration.
To dry away any water,wipe with a soft,
dry cloth.
Maintenance and Care
Appearance Care
8-49íSome models. RX-8_8U58-EA-05J_Edition1 Page323
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (324,1)
CAUTION
Sharp or pointed metal objects can
damage the suede beyond repair.
Piano black panel
The following parts are fitted with panels
that have been treated with a special
coating that resists scratching.
lCenter panel
lDoor switch panel
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels
resulting from the use of a hard brush or
cloth may not be repairable.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have an Authorized Mazda
Dealer replace damaged belts
immediately.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
lDon't scrape or scratch the inside of
the rear window. You may damage
the rear window defroster grid.
lWhen washing the inside rear
window, use a soft cloth dampened
in lukewarm water, gently wiping
the antenna lines.
Use of glass cleaning products could
damage the antenna.
8-50
Maintenance and Care
Appearance Care
RX-8_8U58-EA-05J_Edition1 Page324
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (325,1)
9
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on equipment.
Customer Assistance ............................... 9-2
Customer Assistance (U.S.A.) ............ 9-2
Customer Assistance (Canada) ........... 9-4
Customer Assistance (Puerto Rico) .... 9-7
Mazda Importer/Distributors ................. 9-8
Importer/Distributor ............................ 9-8
Distributor in Each Area ..................... 9-8
Warranty .................................................. 9-9
Warranties for Your Mazda ................. 9-9
Outside the United States .................. 9-10
Outside Canada ................................. 9-11
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada) ............................................. 9-12
Add-On Non-Genuine Parts and
Accessories ....................................... 9-13
Cell Phones ............................................. 9-14
Cell Phones Warning ......................... 9-14
Type Approval of Equipment ............... 9-15
Type Approval of Equipment ............ 9-15
Uniform Tire Quality Grading System
(UTQGS) ................................................ 9-16
Uniform Tire Quality Grading System
(UTQGS) .......................................... 9-16
Tire Information (U.S.A.) ..................... 9-18
Tire Labeling ..................................... 9-18
Location of the Tire Label
(Placard) ............................................ 9-24
Tire Maintenance .............................. 9-27
Vehicle Loading ................................ 9-30
Steps for Determining the Correct Load
Limit: ................................................ 9-37Reporting Safety Defects ....................... 9-38
Reporting Safety Defects (U.S.A.) .... 9-38
Reporting Safety Defects (Canada) ... 9-39
Service Publications .............................. 9-40
Service Publications .......................... 9-40
9-1
RX-8_8U58-EA-05J_Edition1 Page325
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (326,1)
Customer Assistance (U.S.A.)
Your complete and permanent satisfaction is our business. We are here to serve you. All
Authorized Mazda Dealers have the knowledge and the tools to keep your Mazda vehicle
in top condition.
If you have any questions or recommendations for improvement regarding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend that you take
the following steps:
qSTEP 1: Contact Your Mazda Dealer
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS,
SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL
MANAGER of the dealership or the OWNER.
qSTEP 2: Contact Mazda North American Operations
If for any reason you feel the need for further assistance after contacting your dealership
management, you can reach Mazda North American Operations by one of the following
ways.
Log on: at www.mazdaUSA.com
Answers to many questions, including how to locate or contact a local Mazda dealership in
the U.S., can be found here.
E-mail: click on“Contact Us”at the bottom of the page at www.mazdaUSA.com
By phone at: 1 (800) 222-5500
By letter at:
Attn: Customer Assistance
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
In order to serve you efficiently and effectively, please help us by providing the following
information:
1. Your name, address, and telephone number
2. Year and model of vehicle
9-2
Customer Information and Reporting Safety Defects
Customer Assistance
RX-8_8U58-EA-05J_Edition1 Page326
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (327,1)

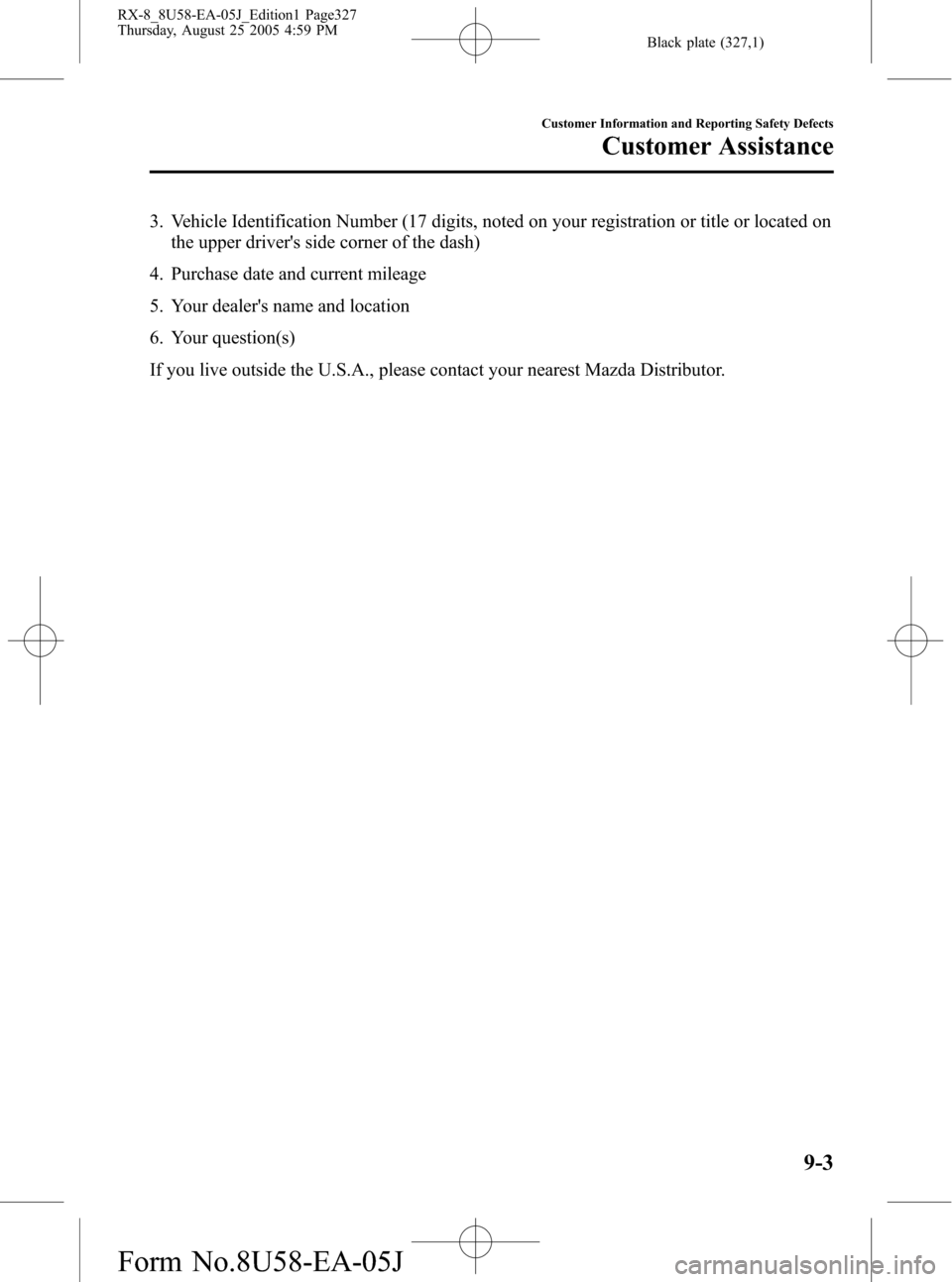

3. Vehicle Identification Number (17 digits, noted on your registration or title or located on
the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
If you live outside the U.S.A., please contact your nearest Mazda Distributor.
Customer Information and Reporting Safety Defects
Customer Assistance
9-3
RX-8_8U58-EA-05J_Edition1 Page327
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (328,1)
Customer Assistance (Canada)
qSatisfaction Review Process
Your complete and permanent satisfaction is of primary concern to Mazda. All Authorized
Mazda Dealers have both the knowledge and tools to keep your Mazda in top condition. In
our experience, any questions, problems, or complaints regarding the operation of your
Mazda or any other general service transactions are most effectively resolved by your
dealer. If the cause of your dissatisfaction cannot adequately be addressed by normal
dealership procedures, we recommend that you take the following steps:
qSTEP 1: Contact the Mazda Dealer
Discuss the matter with a member of dealership management. If the Service Manager has
already reviewed your concerns, contact the owner of the dealership or its General
Manager.
qSTEP 2: Contact the Mazda Regional Office
If you feel that you still require assistance, ask the dealer Service Manager to arrange for
you to meet the local Mazda Service Representative. If more expedient, contact Mazda
Canada Inc.Regional Office nearest you for such arrangements. Regional Office address
and phone numbers are shown (page 9-6).
qSTEP 3: Contact the Mazda Customer Relations Department
If still not substantially satisfied, contact the Customer Relations Department, Mazda
Canada Inc., 55 Vogell Road, Richmond Hill, Ontario, L4B 3K5 Canada TEL: 1 (800)
263-4680.
Provide the Department with the following information:
1. Your name, address and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (VIN). Refer to the“Vehicle Identification Labels”page
of section 10 of this manual for the location of the VIN.
4. Purchase date
5. Present odometer reading
6. Your dealer's name and location
7. The nature of your problem and/or cause of dissatisfaction
The Department, in cooperation with the local Mazda Service Representative, will review
the case to determine if everything possible has been done to ensure your satisfaction.
9-4
Customer Information and Reporting Safety Defects
Customer Assistance
RX-8_8U58-EA-05J_Edition1 Page328
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (329,1)
Please recognize that the resolution of service problems in most cases requires the use of
your Mazda dealer's service facilities, personnel and equipment. We urge you to follow the
above three steps in sequence for most effective results.
qMediation/Arbitration Program
Occasionally a customer concern cannot be resolved through Mazda's Customer
Satisfaction Program. If after exhausting the procedures in this manual your concern is still
not resolved, you have another option.
Mazda Canada Inc. participates in an arbitration program administered by the
Canadian Motor Vehicle Arbitration Plan (CAMVAP). CAMVAP will advise you about
how your concern may be reviewed and resolved by an independent third party through
binding arbitration.
Your complete satisfaction is the goal of Mazda Canada Inc. and our dealers.
Mazda's participation in CAMVAP makes a valuable contribution to our achieving that
goal. There is no charge for using CAMVAP. CAMVAP results are fast, fair and final as the
award is binding on both you and Mazda Canada Inc.
qCanadian Motor Vehicle Arbitration Plan (CAMVAP)
If a specific item of concern arises, where a solution cannot be reached between an owner,
Mazda, and/or one of it's dealers (that all parties cannot agree upon), the owner may wish
to use the services offered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
CAMVAP uses the services of Provincial Administrators to assist consumers in scheduling
and preparing for their arbitration hearings. However, before you can proceed with
CAMVAP you must follow your Mazda dispute resolution process as outlined previously.
Customer Information and Reporting Safety Defects
Customer Assistance
9-5
RX-8_8U58-EA-05J_Edition1 Page329
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (330,1)

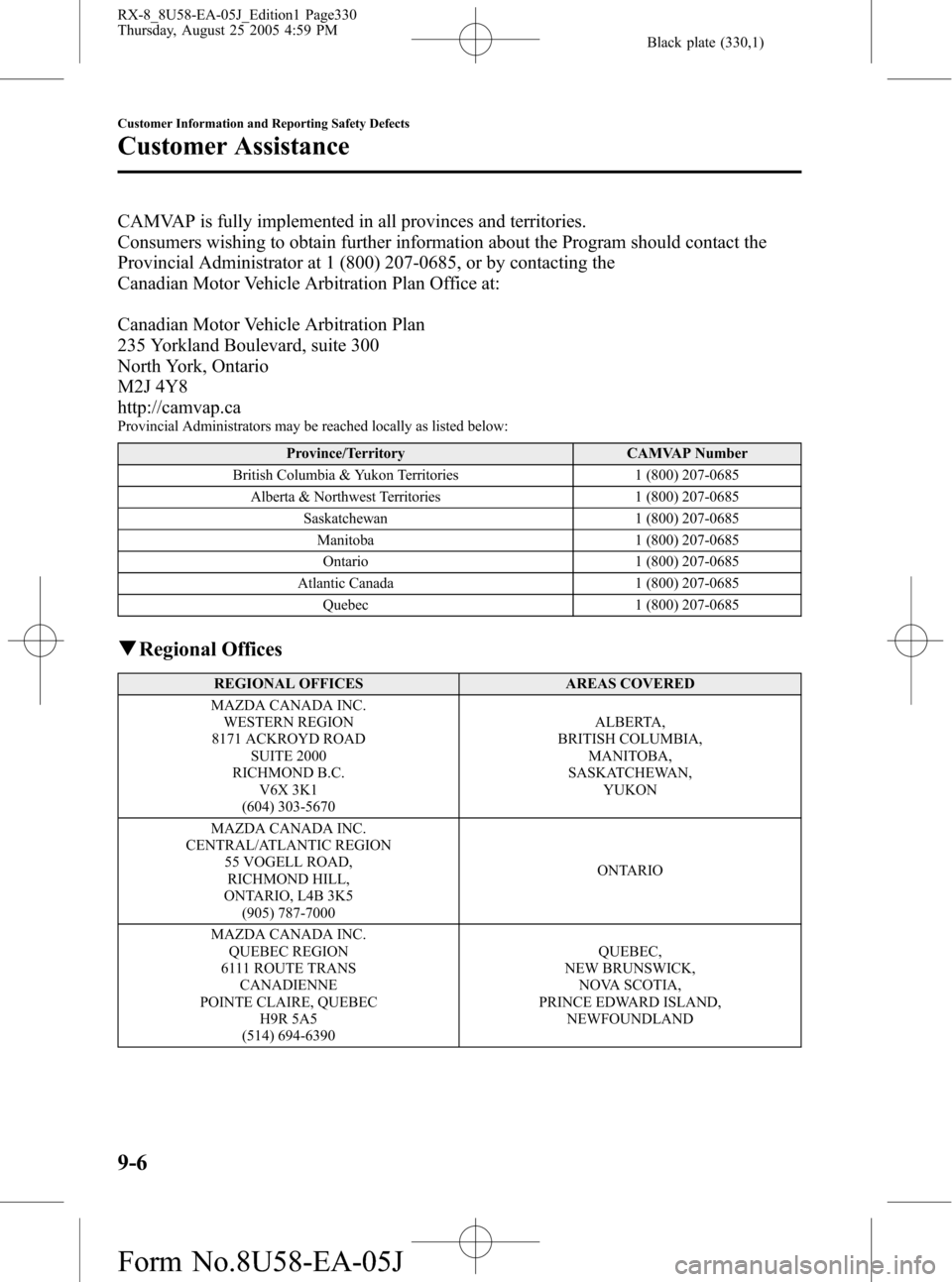

CAMVAP is fully implemented in all provinces and territories.
Consumers wishing to obtain further information about the Program should contact the
Provincial Administrator at 1 (800) 207-0685, or by contacting the
Canadian Motor Vehicle Arbitration Plan Office at:
Canadian Motor Vehicle Arbitration Plan
235 Yorkland Boulevard, suite 300
North York, Ontario
M2J 4Y8
http://camvap.ca
Provincial Administrators may be reached locally as listed below:
Province/Territory CAMVAP Number
British Columbia & Yukon Territories 1 (800) 207-0685
Alberta & Northwest Territories 1 (800) 207-0685
Saskatchewan 1 (800) 207-0685
Manitoba 1 (800) 207-0685
Ontario 1 (800) 207-0685
Atlantic Canada 1 (800) 207-0685
Quebec 1 (800) 207-0685
qRegional Offices
REGIONAL OFFICES AREAS COVERED
MAZDA CANADA INC.
WESTERN REGION
8171 ACKROYD ROAD
SUITE 2000
RICHMOND B.C.
V6X 3K1
(604) 303-5670ALBERTA,
BRITISH COLUMBIA,
MANITOBA,
SASKATCHEWAN,
YUKON
MAZDA CANADA INC.
CENTRAL/ATLANTIC REGION
55 VOGELL ROAD,
RICHMOND HILL,
ONTARIO, L4B 3K5
(905) 787-7000ONTARIO
MAZDA CANADA INC.
QUEBEC REGION
6111 ROUTE TRANS
CANADIENNE
POINTE CLAIRE, QUEBEC
H9R 5A5
(514) 694-6390QUEBEC,
NEW BRUNSWICK,
NOVA SCOTIA,
PRINCE EDWARD ISLAND,
NEWFOUNDLAND
9-6
Customer Information and Reporting Safety Defects
Customer Assistance
RX-8_8U58-EA-05J_Edition1 Page330
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J
