weight MAZDA MODEL RX 8 2006 (in English) Owner's Guide

Black plate (358,1)

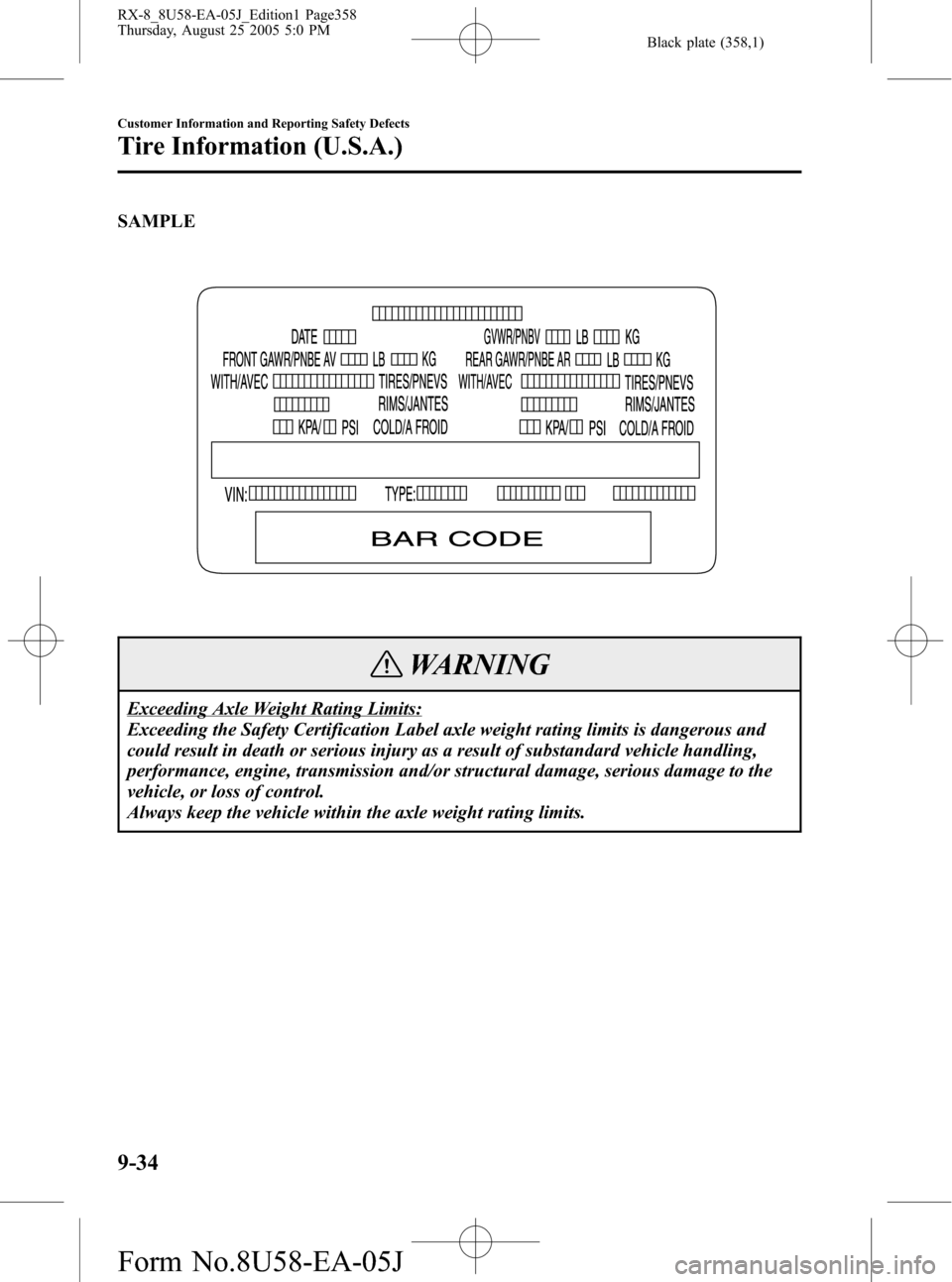

SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
9-34
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
RX-8_8U58-EA-05J_Edition1 Page358
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (359,1)
GCW
GCW (Gross Combined Weight)is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.
GCWR (Gross Combined Weight Rating)is the maximum allowable weight of the
vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated
for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs).The GCW must
never exceed the GCWR.
Maximum Loaded Trailer Weightis the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or
external), a tongue load of 10_
15% (conventional trailer) or king pin weight of 15_
25%
(fifth-wheel trailer), and driver only (150 lbs).Consult your dealership (or the RV and
Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weightrefers to the amount of the weight that a
trailer pushes down on a trailer hitch.
Examples:For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb fifth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-35
RX-8_8U58-EA-05J_Edition1 Page359
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (361,1)
Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combined weight of occupants and cargo should never
exceed XXX kg or XXX lbs”on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your
vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity.
For example, if the“XXX”amount equals 1400 lbs. and there will be five 150 lb
passengers in your vehicle, the amount of available cargo and luggage load capacity is
650 lbs. (1400_
750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle.
That weight may not safely exceed the available cargo and luggage load capacity
calculated in Step 4.
(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to
your vehicle. Consult this manual to determine how this reduces the available cargo
and luggage load capacity of your vehicle.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-37
RX-8_8U58-EA-05J_Edition1 Page361
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (369,1)
qCapacities
(Approximate Quantities)
ItemUnit
L US qt Imp qt
Engine oilWith oil filter replacement 3.5 3.7 3.1
Without oil filter replacement 3.3 3.5 2.9
Coolant 9.8 10.4 8.6
Manual transmission oil 1.75 1.85 1.54
Automatic transmission fluid 7.9 8.4 7.0
Rear differential oil 1.3 1.4 1.1
Fuel tank 60 15.9 (US gal) 13.2 (Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Model
Overall length 4,425 mm (174.2 in), 4,430 mm*(174.4 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,340 mm (52.8 in)
Front tread 1,500 mm (59.1 in)
Rear tread 1,505 mm (59.3 in)
Wheelbase 2,700 mm (106.3 in)
*With license plate holder
qWeights
ItemWeight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight Rating) 1,728 kg (3,810 lbs) 1,748 kg (3,854 lbs)
GAWR (Gross Axle Weight Rating)Front 827 kg (1,823 lbs) 844 kg (1,861 lbs)
Rear 901 kg (1,986 lbs) 907 kg (2,000 lbs)
CW (Curb Weight)U.S.A. 1,381 kg (3,045 lbs) 1,395 kg (3,075 lbs)
Canada 1,389 kg (3,062 lbs) 1,404 kg (3,095 lbs)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.42 kg (14.8 oz)
Specifications
10-5
RX-8_8U58-EA-05J_Edition1 Page369
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (371,1)
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-27.
Tire sizeInflation pressure
Front Rear
225/55R16 94V
220 kPa (32 psi) 220 kPa (32 psi)
225/45R18 91W
Vehicle capacity weight: 308 kg (680 lbs)
qFuses
Refer to the fuse rating on page 8-39.
Specifications
10-7
RX-8_8U58-EA-05J_Edition1 Page371
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (379,1)
