qEngine Overrev Warning Beep
The beep sounds to indicate engine
overrev when the tachometer needle
enters the striped zone (page 5-34).
qTire Inflation Pressure Warning
Beepí
The warning beep sound will be heard for
about 3 seconds when there is any
abnormality in tire inflation pressures
(page 5-26).
qAdvanced Keyless Warning (with
Advanced Key)
Warning indicators for the advanced key,
such as“the advanced key removed from
vehicle warning”, use a beep sound and
warning/indicator lights in the instrument
cluster.
Refer to Warning and Beep Sounds on
page 3-18.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-53íSome models. RX-8_8U58-EA-05J_Edition1 Page183
Thursday, August 25 2005 4:56 PM
Form No.8U58-EA-05J

Black plate (184,1)
Lighting Control
qHeadlights
To turn on the lights, turn the headlight
switch on the end of the control lever.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard
illuminationOff On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off unless safety requires them.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the brightness
weakens, the bulb-life may be depleted
and a replacement is necessary. Consult
an Authorized Mazda Dealer.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
NOTE
When the advanced keyless function is
used and the start knob is in the ACC
position, the“Start Knob Not in LOCK
Warning Beep”(page 3-18) overrides
the lights-on reminder.
5-54
Driving Your Mazda
íSome models.
Switches and Controls
RX-8_8U58-EA-05J_Edition1 Page184
Thursday, August 25 2005 4:56 PM
Form No.8U58-EA-05J

Black plate (234,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
The vanity mirror light will illuminate
when you open the cover.
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) and the courtesy
lights turn on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition key is
removed.
lAbout 15 seconds after all doors are
closed (If your vehicle is equipped with
the advanced key, the overhead light
turns on for about 5 seconds when the
advanced key is outside of the vehicle).
lAbout 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light goes
out after about 30 minutes to save the
battery.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
6-38
Interior Comfort
Interior Equipment
RX-8_8U58-EA-05J_Edition1 Page234
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (242,1)
Storage Compartments
WARNING
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
CAUTION
Don't leave lighters or eyeglasses in the
storage boxes while parked under the
sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
accessories. Push and release to open.
qCoin Box
To open, press the release catch down and
pull the lid downward.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Unlock
Lock
6-46
Interior Comfort
Interior Equipment
RX-8_8U58-EA-05J_Edition1 Page242
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (244,1)
To open, squeeze the latch and pull the lid
down.
When closing the storage box, put the
storage box back in its original position
until you hear a click sound.
NOTE
When using the storage box to store
heavy accessories, remove the storage
box before placing or removing the
accessories.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock Unlock
Loading long objects with storage box
removed
The storage box can be removed for
convenient loading of long objects such as
skis placed through the trunk.
WARNING
Loading Long Objects Through
Removed Storage Box Area:
Sudden braking or maneuvering while
long objects are loaded through the
removed storage box area and into the
trunk is dangerous. Operation of the
shift/selector lever could be obstructed
resulting in a serious accident. Secure
long objects in the trunk so that they
cannot be thrown forward in the cabin
and avoid sudden braking or
maneuvering.
6-48
Interior Comfort
Interior Equipment
RX-8_8U58-EA-05J_Edition1 Page244
Thursday, August 25 2005 4:58 PM
Form No.8U58-EA-05J

Black plate (261,1)

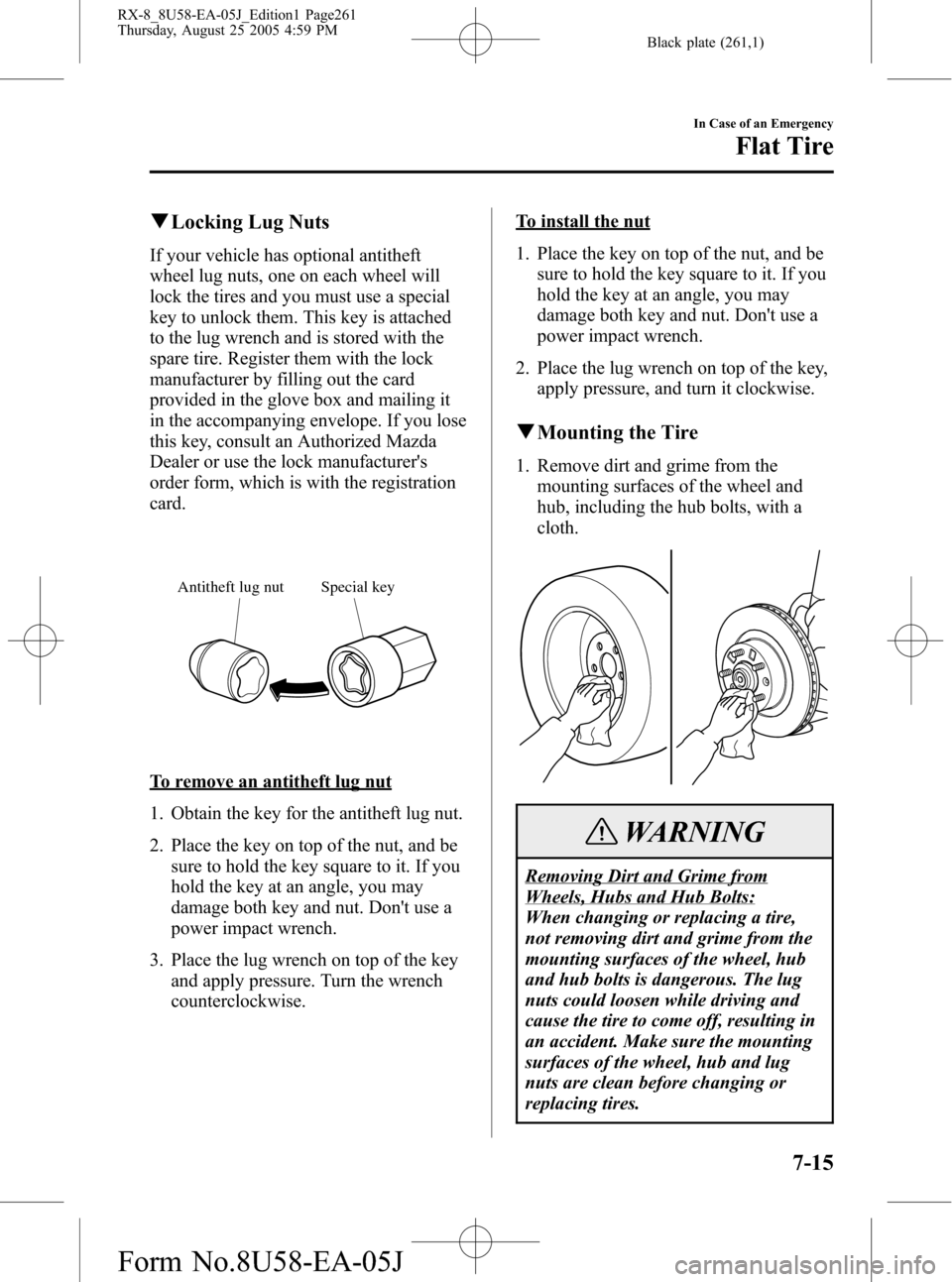

qLocking Lug Nuts
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
this key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the key for the antitheft lug nut.
2. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To install the nut
1. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.
qMounting the Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
In Case of an Emergency
Flat Tire
7-15
RX-8_8U58-EA-05J_Edition1 Page261
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (316,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
17 FOG 15A Fog lights
í
18 A/C MAG 10A Air conditioner
19 IG 30A For protection of various circuits
20 IG KEY 15A For protection of various circuits
21 STOP 15A Brake lights
22 FUEL PUMP 20A Fuel pump
23 HORN 15A Horn
24 HAZARD 15A Hazard warning flashers, Turn signals
25 ETV 15A Electric throttle valve
26 WIPER 20A Windshield wiper and washer
27 P.WIND 20A Power windows
28 ENGINE 15AEngine control system, Supplemental restraint system, ABS,
Power steering
29 TAIL 10ATaillights, License plate light, Parking lights, Front side-maker
lights, Rear side-marker lights
30 ILLUMI 10A Illuminated entry system
31 EGI COMP1 10A Engine control system
32 EGI COMP2 10A Engine control system
33 EGI INJ 15A Fuel injector
34 EPS 60A Power steering
8-42
Maintenance and Care
íSome models.
Owner Maintenance
RX-8_8U58-EA-05J_Edition1 Page316
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (374,1)
A
Accessory Socket .............................. 6-49
Add-On Non-Genuine Parts and
Accessories ....................................... 9-13
Advanced Key ..................................... 3-2
Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-17
Auxiliary key .............................. 3-16
Locking, unlocking with request
switch ........................................... 3-8
Opening the trunk lid with request
switch ......................................... 3-10
Operational range ......................... 3-7
Remote control function ............. 3-14
Service ......................................... 3-6
Air Bag Systems ............................... 2-30
Air Filter ............................................ 8-21
Ambient Temperature Display .......... 6-42
Antenna ............................................. 6-10
Anti-Lock Brake System (ABS) ......... 5-7
Warning light ............................... 5-7
Appearance Care ............................... 8-44
Ashtray .............................................. 6-44
Audio System ................................... 6-10
Audio control switch .................. 6-34
Audio set .................................... 6-17
Operating tips for audio
system ........................................ 6-10
Safety certification ..................... 6-37
Automatic Transmission
Driving tips ................................ 5-17
Manual shift mode ..................... 5-13
Shift-lock system ....................... 5-12
Transmission ranges ................... 5-11
B
Battery
Emergency starting .................... 7-20
Maintenance ............................... 8-24
Specifications ............................. 10-4
Beep Sounds
Engine overrev warning beep .... 5-53
Ignition key reminder ................. 5-52
Lights-on reminder ..................... 5-52
Seat belt warning beep ............... 5-52
Tire inflation pressure warning
beep ............................................ 5-53
Before Starting the Engine .................. 4-6
After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-20
Brake/Clutch
Fluid ........................................... 8-18
Brakes
Anti-lock brake system (ABS) ..... 5-7
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-32
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-14
Center Console .................................. 6-47
11-2
Index
RX-8_8U58-EA-05J_Edition1 Page374
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (376,1)
F
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-40
Gauge ......................................... 5-36
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-39
Panel description ........................ 8-41
Replacement ............................... 8-39
G
Gauges .............................................. 5-32
Glove Box ......................................... 6-46
H
Hazard Warning Flasher .................... 5-61
Hazardous Driving .............................. 4-8
Headlight Washer .............................. 5-59
Headlights
Control ....................................... 5-54
Flashing ...................................... 5-55
High-low beam .......................... 5-55
Leveling ..................................... 5-55
On reminder ............................... 5-54
HomeLink Wireless Control
System .............................................. 5-61
Hood Release .................................... 3-42
Horn .................................................. 5-60
I
Ignition
Keys ........................................... 3-22
Switch .......................................... 5-2
Illuminated Entry System ................. 6-38
I
Immobilizer System
(with Advanced Key) ........................ 3-45
Immobilizer System
(without Advanced Key) ................... 3-48
Indicator Lights ................................. 5-38
Cruise ......................................... 5-50
DSC OFF .................................... 5-50
Headlight auto-leveling
malfunction ................................ 5-51
Headlight high-beam .................. 5-49
power steering malfunction ........ 5-51
Security ...................................... 5-48
Shift position .............................. 5-49
TCS/DSC ................................... 5-50
Turn-signal/hazard warning ....... 5-51
Information Display .......................... 6-41
Ambient temperature display ..... 6-42
Audio display ............................. 6-43
Climate control display .............. 6-43
Clock .......................................... 6-42
Information display functions .... 6-41
Inside Trunk Release Lever ............... 3-36
Instrument Cluster ............................. 5-32
Interior Care ...................................... 8-49
Interior Lights ................................... 6-38
J
Jump-Starting .................................... 7-21
K
Keyless Entry System ....................... 3-23
Keys .................................................. 3-22
L
Label Information ............................. 10-2
11-4
Index
RX-8_8U58-EA-05J_Edition1 Page376
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (378,1)
S
Seats
Front seat
(Electrically operated seats) ......... 2-5
Front seat
(Manually operated seats) ............ 2-2
Rear seat ....................................... 2-8
Security System
Immobilizer system
(with advanced key) ................... 3-45
Immobilizer system
(without advanced key) .............. 3-48
Theft-deterrent system ............... 3-51
Service Publications .......................... 9-40
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speed Unit Selector ........................... 5-33
Speedometer ...................................... 5-33
SRS Air Bags
How the Air Bags Work ............. 2-37
Supplemental restraint systems
precautions ................................. 2-30
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-53
Horn ........................................... 5-60
Storage Box ...................................... 6-47
Storage Compartments ...................... 6-46
Center console ............................ 6-47
Coin box ..................................... 6-46
Glove box ................................... 6-46
Overhead console ....................... 6-46
Storage box ................................ 6-47
Sunshade ........................................... 3-44
Sunvisors .......................................... 6-38
T
Tachometer ........................................ 5-34
Temporary Spare Tire ....................... 8-30
T
Theft-Deterrent System ..................... 3-51
Tiedown
Hook .......................................... 7-26
Tire Information ................................ 9-18
Tire Pressure Monitoring System ...... 5-26
System error activation .............. 5-29
Tire pressure monitoring system
warning light .............................. 5-27
Tires and wheels ......................... 5-30
Tires
Flat tire ......................................... 7-3
Inflation pressure ........................ 8-27
Replacement ............................... 8-29
Rotation ...................................... 8-28
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-16
Tool ..................................................... 7-3
Towing
Description ................................. 7-25
Emergency towing ..................... 7-25
Recreational towing ................... 7-27
Trailer towing ............................. 4-13
Traction Control System (TCS) ........ 5-22
TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-13
Trip Meter ......................................... 5-33
Trunk Lid .......................................... 3-33
Inside trunk release lever ............ 3-36
Trunk Light ....................................... 3-35
Turn and Lane-Change Signals ......... 5-56
V
Vanity Mirrors ................................... 6-38
11-6
Index
RX-8_8U58-EA-05J_Edition1 Page378
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J
