Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
a leak.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake/clutch
fluid, washer fluid, and other fluid
levels should be inspected. See
Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?
lIs the seat adjusted properly?
lAre the inside and outside mirrors
adjusted?
lIs everyone's seat belt fastened?
lCheck all gauges.
lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
4-6
Before Driving Your Mazda
Before Starting the Engine
RX-8_8U58-EA-05J_Edition1 Page122
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (125,1)
Rocking the Vehicle
WARNING
Spinning the Wheels:
When the vehicle is stuck, spinning
the wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries. Don't spin the wheels at more
than 56 km/h (35 mph), and don't
allow anyone to stand behind a wheel
when pushing the vehicle.
CAUTION
Too much rocking may cause engine
overheating, transmission failure, and
tire damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the
accelerator slightly and slowly move the
shift lever from 1 (D) to R.
Winter Driving
lCarry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
lHave the proper ratio of antifreeze in
the radiator.
Refer to Engine Coolant on page 8-15.
lInspect the battery and its cables. Cold
reduces battery capacity.
lInspect the ignition system for damage
and loose connections.
lUse washer fluid made with
antifreeze―but don't use engine
coolant antifreeze for washer fluid
(page 8-19).
lDon't use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P with an
automatic transmission and to 1 or R
with a manual transmission. Block the
rear wheels.
Before Driving Your Mazda
Driving Tips
4-9
RX-8_8U58-EA-05J_Edition1 Page125
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (134,1)
Starting the Engine
NOTE
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of radio
noise.
1. Occupants should fasten their seat
belts.
2. Make sure the parking brake is on.
3. Depress the brake pedal.
4.(Manual transmission)
Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate if the clutch
pedal isnotdepressed all the way.
(Automatic transmission)
The starter will not operate if the shift
lever isnotin P or N.
5. Turn the ignition switch to the START
position and hold (up to 10 seconds at
a time) until the engine starts.
CAUTION
Don't try the starter for more than 10
seconds at a time. If the engine stalls or
fails to start, wait 10 seconds before
trying again. Otherwise, you may
damage the starter and drain the battery.
6. After starting the engine, let it idle for
about 10 seconds.
NOTE
lIn extremely cold weather, below
_
18 °C (0 °F), or after the vehicle
has not been driven in several days,
let the engine warm up without
operating the accelerator.
lWhether the engine is cold or warm,
it should be started without use of
the accelerator.
lTo protect the engine, when the
engine coolant temperature is low,
the engine does not run at high
speeds. The fuel supply will be cut at
an rpm lower than the red zone.
5-4
Driving Your Mazda
Starting and Driving
RX-8_8U58-EA-05J_Edition1 Page134
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (162,1)
Meters and Gauges
When the ignition switch is in the ON position, the dashboard gauges illuminate.
Speedometer ...................................................................................................... page 5-33
Speed Unit Selector ........................................................................................... page 5-33
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-33
Tachometer ........................................................................................................ page 5-34
Engine Coolant Temperature Gauge .................................................................. page 5-35
Fuel Gauge ........................................................................................................ page 5-36
Engine Oil Pressure Gauge ................................................................................ page 5-36
5-32
Driving Your Mazda
Instrument Cluster and Indicators
RX-8_8U58-EA-05J_Edition1 Page162
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (165,1)
Manual transmission
Red zone Striped zone
CAUTION
Don't run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
NOTE
lThe beep sounds to indicate engine
overrev when the tachometer needle
enters the striped zone.
lTo protect the engine, when the
engine coolant temperature is low,
the engine does not run at high
speeds. The fuel supply will be cut at
an rpm lower than the red zone.
qEngine Coolant Temperature Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
CAUTION
Driving with an overheated engine can
cause serious engine damage (page
7-18).
Driving Your Mazda
Instrument Cluster and Indicators
5-35
RX-8_8U58-EA-05J_Edition1 Page165
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (168,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-40
Charging System Warning Light 5-41
Engine Oil Level Warning Light 5-42
Engine Coolant Level Warning Light 5-42
Check Engine Light 5-43
ABS Warning Light 5-40
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-43
Low Fuel Warning Light 5-44
Seat Belt Warning Light/Beep 5-44
5-38
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8U58-EA-05J_Edition1 Page168
Thursday, August 25 2005 4:55 PM
Form No.8U58-EA-05J

Black plate (172,1)
CAUTION
Don't continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.

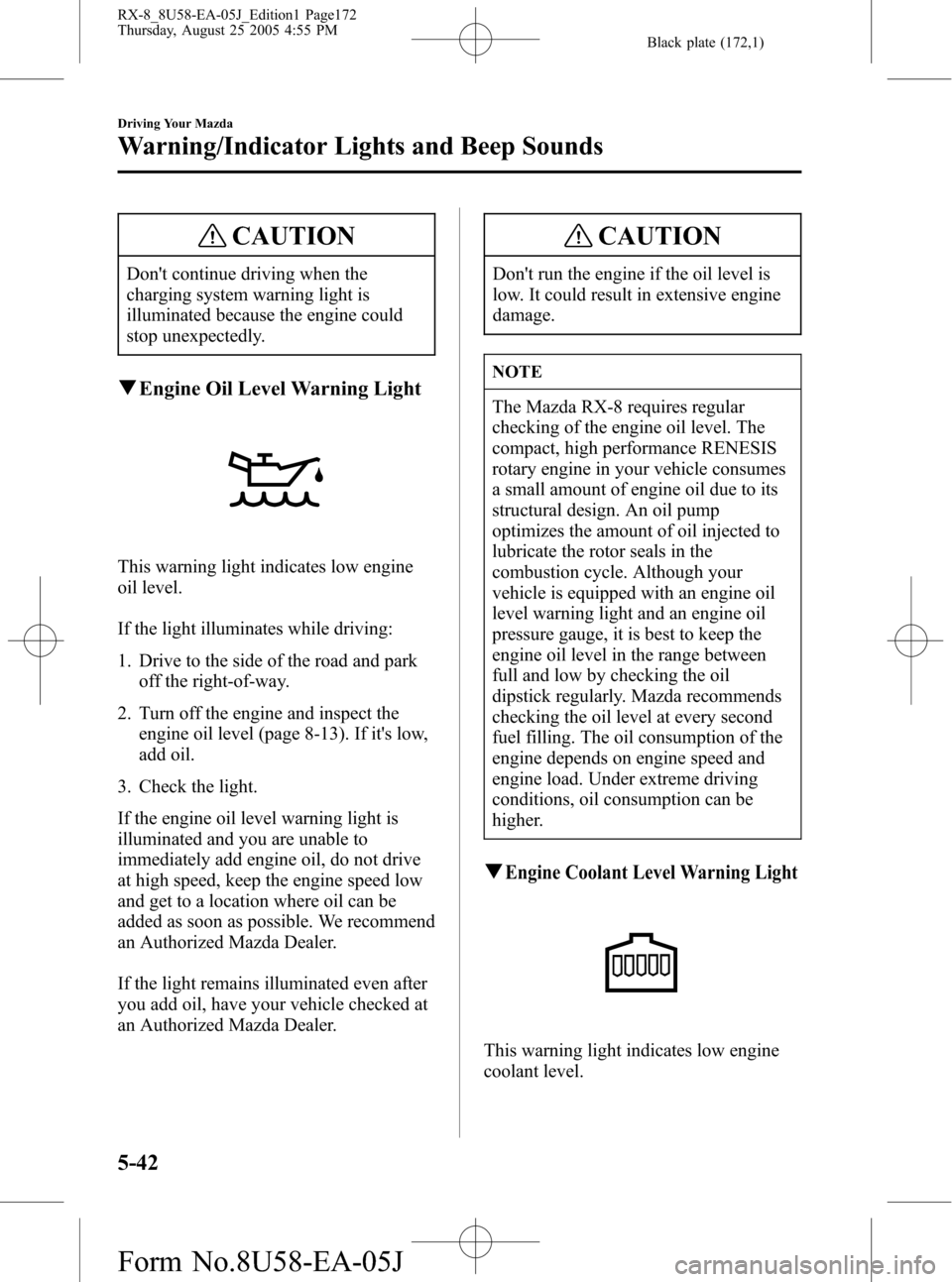

qEngine Oil Level Warning Light
This warning light indicates low engine
oil level.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the
engine oil level (page 8-13). If it's low,
add oil.
3. Check the light.
If the engine oil level warning light is
illuminated and you are unable to
immediately add engine oil, do not drive
at high speed, keep the engine speed low
and get to a location where oil can be
added as soon as possible. We recommend
an Authorized Mazda Dealer.
If the light remains illuminated even after
you add oil, have your vehicle checked at
an Authorized Mazda Dealer.
CAUTION
Don't run the engine if the oil level is
low. It could result in extensive engine
damage.
NOTE
The Mazda RX-8 requires regular
checking of the engine oil level. The
compact, high performance RENESIS
rotary engine in your vehicle consumes
a small amount of engine oil due to its
structural design. An oil pump
optimizes the amount of oil injected to
lubricate the rotor seals in the
combustion cycle. Although your
vehicle is equipped with an engine oil
level warning light and an engine oil
pressure gauge, it is best to keep the
engine oil level in the range between
full and low by checking the oil
dipstick regularly. Mazda recommends
checking the oil level at every second
fuel filling. The oil consumption of the
engine depends on engine speed and
engine load. Under extreme driving
conditions, oil consumption can be
higher.
qEngine Coolant Level Warning Light
This warning light indicates low engine
coolant level.
5-42
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8U58-EA-05J_Edition1 Page172
Thursday, August 25 2005 4:55 PM
Form No.8U58-EA-05J

Black plate (173,1)
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the
engine coolant level (page 8-15). If it's
low, add engine coolant.
3. Check the light.
If the light remains illuminated even after
you add engine coolant, have your vehicle
towed to an Authorized Mazda Dealer.
CAUTION
Don't run the engine if the engine
coolant level is low. It could result in
extensive engine damage.
qCheck Engine Light
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-43
RX-8_8U58-EA-05J_Edition1 Page173
Thursday, August 25 2005 4:55 PM
Form No.8U58-EA-05J

Black plate (264,1)
Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.
WARNING
Electrical Fan and Engine
Inspection:
Working near the electrical cooling
fan when it is running is dangerous.
You could be hit by the fan and
seriously injured. Turn off the ignition
switch and make sure the fan is not
running before attempting to work
near the electrical cooling fan.
Cooling System Cap:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury. Don't remove the cooling
system cap when the engine and
radiator are hot.
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.
NOTE
Once the engine coolant exceeds a
preset temperature, an electrical cooling
fan turns on. It will continue running
for about 10 minutes after the ignition
switch is turned to off.
If the temperature gauge indicates
overheating:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic
transmission in park (P), a manual
transmission in neutral.
Apply the parking brake.
3. Turn off the air conditioner.
4. Check whether coolant or steam is
escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don't go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
7-18
In Case of an Emergency
Overheating
RX-8_8U58-EA-05J_Edition1 Page264
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (265,1)
5. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
6. When cool, check the coolant level.
If it's low, look for coolant leaks from
the radiator and hoses.
If you find a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
8-15).
CAUTION
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.
In Case of an Emergency
Overheating
7-19
RX-8_8U58-EA-05J_Edition1 Page265
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J
