MAZDA MODEL RX 8 2008 Owners Manual (in English)

Black plate (241,1)

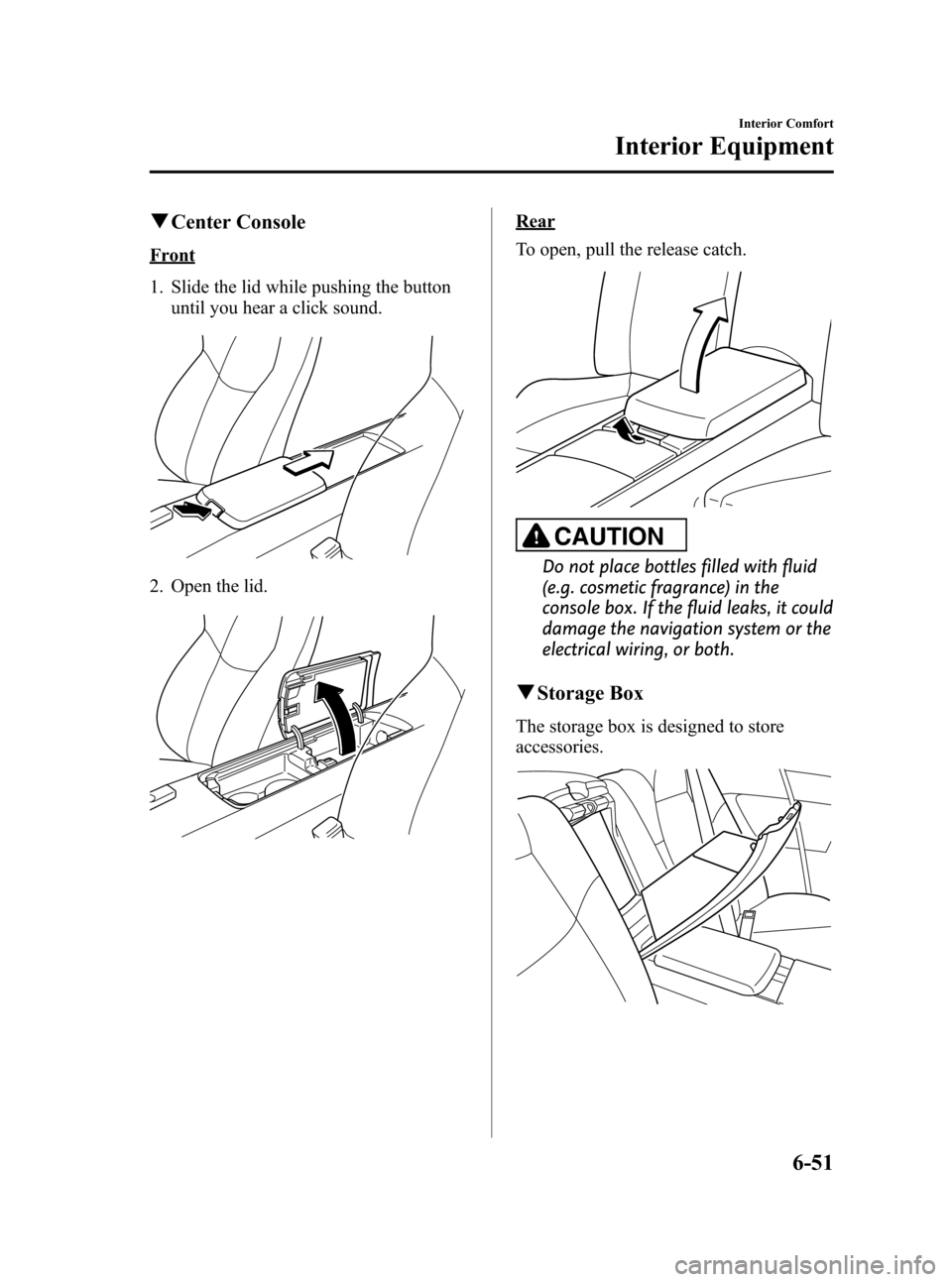

qCenter Console
Front
1. Slide the lid while pushing the button
until you hear a click sound.
2. Open the lid.
Rear
To open, pull the release catch.
CAUTION
Do not place bottles filled with fluid
(e.g. cosmetic fragrance) in the
console box. If the fluid leaks, it could
damage the navigation system or the
electrical wiring, or both.
qStorage Box
The storage box is designed to store
accessories.
Interior Comfort
Interior Equipment
6-51
RX-8_8X44-EA-07G_Edition1 Page241
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G

Black plate (242,1)
To open, squeeze the latch and pull the lid
down.
When closing the storage box, put the
storage box back in its original position
until you hear a click sound.
NOTE
When using the storage box to store heavy
accessories, remove the storage box before
placing or removing the accessories.
Insert the key (auxiliary key*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock
Unlock
Loading long objects with storage box
removed
The storage box can be removed for
convenient loading of long objects such as
skis placed through the trunk.
WARNING
Secure long objects in the trunk so that
they cannot be thrown forward in the
cabin and avoid sudden breaking or
maneuvering:
Sudden braking or maneuvering
while long objects are loaded
through the removed storage box
area and into the trunk is dangerous.
Operation of the shift/selector lever
could be obstructed resulting in a
serious accident.
6-52
Interior Comfort
Interior Equipment
RX-8_8X44-EA-07G_Edition1 Page242
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G

Black plate (243,1)
Accessory Socket
The ignition switch must be in the ACC
or ON position.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The accessory socket is in the center
console.
CAUTION
To prevent accessory socket damage
or electrical failure, pay attention to
the following:
ØDo not use accessories that require
more than 120 W (DC 12 V, 10 A).
Ø Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
Ø Close the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.
Ø Correctly insert the plug into the
accessory socket.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-53
RX-8_8X44-EA-07G_Edition1 Page243
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G

Black plate (244,1)
6-54
RX-8_8X44-EA-07G_Edition1 Page244
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G

Black plate (245,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Spare Tire and Tool Storage ...................................................... 7-3
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit ............................................................................................. 7-5
Changing the Tire .................................................................... 7-11
Overheating ................................................................................. 7-16 Overheating ............................................................................. 7-16
Emergency Starting .................................................................... 7-18 Starting a Flooded Engine ....................................................... 7-18
Jump-Starting .......................................................................... 7-19
Push-Starting ........................................................................... 7-22
Emergency Towing ..................................................................... 7-23 Towing Description ................................................................. 7-23
Tiedown Hooks ....................................................................... 7-24
Recreational Towing ............................................................... 7-25
7-1
RX-8_8X44-EA-07G_Edition1 Page245
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G

Black plate (246,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
RX-8_8X44-EA-07G_Edition1 Page246
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G

Black plate (247,1)
Spare Tire and Tool Storage
Tools are stored in the locations illustrated in the diagram.
Lug wrench
Tiedown eyelet
Jack handle
Jack Instant Mobility System (IMS) Emergency Flat Tire Repair Kit
Tool box
In Case of an Emergency
Flat Tire
7-3
RX-8_8X44-EA-07G_Edition1 Page247
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G

Black plate (248,1)
qJack
To remove the jack
1. Open the tool box.
2. Turn the jack screw counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
qSpare Tire
A temporary spare tire is not equipped
with your Mazda. If an emergency tire
repair is needed, repair the flat tire with
the emergency flat tire repair kit (page
7-5). If you require a temporary spare tire,
consult an Authorized Mazda Dealer.
When installing a temporary spare tire,
follow the manufacturer's instructions for
the temporary spare tire. The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
in place of a driving wheel:
Driving with the temporary spare tire
on one of the driving wheels is
dangerous. Especially on ice or snow.
Handling will be affected. You could
lose control of the vehicle and have
an accident. Move a regular tire to a
driving wheel and install the
temporary spare tire to the non-
driving wheel.
7-4
In Case of an Emergency
Flat Tire
RX-8_8X44-EA-07G_Edition1 Page248
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G

Black plate (249,1)
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire.
Drive carefully.
Ø To avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the
ground clearance is reduced
about 25 mm (1 in).
ØDo not use a tire chain on this
tire because it won't fit
properly.
ØDo not use your temporary
spare tire on any other vehicle;
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
(With limited slip differential)
When using the temporary spare tire
on the rear axle, replace it with a
standard tire as soon as possible. The
size difference between the spare and
the standard tire will cause the
limited slip differential to
malfunction.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-28).
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit.
After temporarily repairing a tire with the
emergency flat tire repair kit, take your vehicle
to an Authorized Mazda Dealer to have the tire
replaced.
In Case of an Emergency
Flat Tire
7-5
RX-8_8X44-EA-07G_Edition1 Page249
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G

Black plate (250,1)
qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hose Compressor
Case Instruction
Repaired tire
stickerValve core
tool
Spare valve
core
Speed restriction
sticker
WARNING
Do not allow children to touch the tire
sealant:Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
Do not allow children to touch the tire
sealant: Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance. NOTE
lThe tire sealant cannot be reused. Purchase
new tire sealant at an Authorized Mazda
Dealer.
lThe emergency flat tire repair kit cannot be
used in the following cases.
Consult an Authorized Mazda Dealer.
lThe period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
lThe tear or puncture exceeds about
4 mm (0.16 in).
lThe damage has occurred to an area of
the tire other than the tread.
lThe vehicle has been driven with nearly
no air remaining in the tire.
lThe tire has come off the wheel rim.lDamage to the wheel rim has occurred.lThe tire has two or more punctures.
q
Using the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
7-6
In Case of an Emergency
Flat Tire
RX-8_8X44-EA-07G_Edition1 Page250
Friday, May 11 2007 5:4 PM
Form No.8X44-EA-07G
