warning light MAZDA MODEL RX 8 2009 Owners Manual (in English)

Black plate (368,1)

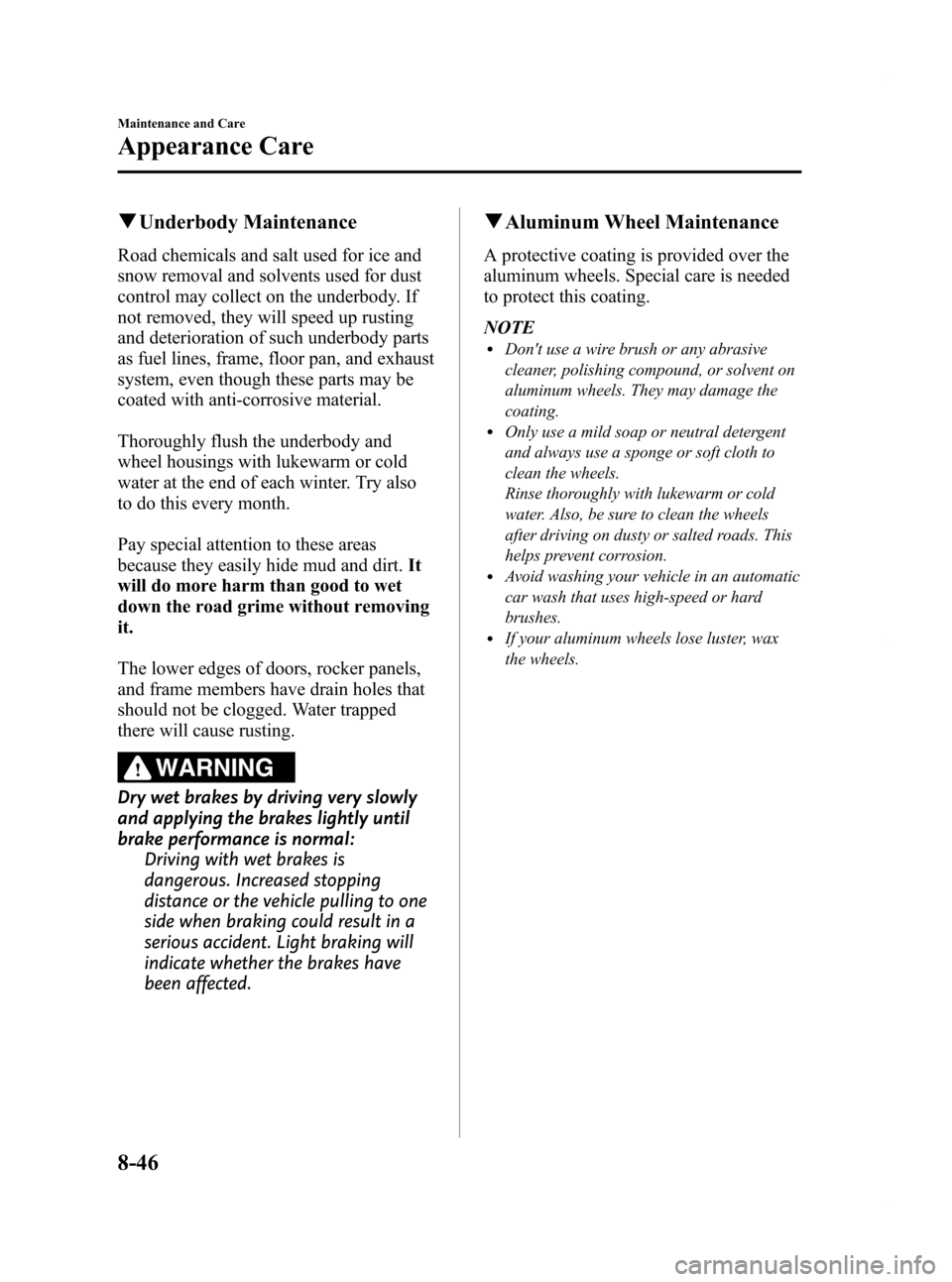

qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal: Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lOnly use a mild soap or neutral detergent
and always use a sponge or soft cloth to
clean the wheels.
Rinse thoroughly with lukewarm or cold
water. Also, be sure to clean the wheels
after driving on dusty or salted roads. This
helps prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
8-46
Maintenance and Care
Appearance Care
RX-8_8Z09-EA-08C_Edition3 Page368
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (392,1)
11. Tread wear, traction and temperature grades
12. Max. permissible inflation pressure
13. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing Association).
215
“215 ”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
65
“ 65 ”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R” is the tire construction symbol. R indicates “Radial ply construction ”.
15
“15 ”is the wheel rim diameter in inches.
95
“95 ”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
9-22
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
RX-8_8Z09-EA-08C_Edition3 Page392
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (424,1)
A
Accessory Socket .............................. 6-87
Add-On Non-Genuine Parts and
Accessories ....................................... 9-15
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-16
Auxiliary key .............................. 3-16
Locking, unlocking with request
switch ........................................... 3-8
Opening the trunk lid with request
switch ........................................... 3-9
Operational range ......................... 3-7
Remote control function ............. 3-14
Service ......................................... 3-6
Air Bag Systems ............................... 2-38
Ambient Temperature Display .......... 6-80
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-8 Warning light ............................... 5-8
Appearance Care ............................... 8-42
Ashtray .............................................. 6-82
Audio System ................................... 6-15 Audio control switch .................. 6-54
Audio set .................................... 6-25
AUX mode ................................. 6-56
Operating tips for audio
system ........................................ 6-15
Safety certification ..................... 6-58
Automatic Transmission Direct mode ................................ 5-19
Driving tips ................................ 5-20
Manual shift mode ..................... 5-15
Shift-lock system ....................... 5-15
Transmission ranges ................... 5-14
B
BatteryEmergency starting .................... 7-18
Maintenance ............................... 8-21
Specifications ............................. 10-4
Beep Sounds Engine Oil Level Warning
Beep ........................................... 5-55
Engine overrev warning beep .... 5-55
Ignition key reminder ................. 5-55
Lights-on reminder ..................... 5-55
Seat belt warning beep ............... 5-55
Tire inflation pressure warning
beep ............................................ 5-55
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
Bluetooth Hands-Free ....................... 6-59 Basic Bluetooth Hands-Free
Operation ................................... 6-63
Convenient Use of the Hands-Free
System ........................................ 6-66
Hands-Free Telephone Setting .... 6-71
Mazda Bluetooth Hands-Free
Customer Service ....................... 6-76
Safety certification ..................... 6-76
When the Bluetooth Hands-Free
cannot be used ............................ 6-75
Body Lubrication .............................. 8-18
Brake/Clutch Fluid ........................................... 8-16
Brakes Anti-lock brake system (ABS) ..... 5-8
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-9
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-28
11-2
Index
RX-8_8Z09-EA-08C_Edition3 Page424
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (426,1)
F
FlasherHazard warning .......................... 5-66
Headlights .................................. 5-56
Flat Tire ............................................... 7-3 Changing .................................... 7-11
Instant Mobility System
(IMS) Emergency Flat Tire Repair
Kit ................................................ 7-5
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-4
Owner maintenance ..................... 8-8
Fog Lights ......................................... 5-60
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-6
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-42
Gauge ......................................... 5-38
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-36 Panel description ........................ 8-39
Replacement ............................... 8-36
G
Gauges .............................................. 5-35
Glove Box ......................................... 6-84
H
Hazard Warning Flasher .................... 5-66
Hazardous Driving .............................. 4-7
Headlight Washer .............................. 5-64
H
HeadlightsControl ....................................... 5-56
Flashing ...................................... 5-58
High-low beam .......................... 5-58
Leveling ..................................... 5-58
On reminder ............................... 5-58
HomeLink Wireless Control
System .............................................. 5-67
Hood Release .................................... 3-43
Horn .................................................. 5-66
I
Ignition
Keys ........................................... 3-21
Switch .......................................... 5-2
Illuminated Entry System ................. 6-77
Immobilizer System
(with Advanced Key) ........................ 3-47
Immobilizer System
(without Advanced Key) ................... 3-49
Indicator Lights ................................. 5-40
Cruise ......................................... 5-53
DSC OFF .................................... 5-53
Headlight auto-leveling
malfunction ................................ 5-54
Headlight high-beam .................. 5-52
Power steering malfunction ........ 5-54
Security ...................................... 5-51
Shift position .............................. 5-52
TCS/DSC ................................... 5-53
Turn-signal/hazard warning ....... 5-54
Information Display .......................... 6-79
Ambient temperature display ..... 6-80
Audio display ............................. 6-81
Climate control display .............. 6-81
Clock .......................................... 6-80
Information display functions .... 6-79
11-4
Index
RX-8_8Z09-EA-08C_Edition3 Page426
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (428,1)
S
Safety Defects, Reporting ................. 9-41
Seat Belt System3-point type ................................ 2-18
Automatic locking ...................... 2-16
Belt minder ................................. 2-23
Emergency locking .................... 2-16
Extender ..................................... 2-22
Location of seat belt ................... 2-17
Pregnant women ........................ 2-16
Pretensioner and load limiting .... 2-19
Seat belt precautions .................. 2-14
Warning light/beep ..................... 2-23
Seats Front seat
(Electrically operated seats) ......... 2-6
Front seat
(Manually operated seats) ............ 2-2
Rear seat ..................................... 2-11
Seat warmer ................................ 2-12
Security System Immobilizer system
(with advanced key) ................... 3-47
Immobilizer system
(without advanced key) .............. 3-49
Service Publications .......................... 9-43
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speed Unit Selector ........................... 5-36
Speedometer ...................................... 5-36
SRS Air Bags How the Air Bags Work ............. 2-44
Supplemental restraint systems
precautions ................................. 2-38
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-54 Horn ........................................... 5-66
Storage Box ...................................... 6-85
S
Storage Compartments ...................... 6-84 Center console ............................ 6-85
Coin box ..................................... 6-84
Glove box ................................... 6-84
Overhead console ....................... 6-84
Storage box ................................ 6-85
Sunshade ........................................... 3-46
Sunvisors .......................................... 6-77
T
Tachometer ........................................ 5-37
Temporary Spare Tire ....................... 8-26
Theft-Deterrent System ..................... 3-52
Tiedown
Hook .......................................... 7-24
Tire Information ................................ 9-21
Tire Pressure Monitoring System ...... 5-29
System error activation .............. 5-33
Tire pressure monitoring system
warning light .............................. 5-31
Tires and wheels ......................... 5-33
Tires Flat tire ......................................... 7-3
Inflation pressure ........................ 8-23
Replacement ............................... 8-25
Rotation ...................................... 8-24
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-19
Tool ..................................................... 7-3
11-6
Index
RX-8_8Z09-EA-08C_Edition3 Page428
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (429,1)
T
TowingDescription ................................. 7-23
Emergency towing ..................... 7-23
Recreational towing ................... 7-25
Trailer towing ............................. 4-13
Traction Control System (TCS) ........ 5-25 TCS/DSC indicator light ............ 5-25
Trailer Towing .................................. 4-13
Trip Meter ......................................... 5-36
Trunk Lid .......................................... 3-32 Inside trunk release lever ............ 3-34
Trunk Light ....................................... 3-33
Turn and Lane-Change Signals ......... 5-59
V
Vanity Mirrors ................................... 6-77
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-40 ABS ............................................ 5-42
Air bag system ........................... 5-45
Automatic transmission .............. 5-48
Brake system .............................. 5-42
Charging system ......................... 5-43
Check engine .............................. 5-45
Door-ajar .................................... 5-47
Engine coolant level ................... 5-44
Engine oil level .......................... 5-43
Front seat belt pretensioner
system ........................................ 5-45
KEY Warning Light
(Red)/KEY Indicator Light
(Green) ....................................... 5-50
Low fuel ..................................... 5-46
Low washer fluid level ............... 5-47
Seat belt ...................................... 5-46
Tire pressure monitoring
system ........................................ 5-48
Warranty ............................................ 9-11
Washer Fluid ..................................... 8-17
Weights ............................................. 10-5
Wheel Replacement .......................... 8-27
Windows Power windows .......................... 3-35
Rear quarter windows ................ 3-41
Windshield Washer ........................... 5-64
Windshield Wipers ............................ 5-61 Blades replacement .................... 8-19
Winter Driving .................................... 4-9
Index
11-7
RX-8_8Z09-EA-08C_Edition3 Page429
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C
