emergency towing MAZDA MODEL RX 8 2009 Owners Manual (in English)

Black plate (297,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Spare Tire and Tool Storage ...................................................... 7-3
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit ............................................................................................. 7-5
Changing the Tire .................................................................... 7-11
Overheating ................................................................................. 7-16 Overheating ............................................................................. 7-16
Emergency Starting .................................................................... 7-18 Starting a Flooded Engine ....................................................... 7-18
Jump-Starting .......................................................................... 7-19
Push-Starting ........................................................................... 7-22
Emergency Towing ..................................................................... 7-23 Towing Description ................................................................. 7-23
Tiedown Hooks ....................................................................... 7-24
Recreational Towing ............................................................... 7-25
7-1
RX-8_8Z09-EA-08C_Edition3 Page297
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (318,1)

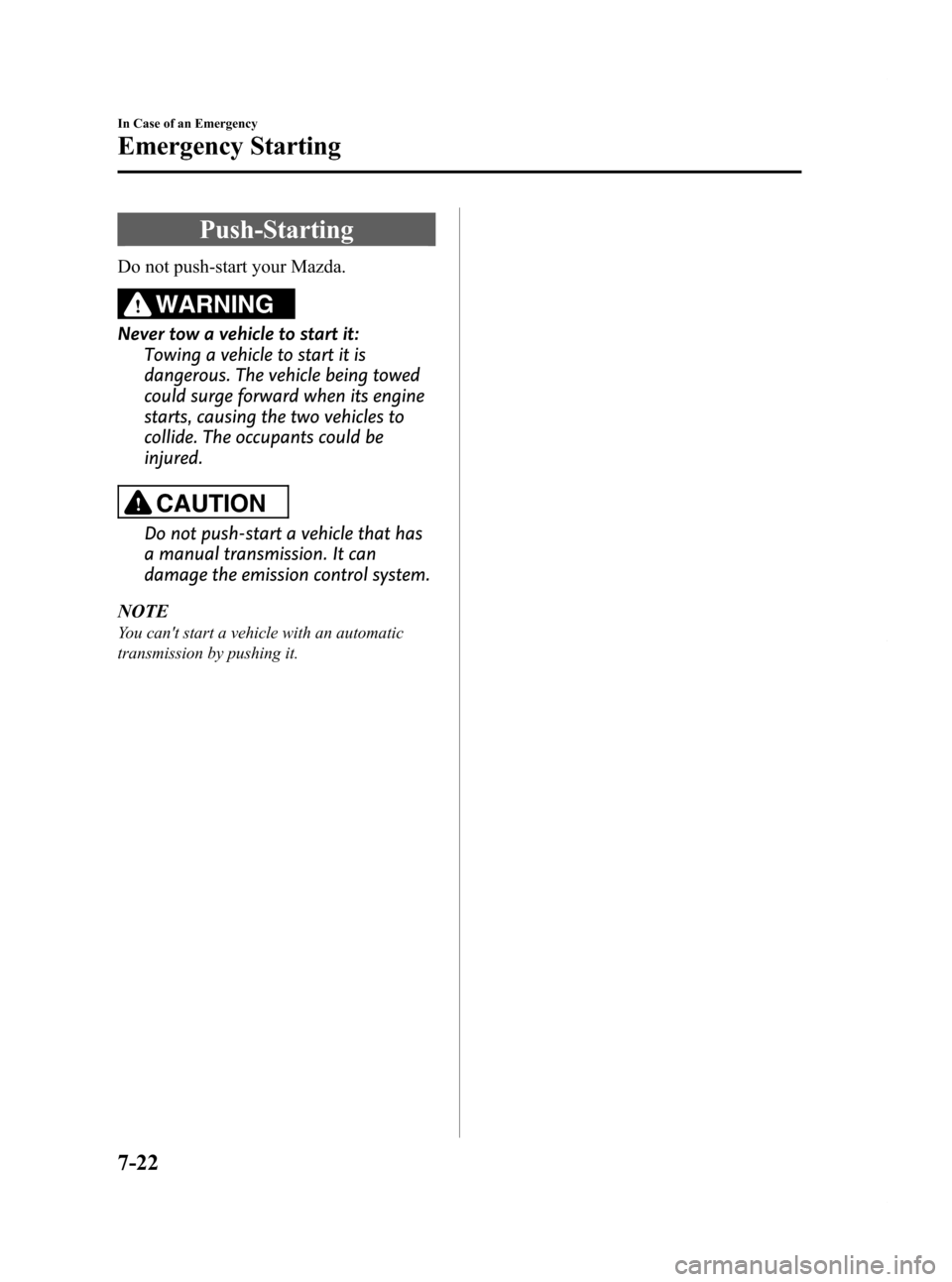

Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transmission. It can
damage the emission control system.
NOTE
You can't start a vehicle with an automatic
transmission by pushing it.
7-22
In Case of an Emergency
Emergency Starting
RX-8_8Z09-EA-08C_Edition3 Page318
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (319,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (rear wheels) off the ground.
If excessive damage or other conditions
prevent this, use wheel dollies.
Wheel dollies
CAUTION
Do not tow the vehicle pointed
forward with driving wheels on the
ground. This may cause internal
damage to the transmission.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
In Case of an Emergency
Emergency Towing
7-23
RX-8_8Z09-EA-08C_Edition3 Page319
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (320,1)
Tiedown Hooks
CAUTION
Don't use the tiedown hooks under
the front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing
will damage the bumper.
qTiedown Hooks
1. Remove the tiedown eyelet and the lug
wrench from the trunk (page 7-3).
2. Wrap the lug wrench with a soft cloth to prevent damage to the bumper and
open the cap located on the front and
rear bumper.
Front
Rear
CAUTION
The cap cannot be completely
removed. Do not use excessive force
as it may damage the cap or scratch
the painted bumper surface.
3. Securely install the tiedown eyelet using the lug wrench.
Front
Rear
7-24
In Case of an Emergency
Emergency Towing
RX-8_8Z09-EA-08C_Edition3 Page320
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (321,1)
4. Hook the tying rope to the tiedowneyelet.
Front
Rear
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
Recreational Towing
An example of “recreational towing ”is
towing your vehicle behind a motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-23) and
“ Tiedown Hooks ”(page 7-24) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-25
RX-8_8Z09-EA-08C_Edition3 Page321
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C
