Indicators
Shift position indicator
In manual shift mode, the“M ”of the shift
position indicator in the instrument panel
illuminates.
Gear position indicator
The numeral for the selected gear
illuminates.
Shift position
indicator
Gear position
indicator
NOTE
If the gears cannot be shifted down when
driving at higher speeds, the gear position
indicator will flash twice to signal that the
gears cannot be shifted down.
Shifting
You can shift gears up and down by
operating the shift lever or the steering
shift switches.
NOTE
lIf the steering shift switches on both sides
(left and right) are operated simultaneously,
the gear will shift once.
lThe gear will not shift if:lThe steering shift switch and the shift
lever are operated simultaneously.
lThe UP switch and DOWN switch are
operated simultaneously.
Manually Shifting up
(M1
→M2 →M3 →M4 →M5 →M6)
To shift up to a higher gear, tap the shift
lever back (
) once.
To shift up to a higher gear with the
steering shift switches, tap either of the
UP switches toward you once with your
fingers.
Up switches
WARNING
Keep your hands on the steering wheel
rim when using fingers or thumbs on
the steering shift switches: Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous.
If the driver air bag were to deploy in
a collision, your hands could be
impacted causing injury.
5-16
Driving Your Mazda
Starting and Driving
RX-8_8Z09-EA-08C_Edition3 Page154
Thursday, July 3 2008 2:23 PM
Form No.8Z09-EA-08C

Black plate (167,1)
Tire Pressure Monitoring Systemí
The tire pressure monitoring system (TPMS) monitors the pressure for each tire.
If tire pressure is too low in one or more tires, the system will inform the driver via the
warning light in the instrument panel and by the warning beep sound.
The tire pressure sensors installed on each wheel send tire pressure data by radio signal to
the receiver unit in the vehicle.
Tire pressure sensors
NOTE
When the ambient temperature is low due to seasonal changes, tire temperatures are also lower.
When the tire temperature decreases, the air pressure decreases as well. The TPMS warning light
may illuminate more frequently. Visually inspect the tires daily before driving, and check tire
pressures monthly with a tire pressure gauge. When checking tire pressures, use of a digital tire
pressure gauge is recommended.
TPMS does not alleviate your need to check the pressure and condition of all four tires
regularly.
Driving Your Mazda
Starting and Driving
5-29íSome models.
RX-8_8Z09-EA-08C_Edition3 Page167
Thursday, July 3 2008 2:23 PM
Form No.8Z09-EA-08C

Black plate (305,1)
NOTE
Do not throw away the empty tire sealant
bottle after use. Return the empty tire sealant
bottle to an Authorized Mazda Dealer when
replacing the tire. The empty tire sealant bottle
will need to be used to extract and dispose of
the used sealant from the tire.
13. Attach the vehicle speed restrictionsticker in a place where the driver can
easily see it.
WARNING
Do not attach the vehicle speed
restriction sticker to the instrument
panel, as it would obstruct vision of
areas such as warning light indicators
or the speedometer:Attaching the vehicle speed
restriction sticker to the steering
wheel pad is dangerous. The sticker
could interfere with air bag inflation
and cause serious injury. 14. Install the compressor hose to the tire
valve.
Valve Compressor hose
15. Insert the compressor plug into the
interior accessory socket and turn the
ignition switch to the ACC position
(page 6-87).
Compressor
Compressor
plug
Center console
CAUTION
Ø Before pulling out the compressor
plug from the electrical socket,
make sure the compressor power
switch is off.
Ø The compressor turns on and off
with the push-button switch.
16. Turn the compressor switch on and inflate the tire carefully to the correct
inflation pressure.
In Case of an Emergency
Flat Tire
7-9
RX-8_8Z09-EA-08C_Edition3 Page305
Thursday, July 3 2008 2:24 PM
Form No.8Z09-EA-08C

Black plate (363,1)

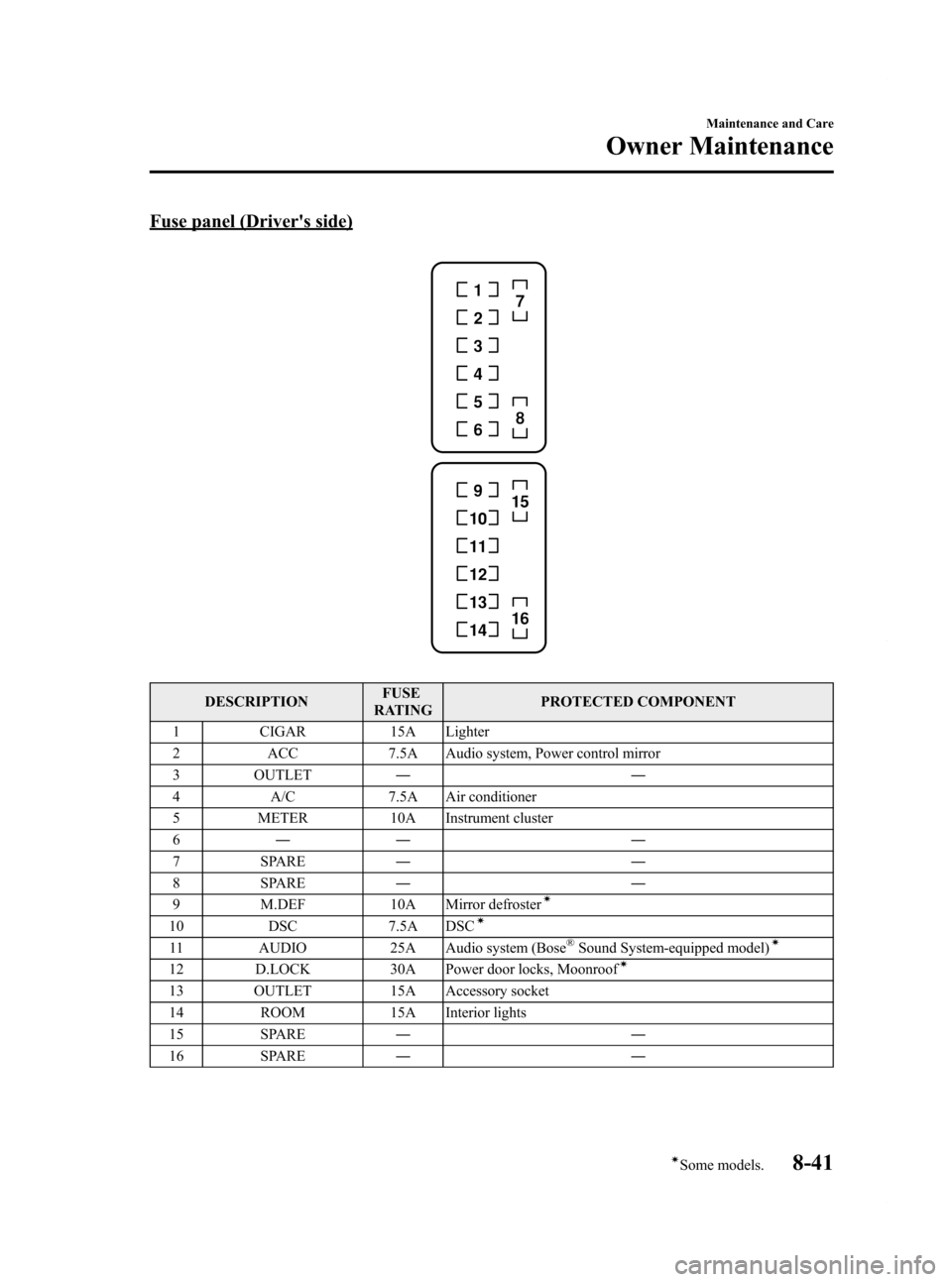

Fuse panel (Driver's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 CIGAR 15A Lighter
2 ACC 7.5A Audio system, Power control mirror
3 OUTLET ――
4 A/C 7.5A Air conditioner
5 METER 10A Instrument cluster
6 ―― ―
7 SPARE ――
8 SPARE ――
9 M.DEF 10A Mirror defroster
í
10DSC 7.5A DSCí
11 AUDIO 25A Audio system (Bose®Sound System-equipped model)í
12 D.LOCK 30A Power door locks, Moonroofí
13 OUTLET15A Accessory socket
14 ROOM 15A Interior lights
15 SPARE ――
16 SPARE ――
Maintenance and Care
Owner Maintenance
8-41íSome models.
