Spare Tire and Tool Storage
Tools are stored in the locations illustrated in the diagram.
Tool box Instant Mobility System (IMS) Emergency Flat Tire Repair Kit
Jack
Jack handle
Tiedown eyeletLug wrench
In Case of an Emergency
Flat Tire
7-3
RX-8_8AT5-EA-09E_Edition1 Page305
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (306,1)
qJack
To remove the jack
1. Open the tool box.
2. Turn the jack screw counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
qSpare Tire
A temporary spare tire is not equipped
with your Mazda. If an emergency tire
repair is needed, repair the flat tire with
the emergency flat tire repair kit (page
7-5). If you require a temporary spare tire,
consult an Authorized Mazda Dealer.
When installing a temporary spare tire,
follow the manufacturer's instructions for
the temporary spare tire.The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
in place of the rear wheels (driving
wheels):
Driving with the temporary spare tire
on one of the rear driving wheels is
dangerous. Especially on ice or snow.
Handling will be affected. You could
lose control of the vehicle and have
an accident. Move a regular tire to
the rear wheel and install the
temporary spare tire to the front.
7-4
In Case of an Emergency
Flat Tire
RX-8_8AT5-EA-09E_Edition1 Page306
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (307,1)
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire.
Drive carefully.
ØTo avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the
ground clearance is reduced
about 25 mm (1 in).
ØDo not use a tire chain on this
tire because it won't fit
properly.
ØDo not use your temporary
spare tire on any other vehicle;
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
(With limited slip differential)
When using the temporary spare tire
on the rear axle, replace it with a
standard tire as soon as possible. The
size difference between the spare and
the standard tire will cause the
limited slip differential to
malfunction.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-31).
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit.
After temporarily repairing a tire with the
emergency flat tire repair kit, take your vehicle
to an Authorized Mazda Dealer to have the tire
replaced.
In Case of an Emergency
Flat Tire
7-5
RX-8_8AT5-EA-09E_Edition1 Page307
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (308,1)
qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hoseCompressor
Repaired tire
stickerValve core
tool Spare valve
core
Speed restriction
sticker Instructions
Case
WARNING
Do not allow children to touch the tire
sealant:
Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
Do not allow children to touch the tire
sealant:
Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.NOTE
lThe tire sealant cannot be reused. Purchase
new tire sealant at an Authorized Mazda
Dealer.
lThe emergency flat tire repair kit cannot be
used in the following cases.
Consult an Authorized Mazda Dealer.
lThe period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
lThe tear or puncture exceeds about
4 mm (0.16 in).
lThe damage has occurred to an area of
the tire other than the tread.
lThe vehicle has been driven with nearly
no air remaining in the tire.
lThe tire has come off the wheel rim.lDamage to the wheel rim has occurred.lThe tire has two or more punctures.
qUsing the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
7-6
In Case of an Emergency
Flat Tire
RX-8_8AT5-EA-09E_Edition1 Page308
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (309,1)

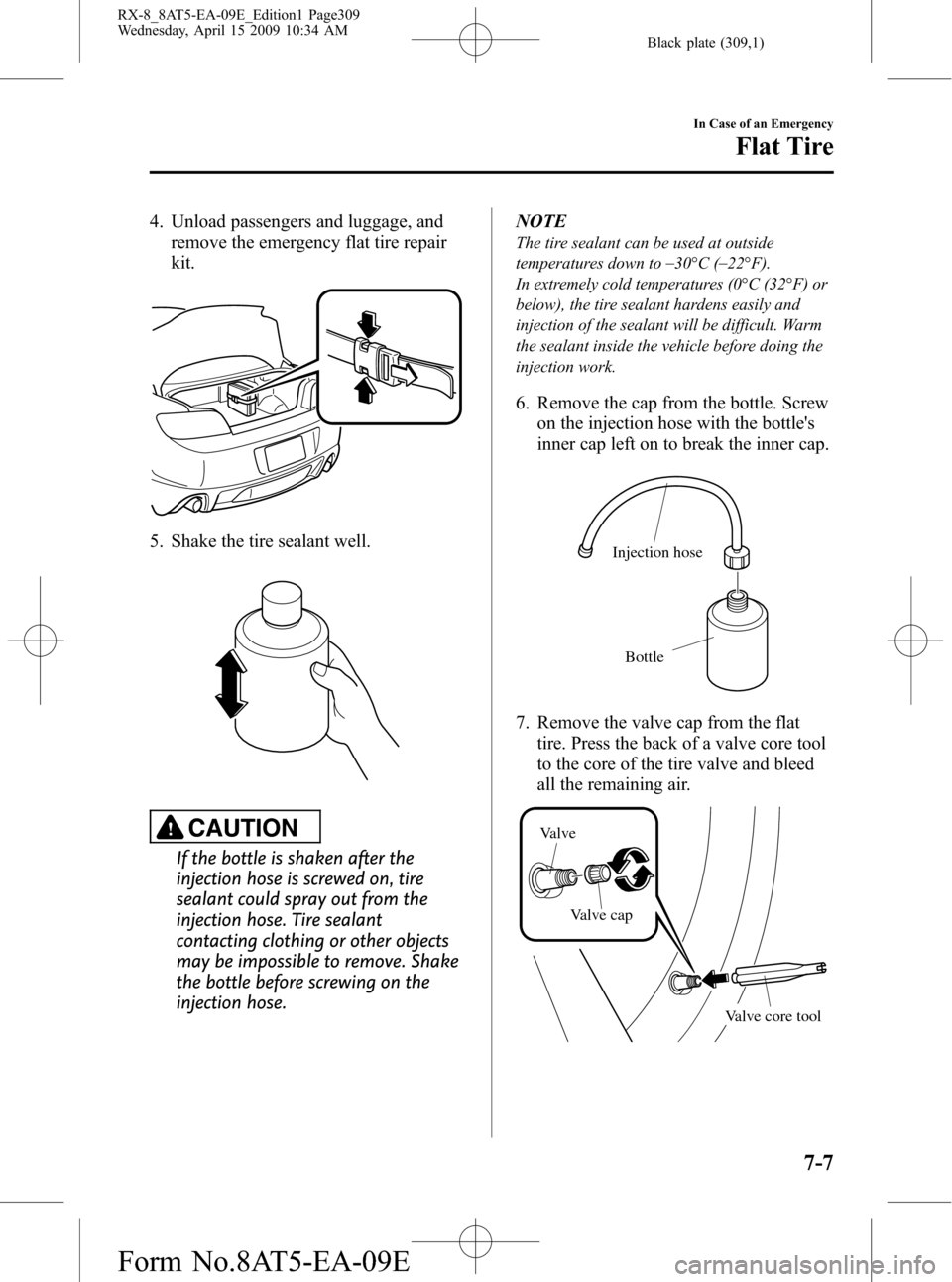

4. Unload passengers and luggage, and
remove the emergency flat tire repair
kit.
5. Shake the tire sealant well.
CAUTION
If the bottle is shaken after the
injection hose is screwed on, tire
sealant could spray out from the
injection hose. Tire sealant
contacting clothing or other objects
may be impossible to remove. Shake
the bottle before screwing on the
injection hose.NOTE
The tire sealant can be used at outside
temperatures down to_
30°C (_
22°F).
In extremely cold temperatures (0°C (32°F) or
below), the tire sealant hardens easily and
injection of the sealant will be difficult. Warm
the sealant inside the vehicle before doing the
injection work.
6. Remove the cap from the bottle. Screw
on the injection hose with the bottle's
inner cap left on to break the inner cap.
Injection hose
Bottle
7. Remove the valve cap from the flat
tire. Press the back of a valve core tool
to the core of the tire valve and bleed
all the remaining air.
Valve core tool Valve
Valve cap
In Case of an Emergency
Flat Tire
7-7
RX-8_8AT5-EA-09E_Edition1 Page309
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (310,1)
CAUTION
If there is air remaining in the tire
when the valve core is removed, the
valve core could fly out. Remove the
valve core carefully.
8. Turn the valve core counterclockwise
with the valve core tool and remove the
valve core.
Valve
Valve core
NOTE
Store the valve core in a place where it won't
get dirty.
9. Remove the plug from the injection
hose and insert the injection hose into
the valve.
Plug
Injection hose
10. Hold the bottom of the bottle upright,
squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
Valve
NOTE
The tire sealant cannot be reused. Purchase a
new tire sealant kit at an Authorized Mazda
Dealer.
11. Pull out the injection hose from the
valve. Reinsert the valve core into the
valve and turn it clockwise to install
it.
12. Attach the sticker that indicates
completion of the tire repair on a flat
outer surface of the repaired tire.
7-8
In Case of an Emergency
Flat Tire
RX-8_8AT5-EA-09E_Edition1 Page310
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (311,1)
NOTE
Do not throw away the empty tire sealant
bottle after use. Return the empty tire sealant
bottle to an Authorized Mazda Dealer when
replacing the tire. The empty tire sealant bottle
will need to be used to extract and dispose of
the used sealant from the tire.
13. Attach the vehicle speed restriction
sticker in a place where the driver can
easily see it.
WARNING
Do not attach the vehicle speed
restriction sticker to the instrument
panel, as it would obstruct vision of
areas such as warning light indicators
or the speedometer:
Attaching the vehicle speed
restriction sticker to the steering
wheel pad is dangerous. The sticker
could interfere with air bag inflation
and cause serious injury.14. Install the compressor hose to the tire
valve.
Valve
Compressor hose
15. Insert the compressor plug into the
interior accessory socket and turn the
ignition switch to the ACC position
(page 6-87).
Compressor Compressor
plug
Center console
CAUTION
ØBefore pulling out the compressor
plug from the electrical socket,
make sure the compressor power
switch is off.
ØThe compressor turns on and off
with the push-button switch.
16. Turn the compressor switch on and
inflate the tire carefully to the correct
inflation pressure.
In Case of an Emergency
Flat Tire
7-9
RX-8_8AT5-EA-09E_Edition1 Page311
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (312,1)
WARNING
Never operate the compressor above
300 kPa (3.1 kgf/cm2, 3 bar, 43.5 psi):
Operating the compressor above 300
kPa (3.1 kgf/cm
2, 3 bar, 43.5 psi) is
dangerous. When the inflation
pressure rises above 300 kPa (3.1
kgf/cm
2, 3 bar, 43.5 psi), heated air
will be exhausted from the back of
the compressor and you could be
burned.
CAUTION
If the compressor operates slowly or
becomes hot, it indicates
overheating. Turn the compressor off
immediately and leave it turned off
for 30 minutes or longer.
NOTE
lCheck the tire inflation pressure label (rear
door on the driver's side) for the correct tire
inflation pressure.
lDo not use the compressor for longer than
10 minutes because using the compressor
for long periods could damage it.
lIf the tire does not inflate, repair of the tire
may not be possible. If the tire does not
reach the correct inflation pressure within a
10-minute period, it probably has received
more extensive damage. When this happens,
the emergency flat tire repair kit cannot be
used to repair the tire. Contact an
Authorized Mazda Dealer.
lIf the tire has been over-inflated, loosen the
screw cap on the compressor and bleed
some of the air out.
17. When the tire has been inflated to the
proper inflation pressure, turn the
compressor switch off and remove the
compressor hose from the tire valve.18. Install the tire valve cap.
19. Put the emergency flat tire repair kit
in the trunk and continue driving.
CAUTION
ØDrive carefully to an Authorized
Mazda Dealer and keep the
vehicle speed below 80 km/h (50
mph).
ØIf the vehicle is driven 80 km/h (50
mph) or higher, the vehicle might
begin to vibrate.
NOTE
(With Tire Pressure Monitoring System)
If the tire is not properly inflated, the tire
pressure monitoring system warning light will
illuminate (page 5-31).
20. After driving the vehicle for 10
minutes or 5 km (3 miles), check the
tire pressure with the tire pressure
gauge equipped with the compressor.
If the tire pressure has fallen below
the correct tire pressure, inflate the
tire to the correct pressure again
following the steps from number 15.
CAUTION
ØIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done
with the repair kit. Park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
ØIf the tire inflation pressure
continues to remain low after
repeating steps 14 to 21, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
7-10
In Case of an Emergency
Flat Tire
RX-8_8AT5-EA-09E_Edition1 Page312
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (313,1)
NOTE
When checking the tire inflation pressure with
the tire pressure gauge on the compressor unit,
make sure the compressor switch is turned off.
21. If the tire inflation pressure remains
stable, the tire repair is complete.
Drive the vehicle with care to an
Authorized Mazda Dealer to have the
tire replaced.
CAUTION
ØA tire that has been temporarily
repaired with the tire sealant
cannot be reused. Mazda
recommends replacing the tire
with a new one.
ØThe wheel can be reused after any
sealant adhering to it is wiped off
and carefully inspected. However,
replace the tire valve with a new
one.
qInspecting the IMS Emergency
Flat Tire Repair Kit
Inspect the emergency tire repair kit at
regular intervals.
lCheck the tire sealant period of
effective use.
lCheck the operation of the tire
compressor.
NOTE
The tire sealant has a period of effective use.
Check the period of effective use indicated on
the bottle label and do not use it if it has
expired. Have the tire sealant replaced at an
Authorized Mazda Dealer before the period of
effective use has expired.
Changing the Tire
WARNING
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a jack:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
CAUTION
(With Tire Pressure Monitoring
System)
The wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tire
pressure sensors.
NOTE
lMake sure the jack is well lubricated before
using it.
(With Tire Pressure Monitoring System)
lBe sure to register the tire pressure sensor
ID signal code whenever tires or wheels are
changed (page 5-33).
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
In Case of an Emergency
Flat Tire
7-11
RX-8_8AT5-EA-09E_Edition1 Page313
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E
