key MAZDA MODEL RX 8 2010 (in English) Owner's Guide

Black plate (98,1)
Locking, unlocking with key
All doors lock automatically when the
driver's door is locked with the key. All
doors unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
Unlock
Lock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors. To unlock only the driver's door,
insert the key into the driver's door lock and
turn the key briefly to the unlock position and
then immediately return it to the center
position.
Locking, unlocking with door-lock
switch
All doors lock automatically when LOCK
is pressed. They all unlock when the
unmarked part of the door-lock switch is
pressed.Driver's door
Unlock
Lock
Passenger's door
Unlock
Lock
Locking, unlocking with request switch
(with advanced key)
All doors can be locked/unlocked by
operating the request switch on the front
doors while carrying the advanced key
outside the vehicle, refer to Operations
Using Advanced Keyless Functions (page
3-7).
Locking, unlocking with transmitter
(with advanced key)
All doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-14).
3-30
Knowing Your Mazda
Doors and Locks
RX-8_8AT5-EA-09E_Edition1 Page98
Wednesday, April 15 2009 10:32 AM
Form No.8AT5-EA-09E

Black plate (99,1)
Locking, unlocking with transmitter
(with retractable type key)
All doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-23).
qFreestyle Doors
The pillarless freestyle doors are front and
rear-hinged for ease of ingress and egress
to the rear seat.
Opening the freestyle doors
1. Open the front door first.
Front door
2. Pull the rear door handle and open the
rear door.
Rear door handle
CAUTION
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger's
head or hands are away from the
rear door. If the front door is closed
while a passenger is operating the
rear door handle, a hand or fingers
could be injured if the handle is
forced back. Also, a rear passenger
could hit their head against the door
during access to the rear seat.
NOTE
lThe rear door cannot be opened while the
front door is closed.
lMake sure the front seatbelt is unfastened
before the rear door is opened. The rear
door cannot be opened with the front
seatbelt fastened because the front seatbelt
may lock.
lIf any door is left open for more than about
an hour, the front seatbelt will lock, and the
rear door cannot be opened. If this
happens, close all doors and open the rear
door again.
lThis vehicle is not equipped with child
safety locks due to the design of the front
and rear doors. The rear doors must be
closed before the front doors, and the rear
doors cannot be opened until the front
doors are opened.
Knowing Your Mazda
Doors and Locks
3-31
RX-8_8AT5-EA-09E_Edition1 Page99
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (101,1)
Trunk Lid
WARNING
Never allow a person to ride in the
trunk:
Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously
injured or killed during sudden
braking or a collision.
Keep the trunk closed when driving:
Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
qOpening and Closing the Trunk
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
doors and the trunk, and keeping the
keys where children can not play with
them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the
trunk unlocked.
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Knowing Your Mazda
Doors and Locks
3-33
RX-8_8AT5-EA-09E_Edition1 Page101
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (102,1)
Opening the trunk lid with the request
switch (with advanced key)
The trunk lid can be opened by operating
the request switch on the trunk lid while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Opening the trunk lid with the
transmitter (with advanced key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-14).
Opening the trunk lid with the
transmitter (with retractable type key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-23).
Opening the trunk lid with the remote
release button
Push the release button.
Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not to
slam it. Pull up on the trunk lid to make
sure it is secured.
Handle
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being discharged,
do not leave the trunk open for a long period
when the engine is not running.
3-34
Knowing Your Mazda
Doors and Locks
RX-8_8AT5-EA-09E_Edition1 Page102
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (103,1)
Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles do not have such levers.
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
doors and the trunk, and keeping the
keys where children can not play with
them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the
trunk unlocked.
Knowing Your Mazda
Doors and Locks
3-35
RX-8_8AT5-EA-09E_Edition1 Page103
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (108,1)
qPower Window Lock Switch
With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.
With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
qOpening/Closing the Power
Windows from Outside
Both power windows can be opened or
closed from outside the vehicle after the
doors are closed.
The power windows may be operated
remotely when the power window lock
switch on the driver's door is in the lock
or unlocked position.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
NOTE
lThe power windows cannot be opened or
closed from outside the vehicle under the
following condition:
lA door is opened.lThe key is inserted into the ignition
switch.
lThe start knob is in any position except
LOCK. (With advanced key)
lThe power windows may not close
completely. Make sure all the windows are
closed.
If the power windows cannot be closed
completely, operate each power window
switch from inside the vehicle. After closing
the windows from outside the vehicle, verify
that they are completely closed.
Opening
Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the both windows as you approach
the vehicle to get the air moving before
you get in.
3-40
Knowing Your Mazda
Doors and Locks
RX-8_8AT5-EA-09E_Edition1 Page108
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (109,1)
WARNING
Use the remote auto-window function
only when you can see the vehicle and
it is in a secure area:
Do not let children play with your
keys. If they open the window
without your knowing, the open
windows are an even bigger
invitation to a thief than leaving the
doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (Keyless entry
system)
Press the unlock button on the transmitter
once, then press again within 1.5 seconds
and hold.
After the doors are unlocked, both
windows open while the unlock button is
pressed.
To stop the windows while opening,
release the button.
If the operation is performed from the
beginning again, the windows open.
Advanced key
Panic button
Unlock buttonLock button
Trunk button
Retractable type key
Lock button
Unlock button
Trunk buttonPanic button
Operation
indicator light
NOTElThe unlock button does not operate unless
it is pressed twice sequentially.
lThe lock button cannot be used to close the
power windows.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key front and hold until the
windows are completely open. After
the doors are unlocked, the windows
fully open automatically.
Open
To stop this operation, turn the key to the
center position, then turn it front again.
Knowing Your Mazda
Doors and Locks
3-41
RX-8_8AT5-EA-09E_Edition1 Page109
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (110,1)

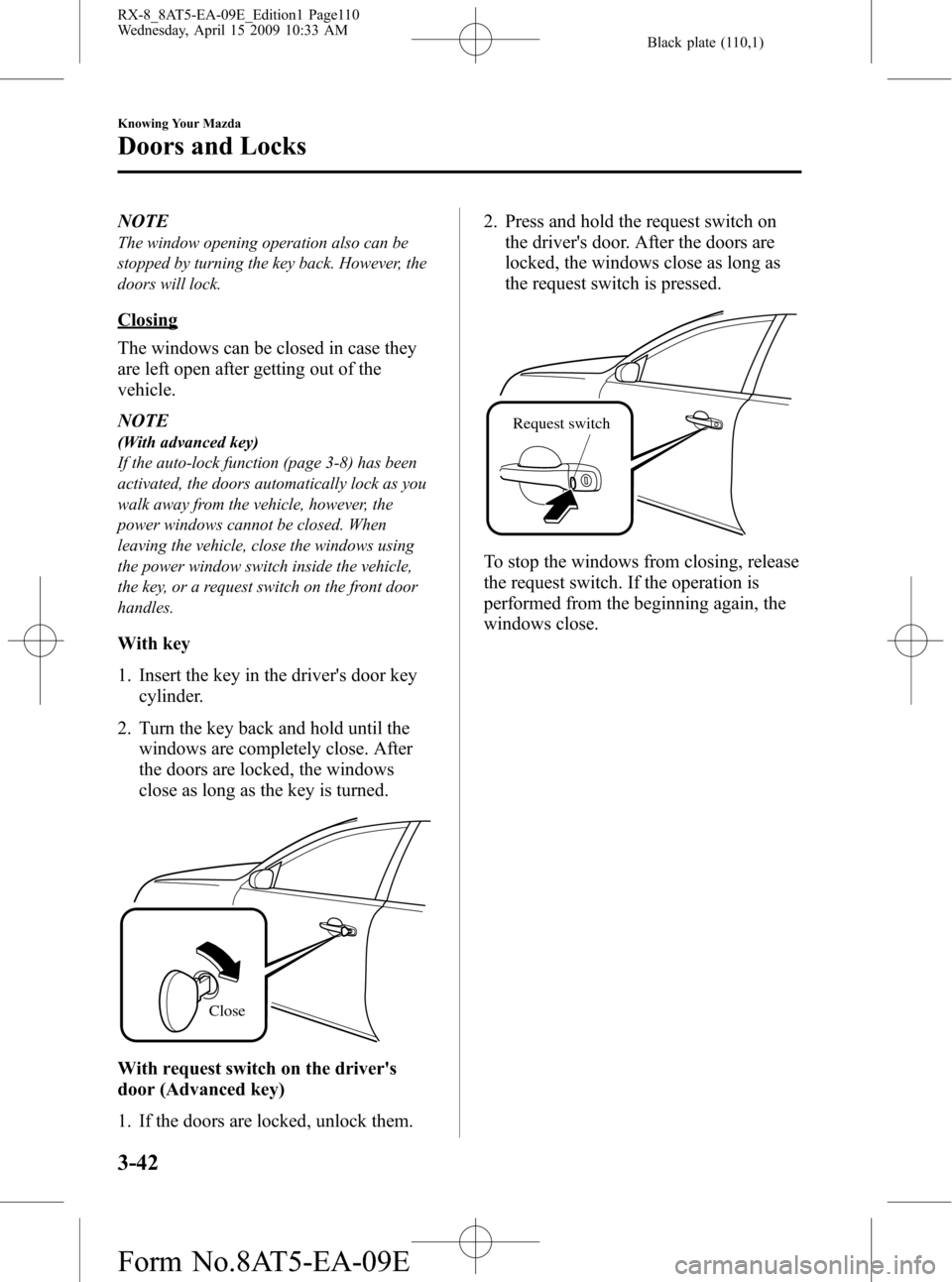

NOTE
The window opening operation also can be
stopped by turning the key back. However, the
doors will lock.
Closing
The windows can be closed in case they
are left open after getting out of the
vehicle.
NOTE
(With advanced key)
If the auto-lock function (page 3-8) has been
activated, the doors automatically lock as you
walk away from the vehicle, however, the
power windows cannot be closed. When
leaving the vehicle, close the windows using
the power window switch inside the vehicle,
the key, or a request switch on the front door
handles.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key back and hold until the
windows are completely close. After
the doors are locked, the windows
close as long as the key is turned.
Close
With request switch on the driver's
door (Advanced key)
1. If the doors are locked, unlock them.2. Press and hold the request switch on
the driver's door. After the doors are
locked, the windows close as long as
the request switch is pressed.
Request switch
To stop the windows from closing, release
the request switch. If the operation is
performed from the beginning again, the
windows close.
3-42
Knowing Your Mazda
Doors and Locks
RX-8_8AT5-EA-09E_Edition1 Page110
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (116,1)
Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.
ØMetal parts of other keys or metal
objects touch the auxiliary key
grip.
ØSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
ØDevices for electronic purchases, or
security passage which touch or
come near the auxiliary key.
3-48
Knowing Your Mazda
Security System
RX-8_8AT5-EA-09E_Edition1 Page116
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (117,1)
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
lThe advanced keys (including auxiliary key)
carry a unique electronic code. For this
reason, and to assure your safety, obtaining
a replacement advanced key (including
auxiliary key) requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare advanced key in case
one is lost. If an advanced key is lost,
consult an Authorized Mazda Dealer as
soon as possible.
lIf you lose an advanced key (including
auxiliary key), an Authorized Mazda Dealer
will reset the electronic codes of your
remaining advanced keys (including
auxiliary keys) and immobilizer system.
Bring all the remaining advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON position to
the ACC or LOCK position. The security
indicator light in the instrument cluster
flashes every 2 seconds until the system is
disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the registered advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.
Knowing Your Mazda
Security System
3-49
RX-8_8AT5-EA-09E_Edition1 Page117
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E
