display MAZDA MODEL RX 8 2010 Owners Manual (in English)

Black plate (9,1)
Power door lock switch ..................................................................................... page 3-29
Outside mirror switch ........................................................................................ page 3-56
Dashboard illumination ..................................................................................... page 5-38
DSC OFF switch ............................................................................................... page 5-26
Lighting control/Turn signals ............................................................................ page 5-57
Audio control switch ......................................................................................... page 6-52
Instrument cluster .............................................................................................. page 5-35
Air bags ............................................................................................................. page 2-38
Wiper and washer lever ..................................................................................... page 5-61
Cruise control switches ...................................................................................... page 5-22
Information display ............................................................................................ page 6-79
Hazard warning flasher switch .......................................................................... page 5-67
Audio system ..................................................................................................... page 6-15
Glove box .......................................................................................................... page 6-84
Center console ................................................................................................... page 6-85
Cup holder ......................................................................................................... page 6-83
Parking brake ....................................................................................................... page 5-6
MT shift lever .................................................................................................... page 5-10
AT shift lever (Sport AT) ................................................................................... page 5-13
Lighter ............................................................................................................... page 6-81
Ashtray ............................................................................................................... page 6-82
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Tilt wheel release lever ...................................................................................... page 3-56
Coin box ............................................................................................................ page 6-84
Hood release handle .......................................................................................... page 3-45
Trunk release button .......................................................................................... page 3-33
Power window lock switch ................................................................................ page 3-40
Power window switches .................................................................................... page 3-37
Interior light ....................................................................................................... page 6-77
Sunvisor ............................................................................................................. page 6-77
Rearview mirror ................................................................................................. page 3-57
Vanity mirror ...................................................................................................... page 6-77
Front seats ............................................................................................................ page 2-2
Rear seat ............................................................................................................ page 2-11
Seat belt ............................................................................................................. page 2-14
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle RX-8_8AT5-EA-09E_Edition1 Page9
Wednesday, April 15 2009 10:32 AM
Form No.8AT5-EA-09E

Black plate (80,1)
7. Verify that the KEY indicator light
(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine using the Advanced Keyless
System. You may have to use the
auxiliary key instead (page 3-21).
NOTE
In the following cases, the KEY warning light
(red) illuminates and the engine will not start.
lThe advanced key battery is dead.lThe advanced key is out of operational
range.
lThe advanced key is placed in areas where
it is difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer similar to
the advanced key is in the operational
range.
8. Turn the ignition switch to the ACC
position while pushing the start knob
in.
9. Turn the ignition switch from the ACC
position to the START position and
hold (up to 10 seconds at a time) until
the engine starts.
CAUTION
Do not try the starter for more than
10 seconds at a time. If the engine
stalls or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain
the battery.
10. After starting the engine, let it idle for
about 15 seconds.Then perform the
shift operation.
NOTE
lIn extremely cold weather (below 0°C
(32°F)) or after the vehicle has not been
driven in several days, let the engine warm
up without operating the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
lThe display of the variable red zone in the
tachometer changes according to the
temperature of the engine coolant. To
protect the engine, when the engine coolant
temperature is low, the engine does not run
at high speeds. The fuel supply will be cut
at an rpm lower than the red zone.
Refer to Tachometer on page 5-37.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-19).
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8AT5-EA-09E_Edition1 Page80
Wednesday, April 15 2009 10:32 AM
Form No.8AT5-EA-09E

Black plate (147,1)
6. After starting the engine, let it idle for
about 15 seconds. Then perform the
shift operation.
NOTE
lIn extremely cold weather (below 0°C
(32°F)) or after the vehicle has not been
driven in several days, let the engine warm
up without operating the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
lThe display of the variable red zone in the
tachometer changes according to the
temperature of the engine coolant. To
protect the engine, when the engine coolant
temperature is low, the engine does not run
at high speeds. The fuel supply will be cut
at an rpm lower than the red zone.
Refer to Tachometer on page 5-37.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-19).
Brake System
qFoot Brake
Your Mazda has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual.
Driving Your Mazda
Starting and Driving
5-5
RX-8_8AT5-EA-09E_Edition1 Page147
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (152,1)
WARNING
Do not drive with worn disc pads:
Driving with worn disc pads is
dangerous. The brakes could fail and
cause a serious accident. As soon as
you hear a screeching noise consult
an Authorized Mazda Dealer.
Manual Transmission
Operation
lThe beep sounds to indicate engine
overrev when the tachometer needle
enters the striped zone.
lThe display of the variable red zone in
the tachometer changes according to
the temperature of the engine coolant.
To protect the engine, when the engine
coolant temperature is low, the engine
does not run at high speeds. The fuel
supply will be cut at an rpm lower than
the red zone.
Refer to Tachometer on page 5-37.
qManual Transmission Shift Pattern
Neutral position
The shift pattern of the transmission is
conventional, as shown.
Depress the clutch pedal all the way down
while shifting; then release it slowly.
5-10
Driving Your Mazda
Starting and Driving
RX-8_8AT5-EA-09E_Edition1 Page152
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (155,1)
Automatic Transmission Controls
Indicates that you must depress the brake pedal to shift (The ignition
switch must be in the ACC or ON position).
Indicates the shift lever can be shifted freely into any position.
Various Lockouts:
NOTElThe beep sounds to indicate engine overrev when the tachometer needle enters the striped zone.lThe display of the variable red zone in the tachometer changes according to the temperature of the
engine coolant. To protect the engine, when the engine coolant temperature is low, the engine does
not run at high speeds. The fuel supply will be cut at an rpm lower than the red zone.
Refer to Tachometer on page 5-37.
lThe gear shift-up point may move to the high rpm range temporarily while the engine is warming
up in order to shorten the warming-up period.
lThe Sport AT has an option that is not included in the traditional automatic transmission giving
the driver the option of selecting each gear instead of leaving it to the transmission to shift gears.
Even if you intend to use the automatic transmission functions as a traditional automatic, you
should also be aware that you can inadvertently shift into manual shift mode and an inappropriate
gear may be retained as the vehicle speed increases. If you notice the engine speed going higher
or hear the engine racing, confirm you have not accidentally slipped into manual shift mode (page
5-15).
Driving Your Mazda
Starting and Driving
5-13
RX-8_8AT5-EA-09E_Edition1 Page155
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (178,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qSpeed Unit Selector
In some countries, you may have to
change the speed units between km/h and
mph.
Press the speed unit selector for 2 second
or more.
The speed units for the speedometer will
change between km/h and mph.
Speedometer
Speed unit selector
NOTE
Odometer and trip meter distance units will
change between kilometers and miles in
accordance with the speed unit.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Odometer
Trip meter Trip meter selector
Odometer
OdometerTrip meter A
Press the selector
Press the selector Trip meter B
5-36
Driving Your Mazda
Instrument Cluster and Indicators
RX-8_8AT5-EA-09E_Edition1 Page178
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (179,1)
NOTE
When the ignition switch is in the ACC or
LOCK position, the odometer or trip meters
cannot be displayed, however, pressing the
selector button can inadvertently switch the
trip meters or reset them during an
approximate ten-minute period in the following
cases:
lAfter the ignition switch is turned to the
ACC or LOCK position from the ON
position.
lAfter the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).
qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Automatic transmission
Variable red zonesStriped zone
Red zone
Manual transmission
Variable red zonesStriped zone
Red zone
Driving Your Mazda
Instrument Cluster and Indicators
5-37
RX-8_8AT5-EA-09E_Edition1 Page179
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (180,1)
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
NOTE
lThe beep sounds to indicate engine overrev
when the tachometer needle enters the
striped zone.
lThe display of the variable red zone in the
tachometer changes according to the
temperature of the engine coolant. To
protect the engine, when the engine coolant
temperature is low, the engine does not run
at high speeds. The fuel supply will be cut
at an rpm lower than the red zone.
qEngine Coolant Temperature Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
CAUTION
Driving with an overheated engine
can cause serious engine damage
(page 7-17).
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition switch is in the ON position.
We recommend keeping the tank over 1/4
full. When the low fuel warning light
illuminates or when the needle is near E,
refuel as soon as possible.
Low fuel warning light
NOTElAfter refueling, it may require some time for
the needle to stabilize. In addition, the
needle may deviate while driving on a slope
or curve since the fuel moves in the tank.
lThe direction of the arrow () shows that
the fuel-filler lid is on the left side of the
vehicle.
qDashboard Illumination
Rotate the thumb wheel to adjust the
brightness of the instrument cluster and
other illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
(except instrument cluster) can be adjusted
when the headlight switch is in the
or
position.lThe brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
5-38
Driving Your Mazda
Instrument Cluster and Indicators
RX-8_8AT5-EA-09E_Edition1 Page180
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (181,1)

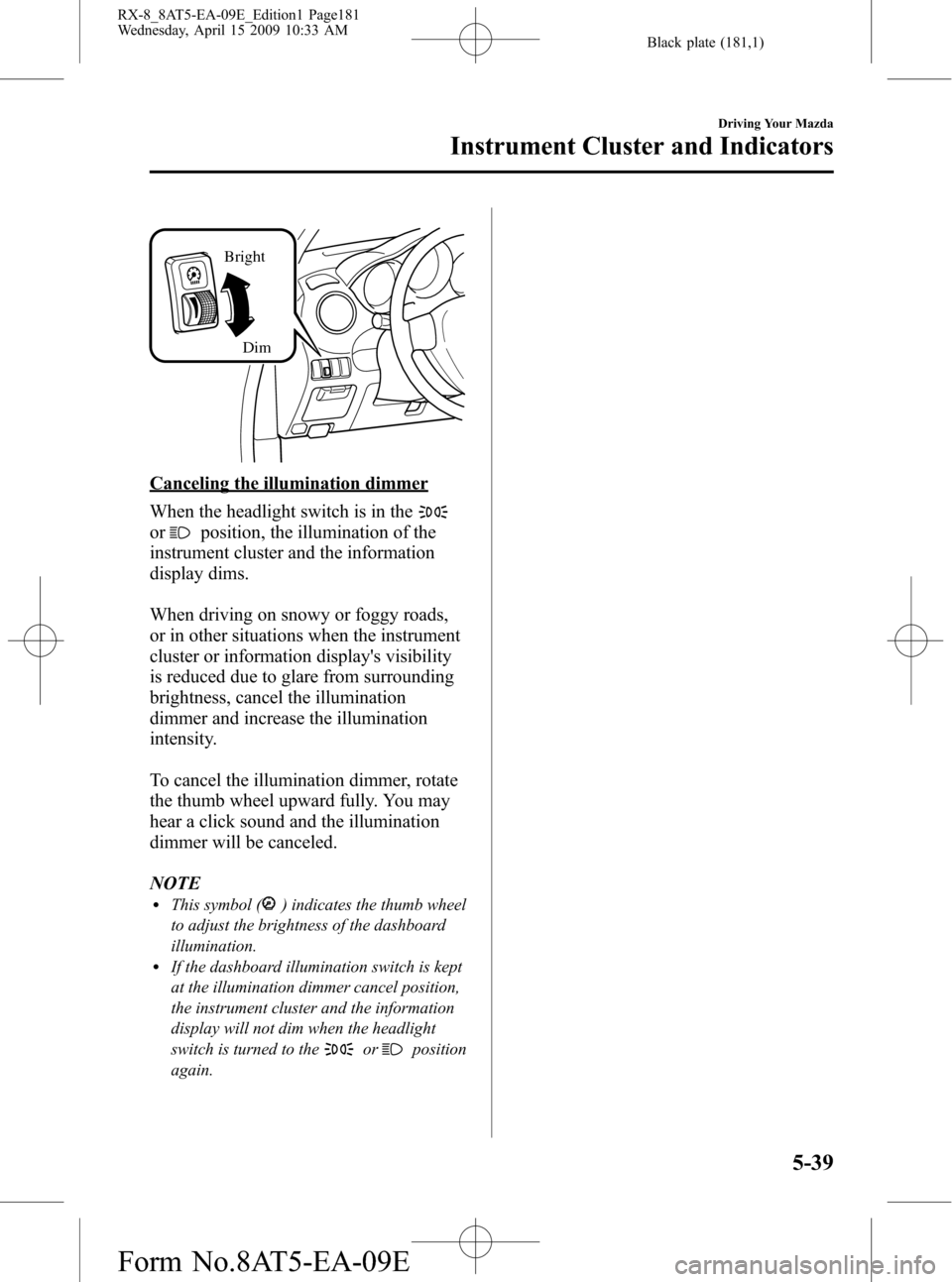

Bright
Dim
Canceling the illumination dimmer
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
To cancel the illumination dimmer, rotate
the thumb wheel upward fully. You may
hear a click sound and the illumination
dimmer will be canceled.
NOTE
lThis symbol () indicates the thumb wheel
to adjust the brightness of the dashboard
illumination.
lIf the dashboard illumination switch is kept
at the illumination dimmer cancel position,
the instrument cluster and the information
display will not dim when the headlight
switch is turned to the
orposition
again.
Driving Your Mazda
Instrument Cluster and Indicators
5-39
RX-8_8AT5-EA-09E_Edition1 Page181
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (195,1)
qShift Position Indicator Light
(Automatic Transmission)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
Gear position indicator
The gear position indicator displays the
gear in use while in either manual shift or
direct mode.
qTCS/DSC Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
qDSC OFF Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also illuminates when the DSC OFF
switch is pressed and TCS/DSC is
switched off (page 5-28).
If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-53íSome models. RX-8_8AT5-EA-09E_Edition1 Page195
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E
