run flat MAZDA MODEL RX 8 2010 Owners Manual (in English)

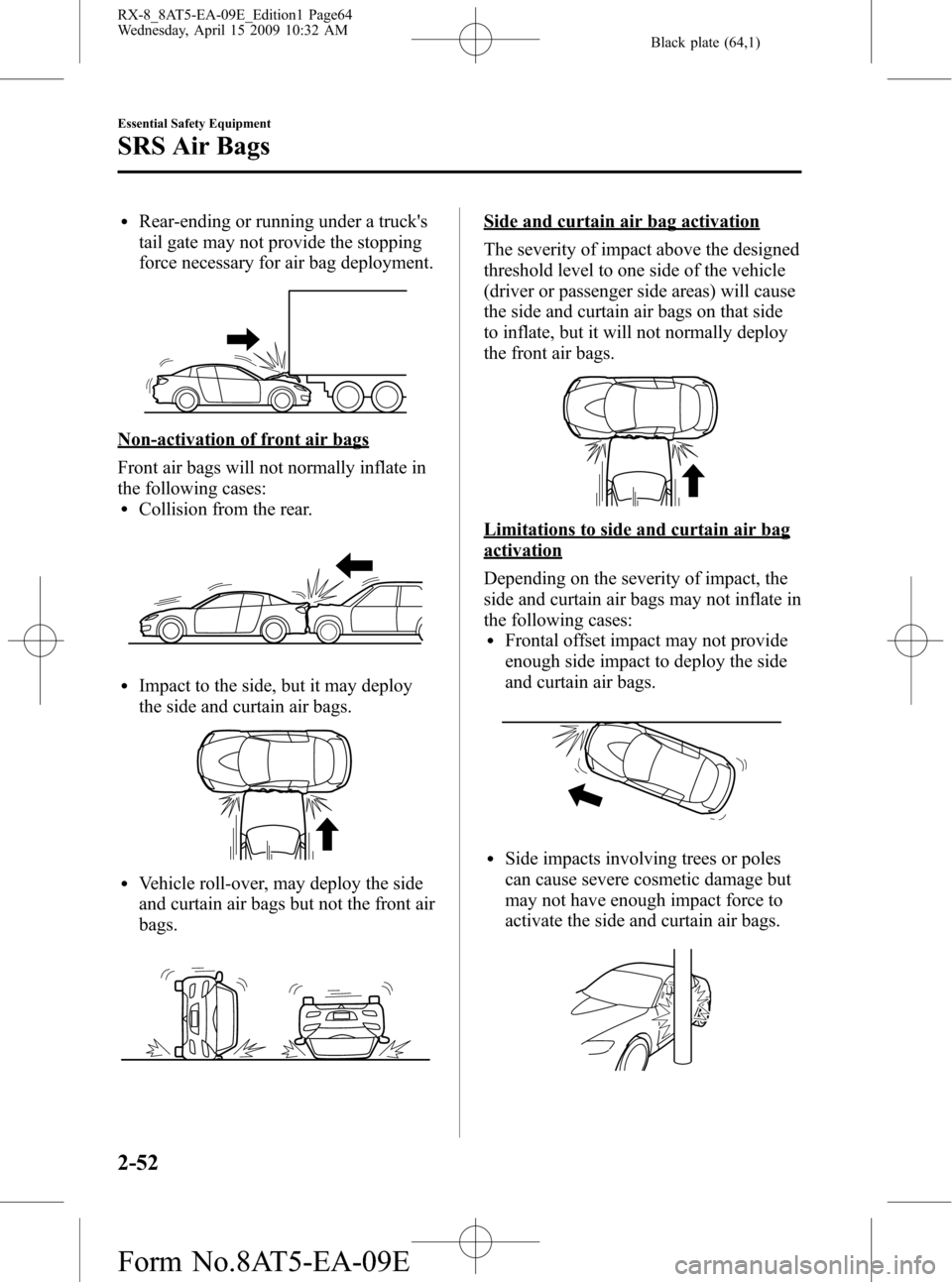

Black plate (64,1)
lRear-ending or running under a truck's
tail gate may not provide the stopping
force necessary for air bag deployment.
Non-activation of front air bags
Front air bags will not normally inflate in
the following cases:
lCollision from the rear.
lImpact to the side, but it may deploy
the side and curtain air bags.
lVehicle roll-over, may deploy the side
and curtain air bags but not the front air
bags.
Side and curtain air bag activation
The severity of impact above the designed
threshold level to one side of the vehicle
(driver or passenger side areas) will cause
the side and curtain air bags on that side
to inflate, but it will not normally deploy
the front air bags.
Limitations to side and curtain air bag
activation
Depending on the severity of impact, the
side and curtain air bags may not inflate in
the following cases:
lFrontal offset impact may not provide
enough side impact to deploy the side
and curtain air bags.
lSide impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side and curtain air bags.
2-52
Essential Safety Equipment
SRS Air Bags
RX-8_8AT5-EA-09E_Edition1 Page64
Wednesday, April 15 2009 10:32 AM
Form No.8AT5-EA-09E

Black plate (134,1)
Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDo not race the engine.lDo not maintain one constant speed,
either slow or fast, for a long period of
time.
lDo not drive constantly at full-throttle
or high engine rpm (over 7,000 rpm)
for extended periods of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDo not carry unnecessary weight.lDo not rest your foot on the brake
pedal while driving.
lFor improved engine starting
performance the next time you start the
engine after only driving the vehicle a
short distance, turn off the engine after
1 or more of the variable red zone
lamps in the tachometer have turned
off.
In addition, it is recommended that
short trips be avoided to ensure that the
engine reaches operating temperature
before turning off the engine.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
4-6
Before Driving Your Mazda
Driving Tips
RX-8_8AT5-EA-09E_Edition1 Page134
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (307,1)
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire.
Drive carefully.
ØTo avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the
ground clearance is reduced
about 25 mm (1 in).
ØDo not use a tire chain on this
tire because it won't fit
properly.
ØDo not use your temporary
spare tire on any other vehicle;
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
(With limited slip differential)
When using the temporary spare tire
on the rear axle, replace it with a
standard tire as soon as possible. The
size difference between the spare and
the standard tire will cause the
limited slip differential to
malfunction.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-31).
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit.
After temporarily repairing a tire with the
emergency flat tire repair kit, take your vehicle
to an Authorized Mazda Dealer to have the tire
replaced.
In Case of an Emergency
Flat Tire
7-5
RX-8_8AT5-EA-09E_Edition1 Page307
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (312,1)
WARNING
Never operate the compressor above
300 kPa (3.1 kgf/cm2, 3 bar, 43.5 psi):
Operating the compressor above 300
kPa (3.1 kgf/cm
2, 3 bar, 43.5 psi) is
dangerous. When the inflation
pressure rises above 300 kPa (3.1
kgf/cm
2, 3 bar, 43.5 psi), heated air
will be exhausted from the back of
the compressor and you could be
burned.
CAUTION
If the compressor operates slowly or
becomes hot, it indicates
overheating. Turn the compressor off
immediately and leave it turned off
for 30 minutes or longer.
NOTE
lCheck the tire inflation pressure label (rear
door on the driver's side) for the correct tire
inflation pressure.
lDo not use the compressor for longer than
10 minutes because using the compressor
for long periods could damage it.
lIf the tire does not inflate, repair of the tire
may not be possible. If the tire does not
reach the correct inflation pressure within a
10-minute period, it probably has received
more extensive damage. When this happens,
the emergency flat tire repair kit cannot be
used to repair the tire. Contact an
Authorized Mazda Dealer.
lIf the tire has been over-inflated, loosen the
screw cap on the compressor and bleed
some of the air out.
17. When the tire has been inflated to the
proper inflation pressure, turn the
compressor switch off and remove the
compressor hose from the tire valve.18. Install the tire valve cap.
19. Put the emergency flat tire repair kit
in the trunk and continue driving.
CAUTION
ØDrive carefully to an Authorized
Mazda Dealer and keep the
vehicle speed below 80 km/h (50
mph).
ØIf the vehicle is driven 80 km/h (50
mph) or higher, the vehicle might
begin to vibrate.
NOTE
(With Tire Pressure Monitoring System)
If the tire is not properly inflated, the tire
pressure monitoring system warning light will
illuminate (page 5-31).
20. After driving the vehicle for 10
minutes or 5 km (3 miles), check the
tire pressure with the tire pressure
gauge equipped with the compressor.
If the tire pressure has fallen below
the correct tire pressure, inflate the
tire to the correct pressure again
following the steps from number 15.
CAUTION
ØIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done
with the repair kit. Park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
ØIf the tire inflation pressure
continues to remain low after
repeating steps 14 to 21, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
7-10
In Case of an Emergency
Flat Tire
RX-8_8AT5-EA-09E_Edition1 Page312
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (363,1)
Reverse lights
Rear side marker lights
4. Install the new bulb in the reverse order
of the removal procedure.
High-mount brake light
1. Wrap the end of a flathead screwdriver
in a soft cloth and remove the trunk
handle by inserting the flathead
screwdriver in the position shown in
the figure and carefully prying the
handle off.
2. Disengage the pin in each clip securing
the trunk trim using a (
) screwdriver,
remove the screws and clips, and then
remove the trunk trim.
Removal
Installation
Maintenance and Care
Owner Maintenance
8-33
RX-8_8AT5-EA-09E_Edition1 Page363
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (364,1)
3. Press the tab on the bulb socket and
remove the connector cord.
4. Rotate the bulb socket
counterclockwise as shown in the
figure and pull it out, then pull out the
bulb from the socket.
5. Replace the bulb.
6. Reinstall the bulb socket in the reverse
order of the removal procedure.
NOTE
When re-installing the trunk trim, set the trunk
trim in place and insert the clips without the
internal pin, then insert the pins and engage
them.
License plate light
1. Press the front of the lens to detach the
front tabs.2. Wrap the end of a flathead screwdriver
in a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of removal.
8-34
Maintenance and Care
Owner Maintenance
RX-8_8AT5-EA-09E_Edition1 Page364
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (410,1)
qSafety Practices
The way you drive has a great deal to do with your tire mileage and safety. So cultivate
good driving habits for your own benefit.
lObserve posted speed limitslAvoid fast starts, stops and turnslAvoid potholes and objects on the roadlDo no run over curbs or hit the tire against the curb when parking
CAUTION
If you feel a sudden vibration or ride disturbance while driving or you suspect your
tire or vehicle has been damaged, immediately reduce your speed. Drive with caution
until you can safely pull off the road. Stop and inspect the tire for damage. If the tire
is under-inflated or damaged, deflate it, remove the tire and rim and replace it with
your spare tire. If you cannot detect a cause, have the vehicle towed to the nearest
vehicle or tire dealer to have the vehicle inspected.
9-32
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
RX-8_8AT5-EA-09E_Edition1 Page410
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (428,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHigh beam 65 H9 (H9)
Low beamHalogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Parking lights (Front side-marker lights) 27/8 B1157MA (―)
Fog lights
í51 HB4 (#9005)
Side turn signal lights*15―(―)
High-mount brake light 21 W21W (#7440)
Rear turn signal lights 21 WY21W (―)
Brake lights/Taillights LED
*2―(―)
Reverse lights 16 W16W (#921)
License plate lights 5 W5W (4CP)
Rear side-marker lights 5 W5W (4CP)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Trunk light 5 W5W
Overhead light/Map lights (Front) 5 W5W
Overhead light (Rear) 10―
Courtesy lights 5 W5W
Vanity mirror lights 2―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-23.
Tire sizeInflation pressure
Front Rear
225/45R18 91W
220 kPa (32 psi) 220 kPa (32 psi)
225/40R19 89W
Vehicle capacity weight: 308 kg (680 lbs)
10-6íSome models.
Specifications
RX-8_8AT5-EA-09E_Edition1 Page428
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (432,1)
A
Accessory Socket .............................. 6-87
Add-On Non-Genuine Parts and
Accessories ....................................... 9-15
Advanced Key ..................................... 3-2
Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-17
Auxiliary key .............................. 3-17
Locking, unlocking with request
switch ........................................... 3-8
Opening the trunk lid with request
switch ........................................... 3-9
Operational range ......................... 3-7
Remote control function ............. 3-14
Service ......................................... 3-6
Air Bag Systems ............................... 2-38
Ambient Temperature Display .......... 6-80
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-8
Warning light ............................... 5-8
Appearance Care ............................... 8-42
Ashtray .............................................. 6-82
Audio System ................................... 6-15
Audio control switch .................. 6-52
Audio set .................................... 6-25
AUX mode ................................. 6-54
Operating tips for audio
system ........................................ 6-15
Safety certification ..................... 6-56
Automatic Transmission
Direct mode ................................ 5-19
Driving tips ................................ 5-20
Manual shift mode ..................... 5-15
Shift-lock system ....................... 5-15
Transmission ranges ................... 5-14
B
Battery
Emergency starting .................... 7-19
Maintenance ............................... 8-21
Specifications ............................. 10-4
Beep Sounds
Engine Oil Level Warning
Beep ........................................... 5-56
Engine overrev warning beep .... 5-56
Ignition key reminder ................. 5-56
Lights-on reminder ..................... 5-56
Seat belt warning beep ............... 5-56
Tire inflation pressure warning
beep ............................................ 5-56
Before Starting the Engine .................. 4-5
After getting in ............................. 4-5
Before getting in .......................... 4-5
Bluetooth Hands-Free ....................... 6-57
Basic Bluetooth Hands-Free
Operation ................................... 6-61
Convenient Use of the Hands-Free
System ........................................ 6-65
Hands-Free Telephone Setting .... 6-70
Mazda Bluetooth Hands-Free
Customer Service ....................... 6-76
Safety certification ..................... 6-76
When Bluetooth Hands-Free cannot
be used ....................................... 6-75
Body Lubrication .............................. 8-18
Brake/Clutch
Fluid ........................................... 8-16
Brakes
Anti-lock brake system (ABS) ..... 5-8
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-9
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-28
11-2
Index
RX-8_8AT5-EA-09E_Edition1 Page432
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E
