WARNING
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
3. Insert the jack handle into the jack.4. Turn the jack handle clockwise and
raise the vehicle high enough so that
the tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
5. Remove the lug nuts by turning them
counterclockwise, then remove the
wheel.
In Case of an Emergency
Flat Tire
7-13
RX-8_8BQ7-EA-10H_Edition1 Page317
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (318,1)
qLocking Lug Nutsí
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
this key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the key for the antitheft lug nut.
2. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To install the nut
1. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.
qMounting the Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the tire.
7-14
In Case of an Emergency
íSome models.
Flat Tire
RX-8_8BQ7-EA-10H_Edition1 Page318
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (319,1)
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary.
4. Turn the jack handle counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you're unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf)88―118
(9―12, 65―87)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.
5. Remove the tire blocks and store the
tools, jack, and damaged tire.
6. Check the inflation pressure. Refer to
the specification charts on page 10-6.
7. Have the flat tire repaired or replaced
as soon as possible.
WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
In Case of an Emergency
Flat Tire
7-15
RX-8_8BQ7-EA-10H_Edition1 Page319
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (361,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.High-beam bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. If you are changing the right headlight
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
headlight bulb, turn the steering wheel
to the left.
3. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
Maintenance and Care
Owner Maintenance
8-29
RX-8_8BQ7-EA-10H_Edition1 Page361
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (363,1)
3. Remove the fog light unit by pulling it
downward and then straight out using
both hands.
NOTE
When pulling out the fog light unit, be careful
not to allow the bulb socket to contact the oil
cooler.
4. Press the tab on the bulb socket and
disconnect the connector cord.
5. Rotate the bulb socket
counterclockwise as shown in the
figure and remove it.
6. Replace the bulb.
7. Reinstall the bulb socket in the reverse
order of the removal procedure.
Front turn signal lights/Parking lights
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
Maintenance and Care
Owner Maintenance
8-31
RX-8_8BQ7-EA-10H_Edition1 Page363
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (364,1)
Side-turn signal lights
1. Slide the light unit rearward.
2. Rotate the light unit clockwise as
shown in the figure and pull it out.
3. Press the tab on the bulb socket and
disconnect the connector cord.
4. Replace with a new light unit and
install it in the reverse order of the
removal procedure.
NOTE
The side-turn signal light bulb cannot be
replaced. The entire light unit itself has to be
replaced, therefore consult an Authorized
Mazda Dealer for a replacement light unit.
Brake lights/Taillights
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an expert repairer, we
recommend an Authorized Mazda Dealer.
Rear turn signal lights, Reverse lights,
Rear side marker lights
1. Pull the center section of the plastic
retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Rear turn signal lights
8-32
Maintenance and Care
Owner Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page364
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (366,1)
3. Press the tab on the bulb socket and
remove the connector cord.
4. Rotate the bulb socket
counterclockwise as shown in the
figure and pull it out, then pull out the
bulb from the socket.
5. Replace the bulb.
6. Reinstall the bulb socket in the reverse
order of the removal procedure.
NOTE
When re-installing the trunk trim, set the trunk
trim in place and insert the clips without the
internal pin, then insert the pins and engage
them.
License plate light
1. Press the front of the lens to detach the
front tabs.2. Wrap the end of a flathead screwdriver
in a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of removal.
8-34
Maintenance and Care
Owner Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page366
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (367,1)

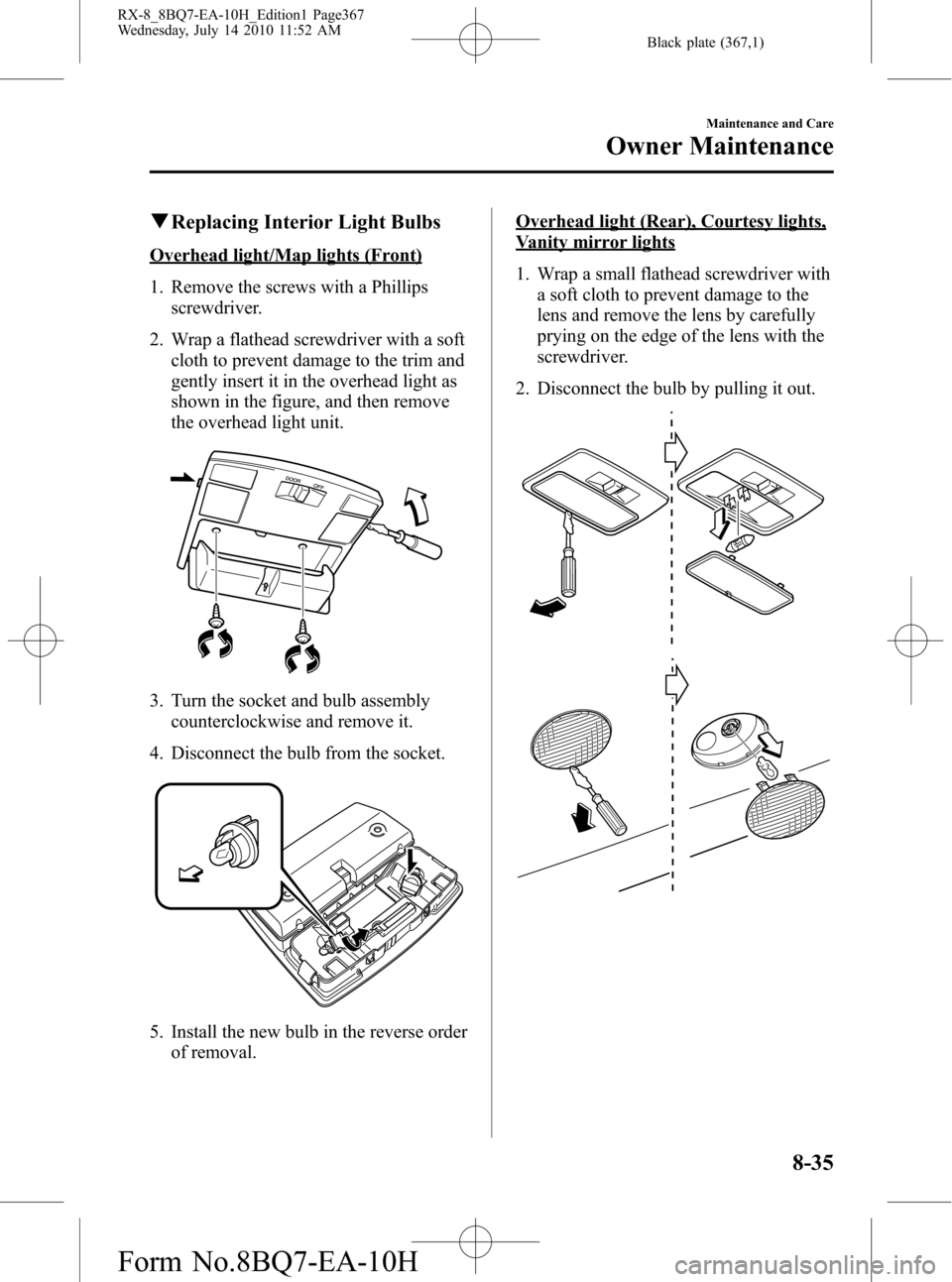

qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)
1. Remove the screws with a Phillips
screwdriver.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Overhead light (Rear), Courtesy lights,
Vanity mirror lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
screwdriver.
2. Disconnect the bulb by pulling it out.
Maintenance and Care
Owner Maintenance
8-35
RX-8_8BQ7-EA-10H_Edition1 Page367
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (437,1)
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-16
Center Console .................................. 6-86
Child Restraint
Child-restraint system installation
position ...................................... 2-30
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-37
Cigarette Lighter ............................... 6-82
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ................................................. 6-81
Coin Box ........................................... 6-85
Courtesy Lights ................................. 6-79
Cruise Control ................................... 5-23
Cup Holder ........................................ 6-84
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-39
Daytime Running Lights ................... 5-62
Defroster
Mirror ......................................... 5-69
Rear window .............................. 5-68
Dimensions ....................................... 10-5
Door Locks ....................................... 3-26
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-12
D
Driving Tips ........................................ 4-6
Automatic transmission .............. 5-21
Break-in period ............................ 4-6
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-12
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-27
DSC OFF indicator light ............ 5-28
DSC OFF switch ........................ 5-29
TCS/DSC Indicator light ............ 5-28
E
Emergency Starting ........................... 7-19
Jump-starting .............................. 7-20
Push-starting .............................. 7-23
Emergency Towing ........................... 7-24
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-14
Exhaust gas .................................. 4-4
Hood release .............................. 3-43
Oil .............................................. 8-12
Overheating ................................ 7-17
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-11
Engine Coolant
Overheating ................................ 7-17
Engine Coolant Temperature
Gauge ................................................ 5-39
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-44
Index
11-3
RX-8_8BQ7-EA-10H_Edition1 Page437
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H

Black plate (439,1)
I
Information Display .......................... 6-80
Audio display ............................. 6-82
Climate control display .............. 6-82
Clock .......................................... 6-81
Information display functions .... 6-80
Outside temperature display ....... 6-81
Inside Trunk Release Lever ............... 3-33
Instrument Cluster ............................. 5-36
Interior Care ...................................... 8-48
Interior Lights ................................... 6-78
J
Jump-Starting .................................... 7-20
K
Keyless Entry System ....................... 3-21
Keys .................................................. 3-20
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-63
Light Bulbs
Replacement ............................... 8-28
Specifications ............................. 10-6
Lighter ............................................... 6-82
Lighting Control ............................... 5-59
Lubricant Quality .............................. 10-4
M
Maintenance
Introduction .................................. 8-2
Owner maintenance precautions ... 8-9
Owner maintenance schedule ....... 8-8
Scheduled ..................................... 8-3
M
Manual Transmission Operation ....... 5-11
Recommendations for shifting.... 5-12
Map Lights ........................................ 6-79
Meters and Gauges ........................... 5-36
Mirror Defroster ................................ 5-69
Mirrors
Outside mirrors .......................... 3-54
Rearview mirror ......................... 3-55
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-44
O
Odometer and Trip Meter .................. 5-37
Outside Mirrors ................................. 3-54
Outside Temperature Display ............ 6-81
Overhead Console ............................. 6-85
Overhead Lights ................................ 6-79
Overheating ....................................... 7-17
Overloading ...................................... 4-11
P
Paint Damage .................................... 8-42
Parking Brake ..................................... 5-7
Parking in an Emergency .................... 7-2
Personalization Features ................... 10-8
Power Door Locks ............................ 3-27
Power Steering .................................. 5-22
Power steering malfunction indicator
light ............................................ 5-22
Power Windows ................................ 3-34
Push-Starting ..................................... 7-23
R
Rear Quarter Windows ..................... 3-41
Rear Seat ........................................... 2-12
Index
11-5
RX-8_8BQ7-EA-10H_Edition1 Page439
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H
