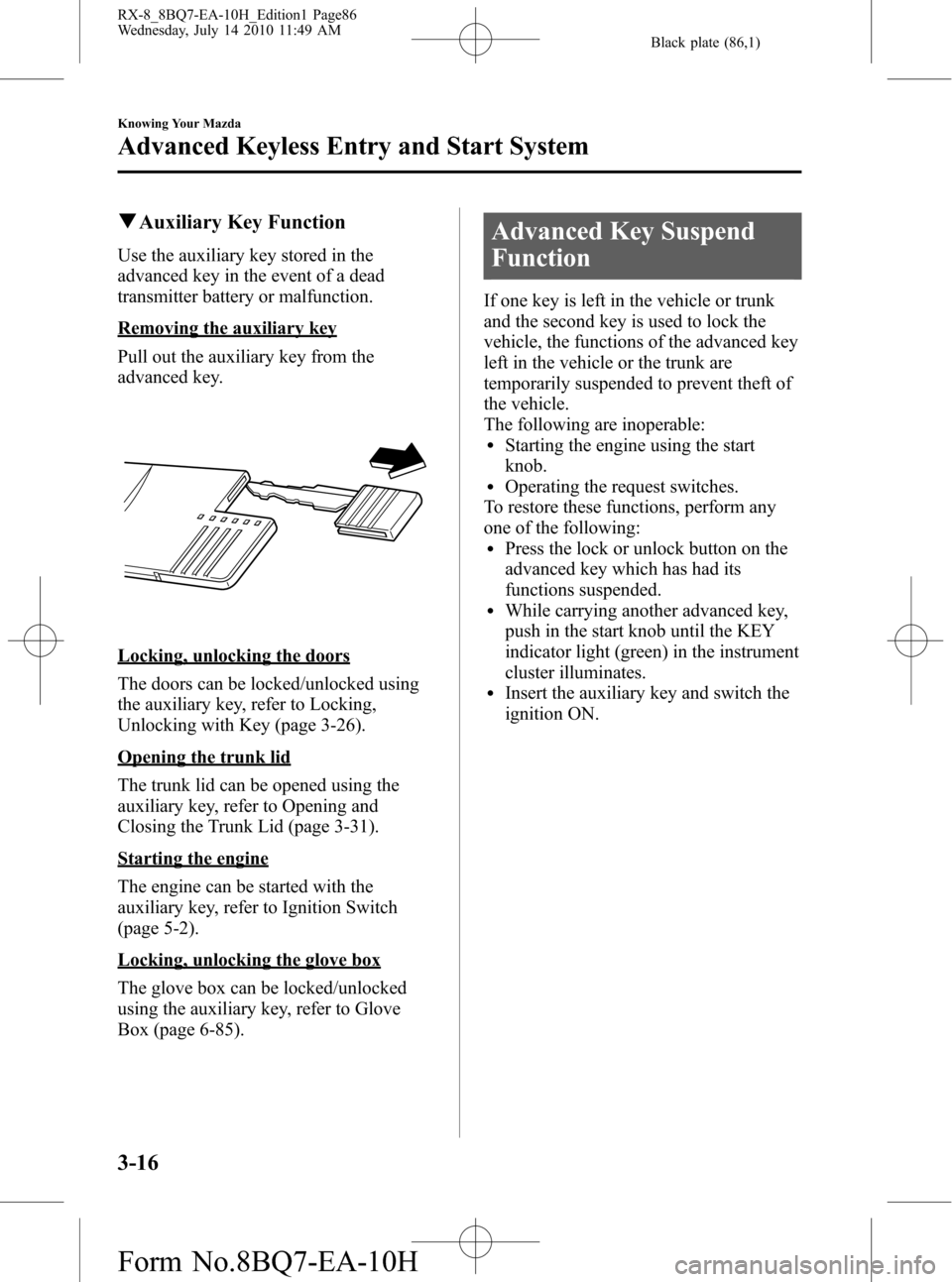

Black plate (86,1)
qAuxiliary Key Function
Use the auxiliary key stored in the
advanced key in the event of a dead
transmitter battery or malfunction.
Removing the auxiliary key
Pull out the auxiliary key from the
advanced key.
Locking, unlocking the doors
The doors can be locked/unlocked using
the auxiliary key, refer to Locking,
Unlocking with Key (page 3-26).
Opening the trunk lid
The trunk lid can be opened using the
auxiliary key, refer to Opening and
Closing the Trunk Lid (page 3-31).
Starting the engine
The engine can be started with the
auxiliary key, refer to Ignition Switch
(page 5-2).
Locking, unlocking the glove box
The glove box can be locked/unlocked
using the auxiliary key, refer to Glove
Box (page 6-85).
Advanced Key Suspend
Function
If one key is left in the vehicle or trunk
and the second key is used to lock the
vehicle, the functions of the advanced key
left in the vehicle or the trunk are
temporarily suspended to prevent theft of
the vehicle.
The following are inoperable:
lStarting the engine using the start
knob.
lOperating the request switches.
To restore these functions, perform any
one of the following:
lPress the lock or unlock button on the
advanced key which has had its
functions suspended.
lWhile carrying another advanced key,
push in the start knob until the KEY
indicator light (green) in the instrument
cluster illuminates.
lInsert the auxiliary key and switch the
ignition ON.
3-16
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8BQ7-EA-10H_Edition1 Page86
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (87,1)
Warning and Beep Sounds
qSystem Malfunction Warning Light
If any malfunction occurs in the advanced
keyless function, the KEY warning light
(red) in the instrument cluster illuminates
continuously.
CAUTION
If the KEY warning light (red) remains
illuminated, do not continue to drive
the vehicle with the advanced keyless
function. Park the vehicle in a safe
place and use the auxiliary key to
continue driving the vehicle. Have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Ignition Switch (page 5-2).
qStart Knob Not in LOCK
Warning Beep
If the ignition is switched to ACC and the
driver's door is opened, a continuous beep
sound will be heard to notify the driver
that the ignition has not been switched off.
In this case, the keyless entry system does
not operate, the car cannot be locked, and
the battery will run down.
qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the advanced key has
been removed. The KEY warning light
(red) will stop flashing when the advanced
key is back inside the vehicle:
lThe ignition has not been switched off,
the driver's door is open, and the
advanced key is removed from the
vehicle. (A beep sound will be heard
three times.)
However the beep sound will be heard
continuously when the ignition is
switched to ACC and the door is open
due to the activation of the warning
beep sound indicating that the ignition
is not switched off.
lThe ignition has not been switched off
and all the doors are closed after
removing the advanced key from the
vehicle. (A beep sound will be heard
six times.)
NOTE
Because the advanced key utilizes low-intensity
radio waves, the Advanced Key Removed From
Vehicle Warning may activate if the advanced
key is carried together with a metal object or it
is placed in a poor signal reception area
within the vehicle.
qRequest Switch Inoperable
Warning Beep
If the request switch for a front door is
pressed under the following conditions
while the advanced key is being carried, a
beep will be heard 6 times to indicate that
the front doors cannot be locked.
lA door is open (door ajar included).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-17
RX-8_8BQ7-EA-10H_Edition1 Page87
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (88,1)
lThe ignition has not been switched off.lThe auxiliary key is inserted into the
ignition switch.
qAdvanced Key Battery Dead
Warning
When the ignition is switched to ACC or
switched off from ON, the KEY indicator
light (green) flashes for approximately 30
seconds indicating that the remaining
battery power is low. Replace with a new
battery before the advanced key becomes
unusable.
Refer to Advanced Key Maintenance
(page 3-5).
NOTE
The advanced key can be set so that the KEY
indicator light (green) does not flash even if
the battery power is low.
Refer to Personalization Features on page
10-8.
qEngine Start Not Permitted Warning
Under the following conditions, the KEY
warning light (red) flashes to inform the
driver that the ignition will not switch to
ACC even if the ignition is switched off.
lThe advanced key battery is dead.lThe advanced key is not within
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
qAdvanced Key Left-in-trunk
Warning Beep
If the advanced key is left in the trunk
compartment with all doors locked and
the trunk lid closed, a beep sound is heard
for about 10 seconds to remind the driver
the advanced key has been left in the
trunk compartment. If this happens, open
the trunk lid by pressing the request
switch and remove the advanced key. An
advanced key removed from the trunk
may not function because its functions
may have been temporarily suspended. To
restore the advanced key function,
perform the applicable procedure (page
3-16).
qAdvanced Key Left-in-vehicle
Warning Beep
If an advanced key is left in the vehicle
cabin and all doors are locked using a
separate advanced key, a beep sound is
heard for about 10 seconds to remind the
driver that the advanced key has been left
in the vehicle cabin. If this happens, the
doors lock but the functions of the
advanced key left in the vehicle cabin
may be temporarily suspended. Perform
the following procedure to restore the
functions of the advanced key (page
3-16).
3-18
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8BQ7-EA-10H_Edition1 Page88
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (89,1)
When Warning Indicator/Beep is Activated
Under the following conditions, warning beeps are heard and a warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of the
advanced key to prevent theft of the vehicle (page 3-17).
Warning How to check
When a door is open, a continuous beep sound will be heard.Check whether the ignition has been
switched off.
When a door is open, three beep sounds are heard, and the KEY
warning light (red) in the instrument cluster flashes.Check whether the advanced key has
been removed from the vehicle.
When a door is closed, a beep sound is heard six times, and the KEY
warning light (red) in the instrument cluster flashes.Check whether the advanced key has
been removed from the vehicle.
When locking the doors or closing the trunk , the chime sounds for
about ten seconds.Check whether the advanced key has
been left in the vehicle or the trunk .
When attempting to lock the doors by pressing the request switch on
the front doors, and six beep sounds are heard.Check whether the ignition has been
switched off.
Check whether a door is open.
When the KEY indicator light (green) flashes in the instrument cluster.The advanced key battery power is low.
Replace the battery with a new one.
Refer to Advanced Key Maintenance on
page 3-5.
When the KEY warning light (red) remains illuminated in the
instrument cluster.The advanced key is malfunctioning. Park
the vehicle in a safe place, and use the
auxiliary key to continue driving the
vehicle. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-19
RX-8_8BQ7-EA-10H_Edition1 Page89
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (91,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry System (with
Retractable Type Key)
This system remotely locks and unlocks
the doors and opens the trunk lid, and
opens the power windows.
It can also help you signal for attention.
Operating the theft-deterrent system with
the keyless entry system transmitter is
also possible.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
ØGet the transmitter wet.
ØDisassemble the transmitter.
ØExpose the transmitter to any kind
of magnetic field.
ØExpose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
Knowing Your Mazda
Doors and Locks
3-21
RX-8_8BQ7-EA-10H_Edition1 Page91
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (92,1)
NOTElThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the key is
in the ignition switch.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-24).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
qTransmitter
Lock button
Unlock button
Trunk buttonPanic button
Operation
indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
The unlock button can be used to open the
power windows. Refer to Opening the Power
Windows from Outside (page 3-38).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button
and the hazard warning lights will flash
once.
3-22
Knowing Your Mazda
Doors and Locks
RX-8_8BQ7-EA-10H_Edition1 Page92
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (93,1)
To confirm that all doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound and the hazard
warning lights will flash once.
NOTE
lDoors can be locked by pressing the lock
button while any other door is open.
However, the hazard warning lights will not
flash and the horn will not sound.
lThe hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors are locked before the theft-
deterrent system is properly armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to the theft-deterrent system on page
3-51.
lAll doors cannot be locked when the key is
in the ignition switch.
lConfirm that all doors are locked visually
or audibly by use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors, press the unlock
button again within 5 seconds and the
hazard warning lights will flash twice.NOTE
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to the theft-deterrent system on page
3-51.
NOTE
Auto re-lock function
After unlocking with the transmitter, all doors
will automatically lock if one of the doors is
not opened within about 30 seconds.
Trunk button
To open the trunk, press the trunk button
for more than 1 second.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
is open or closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
Knowing Your Mazda
Doors and Locks
3-23
RX-8_8BQ7-EA-10H_Edition1 Page93
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (94,1)
qTransmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
ØInstall the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
ØWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
ØThere is the danger of explosion if
the battery is not correctly
replaced.
ØReplace only with the same type
battery (CR1620 or equivalent).
ØDispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire and/or water.
ØNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-20).2. Insert a small flathead screwdriver into
the slot and push the tab to remove the
key from the transmitter.
Ta b
3. Insert a small flathead screwdriver into
the slot and gently pry open the
transmitter.
3-24
Knowing Your Mazda
Doors and Locks
RX-8_8BQ7-EA-10H_Edition1 Page94
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (102,1)
Opening the trunk lid with the request
switch (with advanced key)
The trunk lid can be opened by operating
the request switch on the trunk lid while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Opening the trunk lid with the
transmitter (with advanced key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-13).
Opening the trunk lid with the
transmitter (with retractable type key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-21).
Opening the trunk lid with the remote
release button
Push the release button.
Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not to
slam it. Pull up on the trunk lid to make
sure it is secured.
Handle
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being discharged,
do not leave the trunk open for a long period
when the engine is not running.
3-32
Knowing Your Mazda
Doors and Locks
RX-8_8BQ7-EA-10H_Edition1 Page102
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (104,1)
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk end trim.
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock the power window with the
power window lock switch on the
driver's side while children are in the
vehicle, and never allow children to
play with power window switches:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
3-34
Knowing Your Mazda
Doors and Locks
RX-8_8BQ7-EA-10H_Edition1 Page104
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H
