qTurn-Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-63).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-70).
NOTE
If an indicator light remains illuminated (does
not flash) or if it flashes abnormally, one of the
turn signal bulbs may be burned out.
Beep Sounds
qSeat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the front passenger's seat
belt is not fastened and the vehicle is
driven at a speed faster than about 20
km/h (12 mph), a beep sound will be
heard again for a specified period of time.
Refer to Seat Belt Warning Light/Beep on
page 5-47.
qIgnition Key Reminder
If the ignition is switched off or the
ignition is switched to ACC with the key
inserted, a continuous beep sound will be
heard when the driver's door is opened.
qLights-On Reminderí
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
NOTE
When the advanced keyless function is used
and the start knob is in the ACC position, the
Start Knob Not in Lock Warning Beep (page
3-17) overrides the lights-on reminder.
qEngine Overrev Warning Beep
The beep sounds to indicate engine
overrev when the tachometer needle
enters the striped zone (page 5-38).
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-57íSome models. RX-8_8BQ7-EA-10H_Edition1 Page199
Wednesday, July 14 2010 11:51 AM
Form No.8BQ7-EA-10H

Black plate (203,1)
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white
beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs yourself
Replacing the xenon fusion bulbs yourself is dangerous. Because the xenon fusion
bulbs require high voltage, you could receive an electric shock if the bulbs are
handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is
necessary.
NOTE
If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is
necessary. Consult an Authorized Mazda Dealer.
qLights-On Reminderí
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
NOTE
When the advanced keyless function is used
and the start knob is in the ACC position, the
Start Knob Not in Lock Warning Beep (page
3-17) overrides the lights-on reminder.
qHeadlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
High beam
Low beam
Driving Your Mazda
Switches and Controls
5-61íSome models. RX-8_8BQ7-EA-10H_Edition1 Page203
Wednesday, July 14 2010 11:51 AM
Form No.8BQ7-EA-10H

Black plate (205,1)
Turn and Lane-Change
Signals
Turn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn Right lane change
Left lane changeOFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without flashing
or if it flashes abnormally, one of the turn
signal bulbs may be burned out.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will be turned on
when the headlights, the exterior lights and
dashboard illumination are automatically
turned on.
Driving Your Mazda
Switches and Controls
5-63íSome models. RX-8_8BQ7-EA-10H_Edition1 Page205
Wednesday, July 14 2010 11:51 AM
Form No.8BQ7-EA-10H

Black plate (333,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-8
Owner Maintenance Schedule .................................................. 8-8
Owner Maintenance Precautions ............................................... 8-9
Engine Compartment Overview .............................................. 8-11
Engine Oil ............................................................................... 8-12
Engine Coolant ....................................................................... 8-14
Brake/Clutch Fluid .................................................................. 8-16
Washer Fluid ........................................................................... 8-17
Body Lubrication .................................................................... 8-18
Wiper Blades ........................................................................... 8-19
Battery ..................................................................................... 8-21
Tires ........................................................................................ 8-23
Light Bulbs ............................................................................. 8-28
Fuses ....................................................................................... 8-36
Appearance Care ........................................................................ 8-42
How to Minimize Environmental Paint Damage .................... 8-42
Exterior Care ........................................................................... 8-44
Interior Care ............................................................................ 8-48
8-1
RX-8_8BQ7-EA-10H_Edition1 Page333
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (360,1)
Light Bulbs
Overhead light/Map lights (Front)
Headlights (High beam)
Fog lights
Headlights (Low beam)Parking lights/Front turn signal lightsSide turn signal lightsCourtesy lights Vanity mirror lights Rear turn signal lightsRear side-marker lightsOverhead light (Rear)
Brake lights/Taillights
Trunk light
High-mount brake light
License plate light
Reverse lights
Some models.
8-28
Maintenance and Care
Owner Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page360
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (361,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.High-beam bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. If you are changing the right headlight
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
headlight bulb, turn the steering wheel
to the left.
3. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
Maintenance and Care
Owner Maintenance
8-29
RX-8_8BQ7-EA-10H_Edition1 Page361
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (362,1)

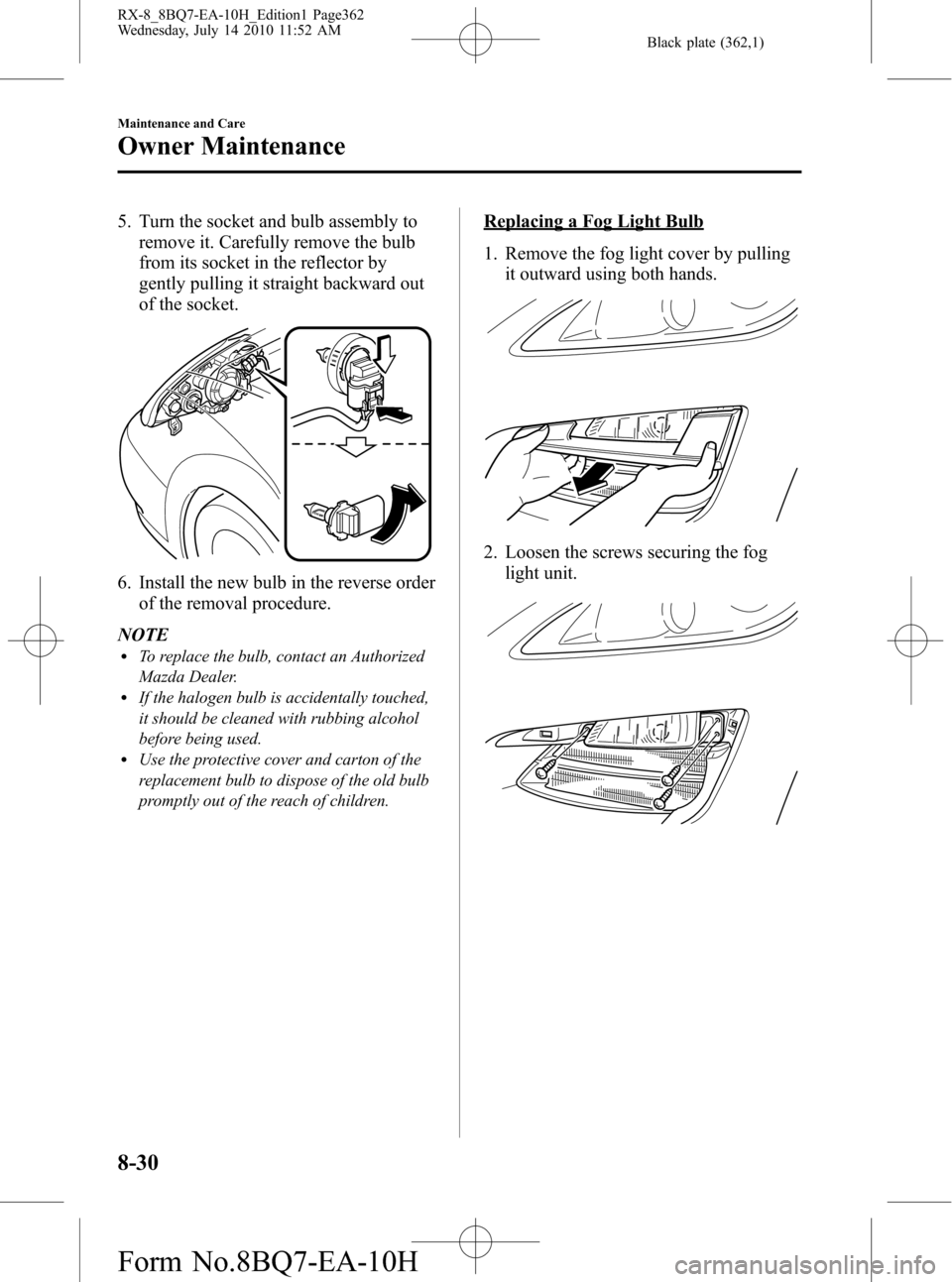

5. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Replacing a Fog Light Bulb
1. Remove the fog light cover by pulling
it outward using both hands.
2. Loosen the screws securing the fog
light unit.
8-30
Maintenance and Care
Owner Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page362
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (363,1)
3. Remove the fog light unit by pulling it
downward and then straight out using
both hands.
NOTE
When pulling out the fog light unit, be careful
not to allow the bulb socket to contact the oil
cooler.
4. Press the tab on the bulb socket and
disconnect the connector cord.
5. Rotate the bulb socket
counterclockwise as shown in the
figure and remove it.
6. Replace the bulb.
7. Reinstall the bulb socket in the reverse
order of the removal procedure.
Front turn signal lights/Parking lights
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
Maintenance and Care
Owner Maintenance
8-31
RX-8_8BQ7-EA-10H_Edition1 Page363
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (364,1)
Side-turn signal lights
1. Slide the light unit rearward.
2. Rotate the light unit clockwise as
shown in the figure and pull it out.
3. Press the tab on the bulb socket and
disconnect the connector cord.
4. Replace with a new light unit and
install it in the reverse order of the
removal procedure.
NOTE
The side-turn signal light bulb cannot be
replaced. The entire light unit itself has to be
replaced, therefore consult an Authorized
Mazda Dealer for a replacement light unit.
Brake lights/Taillights
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an expert repairer, we
recommend an Authorized Mazda Dealer.
Rear turn signal lights, Reverse lights,
Rear side marker lights
1. Pull the center section of the plastic
retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Rear turn signal lights
8-32
Maintenance and Care
Owner Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page364
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H
