Except U.S.A. and CANADA
(ILSAC)
The quality designation SL,SM, or ILSAC
must be on the label.
5W-20
120 100 80
60 40
20
0 –20
50 40 30
20 10
0 –10
–20 –30

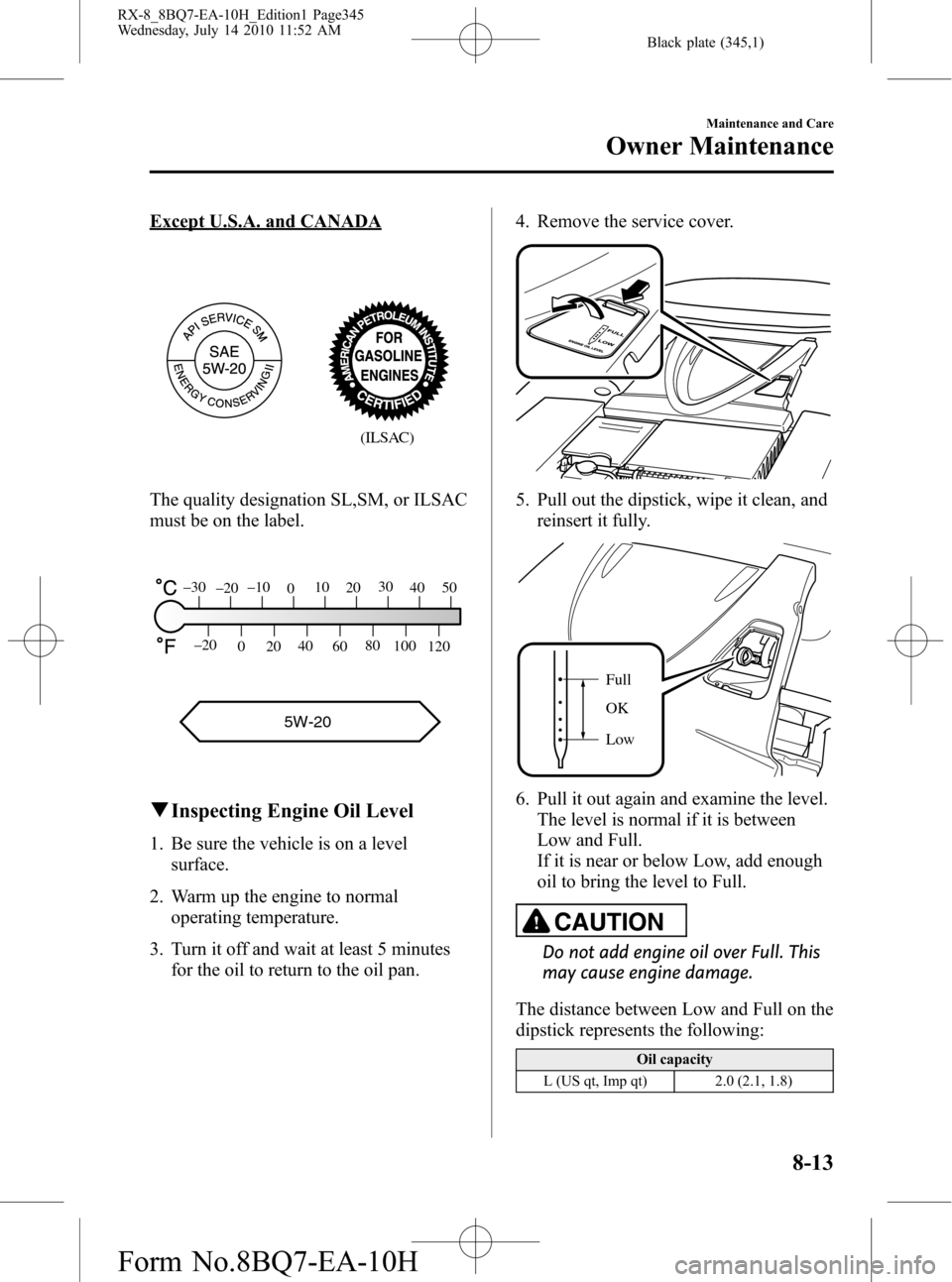

qInspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.4. Remove the service cover.
5. Pull out the dipstick, wipe it clean, and
reinsert it fully.
Full
Low OK
6. Pull it out again and examine the level.
The level is normal if it is between
Low and Full.
If it is near or below Low, add enough
oil to bring the level to Full.
CAUTION
Do not add engine oil over Full. This
may cause engine damage.
The distance between Low and Full on the
dipstick represents the following:
Oil capacity
L (US qt, Imp qt) 2.0 (2.1, 1.8)
Maintenance and Care
Owner Maintenance
8-13
RX-8_8BQ7-EA-10H_Edition1 Page345
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H
Black plate (431,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 4.4 L (4.6 US qt, 3.9 Imp qt)
Without oil filter
replacement4.2 L (4.4 US qt, 3.7 Imp qt)
CoolantManual transmission 10.0 L (10.6 US qt, 8.80 Imp qt)
Automatic transmission 9.8 L (10 US qt, 8.6 Imp qt)
Manual transmission oil 1.95 L (2.06 US qt, 1.72 Imp qt)
Automatic transmission fluid 8.0 L (8.5 US qt, 7.0 Imp qt)
Rear differential oil 1.3 L (1.4 US qt, 1.1 Imp qt)
Fuel tank 64.0 L (16.9 US gal, 14.1 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Specification
Overall lengthWithout license plate
holder4,460 mm (175.6 in)
With license plate holder 4,470 mm (176.0 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,340 mm (52.8 in)
Front tread18-inch wheel vehicle 1,500 mm (59.1 in)
19-inch wheel vehicle 1,505 mm (59.3 in)
Rear tread18-inch wheel vehicle 1,505 mm (59.3 in)
19-inch wheel vehicle 1,510 mm (59.4 in)
Wheelbase 2,700 mm (106.3 in)
qWeights
ItemWeight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight Rating) 1,732 kg (3,818 lbs) 1,752 kg (3,862 lbs)
GAWR (Gross Axle Weight Rating)Front 842 kg (1,856 lbs) 858 kg (1,892 lbs)
Rear 901 kg (1,986 lbs) 907 kg (2,000 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
