Black plate (137,1)
Winter Driving
lCarry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
lHave the proper ratio of antifreeze in
the radiator.
Refer to Engine Coolant on page 8-14.
lInspect the battery and its cables. Cold
reduces battery capacity.
lInspect the ignition system for damage
and loose connections.
lFor improved engine starting
performance the next time you start the
engine after only driving the vehicle a
short distance, turn off the engine after
1 or more of the variable red zone
lamps in the tachometer have turned
off.
In addition, it is recommended that
short trips be avoided to ensure that the
engine reaches operating temperature
before turning off the engine.
lUse washer fluid made with
antifreeze―but do not use engine
coolant antifreeze for washer fluid
(page 8-17).
lDo not use the parking brake in
freezing weather as it may freeze.
Instead, shift to P with an automatic
transmission and to 1 or R with a
manual transmission. Block the rear
wheels.
lDo not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
lNever use warm or hot water for
removing snow or ice from windows
and mirrors as it could result in the
glass cracking.
lBraking performance can be adversely
affected if snow or ice adheres to the
brake equipment. If this situation
occurs, drive the vehicle slowly,
releasing the accelerator pedal and
lightly applying the brakes several
times until the brake performance
returns to normal.
qSnow Tires
Use snow tires on all four wheels
Do not go faster than 120 km/h (75 mph)
while driving with snow tires. Inflate
snow tires 30 kPa (0.3 kgf/cm
2, 4.3 psi)
more than recommended on the tire
pressure label (rear door on the driver's
side), but never more than the maximum
cold-tire pressure shown on the tires.
Your vehicle is originally equipped with
summer tires designed for optimum
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
covered roads, Mazda recommends that
you replace the tires originally equipped
on your vehicle with snow tires during the
winter months.
WARNING
Use only the same size and type tires
(snow, radial, or non-radial) on all four
wheels:
Using tires different in size or type is
dangerous. Your vehicle's handling
could be greatly affected and result
in an accident.
CAUTION
Check local regulations before using
studded tires.
Before Driving Your Mazda
Driving Tips
4-9
RX-8_8BQ7-EA-10H_Edition1 Page137
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (152,1)
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the
battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it
is the result of the weak battery and does not
indicate an ABS malfunction.
Recharge the battery.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qBrake Pad Wear Indicator
When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a loud screeching
noise to warn that the pads should be
replaced.
When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.
5-10
Driving Your Mazda
Starting and Driving
RX-8_8BQ7-EA-10H_Edition1 Page152
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (186,1)
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the
battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it
is the result of the weak battery and does not
indicate an ABS malfunction.
Recharge the battery.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
5-44
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8BQ7-EA-10H_Edition1 Page186
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (305,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit ............................................................................................. 7-5
Changing the Tire .................................................................... 7-11
Overheating ................................................................................. 7-17
Overheating ............................................................................. 7-17
Emergency Starting .................................................................... 7-19
Starting a Flooded Engine ....................................................... 7-19
Jump-Starting .......................................................................... 7-20
Push-Starting ........................................................................... 7-23
Emergency Towing ..................................................................... 7-24
Towing Description ................................................................. 7-24
Tiedown Hooks ....................................................................... 7-25
Recreational Towing ............................................................... 7-27
7-1
RX-8_8BQ7-EA-10H_Edition1 Page305
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (324,1)
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID
which could cause blindness if splashed into your eyes. Also, hydrogen gas produced
during normal battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery
fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in
eyes, skin or clothing. If this happens, immediately flush your eyes with water for 15
minutes or wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin.
Do not allow the positive () terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a
battery, do not allow metal tools to contact the positive (
) or negative ()
terminal of the battery.
7-20
In Case of an Emergency
Emergency Starting
RX-8_8BQ7-EA-10H_Edition1 Page324
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (325,1)
Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
1. Remove the engine cover.
2. Remove the rubber hose from the
battery cover.
In Case of an Emergency
Emergency Starting
7-21
RX-8_8BQ7-EA-10H_Edition1 Page325
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (326,1)
3. Remove the battery cover from its rear
side.
4. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
5. If the booster battery is in another
vehicle, don't allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
6. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to a solid,
stationary, exposed metallic point
(for example, the tightening bolt)
away from the discharged battery
(4).
Booster battery
Connect cables
in numerical
order and
disconnect in
reverse order.
Discharged
battery
7. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
8. When finished, carefully disconnect the
cables in the reverse order described in
Step 6.
NOTE
Verify that the engine cover is securely
installed.
7-22
In Case of an Emergency
Emergency Starting
RX-8_8BQ7-EA-10H_Edition1 Page326
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (437,1)
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-16
Center Console .................................. 6-86
Child Restraint
Child-restraint system installation
position ...................................... 2-30
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-37
Cigarette Lighter ............................... 6-82
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ................................................. 6-81
Coin Box ........................................... 6-85
Courtesy Lights ................................. 6-79
Cruise Control ................................... 5-23
Cup Holder ........................................ 6-84
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-39
Daytime Running Lights ................... 5-62
Defroster
Mirror ......................................... 5-69
Rear window .............................. 5-68
Dimensions ....................................... 10-5
Door Locks ....................................... 3-26
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-12
D
Driving Tips ........................................ 4-6
Automatic transmission .............. 5-21
Break-in period ............................ 4-6
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-12
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-27
DSC OFF indicator light ............ 5-28
DSC OFF switch ........................ 5-29
TCS/DSC Indicator light ............ 5-28
E
Emergency Starting ........................... 7-19
Jump-starting .............................. 7-20
Push-starting .............................. 7-23
Emergency Towing ........................... 7-24
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-14
Exhaust gas .................................. 4-4
Hood release .............................. 3-43
Oil .............................................. 8-12
Overheating ................................ 7-17
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-11
Engine Coolant
Overheating ................................ 7-17
Engine Coolant Temperature
Gauge ................................................ 5-39
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-44
Index
11-3
RX-8_8BQ7-EA-10H_Edition1 Page437
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H

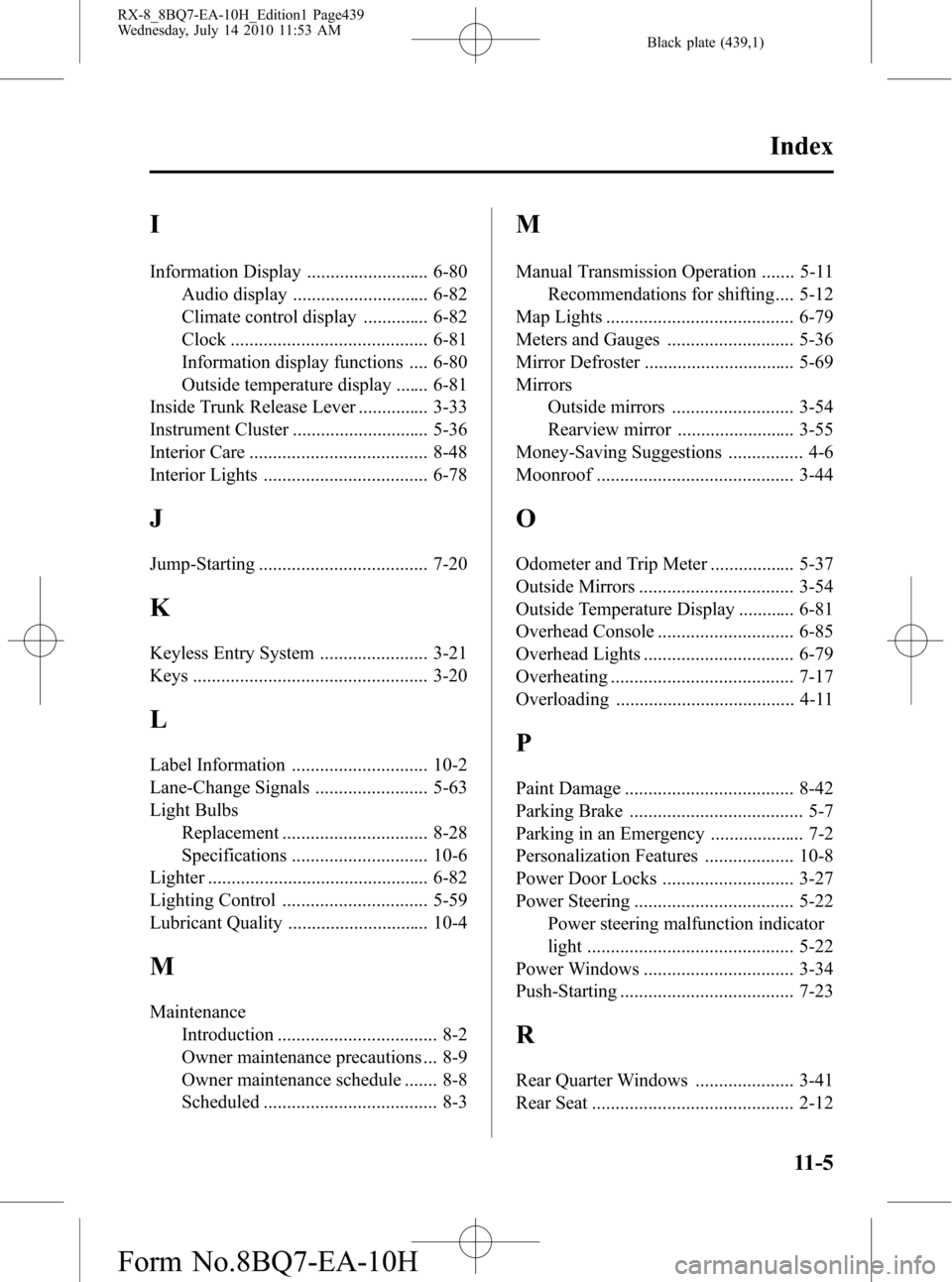

Black plate (439,1)
I
Information Display .......................... 6-80
Audio display ............................. 6-82
Climate control display .............. 6-82
Clock .......................................... 6-81
Information display functions .... 6-80
Outside temperature display ....... 6-81
Inside Trunk Release Lever ............... 3-33
Instrument Cluster ............................. 5-36
Interior Care ...................................... 8-48
Interior Lights ................................... 6-78
J
Jump-Starting .................................... 7-20
K
Keyless Entry System ....................... 3-21
Keys .................................................. 3-20
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-63
Light Bulbs
Replacement ............................... 8-28
Specifications ............................. 10-6
Lighter ............................................... 6-82
Lighting Control ............................... 5-59
Lubricant Quality .............................. 10-4
M
Maintenance
Introduction .................................. 8-2
Owner maintenance precautions ... 8-9
Owner maintenance schedule ....... 8-8
Scheduled ..................................... 8-3
M
Manual Transmission Operation ....... 5-11
Recommendations for shifting.... 5-12
Map Lights ........................................ 6-79
Meters and Gauges ........................... 5-36
Mirror Defroster ................................ 5-69
Mirrors
Outside mirrors .......................... 3-54
Rearview mirror ......................... 3-55
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-44
O
Odometer and Trip Meter .................. 5-37
Outside Mirrors ................................. 3-54
Outside Temperature Display ............ 6-81
Overhead Console ............................. 6-85
Overhead Lights ................................ 6-79
Overheating ....................................... 7-17
Overloading ...................................... 4-11
P
Paint Damage .................................... 8-42
Parking Brake ..................................... 5-7
Parking in an Emergency .................... 7-2
Personalization Features ................... 10-8
Power Door Locks ............................ 3-27
Power Steering .................................. 5-22
Power steering malfunction indicator
light ............................................ 5-22
Power Windows ................................ 3-34
Push-Starting ..................................... 7-23
R
Rear Quarter Windows ..................... 3-41
Rear Seat ........................................... 2-12
Index
11-5
RX-8_8BQ7-EA-10H_Edition1 Page439
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H
