WARNING
Increasing the Total Seated Weight on the Front Passenger Seat:
When an infant or small child sits on the front passenger seat, increasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 30 kg (66 lb) is dangerous. The front passenger seat weight sensors will
detect the increased total seated weight, which could result in the unexpected
deployment of the front passenger front and side air bags and seat belt pretensioner
system in an accident and serious injury. Increasing the total seated weight on the
front passenger seat beyond the total seated weight of approximately 30 kg (66 lb)
could result in the front passenger front and side air bags and seat belt pretensioner
system deployment in an accident under the following conditions, for example:
lLuggage or other items are placed on the seat with the child in the child-restraint
system.
lA rear passenger or luggage push or pull down on the front passenger seatback.lA rear passenger steps on the front passenger seat rails with the feet.lLuggage or other items are placed on the seatback or hung on the assist grip, head
restraint.
lThe seat is washed.lLiquids are spilled on the seat.lThe front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
lThe front passenger seatback contacts the rear seat.lLuggage or other items are placed between the front passenger seat and driver seat.lAny accessories which might increase the total seated weight on the front passenger
seat are attached to the front passenger seat.
The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the total seated weight on the front passenger seat is close to 30 kg (66 lb)
and they will reactivate before the weight exceeds 42 kg (93 lb).
Essential Safety Equipment
SRS Air Bags
2-49
Mazdaspeed6_8U01-EA-05H_Edition2 Page61
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (62,1)
CAUTION
lTo assure proper deployment of the front air bag and to prevent damage to the sensors
in the front seat bottoms:
lDo not place sharp objects on the front seat bottoms or leave heavy luggage on
them.
lDo not spill any liquids on the front seats or under the front seats.
lTo allow the sensors to function properly, always perform the following:
lAdjust the front seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.
lIf you place your child on the front passenger seat, secure the child-restraint system
properly and slide the front passenger seat as far back as possible (page 2-32).
NOTE
lThe system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.
lThe front passenger air bag deactivation indicator light may illuminate repeatedly if
luggage or other items are put on the front passenger seat, or if the temperature of the
vehicle's interior changes suddenly.
lThe front passenger air bag deactivation indicator light may illuminate for 10 seconds
if the total seated weight on the front passenger seat changes.
lIf the front passenger air bag deactivation indicator light does not illuminate after
installing a child-restraint system on the front passenger seat, install the child-restraint
system on the rear seat and consult an Authorized Mazda Dealer as soon as possible.
Driver and front passenger buckle switches
The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.
2-50
Essential Safety Equipment
SRS Air Bags
Mazdaspeed6_8U01-EA-05H_Edition2 Page62
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (63,1)
qHow the Side and Curtain Air Bags Work
When air bag crash sensors detect a side impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the side and curtain air bags and after the inflation, the side
and curtain air bags quickly deflate.
The side and curtain air bags will function only once. After that, the side and curtain air
bags will not work again and must be replaced. Only an Authorized Mazda Dealer can
replace the systems.
The side and curtain air bag will deploy only
on the side the vehicle receives the force of
the impact.
WARNING
Damaged Side and Curtain Air Bag Wiring under the Front Seats:
Placing luggage or other objects under the front seats is dangerous. The side and
curtain air bag wiring could be damaged, and in the event of a side collision, the side
and curtain air bags may not deploy, which could result in death or serious injury. To
prevent damage to the side and curtain air bag wiring, do not place luggage or other
objects under the front seats.
q Air Bag Activation/Deactivation
NOTE
If the front passenger seat weight sensors detect a total seated weight on the front
passenger seat is less than approximately 42 kg (93 lb), the front passenger front and side
air bags and seat belt pretensioner may not inflate (page 2-46).
Essential Safety Equipment
SRS Air Bags
2-51
Mazdaspeed6_8U01-EA-05H_Edition2 Page63
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (64,1)

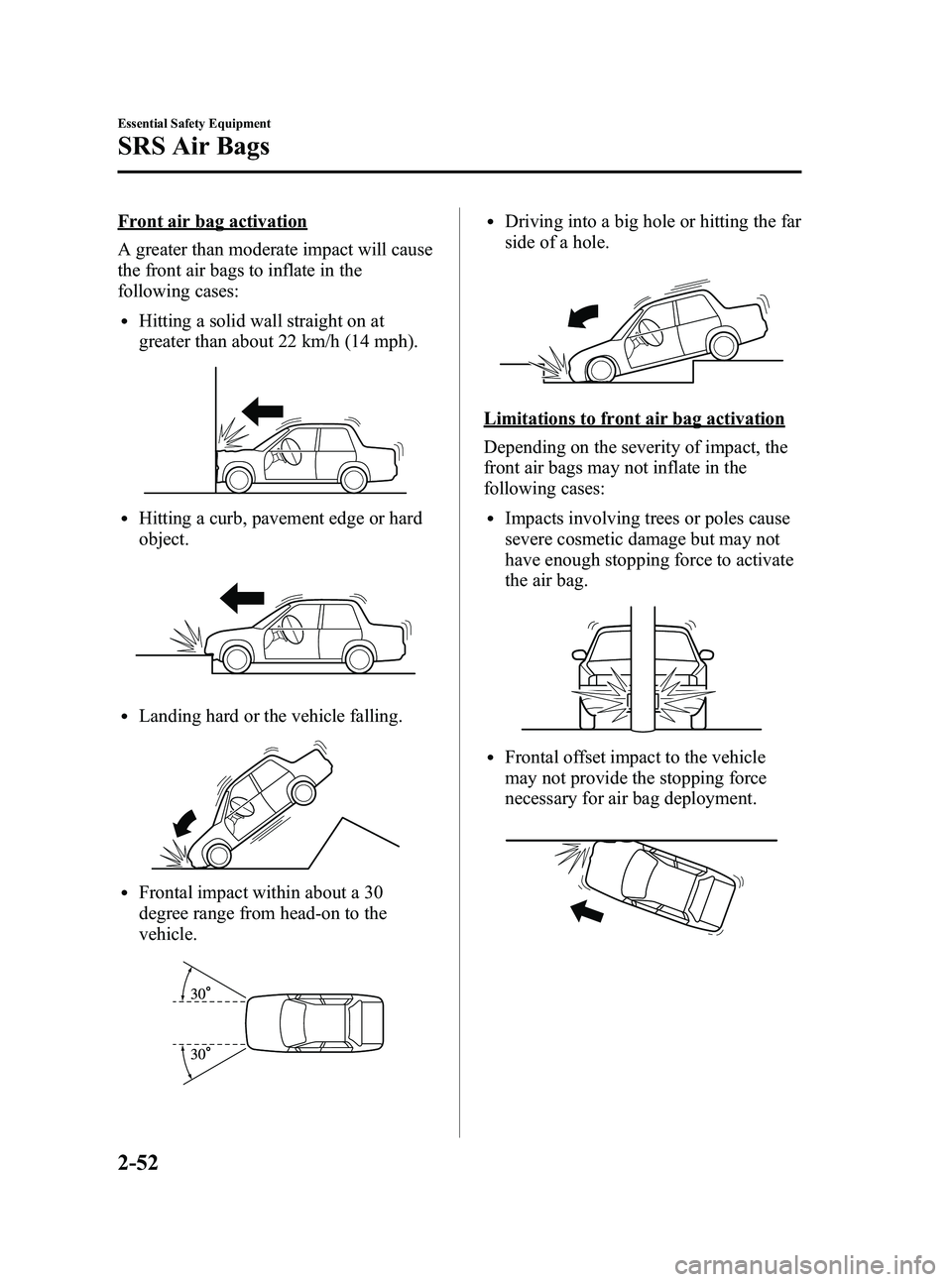

Front air bag activation
A greater than moderate impact will cause
the front air bags to inflate in the
following cases:
lHitting a solid wall straight on at
greater than about 22 km/h (14 mph).
lHitting a curb, pavement edge or hard
object.
lLanding hard or the vehicle falling.
lFrontal impact within about a 30
degree range from head-on to the
vehicle.
lDriving into a big hole or hitting the far
side of a hole.
Limitations to front air bag activation
Depending on the severity of impact, the
front air bags may not inflate in the
following cases:
lImpacts involving trees or poles cause
severe cosmetic damage but may not
have enough stopping force to activate
the air bag.
lFrontal offset impact to the vehicle
may not provide the stopping force
necessary for air bag deployment.
2-52
Essential Safety Equipment
SRS Air Bags
Mazdaspeed6_8U01-EA-05H_Edition2 Page64
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (65,1)
lRear-ending or running under a truck's
tail gate may not provide the stopping
force necessary for air bag deployment.
Non-activation of front air bags
Front air bags will not normally inflate in
the following cases:
lCollision from the rear.
lImpact to the side, but it may deploy
the side and curtain air bags.
lVehicle roll-over, may deploy the side
and curtain air bags but not the front air
bags.
Side and curtain air bag activation
Greater than moderate impact to one side
of the vehicle (driver or passenger side
areas) will cause the side and curtain air
bags on that side to inflate, but it will not
normally deploy the front air bags.
Limitations to side and curtain air bag
activation
Depending on the severity of impact, the
side and curtain air bags may not inflate in
the following cases:
lFrontal offset impact may not provide
enough side impact to deploy the side
and curtain air bags.
lSide impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side and curtain air bags.
Essential Safety Equipment
SRS Air Bags
2-53
Mazdaspeed6_8U01-EA-05H_Edition2 Page65
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (66,1)
lVehicle roll-over may not provide
enough side force to deploy the side
and curtain air bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side and curtain air bags.
Non-activation of side and curtain air
bag
The side and curtain air bags will not
normally inflate in the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unit
lFront air bag sensor
lAir bag modules
lSide crash sensors
lFront seat belt pretensioners
lRelated wiring
lDriver seat slide position sensor
lFront passenger seat weight sensors
lDriver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
2-54
Essential Safety Equipment
SRS Air Bags
Mazdaspeed6_8U01-EA-05H_Edition2 Page66
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (67,1)
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.
lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to “Front passenger
seat weight sensors ”(page 2-46).
WARNING
Damaged Air Bag/Seat Belt
Pretensioner System Components:
Expended or damaged air bag or seat
belt pretensioner units must be
replaced after any collision which
caused them to deploy or damage
them. Only a trained Authorized
Mazda Dealer can fully evaluate these
systems to see that they will work in
the next accident. Driving with an
expended or damaged air bag or
pretensioner units will provide you
reduced protection in the next accident
and you could be injured or killed.
Removing Interior Parts:
Removing any components such as the
front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag components.
The air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.
Essential Safety Equipment
SRS Air Bags
2-55
Mazdaspeed6_8U01-EA-05H_Edition2 Page67
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (68,1)
WARNING
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person with
certain medical conditions in
accordance with a certified physician,
contact an Authorized Mazda Dealer,
refer to“Customer Assistance (U.S.A.) ”
(page 9-2).
2-56
Essential Safety Equipment
SRS Air Bags
Mazdaspeed6_8U01-EA-05H_Edition2 Page68
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (69,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Advanced Keyless Entry and Start System ................................ 3-2Advanced Keysí...................................................................... 3-2
Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-13
Warning and Beep Sounds ...................................................... 3-16
Setting Change (Function Customization) .............................. 3-18
User Mis-Operation Warning Indicators ................................. 3-19
Doors and Locks ......................................................................... 3-20 Keys ........................................................................................ 3-20
Keyless Entry System (with Retractable Type Key) ............... 3-21
Door Locks ............................................................................. 3-26
Trunk Lid ................................................................................ 3-29
Inside Trunk Release Lever ..................................................... 3-33
Power Windows ...................................................................... 3-34
Opening/Closing the Power Windows from Outside .............. 3-39
Fuel-Filler Lid and Cap ........................................................... 3-42
Hood ....................................................................................... 3-44
Moonroof
í............................................................................. 3-45
Security System ........................................................................... 3-47 Immobilizer System (with Advanced Key) ............................. 3-47
Immobilizer System (without Advanced Key) ........................ 3-50
Theft-Deterrent System ........................................................... 3-53
Steering Wheel and Mirrors ...................................................... 3-55 Steering Wheel ........................................................................ 3-55
Mirrors .................................................................................... 3-55
3-1íSome models.
Mazdaspeed6_8U01-EA-05H_Edition2 Page69
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (70,1)
Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enables the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors and the trunk lid without operating the key.
lStarting the engine without operating the key.
The advanced key enables additional functions other than those with the advanced keyless
functions (page 3-13).
lThe following operations are possible using the keyless entry system from a distance
(Lock/Unlock/Panic button):
lLocking/unlocking the doors and the trunk lid.lOpening the power windows.lTurning on the alarm.
lLocking/unlocking the doors and the trunk lid, or starting the engine using the auxiliary
key.
WARNING
Keys and Children:
Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. These new kinds of keys are fascinating to
children. They could play with power windows or other controls, or even make the
vehicle move. Don't leave the keys in your vehicle with children and keep them in a
place where your children will not find or play with them.
Use of Advanced Key Near Medical Equipment:
Radio waves from the advanced key may affect medical equipment such as
pacemakers. Before using the advanced key near people who use medical equipment,
ask the medical equipment manufacturer or your physician if radio waves from the
advanced key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.
lRefer to Immobilizer System (page 3-47) for information regarding keys and engine
starting.
lRefer to Theft-Deterrent System (page 3-53) for information regarding keys and the
prevention of vehicle and vehicle contents theft.
3-2
Knowing Your Mazda
íSome models.
Advanced Keyless Entry and Start System
Mazdaspeed6_8U01-EA-05H_Edition2 Page70
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H
