mileage MAZDA MODEL SPEED 6 2006 Owners Manual

Black plate (257,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
AIR CONDITIONER SYSTEM (if equipped)
Cabin air filter Replace every 40,000 km (25,000 miles) or 24 months
Chart symbols:
I: Inspect and repair, clean, adjust, or replace if necessary.
R: Replace
L: Lubricate
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription “FL22 ”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*3 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil every 45,000 km {28,100 miles}.
a) Driving in dusty, sandy or wet condition
b) Extended periods of idling or low speed operation
c) Repeated short trips of less than 16 km {10 miles}
*4 If this component has been submerged in water, the oil should be replaced.
Maintenance and Care
Scheduled Maintenance
8-5
Mazdaspeed6_8U01-EA-05H_Edition2 Page257
Thursday, September 29 2005 5:32 PM
Form No.8U01-EA-05H

Black plate (259,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake and clutch fluid level IIIIIIIIIIII
Disc brakes IIII
Tire (Rotation) Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wear IIIIIIIIIIII
Steering operation and linkages I I
Power steering fluid level IIIIIIIIIIII
Front and rear suspension and ball joints I I
Rear differential oil
*4*5
Transfer oil*5
Driveshaft dust boots II
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 60 months
All locks and hinges LLLLLLLLLLLL
Washer fluid level IIIIIIIIIIII
AIR CONDITIONER SYSTEM (if equipped)
Cabin air filter Replace every 40,000 km (25,000 miles) or 24 months
Chart symbols:
I:Inspect and repair, clean, adjust, or replace if necessary.
R: Replace
L: Lubricate
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription “FL22 ”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*3 If the vehicle is operated primarily under any of the following conditions, replace the spark plugs every 96,000 km {60,000 miles} or shorter.
a) Repeated short-distance driving
b) Extended periods of idling or low-speed operation
c) Driving for long periods in cold temperatures or extremely humid climates
*4 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil every 45,000 km {28,100 miles}.
a) Driving in dusty, sandy or wet condition
b) Extended periods of idling or low speed operation
c) Repeated short trips of less than 16 km {10 miles}
*5 If this component has been submerged in water, the oil should be replaced.
Maintenance and Care
Scheduled Maintenance
8-7
Mazdaspeed6_8U01-EA-05H_Edition2 Page259
Thursday, September 29 2005 5:32 PM
Form No.8U01-EA-05H

Black plate (303,1)

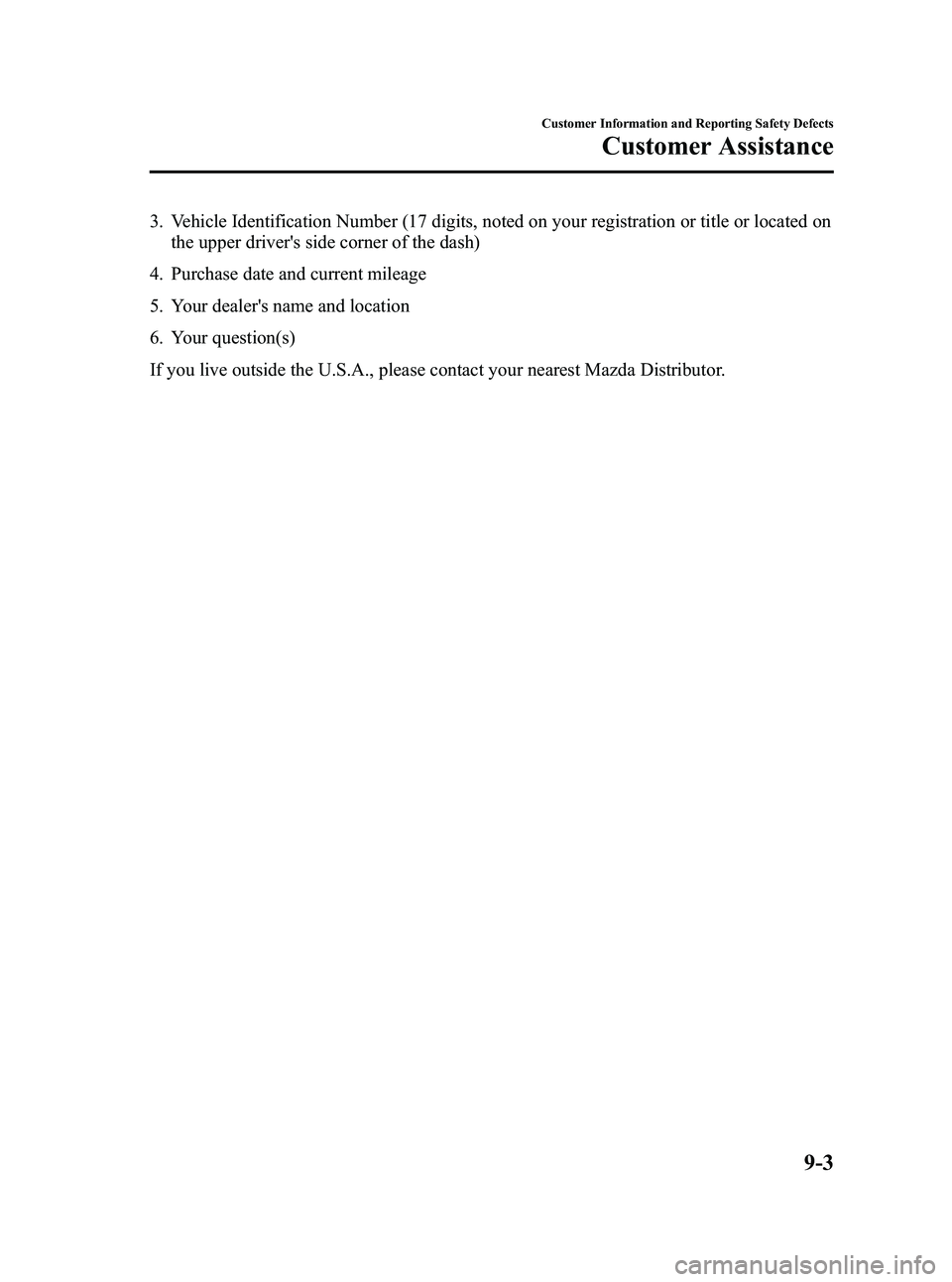

3. Vehicle Identification Number (17 digits, noted on your registration or title or located onthe upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
If you live outside the U.S.A., please contact your nearest Mazda Distributor.
Customer Information and Reporting Safety Defects
Customer Assistance
9-3
Mazdaspeed6_8U01-EA-05H_Edition2 Page303
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (307,1)
Customer Assistance (Puerto Rico)
Your complete and permanent satisfaction is our business. That is why all Authorized
Mazda Dealers have the knowledge and the tools to keep your Mazda vehicle in top
condition.
If you have any questions or recommendations for improvement regarding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend that you take
the following steps:
qSTEP 1
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS,
SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL
MANAGER of the dealership or the OWNER.
qSTEP 2
If, after following STEP 1, you feel the need for further assistance, please contact your
area's Mazda representative (Indicated on the next page).
Please help us by providing the following information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration or title or located on
the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
Customer Information and Reporting Safety Defects
Customer Assistance
9-7
Mazdaspeed6_8U01-EA-05H_Edition2 Page307
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (329,1)
NOTE
Tires degrade over time, even when they are not being used on the road. It is
recommended that tires generally be replaced when they are 6 years or older. Heat
caused by hot climates or frequent high loading conditions can accelerate the aging
process. You should replace the spare tire when you replace the other road tires due to
the aging of the spare tire. Regarding the manufacturing week and year is indicated with
4 digit. Refer to The tire labeling on page 9-18.
qSafety Practices
The way you drive has a great deal to do with your tire mileage and safety. So cultivate
good driving habits for your own benefit.
lObserve posted speed limits
lAvoid fast starts, stops and turns
lAvoid potholes and objects on the road
lDo no run over curbs or hit the tire against the curb when parking
CAUTION
If you feel a sudden vibration or ride disturbance while driving or you suspect your tire
or vehicle has been damaged, immediately reduce your speed. Drive with caution until
you can safely pull off the road. Stop and inspect the tire for damage. If the tire is under-
inflated or damaged, deflate it, remove the tire and rim and replace it with your spare
tire. If you cannot detect a cause, have the vehicle towed to the nearest vehicle or tire
dealer to have the vehicle inspected.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-29
Mazdaspeed6_8U01-EA-05H_Edition2 Page329
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H
