Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enables the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors and the trunk lid without operating the key.
lStarting the engine without operating the key.
The advanced key enables additional functions other than those with the advanced keyless
functions (page 3-13).
lThe following operations are possible using the keyless entry system from a distance
(Lock/Unlock/Panic button):
lLocking/unlocking the doors and the trunk lid.lOpening the power windows.lTurning on the alarm.
lLocking/unlocking the doors and the trunk lid, or starting the engine using the auxiliary
key.
WARNING
Keys and Children:
Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. These new kinds of keys are fascinating to
children. They could play with power windows or other controls, or even make the
vehicle move. Don't leave the keys in your vehicle with children and keep them in a
place where your children will not find or play with them.
Use of Advanced Key Near Medical Equipment:
Radio waves from the advanced key may affect medical equipment such as
pacemakers. Before using the advanced key near people who use medical equipment,
ask the medical equipment manufacturer or your physician if radio waves from the
advanced key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.
lRefer to Immobilizer System (page 3-47) for information regarding keys and engine
starting.
lRefer to Theft-Deterrent System (page 3-53) for information regarding keys and the
prevention of vehicle and vehicle contents theft.
3-2
Knowing Your Mazda
íSome models.
Advanced Keyless Entry and Start System
Mazdaspeed6_8U01-EA-05H_Edition2 Page70
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (79,1)
Starting the Engine
NOTE
lEngine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
lThe advanced key must be carried
because the advanced key carries an
immobilizer chip that must
communicate with the engine
controls at short range.
lWhen starting the engine, be sure the
start knob is securely attached before
trying to operate it. If the knob
becomes detached from the ignition
switch, re-attach it by pushing it on
to the ignition switch.
1. Make sure the advanced key is beingcarried.
2. Occupants should fasten their seat belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal. 5. Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
NOTE
The starter will not operate if the clutch
pedal is notdepressed all the way.
6. Push the start knob slowly all the way in.
7. Verify that the KEY indicator light
(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine (page 3-19).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
Mazdaspeed6_8U01-EA-05H_Edition2 Page79
Thursday, September 29 2005 5:30 PM
Form No.8U01-EA-05H

Black plate (201,1)
Audio Set
Illustration is of a representative audio unit.
Cassette Tape Player
In-Dash CD Changer (Music CD/MP3 CD Player)
In-Dash CD Changer (Music CD Player)
Power/Volume/Sound Controls .............................................................................. page 6-22
Operating the Radio ............................................................................................... page 6-24
Operating the Cassette Tape Player ........................................................................ page 6-26
Operating the In-Dash CD Changer ....................................................................... page 6-28
Error Indications ..................................................................................................... page 6-34
Interior Comfort
Audio System
6-21
Mazdaspeed6_8U01-EA-05H_Edition2 Page201
Thursday, September 29 2005 5:32 PM
Form No.8U01-EA-05H

Black plate (215,1)
Audio Control Switch
Operation (Steering Wheel)
í
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
NOTE
Because the audio unit will be turned
off under the following conditions, the
switches will be inoperable.
lWhen the ignition switch is turned to
the LOCK position.
lWhen the power button on the audio
unit is pressed and the audio unit is
turned off.
lWhen all CDs are ejected.
NOTE
Mazda has installed this system to
prevent distraction while driving the
vehicle and using audio controls on the
dashboard.
Always make safe driving your first
priority.
qAdjusting the Volume
To increase the volume, press volume
button (
).
To decrease the volume, press volume
button (
).
q Changing the Source
Press the mode switch () to change
the audio source (FM1 radio> FM2 radio>
AM radio> CD changer> Cassette tape
player> SIRIUS1> SIRIUS2> SIRIUS3>
cyclical).
Interior Comfort
Audio System
6-35íSome models.
Mazdaspeed6_8U01-EA-05H_Edition2 Page215
Thursday, September 29 2005 5:32 PM
Form No.8U01-EA-05H

Black plate (217,1)

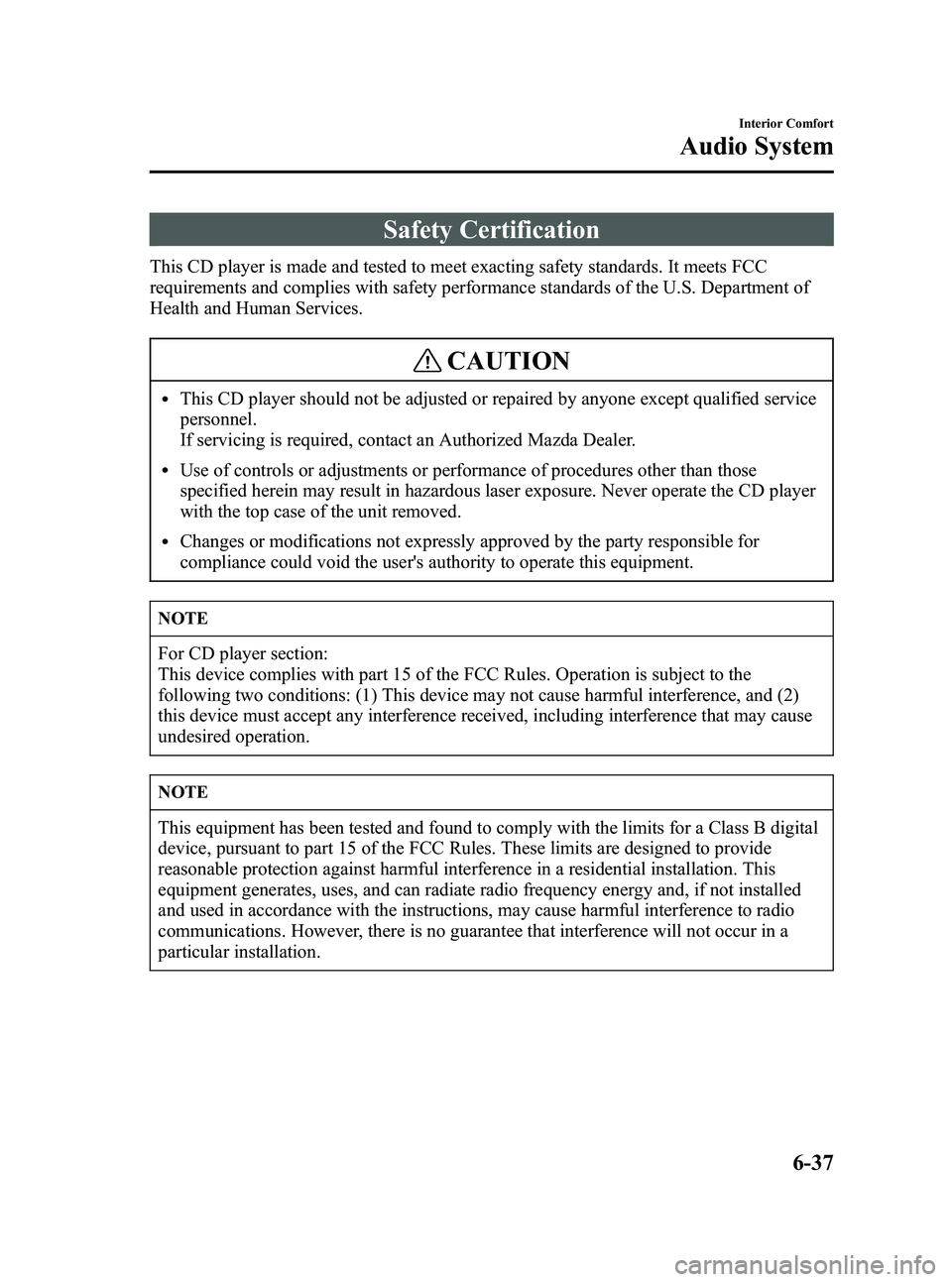

Safety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
CAUTION
lThis CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
lUse of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
lChanges or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
Interior Comfort
Audio System
6-37
