MAZDA MODEL SPEED MX-5 MIATA 2004 Owners Manual
Manufacturer: MAZDA, Model Year: 2004, Model line: MODEL SPEED MX-5 MIATA, Model: MAZDA MODEL SPEED MX-5 MIATA 2004Pages: 282, PDF Size: 5.51 MB
Page 271 of 282
10-1
Form No. 8T02-EA-03L
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2
Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4
Specifications .......................................................................... 10-4
J07S_8T02-EA-03L_Edition1.book Page 1 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
Page 272 of 282
10-2
Form No. 8T02-EA-03L

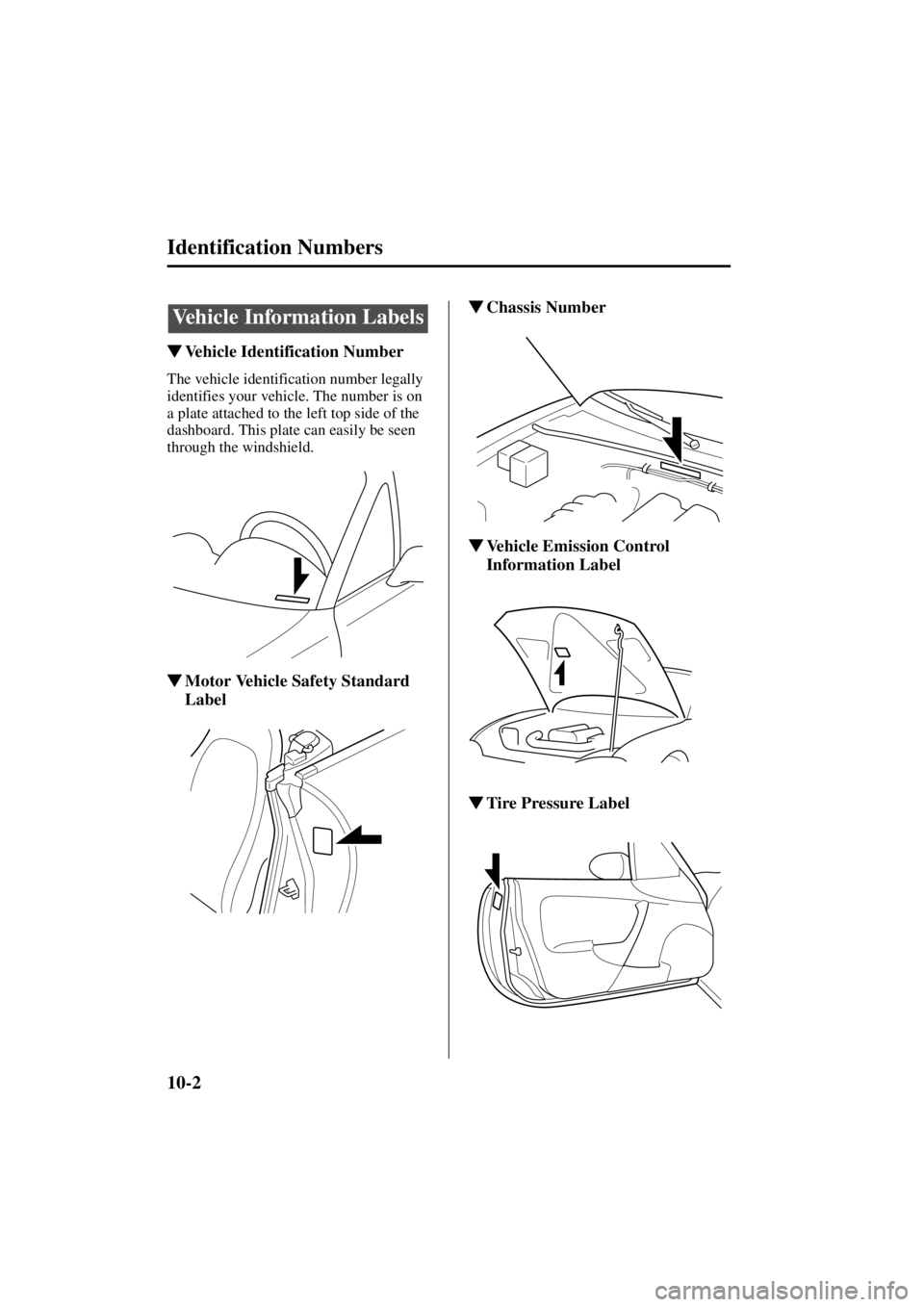

Identification Numbers
Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.
Motor Vehicle Safety Standard
Label
Chassis Number
Vehicle Emission Control
Information Label
Tire Pressure Label
Vehicle Information Labels
J07S_8T02-EA-03L_Edition1.book Page 2 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
Page 273 of 282
10-3
Identification Numbers
Form No. 8T02-EA-03L
Engine Number
Front
J07S_8T02-EA-03L_Edition1.book Page 3 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
Page 274 of 282
10-4
Form No. 8T02-EA-03L
Specifications
Engine
Electrical System
Lubricant Quality
* Refer to the recommended SAE viscosity numbers on page 8-13 .
Specifications
Item
Specification
Type DOHC-16V in-line, 4-cylinder
Bore ×Stroke 83.0 mm × 85.0 mm (3.3 × 3.4 in)
Displacement 1,840 ml (1,840 cc, 112.2 cu in)
Compression ratio MX-5/miata
10.0
MAZDASPEED MX-5 9.5
Item Specification
Battery Maintenance-free, 12V-32AH/5HR
Alternator 12 V - 80 A
Starter 12 V - 1.0 kW
Spark-plug
number MX-5/miata
NGK
BKR5E11, BKR6E11
DENSO K16PR-U11, K20PR-U11
MAZDASPEED
MX-5 DENSO
SK16PR-F8
Spark-plug gap MX-5/miata
1.0—1.1mm (0.040 —0.043 in)
MAZDASPEED MX-5 0.7—0.8mm (0.027 —0.031 in)
Lubricant Classification
API Service ILSAC
Engine oil
*
SG (Energy Conserving II) —
SH (Energy Conserving II) GF-I
SJ GF-II
SL GF-III
Lubricant Classification
Manual transmission oil Any temperature
API Service GL-4 or GL-5
SAE
75W-90
Above 10 °C (50 °F) API Service GL-4 or GL-5
SAE
80W-90
Automatic transmission fluid ATF M-III or equivalent (e.g. Dexron® III)
Rear differential oil API Service
GL-5
SAE 90
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
J07S_8T02-EA-03L_Edition1.book Page 4 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
Page 275 of 282
10-5
Specifications
Form No. 8T02-EA-03L
Capacities
(Approximate Quantities)
Check oil and fluid levels with dipsticks or reservoir gauges.
Dimensions
* With license plate holder
We i g h t s
Air Conditioner
Item Unit
L US qt Imp qt
Engine oil With oil filter
3.843.3
Without oil filter 3.63.8 3.2
Coolant MX-5/miata
6.06.3 5.3
MAZDASPEED MX-5 6.26.6 5.5
Manual transmission oil 5-Speed transmission
2.02.1 1.8
6-Speed transmission 1.81.9 1.6
Automatic transmission fluid 6.77.1 5.9
Rear differential oil MX-5/miata
1.01.1 0.9
MAZDASPEED MX-5 0.80.85 0.7
Fuel tank 48.012.7
(US gal) 10.6
(Imp gal)
Item Vehicle specification
Overall length MX-5/miata
3,945 mm (155.3 in), 3,963 mm (156.0 in)
*
MAZDASPEED MX-53,964 mm (156.1 in), 3,983 mm (156.8 in)*
Overall width 1,678 mm (66.1 in)
Overall height 1,228 mm (48.4 in)
Front tread 1,415 mm (55.7 in)
Rear tread 1,440 mm (56.7 in)
Wheelbase 2,265 mm (89.2 in)
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,337 kg (2,948 lb)
GAWR (Gross Axle Weight Rating) Front
685 kg (1,510 lb)
Rear 675 kg (1,488 lb)
Gas complies with SAE J639 Maximum operating charge
HFC134a (R134a) 0.4 kg (14.1 oz)
J07S_8T02-EA-03L_Edition1.book Page 5 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
Page 276 of 282
10-6
Specifications
Form No. 8T02-EA-03L
Light Bulbs
Exterior light
Interior light
Tires
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-28
Standard tire
Temporary spare tire
Fuses
Refer to the fuse rating on page 8-36
Light bulb
WattageCategory
ECE R SAE
Headlights High beam
60HB3 —
Low beam 51HB4 —
Front turn signal lights/Parking lights 27/8—#1157NA
Fog lights
*55 H11 —
Side-marker lights 3.8—#194
Rear turn signal lights 21 WY21W—
Brake lights/Taillights 21/5 W21/5W #7443
High-mount brake light 21 P21W—
Reverse lights 21 W21W #7440
License plate lights/Trunk lights 5W5W —
Light bulb Wattage
Overhead light 8
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Tire sizeInflation pressure
Front Rear
195/50 R15 82V 180 kPa (1.8 kgf/cm
2, 26 psi) 180 kPa (1.8 kgf/cm2, 26 psi)
205/45 R16 83W
205/40 R17 80W 200 kPa (2.0 kgf/cm
2, 29 psi) 220 kPa (2.2 kgf/cm2, 32 psi)
Tire size Inflation pressure
T115/70 D14 88M 420 kPa (4.2 kgf/cm
2, 60 psi)
T105/70 D15 85M 420 kPa (4.2 kgf/cm2, 60 psi)
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 6 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
Page 277 of 282
11-1
Form No. 8T02-EA-03L
11Index
J07S_8T02-EA-03L_Edition1.book Page 1 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
Page 278 of 282
11-2
Form No. 8T02-EA-03L
Index
A
Add-On Non-Genuine Parts and
Accessories
...................................... 9-12
Air Bag Systems
.............................. 2-20
Air Filter
.......................................... 8-24
Antenna
.............................................. 6-9
Anti-Lock Brake System (ABS)
........ 5-7
Warning light
.............................. 5-8
Appearance Care
.............................. 8-40
Ashtray
............................................. 6-60
Audio System
..................................... 6-9
Audio set
......................... 6-17, 6-37
Operating tips for audio
system
......................................... 6-9
Safety certification
.................... 6-58
Automatic Transmission Driving tips
............................... 5-14
Fluid
.......................................... 8-21
Overdrive
.................................. 5-13
Shift-lock override
.................... 5-12
Shift-lock system
...................... 5-12
Transmission ranges
................. 5-11
B
Battery Emergency starting
................... 7-13
Maintenance
............................. 8-27
Specifications
........................... 10-4
Beep Sounds Ignition key reminder
............... 5-30
Lights-on reminder
................... 5-30
Seat belt warning beep
.............. 5-30
Before Starting the Engine
................. 4-6
After getting in
........................... 4-6
Before getting in
......................... 4-6
Body Lubrication
............................. 8-23
Brake Fluid
.......................................... 8-18
B
BrakesAnti-lock brake system (ABS)
....5-7
Foot brake
................................... 5-4
Pad wear indicator
...................... 5-8
Parking brake
.............................. 5-5
Warning light
.............................. 5-6
Break-In Period
.................................. 4-7
Bulb Replacement
............................ 8-32
C
Capacities ......................................... 10-5
Carbon Monoxide
.............................. 4-5
Catalytic Converter
............................ 4-4
Cell Phones
...................................... 9-13
Center Console
................................. 6-62
Child Restraint Child restraint precautions
........ 2-13
LATCH child-restraint
systems
...................................... 2-18
Cigarette Lighter
.............................. 6-60
Climate Control System
.....................6-2
Gas specification
....................... 10-5
Clutch Fluid
.......................................... 8-19
Convertible Top
............................... 3-18
Cruise Control
.................................. 5-15
Cup Holder
....................................... 6-61
Customer Assistance
.......................... 9-2
D
Dashboard Illumination .................... 5-22
Daytime Running Lights
.................. 5-33
Defroster Rear window
............................. 5-35
Detachable Hardtop
.......................... 3-23
Dimensions
....................................... 10-5
J07S_8T02-EA-03L_Edition1.book Page 2 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
Page 279 of 282
11-3
Index
Form No. 8T02-EA-03L
D
Door Locks ......................................... 3-7
Driving In Flooded Area
.................. 4-11
Driving Tips
....................................... 4-7
Automatic transmission
............ 5-14
Break-in period
........................... 4-7
Driving in flooded area
............. 4-11
Hazardous driving
....................... 4-8
Money-saving suggestions
.......... 4-7
Rocking the vehicle
.................... 4-8
Turbocharged vehicles
.............. 4-12
Winter driving
............................. 4-9
E
Emergency Starting .......................... 7-13
Flooded engine
.......................... 7-13
Jump-starting
............................ 7-13
Push-starting
............................. 7-15
Emergency Towing
.......................... 7-16
Emission Control System
................... 4-4
Engine Coolant
...................................... 8-15
Exhaust gas
................................. 4-5
Hood release
............................. 3-17
Oil
............................................. 8-13
Overheating
............................... 7-11
Starting
........................................ 5-3
Engine Compartment Overview
...... 8-12
Engine Coolant Overheating
............................... 7-11
Engine Coolant Temperature
Gauge
............................................... 5-20
Exhaust Gas
....................................... 4-5
Exterior Care
.................................... 8-42
F
Flasher Hazard warning
.........................5-36
Headlights
.................................5-31
Flat Tire
..............................................7-3
Changing
.....................................7-5
Spare tire and tool storage
...........7-3
Fluids Classification
.............................10-4
Owner maintenance
...................8-10
Fog Lights
........................................5-32
Foot Brake
..........................................5-4
Front seats
..........................................2-2
Fuel Filler lid and cap
.......................3-15
Gauge
........................................5-21
Requirements
..............................4-2
Tank capacity
............................10-5
Fuses
.................................................8-36
Panel description
.......................8-38
Replacement
..............................8-36
G
Gauges ..............................................5-18
Glove Box
........................................6-62
H
Hazard Warning Flasher ...................5-36
Hazardous Driving
.............................4-8
Headlights Control
......................................5-31
Flashing
.....................................5-31
High-low beam
..........................5-31
On reminder
..............................5-31
Hood Release
....................................3-17
Horn
..................................................5-35
J07S_8T02-EA-03L_Edition1.book Page 3 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
Page 280 of 282
11-4
Index
Form No. 8T02-EA-03L
I
IgnitionKeys
............................................ 3-2
Switch
......................................... 5-2
Immobilizer System
......................... 3-29
Indicator Lights
................................ 5-23
Cruise set
.................................. 5-29
Headlight high-beam
................ 5-29
O/D OFF
................................... 5-29
Turn-signal/hazard warning
...... 5-30
Instrument Cluster
........................... 5-18
Interior Care
..................................... 8-47
Interior Light
.................................... 6-59
J
Jump-Starting ................................... 7-13
K
Keyless Entry System ........................ 3-3
Keys
................................................... 3-2
L
Label Information ............................ 10-2
Lane-Change Signals
....................... 5-32
Light Bulbs Replacement
............................. 8-32
Specifications
........................... 10-6
Lighter
.............................................. 6-60
Lighting Control
.............................. 5-31
Lubricant Quality
............................. 10-4
M
Maintenance Introduction
................................ 8-2
M
Owner maintenance
precautions
................................ 8-11
Owner maintenance schedule
... 8-10
Scheduled
.................................... 8-3
Manual Transmission Operation
........ 5-9
Recommendations for
shifting
...................................... 5-10
Mesh Pocket
..................................... 6-63
Meters and Gauges
........................... 5-18
Mirrors Outside mirrors
......................... 3-32
Rearview mirror
........................ 3-33
Money-Saving Suggestions
................ 4-7
O
Odometer and Trip Meter ................ 5-19
Outside Mirrors
................................ 3-32
Overhead Light
................................ 6-59
Overheating
...................................... 7-11
Overloading
...................................... 4-11
P
Paint Damage ................................... 8-40
Parking Brake
..................................... 5-5
Parking in an Emergency
................... 7-2
Power Door Locks
............................. 3-9
Power Steering
................................. 5-14
Fluid
.......................................... 8-20
Power Windows
............................... 3-14
Push-Starting
.................................... 7-15
R
Rear Window Defroster ................... 5-35
Rearview Mirror
............................... 3-33
Recreational Towing
........................ 7-17
J07S_8T02-EA-03L_Edition1.book Page 4 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
