sensor MAZDA MODEL TRIBUTE 2005 (in English) User Guide

WARNING: To reduce risk of injury, do not obstruct or place
objects in the deployment path of the inflatable side-curtain air
bags (if equipped).
How do the side-curtain air bags (if equipped) work?
The side-curtain air bags (if
equipped) consists of the following:
•An inflatable nylon curtain with a
gas generator concealed behind
the headliner and above the doors
(one on each side of vehicle).
•A headliner designed to flex open
above the side doors to allow
side-curtain air bag deployment.
•The same warning light,
electronic control and diagnostic
unit as used for the front airbags.
•Two crash sensors mounted at
lower B-Pillar (one on each side).
•Two crash sensors located at the
c-pillar behind the rear doors
(one on each side).
•Rollover sensor in the restraints control module (RCM).
The side-curtain air bags (if equipped), in combination with seat belts,
can help reduce the risk of severe injuries in the event of a significant
side impact collision or rollover event.
Children 12 years old and under should always be properly restrained in
the rear seats. The side-curtain air bags (if equipped) will not interfere
with children restrained using a properly installed child or booster seat
because it is designed to inflate downward from the headliner above the
doors along the side window opening.
The side-curtain air bags (if equipped) are designed to active when the
vehicle sustains lateral deceleration sufficient to cause the RCM to
initiate side-curtain air bag (if equipped) inflation or when a certain
likelihood of a rollover event is detected by the rollover sensor.
The side-curtain air bags are mounted to roof side-rail sheet metal,
behind the headliner, above the first and second row seats. In certain
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
105

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
32 10A* Brake-Transmission shift lock
33 15A* Air bag module, Passenger Air bag
Deactivation (PAD) indicator
lamp, Occupant Classification
Sensor (OCS)
34 5A* ABS module, Evac and Fill, Speed
control
35 5A* Heated seats module, 4WD
* Mini fuse ** Cartridge fuse
Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting
the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
188

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 25A* I/P fuse panel (RUN/START)
2 25A* Headlamp power
3 25A* High beams, Turn signals, Interior
lamps, Headlamp power
4 5A* Keep Alive Power (KA PWR)
5 15A* Heated Exhaust Gas Oxygen
(HEGO) sensors
6 20A* Fuel pump
7 40A** RUN/ACC relay - Cigar lighter,
Front and rear wipers
8 30A** Powertrain Control Module
(PCM), Injectors and coil
9 15A* Alternator
10 30A* Heated seats
11 10A* PCM
12 20A* Power point
13 20A* Fog lamps
14 15A* A/C clutch, A/C relay
1530A* Anti-lock Brake System (ABS)
solenoid
17 50A** Ignition (main)
18 40A** Blower motor
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
189

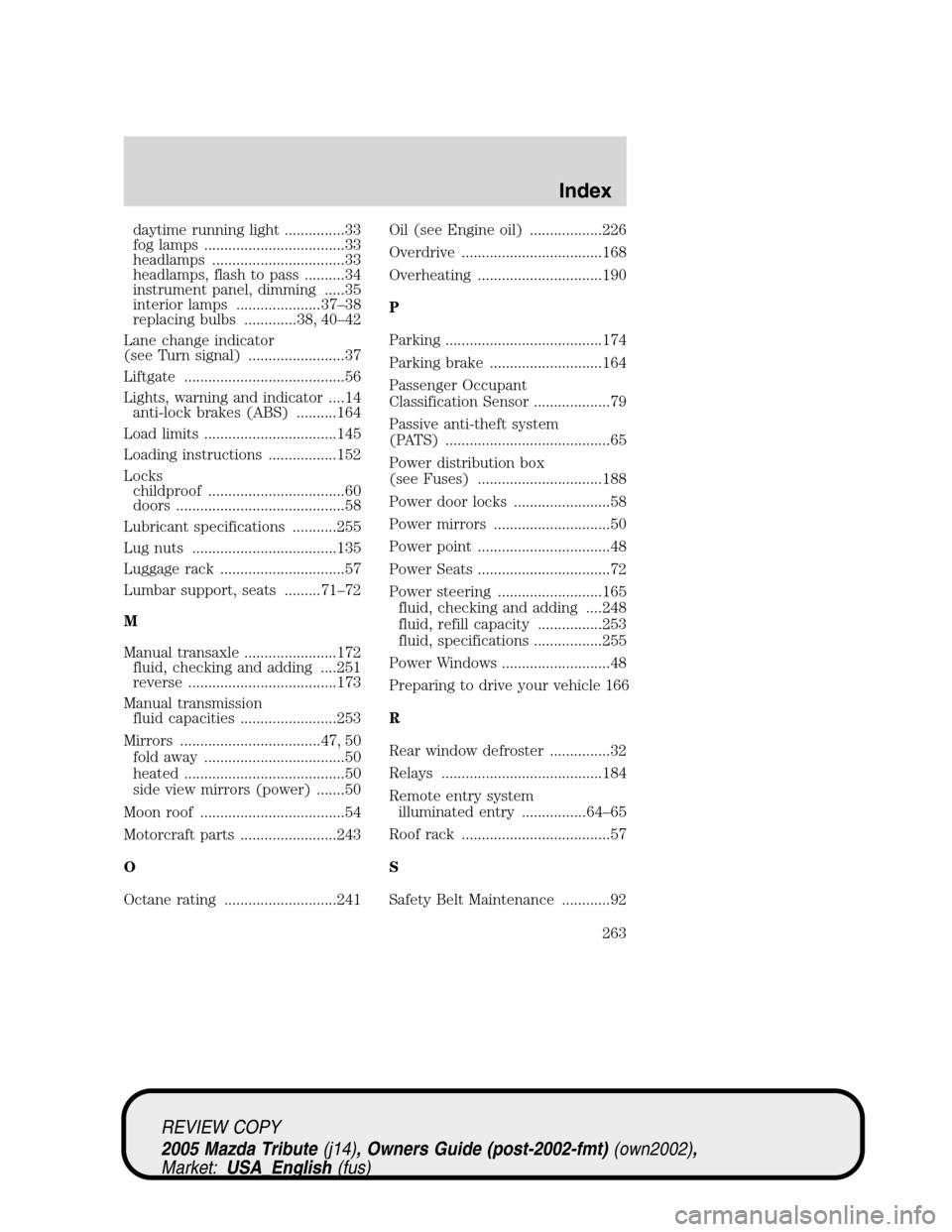

daytime running light ...............33
fog lamps ...................................33
headlamps .................................33
headlamps, flash to pass ..........34
instrument panel, dimming .....35
interior lamps .....................37–38
replacing bulbs .............38, 40–42
Lane change indicator
(see Turn signal) ........................37
Liftgate ........................................56
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........164
Load limits .................................145
Loading instructions .................152
Locks
childproof ..................................60
doors ..........................................58
Lubricant specifications ...........255
Lug nuts ....................................135
Luggage rack ...............................57
Lumbar support, seats .........71–72
M
Manual transaxle .......................172
fluid, checking and adding ....251
reverse .....................................173
Manual transmission
fluid capacities ........................253
Mirrors ...................................47, 50
fold away ...................................50
heated ........................................50
side view mirrors (power) .......50
Moon roof ....................................54
Motorcraft parts ........................243
O
Octane rating ............................241Oil (see Engine oil) ..................226
Overdrive ...................................168
Overheating ...............................190
P
Parking .......................................174
Parking brake ............................164
Passenger Occupant
Classification Sensor ...................79
Passive anti-theft system
(PATS) .........................................65
Power distribution box
(see Fuses) ...............................188
Power door locks ........................58
Power mirrors .............................50
Power point .................................48
Power Seats .................................72
Power steering ..........................165
fluid, checking and adding ....248
fluid, refill capacity ................253
fluid, specifications .................255
Power Windows ...........................48
Preparing to drive your vehicle 166
R
Rear window defroster ...............32
Relays ........................................184
Remote entry system
illuminated entry ................64–65
Roof rack .....................................57
S
Safety Belt Maintenance ............92
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
263

Safety belts (see Safety
restraints) ........................78, 81–86
Safety Canopy ...........................102
Safety defects, reporting ..........209
Safety restraints ..............78, 81–86
belt minder ...............................88
extension assembly ..................87
for adults .............................82–85
for children .....................107–108
Occupant Classification
Sensor ........................................79
safety belt maintenance ...........92
warning light and chime ..........88
Safety seats for children ..........111
Seat belts (see Safety
restraints) ....................................78
Seats ............................................70
child safety seats ....................111
heated ........................................73
SecuriLock passive anti-theft
system ..........................................65
Servicing your vehicle ..............221
Setting the clock
AM/FM single CD .....................22
AM/FM/In-dash 6 CD ................26
Side-curtain air bags system
(if equipped) .....................104–105
Snowplowing .................................7
Spark plugs, specifications .......256
Special notice
ambulance conversions ..............7
Specification chart,
lubricants ...................................255
Speed control ..............................51
Starting your vehicle ........158–160
jump starting ..........................191Steering wheel
tilting .........................................45
T
Tilt steering wheel ......................45
Tires ...................................121–122
alignment ................................142
care ..........................................141
changing ..................................128
checking the pressure ............124
inspecting and inflating .........123
label .........................................140
replacing ..................................126
rotating ....................................143
safety practices .......................142
sidewall information ...............136
snow tires and chains ............144
spare tire .........................126–127
terminology .............................123
tire grades ...............................122
treadwear ........................122, 141
Towing .......................................152
recreational towing .................157
trailer towing ..........................152
wrecker ....................................197
Transaxle
fluid, checking and adding
(manual) .................................251
manual operation ....................172
Transmission
automatic operation ...............167
brake-shift interlock (BSI) ....167
fluid, checking and adding
(automatic) .............................249
fluid, refill capacities ..............253
Turn signal ..................................37
V
Vehicle dimensions ...................256
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
264
