If an overfill occurs, excess fluid
should be removed by a qualified
technician.
An overfill condition of
transmission fluid may cause
shift and/or engagement concerns and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
Checking and adding manual transmission fluid
1. Clean the filler plug.
2. Remove the filler plug and
inspect the fluid level.
3. Fluid level should be at bottom
of the opening.
4. Add enough fluid through the filler opening so that the fluid level is
at the bottom of the opening.
5. Install and tighten the fill plug securely.
Use only fluid that meets Mazda specifications. Refer to theRefill
capacitiesin this chapter.
CLUTCH FLUID (MANUAL TRANSAXLE)
The clutch master cylinder and
brake master cylinder are part of
the same system; both are refillable
through the brake master cylinder
with brake fluid. For more
information on brake fluid
maintenance, refer toBrake fluidin
this chapter.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
251

WARNING: Brake fluid is toxic. If brake fluid contacts the
eyes, flush eyes with running water for 15 minutes. Seek
medical attention if irritation persists. If taken internally, drink
water and induce vomiting. Seek medical attention immediately.
AIR FILTER MAINTENANCE
Refer to the service maintenance section for the appropriate intervals for
changing the air filter element.
When changing the air filter element, only use a Genuine Mazda air filter
element.
WARNING: Don’t drive without an air filter. This could result
in excessive engine wear.
Changing the air filter element
1. Loosen the clamp that secures the air inlet tube to the engine air
filter cover and disconnect the tube from the cover (for V6 only).
2. Release the clamps that secure the air filter housing cover.
3. Carefully separate the two
halves of the air filter housing.
4. Remove the air filter element from the air filter housing.
5. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
252

6. Install a new air filter element.
Be careful not to crimp the filter
element edges between the air
filter housing and cover. This
could cause filter damage and
allow unfiltered air to enter the
engine if not properly seated.
7. Replace the air filter housing cover and secure the clamps.
8. Replace the air inlet tube and secure the clamp.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be voided for any damage to
the engine if the correct air filter element is not used.
REFILL CAPACITIES
Fluid Classification Application Capacity
Brake fluid High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine oil
(including filter
change)SAE 5W-20 2.3L I4 engine 4.25L (4.5
quarts)
3.0L V6 engine 5.7L (6.0
quarts)
Fuel tank N/A 2.3L I4 engine 62L (16.5
gallons)
3.0L V6 engine 62L (16.5
gallons)
Power steering
fluidMERCONAll Fill to line on
reservoir
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
253

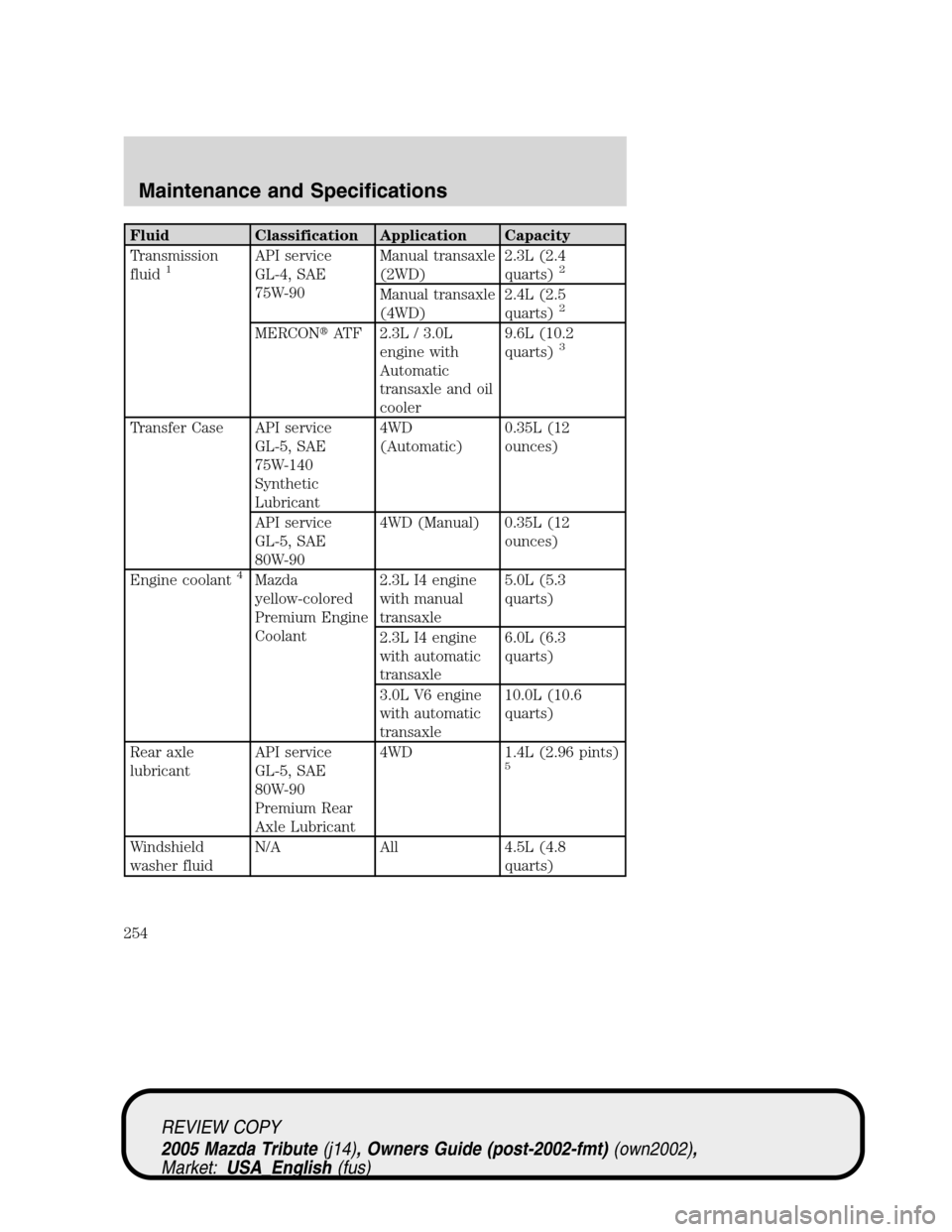

Fluid Classification Application Capacity
Transmission
fluid
1API service
GL-4, SAE
75W-90Manual transaxle
(2WD)2.3L (2.4
quarts)2
Manual transaxle
(4WD)2.4L (2.5
quarts)2
MERCONATF 2.3L / 3.0L
engine with
Automatic
transaxle and oil
cooler9.6L (10.2
quarts)3
Transfer Case API service
GL-5, SAE
75W-140
Synthetic
Lubricant4WD
(Automatic)0.35L (12
ounces)
API service
GL-5, SAE
80W-904WD (Manual) 0.35L (12
ounces)
Engine coolant
4Mazda
yellow-colored
Premium Engine
Coolant2.3L I4 engine
with manual
transaxle5.0L (5.3
quarts)
2.3L I4 engine
with automatic
transaxle6.0L (6.3
quarts)
3.0L V6 engine
with automatic
transaxle10.0L (10.6
quarts)
Rear axle
lubricantAPI service
GL-5, SAE
80W-90
Premium Rear
Axle Lubricant4WD 1.4L (2.96 pints)
5
Windshield
washer fluidN/A All 4.5L (4.8
quarts)
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
254

1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to your scheduled maintenance
section to determine the correct service interval.
2Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.
3Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
4Add the coolant type originally equipped in your vehicle. DO NOT MIX
different colors or types of coolant. DO NOT USE Extended Life Engine
Coolant (orange in color). Refer toAdding engine coolantin this
chapter.
5Fill to 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
For further information on your lubrication specifications, see your
authorized Mazda dealer.
ENGINE SPECIFICATIONS
Engine 2.3L I4 engine 3.0L DOHC V6 engine
Cubic inches 140 183
Required fuel 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug
Spark plug gap 0.049–0.053 inch
(1.25–1.35mm)0.052–0.056 inch
(1.32–1.42mm)
Compression ratio 9.7:1 10.0:1
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
255

VEHICLE DIMENSIONS
Dimensions 4 Door - inches (mm)
(1) Vehicle height w/o roof
rack / with roof rack67.7 (1,720)/70.0 (1,779)
(2) Front track / rear 61.3 (1,557)/60.9 (1,548)
(3)Overall width (body) 72.0 (1,828)
(4) Wheelbase 103.2 (2,621)
(5)Overall length w/o trailer
hitch / with trailer hitch174.4 (4,429)/174.7 (4,438)
3
2
1
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
256

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety Administration Regulations require
that a Certification Label be affixed to a vehicle and prescribe where the
Certification Label may be located. The Certification label is located on
the structure by the trailing edge of the driver’s door or the edge of the
driver’s door.
4
5
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
257

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
258

CELL PHONES
Use of cell phones and other devices by driver:
WARNING: Use of any electrical devices such as cell phones,
computers, portable radios, vehicle navigation or other devices
by the driver while the vehicle is moving is dangerous. Dialing a
number on a cell phone while driving also ties-up the driver’s
hands. Use of these devices will cause the driver to be
distracted and could lead to a serious accident. If a passenger is
unable to use the device, pull off the right-of-way to a safe area
before use. If use of a cell phone is necessary despite this
warning, use a hands-free system to at least allow the hands
free to drive the vehicle. Never use a cell phone or other
electrical device while the vehicle is moving and, instead,
concentrate on the full-time job of driving.
In addition, the gasoline distributors are warning against using
cell phones during refueling procedures, due to their increased
concern about static electricity fires in the self-service pump
environment.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Accessories
Accessories
259

A
ABS (see Brakes) .....................163
Accessory delay ..........................49
Air bag supplemental restraint
system ....................93–94, 101, 104
and child safety seats ..............95
description ................94, 101, 104
disposal ............................101, 107
driver air bag ............96, 102, 105
indicator light .........100, 103, 107
operation ...................96, 102, 105
passenger air bag .....96, 102, 105
side air bag ..............................101
Air cleaner filter .......................252
Air conditioning
manual heating and air
conditioning system .................31
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................232
Anti-lock brake system
(see Brakes) ......................163–164
Anti-theft system ........................68
arming the system ....................68
disarming a triggered system ..69
Automatic transaxle
fluid, adding ............................249
fluid, checking ........................249
Automatic transmission ............167
driving an automatic
overdrive .................................169
fluid, refill capacities ..............253
Auxiliary power point .................48
Axle
refill capacities ........................253
B
Battery .......................................230acid, treating emergencies .....230
jumping a disabled battery ....191
maintenance-free ....................230
servicing ..................................230
BeltMinder ...................................88
Brakes ........................................162
anti-lock ...........................163–164
anti-lock brake system (ABS)
warning light ...........................164
fluid, checking and adding ....249
fluid, refill capacities ..............253
fluid, specifications .................255
lubricant specifications ..........255
parking ....................................164
shift interlock ..........................167
Break-in period .............................6
Bulbs ............................................38
C
Calculating load ........................152
Capacities for refilling fluids ....253
Cargo area shade ........................55
Cell phone warning ...................259
Certification Label ....................257
Child safety restraints ..............108
child safety belts ....................108
Child safety seats ......................111
attaching with tether straps ..115
Cleaning your vehicle
engine compartment ..............211
instrument panel ....................213
interior .....................................214
interior trim ............................214
Mazda car care products .......215
plastic parts ............................213
washing ....................................210
waxing .....................................210
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
Index
260
