MAZDA MODEL TRIBUTE 2005 (in English) Owner's Guide

MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)
1.A/C:Press to activate A/C. The
indicator light will illuminate to
indicate A/C is functioning.
2.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
3.Air flow selections:Controls
the direction of the airflow in
the vehicle. See the following
for a brief description on each
control.
:Distributes air through the
instrument panel vents.
:Distributes air through the instrument panel vents and the floor
vents.
O (OFF):The fan will not operate.
:Distributes air through the floor vents.
:Distributes air through the windshield defroster vents and floor
vents.
:Distributes air through the windshield defroster vents.
4.Fan speed and recirculated/outside air control:Turned to the
right, controls the volume of outside air coming into the vehicle.
Turned to the left, recirculates air through the instrument panel
registers. This mode is more economical and efficient. May reduce
undesirable odors from entering the vehicle.
5.Rear defroster:Press to clear the rear window of thin ice and fog.
The indicator light will illuminate when the rear defroster is
activated. Ensure that the ignition is in the ON position to operate.
The defroster turns off automatically after 15 minutes or when the
ignition is turned to the OFF position. To manually turn off the
defroster before 15 minutes have passed, push the control again.
WARNING: Extended operation of the climate control system
in a recirculated air mode may lead to a reduction in air quality
in the cabin. The air in the cabin should be periodically
refreshed by selecting settings other than recirculated air.
1
2
5
34
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Climate Controls
Climate Controls
31

WARNING: Under some weather conditions, use of the
recirculated air mode may lead to glass misting or fogging.
Switch the air conditioner on and select the fresh air mode.
Heated air can assist windscreen demisting.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
air flow selector in the OFF position or place the fan control in the
recirculated air positions.
•The A/C system will be activated automatically when switching the air
flow selector in the
orposition.
•Under normal weather conditions, do not leave the air flow selector in
OFF when the vehicle is parked. This allows the vehicle to“breathe”
using the outside air inlet vents.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select A/C.
2. Modulate the temperature control to maintain comfort.
3. Set the fan speed to the highest setting on the right for outside air.
4. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
WARNING: Do not place objects on top of the instrument panel
as these objects may become projectiles in a collision or sudden
stop.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Climate Controls
32

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps,
license plate lamps and tail lamps.
Turns the headlamps on.
BATTERY SAVER
Your vehicle is equipped with a battery saver feature which, if you leave
the headlamps on, automatically turns off the headlamps after 30
seconds when the ignition is in the OFF position.
FOG LAMP CONTROL (IF EQUIPPED)
The foglamps can only be turned on
when:
•the headlamp control is in the
low beam or parking lamp
position, and
•the ignition key is in the ON
position.
When the ignition is in the OFF position, the fog lamp is deactivated,
even when the headlamp control is in the parking lamp or low beam
position.
When the highbeams are activated, the fog lamps will not operate.
Press the fog lamp control again to deactivate the fog lamps.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the ON position,
•the headlamp control is in the OFF or parking lamp position and
•the parking brake must be disengaged.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
Lights
33

WARNING: Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally
may not provide adequate lighting during these conditions.
Failure to activate your headlamps under these conditions may
result in a collision.
High beams
After turning the headlamps on,
push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
34

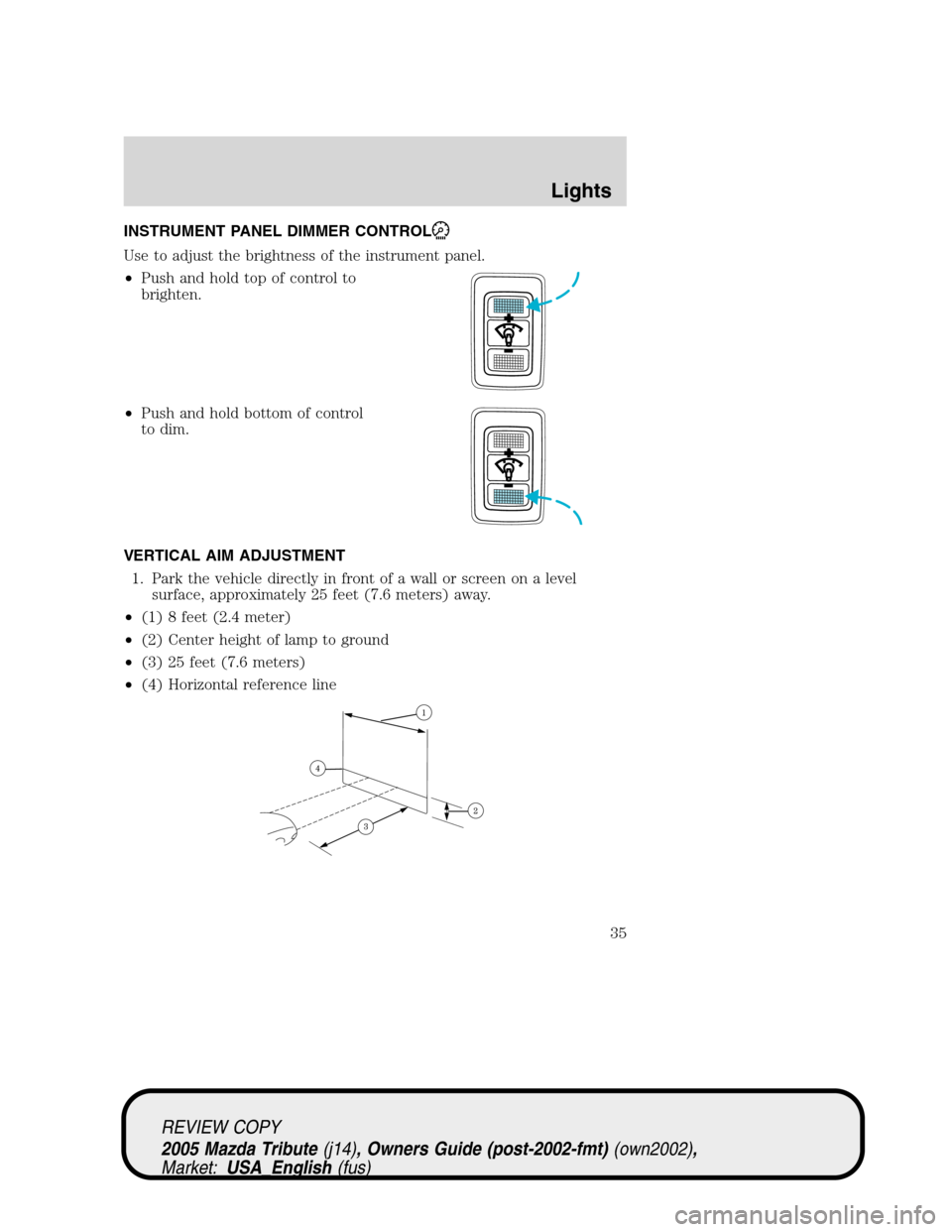

INSTRUMENT PANEL DIMMER CONTROL
Use to adjust the brightness of the instrument panel.
•Push and hold top of control to
brighten.
•Push and hold bottom of control
to dim.
VERTICAL AIM ADJUSTMENT
1. Park the vehicle directly in front of a wall or screen on a level
surface, approximately 25 feet (7.6 meters) away.
•(1) 8 feet (2.4 meter)
•(2) Center height of lamp to ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
35

2. Measure the height from the center of your headlamp to the ground
and mark an 8 foot (2.4 meter) horizontal reference line on the
vertical wall or screen at this height (a piece of masking tape works
well). The center of the lamp is marked by a 3.0 mm circle on the
headlamp lens.
3. Turn on the low beam headlamps to illuminate the wall or screen
and open the hood. Cover the left-hand headlamp with an opaque
cloth.
4. On the wall or screen you will
observe a light pattern with a
distinct horizontal edge of high
intensity light towards the right.
If this edge is not at the
horizontal reference line, the
beam will need to be adjusted.
5. Locate the vertical adjuster on
the headlamp, then usea7mm
hex socket or T20 Torx driver
to turn the adjuster either
counterclockwise (to adjust
down) or clockwise (to adjust
up) aligning the upper edge of
the light pattern up to the
horizontal line. Aftermarket
photometric aimers are not
recommended for use on Mazda
vehicles.
6. Move the opaque cloth to cover the right-hand headlamp and repeat
steps 4 and 5 for the left-hand headlamp.
7. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
36

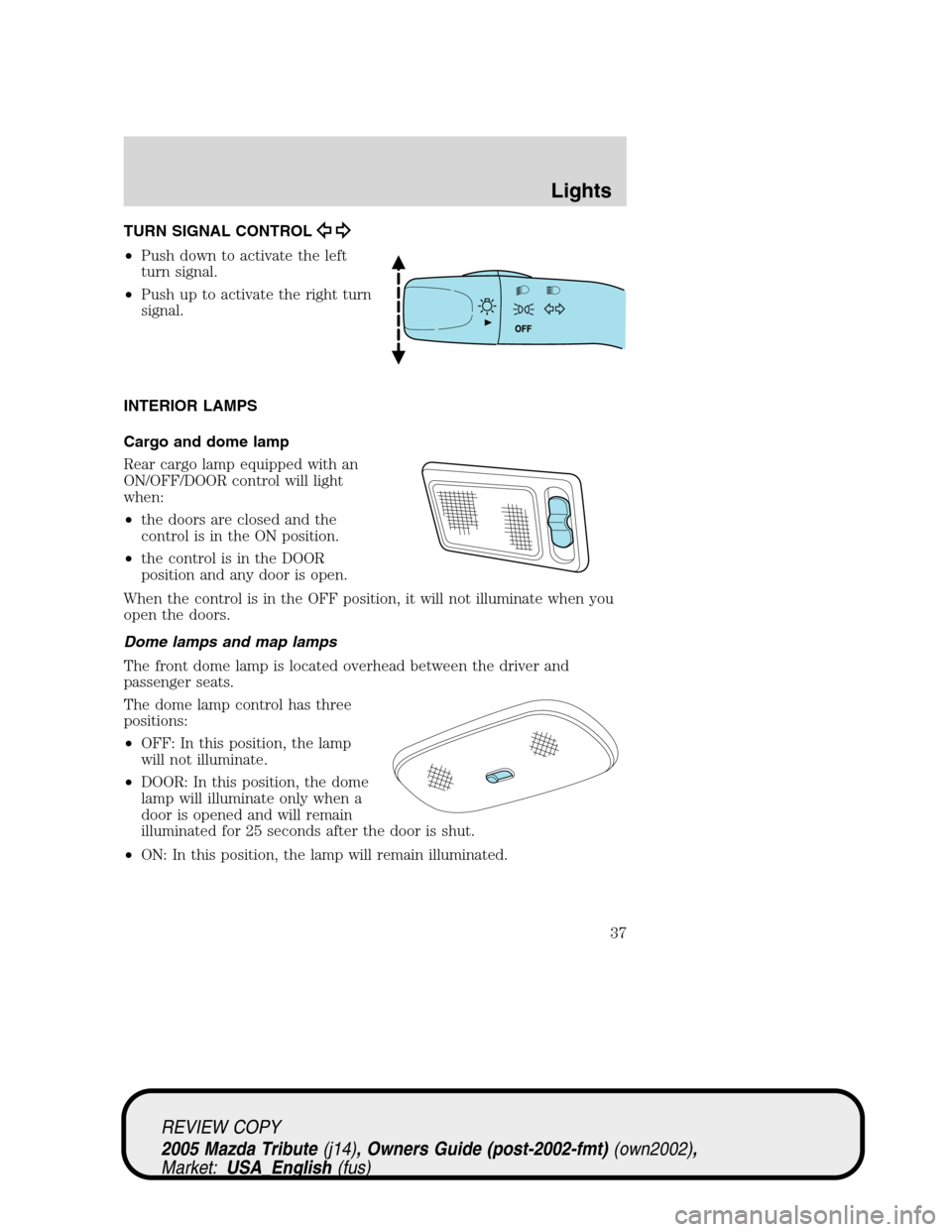

TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Cargo and dome lamp
Rear cargo lamp equipped with an
ON/OFF/DOOR control will light
when:
•the doors are closed and the
control is in the ON position.
•the control is in the DOOR
position and any door is open.
When the control is in the OFF position, it will not illuminate when you
open the doors.
Dome lamps and map lamps
The front dome lamp is located overhead between the driver and
passenger seats.
The dome lamp control has three
positions:
•OFF: In this position, the lamp
will not illuminate.
•DOOR: In this position, the dome
lamp will illuminate only when a
door is opened and will remain
illuminated for 25 seconds after the door is shut.
•ON: In this position, the lamp will remain illuminated.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
37

The map lamp controls (without
moon roof) are located on the dome
lamp. Press the button on either
side of each map lamp to illuminate
the lamps. Push the button again to
turn off the lamps.
For models equipped with a moon
roof, the map lamps are located on
the moon roof control panel. Press
the button on either side of each
map lamp to illuminate the lamps.
Push the button again to turn off
the lamps.
The map lamps will illuminate
whenever a door is opened. After
the door is shut, the lamps will remain illuminated for 25 seconds.
BULBS
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Replacing the interior bulbs
Check the operation of the following interior bulbs frequently:
•interior overhead lamp
•map lamp
For bulb replacement, see an authorized Mazda dealer.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized“D.O.T.”for North America to assure
lamp performance, light brightness and pattern and safe visibility.
Note:The correct bulbs will not damage the lamp assembly or void the
lamp assembly warranty and will provide quality bulb burn time.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
38

Function Number
of bulbsTrade number
Park/turn
lamps
(front)2
3157 AK (amber)
Headlamps 2 9003 (HB2)
Rear
stop/tail
lamps2
W21/5W
Rear turn
lamps2
WY21W (amber)
Rear
license
plate lamps2
W5W
Backup
lamp2
W21W
Side
repeater
lamp2
WY5W (amber)
Fog lamp
(if
equipped)2
H1
Cargo lamp 1 211-2
Center
high-mount
stop lamp5
W5W
Interior
overhead
lamp1
912 (906)
Map lamps 2 168 (T10)
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized Mazda
dealer.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
39

Replacing headlamp bulbs
NOTE:This procedure can be difficult. Your Mazda dealer has the
proper tools, training and parts to perform this task. If you have
difficulty with this procedure, visit your local Mazda dealer.
1. Make sure that the headlamp control is in the OFF position.
2. Open the hood.
WARNING: Handle a halogen bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hands could cause the
bulb to break the next time the headlamps are operated. Always
wear safety glasses when handling halogen bulbs.
3. Disconnect the electrical
connector from the bulb by
pulling rearward.
4. Remove the rubber boot from
the lamp assembly by pulling on
one of the tabs.
5. Squeeze the retainer spring
together releasing it from bulb
hooks and rotate it away from
the bulb.
6. Without turning, carefully pull bulb out of headlamp assembly.
NOTE: If the bulb is accidentally touched, it should be cleaned with
rubbing alcohol before being used.
7. Insert the glass end of the new bulb into the headlamp assembly.
When the bulb’s three metal tabs are aligned with the grooves in the
plastic base, push the bulb into the lamp assembly until the bulb’s
metal base contacts the rear of the lamp assembly.
8. Rotate the retainer spring over the bulb plastic base and secure it on
the bulb hooks.
9. Install rubber boot on the lamp assembly.
10. Connect the electrical connector into the rear of the plastic base
until it“snaps.”
Replacing front parking lamp/turn signal bulbs
For bulb replacement, see your authorized Mazda dealership.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
40
