KEYS
One key operates all the locks and starts the vehicle. Always carry a
spare key with you in case of an emergency.
Your keys are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your dealer supplied
keys, replacement keys are available through your authorized dealer.
Refer to theSecuriLock
passive anti-theft systemsection later in this
chapter for more information.
POWER DOOR LOCKS
The power door lock control is
located on the driver door panel.
Pressing the
will unlock all the
doors. Pressing the
will lock all
the doors.
Power door lock/unlock inhibit feature
As a theft deterrent, the power door lock controls can be disabled 20
seconds after the ignition has been turned to the 1 (OFF/LOCK) position
and the vehicle is locked using the remote entry transmitter or the key
in the door lock cylinder. The door lock controls are reenabled when the
vehicle is unlocked using the key in the door lock cylinder or by
pressing
on the remote entry transmitter. This feature can be turned
on or off using the following procedure:
Before starting, ensure the ignition is in the 1 (OFF/LOCK) position and
all vehicle doors are closed. You must complete Steps 1–5 within 30
seconds or the procedure will have to be repeated.
1. Place the key in the ignition and turn the ignition to the 3 (RUN)
position.
2. Press the power door unlock control on the door panel three times.
3. Turn the ignition from the 3 (RUN) position to the 1 (OFF/LOCK)
position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the 3 (RUN) position. The horn will chirp
one time to confirm programming mode has been entered and is
active.
6. Press the power door lock control on the door panel two times
within five seconds. The horn will chirp two times to confirm the
feature is off; the horn will chirp two times and honk one time to
confirm the feature is on.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
Locks and Security
58

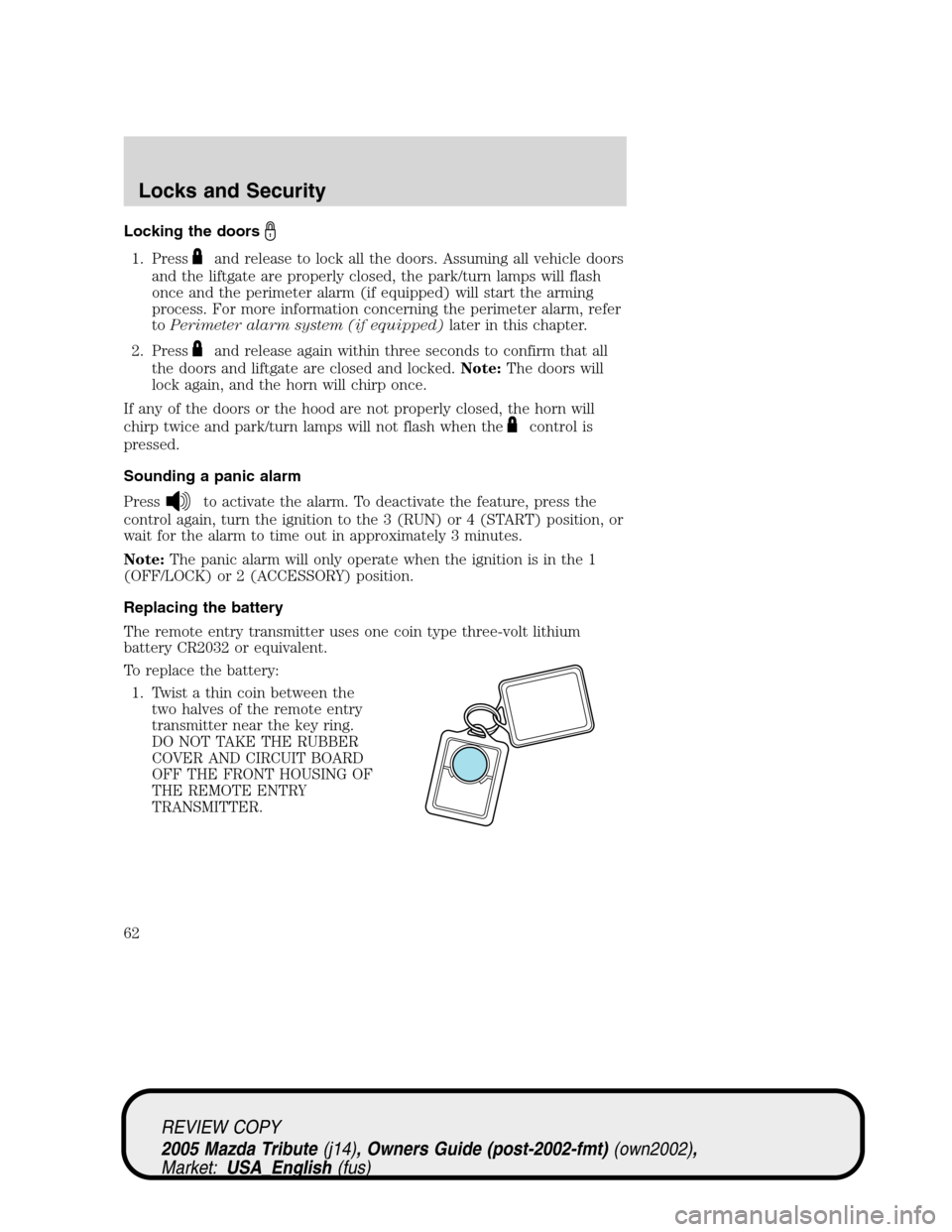

Locking the doors
1. Pressand release to lock all the doors. Assuming all vehicle doors
and the liftgate are properly closed, the park/turn lamps will flash
once and the perimeter alarm (if equipped) will start the arming
process. For more information concerning the perimeter alarm, refer
to Perimeter alarm system (if equipped) later in this chapter.
2. Press
and release again within three seconds to confirm that all
the doors and liftgate are closed and locked. Note:The doors will
lock again, and the horn will chirp once.
If any of the doors or the hood are not properly closed, the horn will
chirp twice and park/turn lamps will not flash when the
control is
pressed.
Sounding a panic alarm
Press
to activate the alarm. To deactivate the feature, press the
control again, turn the ignition to the 3 (RUN) or 4 (START) position, or
wait for the alarm to time out in approximately 3 minutes.
Note: The panic alarm will only operate when the ignition is in the 1
(OFF/LOCK) or 2 (ACCESSORY) position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two halves of the remote entry
transmitter near the key ring.
DO NOT TAKE THE RUBBER
COVER AND CIRCUIT BOARD
OFF THE FRONT HOUSING OF
THE REMOTE ENTRY
TRANSMITTER.
REVIEW COPY
2005 Mazda Tribute (j14), Owners Guide (post-2002-fmt) (own2002),
Market: USA_English (fus)
Locks and Security
62

To reprogram the remote entry
transmitters:
1. Ensure the vehicle is electronically unlocked.
2. Put the key in the ignition.
3. Turn the key from the 1 (OFF/LOCK) position to 3 (RUN).
4. Cycle eight times rapidly (within 10 seconds) between the 1
(OFF/LOCK) position and 3 (RUN).Note:The eighth turn must end
in the 3 (RUN) position.
5. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
6. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start
the procedure over again.
7. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
8. Repeat Step 6 to program each additional remote entry transmitter.
9. Turn the ignition to the 1 (OFF/LOCK) position after you have
finished programming all of the remote entry transmitters.
10. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s).
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 2 (ACCESSORY) position, or
•the remote transmitter lock control is pressed, or
•the doors are locked by key in the door cylinder, or
•after 25 seconds of illumination.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
64

Illuminated exit
•The interior lights will illuminate when the key is removed from the
ignition.
The lamps automatically turn off after 25 seconds. The dome and cargo
lamp controls mustnotbe set to the OFF position for the illuminated
exit system to operate.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used.
The SecuriLock
passive anti-theft system is not compatible with
non-Mazda aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your dealer. The dealer can program your spare keys to
your vehicle or you can program the keys yourself. Refer to
Programming spare keysfor instructions on how to program the coded
key.
Note:A maximum of eight keys can be coded to your vehicle.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Theft indicator
The theft indicator is located in the
instrument cluster.
•When the ignition is in the 1 (OFF/LOCK) position, the
THEFT
indicator will flash once every 2 seconds to indicate the SecuriLock

system is functioning as a theft deterrent.
•When the ignition is in the 3 (RUN) position, the
THEFTindicator will
glow for 3 seconds, then turn off to indicate normal system
functionality.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
65

7. Within twenty seconds of turning the ignition to the 1 (OFF/LOCK)
position and removing the previously programmedcoded key,insert
the new unprogrammed key (new key/valet key) into the ignition.
8. Turn the ignition from the 1 (OFF/LOCK) position to the 3 (RUN)
position. Keep the ignition in the 3 (RUN) position for at least three
seconds but not more than 10 seconds.
9. Remove the newly programmedcoded keyfrom the ignition.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out.
If the key was not successfully programmed, it will not start your
vehicle’s engine and the theft indicator light will flash on and off; you
may need to repeat Steps 1 through 5. If failure repeats, take your
vehicle to your Mazda dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait twenty seconds
and then repeat this procedure from Step 1.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Any of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Lock the doors with the key in the key cylinder.
•Open the driver’s door and press the power door lock control to lock
all the doors, and then close the door.
Note:The doors, liftgate and hood will arm individually, and if any of
them are open, they must be closed in order to be armed.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
68

When you lock the vehicle using any of the methods above:
•the park/turn lamps will flash once to indicate the hood, each door
and the liftgate are closed.
•the park/turn lamps willnotflash if the hood, any door or the liftgate
are open. Once all doors, hood and liftgate are closed, the park/turn
lamps will flash to confirm the alarm will be set.
When the vehicle is locked, the alarm is set after a 20–second arming
period.
When you press the
control on the remote entry transmitter twice
within three seconds, the horn will chirp once to confirm the doors,
liftgate and hood are closed and locked, and the alarm is set.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Turning the key in the ignition to the 3 (RUN) or 4 (START) position.
Triggering the anti-theft system
The armed system will be triggered if any door, liftgate or the hood is
opened without using the key or the remote entry transmitter.
To deactivate the triggered alarm state:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Press
on the remote entry transmitter to disable the alarm; the
alarm will be disabled, but the vehicle will remain in an armed state.
•Turning the key in the ignition to the 3 (RUN) or 4 (START) position.
Note:The key must be a valid, programmed, coded key.
REVIEW COPY
