MAZDA MODEL TRIBUTE 2006 Owners Manual (in English)

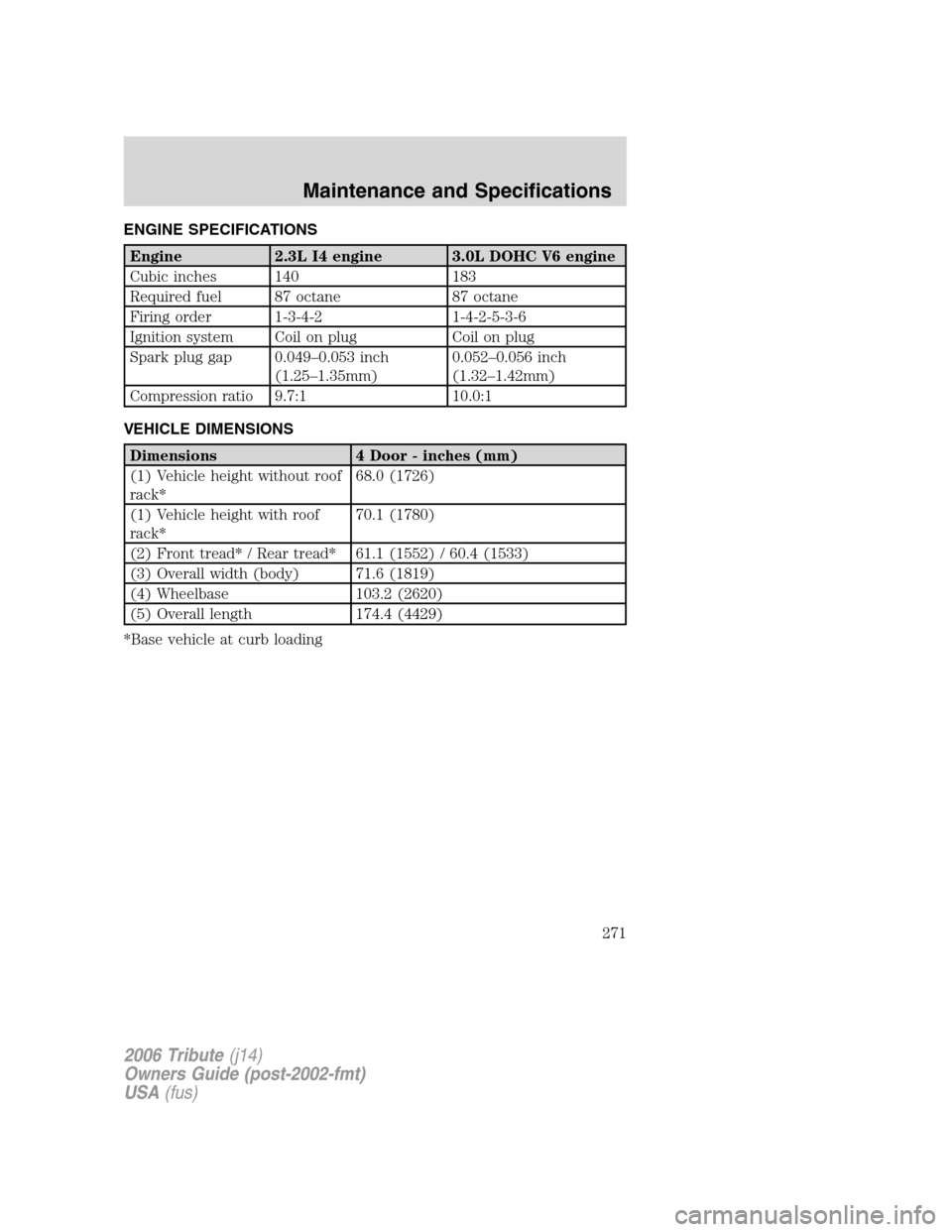

ENGINE SPECIFICATIONS
Engine 2.3L I4 engine 3.0L DOHC V6 engine
Cubic inches 140 183
Required fuel 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug
Spark plug gap 0.049–0.053 inch
(1.25–1.35mm)0.052–0.056 inch
(1.32–1.42mm)
Compression ratio 9.7:1 10.0:1
VEHICLE DIMENSIONS
Dimensions 4 Door - inches (mm)
(1) Vehicle height without roof
rack*68.0 (1726)
(1) Vehicle height with roof
rack*70.1 (1780)
(2) Front tread* / Rear tread* 61.1 (1552) / 60.4 (1533)
(3) Overall width (body) 71.6 (1819)
(4) Wheelbase 103.2 (2620)
(5) Overall length 174.4 (4429)
*Base vehicle at curb loading
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
271

3
2
1
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
272

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
4
5
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT:XXRC: XXDSO:
WB BRK INT TR TP/PS R AXLE TR SPR XXXXX
XXX X XX X XX X XX XXX
XXXXXXXXXXXXX XXX XXXX-XXXXXXX-XX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY AND THEFT PREVENTION STANDARDS IN
EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.
VIN:XXXXXXXXXXXXXXXXX XXXXX
TYPE: XXX XXXXX DATE: XX/XX GVWR:XXXXXLB/ XXXXXKG
FRONT GAWR: XXXXL REAR GAWR: XXXXLB
AT XXX kPa/XX PSI COLD AT XXX kPa/XX PSI COLD XXXXKG WITH
XXXX/XXXXXXXTIRES
XXXX.XXRIMSXXXXKG WITH
XXXX/XXXXXXXTIRES
XXXX.XXRIMS
FOR MAZDA MOTOR CORPORATION
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
273

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
274

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label . The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed manual 3
Four-speed automatic 4
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT:XXRC: XXDSO:
WB BRK INT TR TP/PS R AXLE TR SPR XXXXX
XXX X XX X XX X XX XXX
XXXXXXXXXXXXX XXX XXXX-XXXXXXX-XX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY AND THEFT PREVENTION STANDARDS IN
EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.
VIN:XXXXXXXXXXXXXXXXX XXXXX
TYPE: XXX XXXXX DATE: XX/XX GVWR:XXXXXLB/ XXXXXKG
FRONT GAWR: XXXXL REAR GAWR: XXXXLB
AT XXX kPa/XX PSI COLD AT XXX kPa/XX PSI COLD XXXXKG WITH
XXXX/XXXXXXXTIRES
XXXX.XXRIMSXXXXKG WITH
XXXX/XXXXXXXTIRES
XXXX.XXRIMS
FOR MAZDA MOTOR CORPORATION
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
275

CELL PHONES
Use of cell phones and other devices by driver:
WARNING: Use of any electrical devices such as cell phones,
computers, portable radios, vehicle navigation or other devices
by the driver while the vehicle is moving is dangerous. Dialing a
number on a cell phone while driving also ties-up the driver’s
hands. Use of these devices will cause the driver to be
distracted and could lead to a serious accident. If a passenger is
unable to use the device, pull off the right-of-way to a safe area
before use. If use of a cell phone is necessary despite this
warning, use a hands-free system to at least allow the hands
free to drive the vehicle. Never use a cell phone or other
electrical device while the vehicle is moving and, instead,
concentrate on the full-time job of driving.
In addition, the gasoline distributors are warning against using
cell phones during refueling procedures, due to their increased
concern about static electricity fires in the self-service pump
environment.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
276

A
ABS (see Brakes) .....................164
Accessory delay ..........................50
Air cleaner filter ...............267, 269
Air conditioning
manual heating and air
conditioning system .................32
Airbag supplemental restraint
system ..........................95, 104, 107
and child safety seats ..............97
description ................95, 104, 107
disposal ....................................111
driver airbag ..............97, 105, 108
indicator light .........104, 106, 110
operation ...................97, 105, 108
passenger airbag .......97, 105, 108
side airbag ...............................104
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................247
Anti-lock brake system
(see Brakes) ..............................164
Anti-theft system ..................65, 68
arming the system ....................68
disarming a triggered system ..69
triggering ...................................69
Automatic transaxle
fluid, adding ............................264
fluid, checking ........................264
Automatic transmission ............168
driving an automatic
overdrive .................................169
fluid, refill capacities ..............269
Auxiliary power point .................48
Axle
refill capacities ........................269
B
Battery .......................................245acid, treating emergencies .....245
jumping a disabled battery ....204
maintenance-free ....................245
servicing ..................................245
BeltMinder ...................................90
Brakes ........................................163
anti-lock ...................................164
anti-lock brake system (ABS)
warning light ...........................165
fluid, checking and adding ....264
fluid, refill capacities ..............269
parking ....................................165
shift interlock ..........................168
Break-in period .............................6
Bulbs ............................................39
C
Capacities for refilling fluids ....269
Cargo area shade ........................56
Cell phone warning ...................276
Child safety restraints ..............111
child safety belts ....................111
Child safety seats ......................115
attaching with tether straps ..119
Cleaning your vehicle
engine compartment ..............224
instrument panel ....................226
interior .....................................227
interior trim ............................227
Mazda car care products .......228
plastic parts ............................225
washing ....................................223
waxing .....................................223
wheels ......................................224
wiper blades ............................226
Climate control (see Air
conditioning or Heating) ............32
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Index
277

Clock adjust
6-CD in dash .............................26
AM/FM/CD .................................21
Clutch
fluid ..........................................264
operation while driving ..........172
recommended shift speeds ....174
Console ........................................47
overhead ....................................47
Controls
power seat .................................72
Coolant
checking and adding ..............247
refill capacities ................251, 269
Cruise control .............................51
Cruise control
(see Speed control) ....................51
Customer
Assistance ..................212–213, 215
D
Daytime running lamps
(see Lamps) ................................35
Dipstick
automatic transmission
fluid ..........................................264
engine oil .................................241
Door locks ...................................58
Driving under special
conditions ..................172, 178, 181
sand .........................................179
snow and ice ...........................182
through water .................180, 183
E
Emergencies, roadside
jump-starting ..........................204Emission control system ..........261
Engine ........................................271
cleaning ...................................224
coolant .....................................247
fail-safe cooling .......................252
idle speed control ...................245
refill capacities ........................269
service points ..................238–239
Engine block heater .................163
Engine oil ..................................241
checking and adding ..............241
dipstick ....................................241
filter, specifications ................244
recommendations ...................244
refill capacities ........................269
Exhaust fumes ..........................162
F
Fail safe cooling ........................252
Fluid capacities .........................269
Foglamps .....................................35
Four-Wheel Drive vehicles
driving off road ...............176–177
indicator light .........................176
preparing to drive your
vehicle .....................................167
Fuel ............................................253
calculating fuel economy .......258
cap ...........................................256
capacity ...................................269
choosing the right fuel ...........256
comparisons with EPA fuel
economy estimates .................261
detergent in fuel .....................258
filling your vehicle with
fuel ...........................253, 256, 258
filter, specifications ................253
improving fuel economy ........258
octane rating ...................257, 271
quality ......................................257
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Index
278

running out of fuel .................258
safety information relating to
automotive fuels .....................253
Fuses ..................................185–186
G
Gas cap (see Fuel cap) ............256
Gas mileage
(see Fuel economy) .................258
Gauges .........................................19
engine coolant temperature
gauge .........................................21
fuel gauge ..................................21
odometer ...................................21
tachometer ................................21
trip odometer ............................21
H
Hazard flashers .........................184
Head restraints .....................70, 74
Headlamps ...................................34
aiming ........................................36
bulb specifications ....................39
daytime running lights .............35
flash to pass ..............................34
high beam .................................34
replacing bulbs .........................40
turning on and off ....................34
Heating
manual heating and air
conditioning system .................32
Hood ..........................................236
I
Ignition ...............................159, 271
Infant seats
(see Safety seats) .....................115Inspection/maintenance (I/M)
testing ........................................263
Instrument panel
cleaning ...................................226
cluster ........................................14
lighting up panel and
interior .......................................36
location of components ............14
J
Jump-starting your vehicle ......204
K
Keys .............................................66
positions of the ignition .........159
L
Lamps
bulb replacement
specifications chart ..................39
cargo lamps ...............................36
daytime running light ...............35
fog lamps ...................................35
headlamps .................................34
headlamps, flash to pass ..........34
instrument panel, dimming .....36
interior lamps .....................38–39
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................37
Liftgate ........................................55
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........165
Load limits .................................146
Loading instructions .................153
Locks
childproof ..................................60
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Index
279

doors ..........................................58
Lug nuts ....................................203
Luggage rack ...............................57
Lumbar support, seats ...............72
M
Manual transaxle .......................172
fluid, checking and adding ....267
reverse .....................................174
Manual transmission
fluid capacities ........................269
Mirrors ...................................47, 50
fold away ...................................50
heated ........................................51
side view mirrors (power) .......50
Moon roof ....................................54
Motorcraft parts ........................253
O
Octane rating ............................257
Oil (see Engine oil) ..................241
Overdrive ...................................169
Overheating ...............................203
P
Parking .......................................175
Parking brake ............................165
Passenger Occupant
Classification Sensor ...................81
Passive anti-theft system
(PATS) .........................................65
Power distribution box
(see Fuses) ...............................188
Power door locks ........................58Power mirrors .............................50
Power point .................................48
Power Seats .................................72
Power steering ..........................166
fluid, checking and adding ....263
fluid, refill capacity ................269
Power Windows ...........................49
Preparing to drive your
vehicle ........................................167
R
Rear window defroster ...............33
Relays ........................................185
Remote entry system .................60
illuminated entry ................64–65
locking/unlocking doors .....61–62
panic alarm ...............................62
replacement/additional
transmitters ...............................63
replacing the batteries .............62
Roof rack .....................................57
S
Safety Belt Maintenance ............89
Safety belts (see Safety
restraints) ........................79, 83–87
Safety Canopy ...........................105
Safety restraints ..............79, 83–87
belt minder ...............................90
extension assembly ..................89
for adults .............................84–86
for children .............................111
Occupant Classification
Sensor ........................................81
safety belt maintenance ...........89
warning light and chime ..........90
Safety seats for children ..........115
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Index
280
