The airbags inflate and deflate
rapidly upon activation. After airbag
deployment, it is normal to notice a
smoke-like, powdery residue or
smell the burnt propellant. This may
consist of cornstarch, talcum
powder or sodium compounds which
may irritate the skin and eyes, but
none of the residue is toxic.
While the SRS is designed to help
reduce serious injuries, contact with
a deploying airbag may also cause
abrasions, swelling or temporary
hearing loss. Because airbags must
inflate rapidly and with considerable
force, there is the risk of death or
serious injuries such as fractures, facial and eye injuries or internal
injuries, particularly to occupants who are not properly restrained or are
otherwise out of position at the time of airbag deployment. It is
extremely important that occupants be properly restrained as far away
from the airbag module as possible while maintaining vehicle control.
WARNING:Several airbag system components get hot after
inflation. Do not touch them after inflation or you may be
burned.
WARNING: If the airbag and seat belt pretensioners have
deployed, the airbag or seat belt pretensioners will not function
again and must be replaced immediately. If the airbag or seat belt
pretensioners are not replaced, the unrepaired area will increase the
risk of injury in a collision.
The SRS consists of:
• driver and passenger airbag modules (which include the inflators and
airbags),
• seat-mounted side airbags (if equipped). Refer to Seat-mounted
Seat-mounted side airbag system later in this chapter
• one or more impact and safing sensors,
• a readiness light and tone
• diagnostic module
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
111

•and the electrical wiring which connects the components.
• Side curtain airbag system. Refer to Side curtain airbag systemlater
in this chapter.
• Front passenger sensing system. Refer to Front passenger sensing
system later in this chapter.
• “Passenger airbag off” or “pass airbag off” indicator lamp. Refer to
Front passenger sensing system later in this chapter.
• Seat belt pretensioners
The diagnostic module monitors its own internal circuits and the
supplemental airbag electrical system wiring (including the impact
sensors), the system wiring, the airbag system readiness light, the airbag
back up power and the airbag ignitors.
Front passenger sensing system
The front passenger sensing system is designed to meet the regulatory
requirements of Federal Motor Vehicle Safety Standard (FMVSS) 208
and is designed to disable (will not inflate) the front passenger’s frontal
airbag under certain conditions.
The front passenger sensing system works with sensors that are part of
the front passenger’s seat and seat belt. The sensors are designed to
detect the presence of a properly seated occupant and determine if the
front passenger’s frontal airbag should be enabled (may inflate) or
disabled (will not inflate).
The front passenger sensing system will disable (will not inflate) the
front passenger’s frontal airbag if:
• the front passenger seat is unoccupied, or has small/medium objects in
the front seat,
• the system determines that an infant is present in a rear-facing infant
seat that is installed according to the manufacturer’s instructions,
• the system determines that a small child is present in a forward-facing
child restraint that is installed according to the manufacturer’s
instructions,
• the system determines that a small child is present in a booster seat,
• a front passenger takes his/her weight off of the seat for a period of
time,
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
112

For side airbag equipped vehicles, the front passenger sensing system
will turn off the passenger seat side airbag if:
•the seat is empty and seat belt is unbuckled.
The front passenger sensing system
uses a passenger airbag off or
pass airbag off indicator which will
illuminate and stay lit to remind you
that the front passenger frontal airbag is disabled. The indicator lamp is
located in the center stack of the instrument panel just above the air
vents.
Note: The indicator lamp will illuminate for a short period of time when
the ignition is turned to the on position to confirm it is functional.
When the front passenger seat is not occupied (empty seat) or in the
event that the front passenger frontal airbag is enabled (may inflate), the
indicator lamp will be unlit.
The front passenger sensing system is designed to disable (will not
inflate) the front passenger’s frontal airbag when a rear facing infant
seat, a forward-facing child restraint, or a booster seat is detected.
• When the front passenger sensing system disables (will not inflate)
the front passenger frontal airbag, the indicator lamp will illuminate
and stay lit to remind you that the front passenger frontal airbag is
disabled.
• If the child restraint has been installed and the indicator lamp is not
lit, then turn the vehicle off, remove the child restraint from the
vehicle and reinstall the restraint following the child restraint
manufacturer’s instructions.
The front passenger sensing system is designed to enable (may inflate)
the front passenger’s frontal airbag anytime the system senses that a
person of adult size is sitting properly in the front passenger seat.
• When the front passenger sensing system enables the front passenger
frontal airbag (may inflate), the indicator will be unlit and stay unlit.
If a person of adult size is sitting in the front passenger’s seat, but the
passenger airbag off or pass airbag off indicator lamp is lit, it is
possible that the person isn’t sitting properly in the seat. If this happens:
• Turn the vehicle off and ask the person to place the seatback in the
full upright position.
• Have the person sit upright in the seat, centered on the seat cushion,
with the person’s legs comfortably extended.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
113

•Restart the vehicle and have the person remain in this position for
about two minutes. This will allow the system to detect that person
and enable the passenger’s frontal airbag.
• If the indicator lamp remains lit even after this, the person should be
advised to ride in the rear seat, and the system should be taken
promptly to an authorized Mazda dealer for repair before that seat is
occupied again.
Occupant Pass Airbag Off
Indicator LampPassenger Airbag
Empty seat UnlitDisabled
Small child in child
safety seat or booster Lit
Disabled
Small child with seat
belt buckled or
unbuckled Lit
Disabled
Adult UnlitEnabled
WARNING:Even with Advanced Restraints Systems, children
12 and under should be properly restrained in a rear seating
position.
After all occupants have adjusted their seats and put on seat belts, it’s
very important that they continue to sit properly. A properly seated
occupant sits upright, leaning against the seat back, and centered on the
seat cushion, with their feet comfortably extended on the floor. Sitting
improperly can increase the chance of injury in a crash event. For
example, if an occupant slouches, lies down, turns sideways, sits forward,
leans forward or sideways, or puts one or both feet up, the chance of
injury during a crash is greatly increased.
WARNING: Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the front passenger sensing system, resulting
in serious injury or death in a crash.
Always sit upright against your seatback, with your feet on the floor.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
114

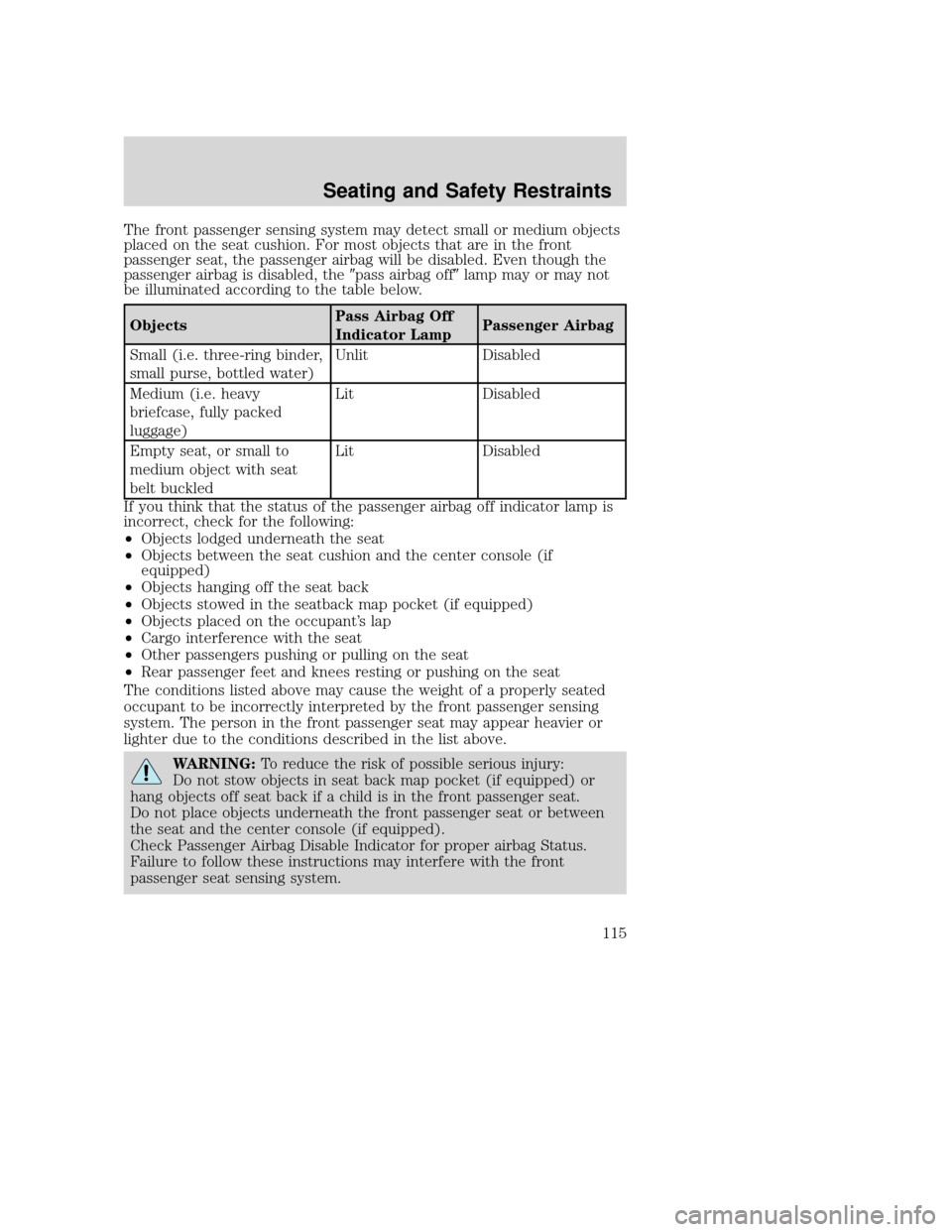

The front passenger sensing system may detect small or medium objects
placed on the seat cushion. For most objects that are in the front
passenger seat, the passenger airbag will be disabled. Even though the
passenger airbag is disabled, thepass airbag offlamp may or may not
be illuminated according to the table below.
Objects Pass Airbag Off
Indicator LampPassenger Airbag
Small (i.e. three-ring binder,
small purse, bottled water) Unlit
Disabled
Medium (i.e. heavy
briefcase, fully packed
luggage) Lit
Disabled
Empty seat, or small to
medium object with seat
belt buckled Lit
Disabled
If you think that the status of the passenger airbag off indicator lamp is
incorrect, check for the following:
• Objects lodged underneath the seat
• Objects between the seat cushion and the center console (if
equipped)
• Objects hanging off the seat back
• Objects stowed in the seatback map pocket (if equipped)
• Objects placed on the occupant’s lap
• Cargo interference with the seat
• Other passengers pushing or pulling on the seat
• Rear passenger feet and knees resting or pushing on the seat
The conditions listed above may cause the weight of a properly seated
occupant to be incorrectly interpreted by the front passenger sensing
system. The person in the front passenger seat may appear heavier or
lighter due to the conditions described in the list above.
WARNING: To reduce the risk of possible serious injury:
Do not stow objects in seat back map pocket (if equipped) or
hang objects off seat back if a child is in the front passenger seat.
Do not place objects underneath the front passenger seat or between
the seat and the center console (if equipped).
Check Passenger Airbag Disable Indicator for proper airbag Status.
Failure to follow these instructions may interfere with the front
passenger seat sensing system.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
115

In case there is a problem with the
front passenger sensing system, the
airbag readiness lamp in the
instrument cluster will stay lit.
If the airbag readiness lamp is lit, do the following:
The driver and/or adult passengers should check for any objects that
may be lodged underneath the front passenger seat or cargo interfering
with the seat.
If objects are lodged and/or cargo is interfering with the seat; please take
the following steps to remove the obstruction:
•Pull the vehicle over.
• Turn the vehicle off.
• Driver and/or adult passengers should check for any objects lodged
underneath the front passenger seat or cargo interfering with the seat.
• Remove the obstruction(s) (if found).
• Restart the vehicle.
• Wait at least 2 minutes and verify that the airbag readiness lamp is no
longer illuminated
• If the airbag readiness lamp remains illuminated, this may or may/not
be a problem due to the front passenger sensing system.
DO NOT attempt to repair or service the system; take your vehicle
immediately to an authorized Mazda dealer. Ask the front seat occupant
to sit in a rear seat until the air bag system if checked by the authorized
Mazda Dealer.
If it is necessary to modify an advanced front airbag system to
accommodate a person with disabilities, contact the Mazda Customer
Relationship Center at the phone number shown in the Customer
Assistance section of this Owner’s Manual.
WARNING:Any alteration/modification to the front passenger
seat may affect the performance of the front passenger sensing
system.
Determining if the system is operational
The SRS uses a readiness light in the instrument cluster or a tone to
indicate the condition of the system. Refer to the Airbag readiness
section in the Instrument Cluster chapter. Routine maintenance of the
airbag is not required.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
116

A malfunction with the system is indicated by one or more of the
following:
•The readiness light will either
flash or stay lit.
• The readiness light will not
illuminate immediately after
ignition is turned on.
• A series of five beep sounds will be heard. The tone pattern will
repeat periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, have the SRS serviced
at your authorized Mazda dealership immediately.
WARNING: Unless serviced, the system may not function
properly in the event of a collision.
Seat-mounted side airbag system (if equipped)
WARNING: Do not place objects or mount equipment on or
near the airbag cover on the side of the seatbacks of the front
seats or in front seat areas that may come into contact with a
deploying airbag. Failure to follow these instructions may increase the
risk of personal injury in the event of a collision.
WARNING: Do not use accessory seat covers or non-Mazda
leather seat upgrade kits. The use of accessory seat covers and
kits may prevent the deployment of the side airbags and increase the
risk of injury in an accident.
WARNING: Do not lean your head on the door. The side airbag
could injure you as it deploys from the side of the seatback.
WARNING: Do not attempt to service, repair, or modify the
airbag SRS, its fuses or the seat cover on a seat containing an
airbag. See an authorized dealer.
WARNING: All occupants of the vehicle should always wear
their seat belts even when an airbag SRS is provided.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
117

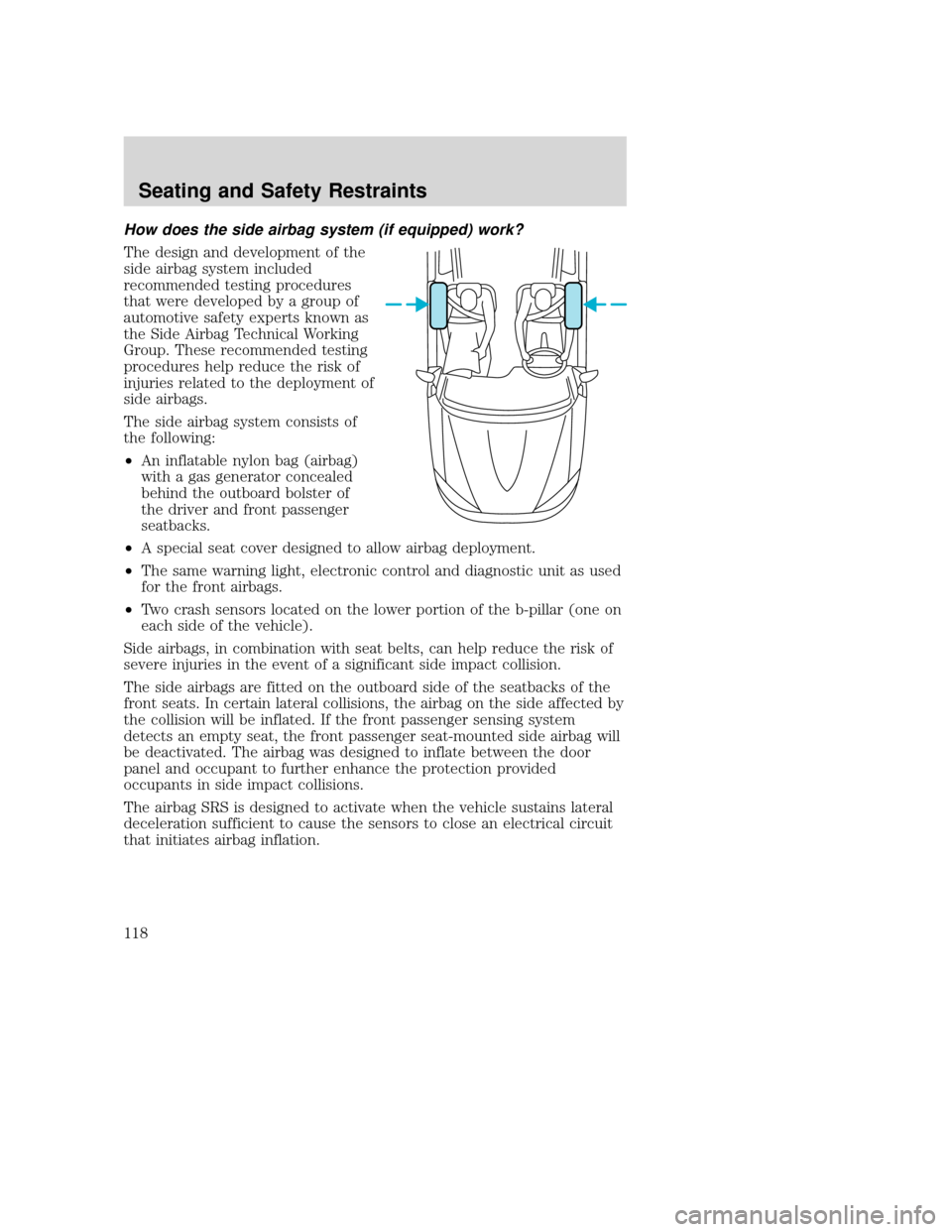

How does the side airbag system (if equipped) work?
The design and development of the
side airbag system included
recommended testing procedures
that were developed by a group of
automotive safety experts known as
the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of
injuries related to the deployment of
side airbags.
The side airbag system consists of
the following:
•An inflatable nylon bag (airbag)
with a gas generator concealed
behind the outboard bolster of
the driver and front passenger
seatbacks.
• A special seat cover designed to allow airbag deployment.
• The same warning light, electronic control and diagnostic unit as used
for the front airbags.
• Two crash sensors located on the lower portion of the b-pillar (one on
each side of the vehicle).
Side airbags, in combination with seat belts, can help reduce the risk of
severe injuries in the event of a significant side impact collision.
The side airbags are fitted on the outboard side of the seatbacks of the
front seats. In certain lateral collisions, the airbag on the side affected by
the collision will be inflated. If the front passenger sensing system
detects an empty seat, the front passenger seat-mounted side airbag will
be deactivated. The airbag was designed to inflate between the door
panel and occupant to further enhance the protection provided
occupants in side impact collisions.
The airbag SRS is designed to activate when the vehicle sustains lateral
deceleration sufficient to cause the sensors to close an electrical circuit
that initiates airbag inflation.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
118

The fact that the airbags did not inflate in a collision does not mean that
something is wrong with the system. Rather, it means the forces were
not of the type sufficient to cause activation. Side airbags are designed
to inflate in side-impact collisions, not roll-over, rear-impact, frontal or
near-frontal collisions, unless the collision causes sufficient lateral
deceleration.
WARNING:Several airbag system components get hot after
inflation. Do not touch them after inflation.
WARNING: If the side
airbag has deployed, the
airbag will not function again. The
side airbag system (including the
seat) must be inspected and
serviced by an authorized dealer.
If the airbag is not replaced, the
unrepaired area will increase the
risk of injury in a collision.
Determining if the side airbags are operational
First determine you have the optional side airbags - locate the “AIRBAG
labels on the outboard sides of the front seats.
The SRS uses a readiness light in the instrument cluster or a tone to
indicate the condition of the system. Refer to the Airbag readiness
section in the Instrument cluster chapter. Routine maintenance of the
side airbag is not required.
A difficulty with the system is indicated by one or more of the following:
• The readiness light (same light as for front airbag system) will either
flash or stay lit.
• The readiness light will not illuminate immediately after ignition is
turned on.
• A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, have the SRS serviced
at an authorized dealer immediately. Unless serviced, the system may not
function properly in the event of a collision.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
119

Side-curtain airbag system (if equipped)
You can easily confirm if your vehicle has side-curtain airbags by looking
inside the vehicle up at the upperBpillar where you will see an
embossed AIRBAG label.
WARNING: Do not place
objects or mount equipment
on or near the headliner at the
siderail that may come into
contact with a deploying
side-curtain airbags (if equipped).
Failure to follow these instructions
may increase the risk of personal
injury in the event of a collision.
WARNING: Do not lean your head on the door or window glass.
The side-curtain airbags (if equipped) could injure you as it
deploys from the headliner.
WARNING: Do not attempt to service, repair, or modify the
side-curtain airbags (if equipped), fuses, the A, B, or C pillar
trim, or the headliner on a vehicle containing side-curtain airbags. See
your authorized Mazda dealer.
WARNING: All occupants of the vehicle including the driver
should always wear their seat belts even when an airbag SRS and
side-curtain airbags (if equipped) are provided.
WARNING: To reduce risk of injury, do not obstruct or place
objects in the deployment path of the inflatable side-curtain
airbags (if equipped).
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
120
